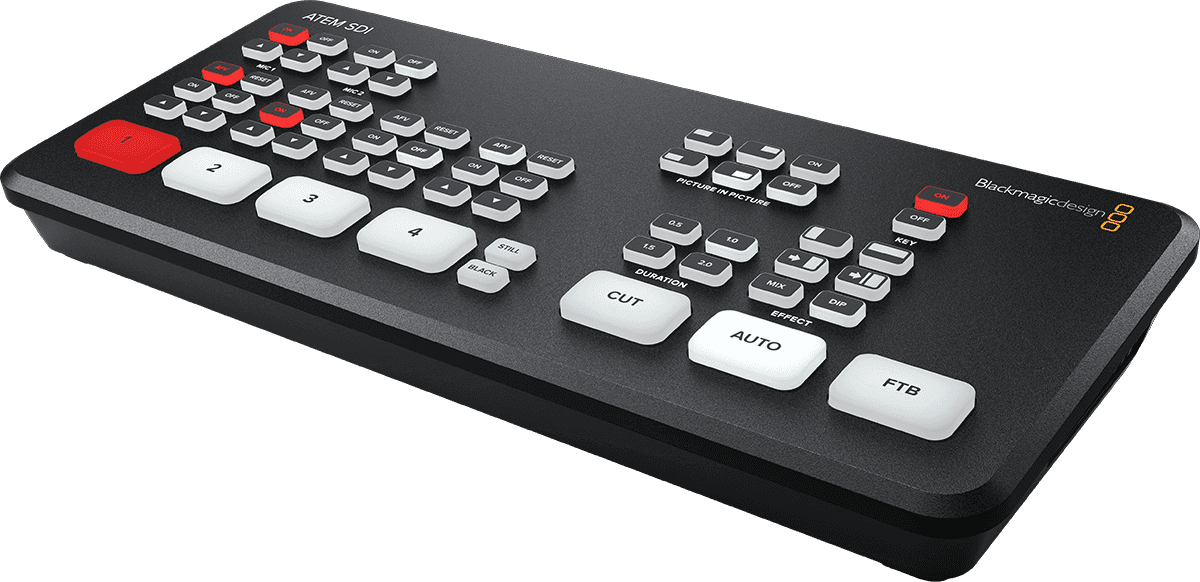

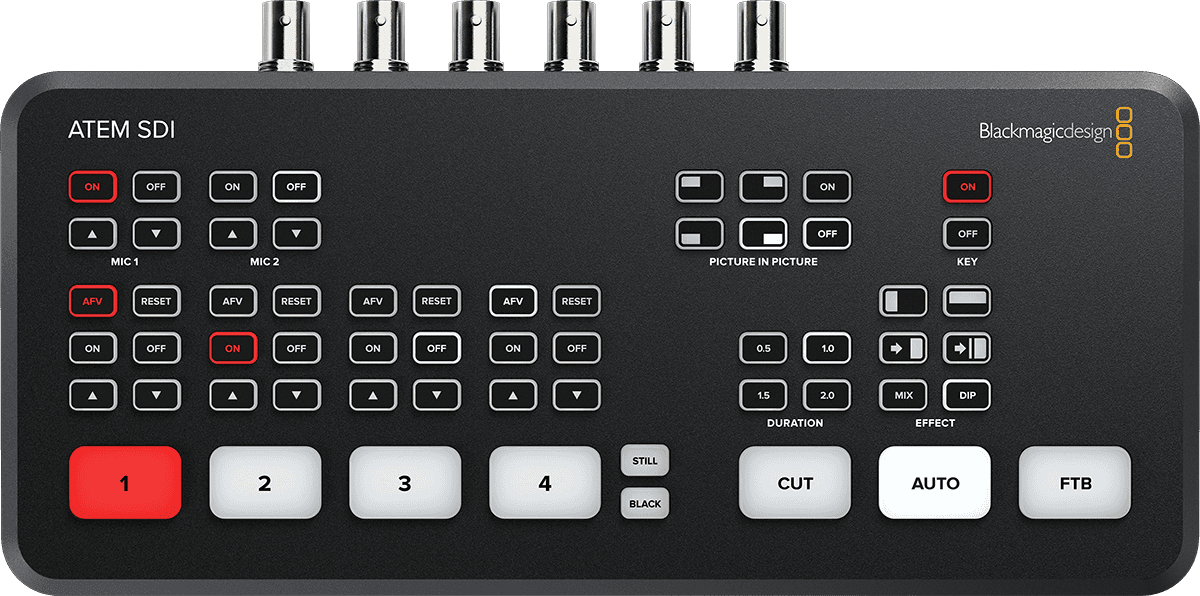

Blackmagic Design Atem SDI
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Blackmagic Design
https://www.blackmagicdesign.com
------------------------
Safety manager:
Email:
Address:
Technical specifications
| Category | mixer | Inputs | 4x SDI |
| Video format | 1080i60 | Ports | USB-C, RJ45 |
| Video processing | 4:2:2 10 bits | Weight | 680 g |
| Outputs | 2x 3G-SDI | Dimensions (mm) | 237 x 119 x 35 |
Questions frequently asked
How many SDI cameras can be connected to the ATEM SDI?
Four 3G-SDI HD 10-bit inputs are available, each with sync and frame rate and format conversion. Two embedded audio channels are supported per input.
Can the switcher output a webcam image for streaming?
The USB-C 2.0 connection provides a webcam output and also allows for software control and updates.
What video resolutions are accepted at input?
Inputs accept signals from 720p up to 60 fps, as well as 1080p from 23.98 to 60 fps and 1080i up to 60 fps. Program and streaming outputs work at 1080p from 23.98 to 60 fps. No Ultra HD format is supported.
Is it possible to use a microphone with this SDI switcher?
Two 3.5 mm stereo mini-jack inputs are provided with mic power on each connection. The Fairlight mixer handles 6 stereo inputs, with a 6-band parametric EQ, compressor, gate, and limiter.
Does the mixer allow green screen keying and picture-in-picture?
An advanced chroma keyer is built-in for green screens. The DVE supports picture-in-picture with borders and drop shadows, while a pattern generator and two color generators complete the composition.
