Blackmagic Design Ultimatte 12 HD Mini

Ultimatte 12 Quality Designed for Compact HDMI Workflows

The Ultimatte 12 HD Mini brings the DNA of the Ultimatte 12 series into a 1U chassis in a one-third rack format, ideal when space in the control room is limited or for mobile installations. Designed for HDMI-oriented environments while maintaining 3G-SDI compatibility, it naturally integrates into a Blackmagic ecosystem, delivering consistent output in SD and HD up to 1080p60.

This "mini" approach does not compromise on quality: 10-bit processing, 4:2:2 sampling, and support for Rec 601 and Rec 709 color spaces preserve fine details (hair, transparencies, edges) and maintain believable skin tones during foreground/background blending.

A Compositing Tool for Live Control Rooms, E-Learning, Streaming, and Hybrid Sets

The Blackmagic Ultimatte 12 HD Mini targets content creators, educational studios, service providers, and live control rooms seeking a reliable, repeatable, and quick-to-set-up green screen keying solution. It simplifies the production of web shows, recorded lessons, music streaming, talk shows, or corporate sets with virtual backgrounds, while remaining suited to live broadcast constraints.

The presence of a dedicated monitoring output and cascade monitoring ensures confident decision-making in real conditions: you can check the keying, mattes, and layers without interrupting the program. Additionally, compatibility with Blackmagic Camera Control and tally (with compatible ATEM cameras and switchers) enhances communication between set and control room and speeds up production pace.

Key Features: Matte Precision, Layer Management, and Network Control

10-bit Processing for Clean Edges and Uniform Image

The 10-bit 4:2:2 processing chain aims for stable compositing, with smoother transitions on edges and better preservation of nuances. Rec 601 / Rec 709 support facilitates color alignment between sources and backgrounds for a more realistic result both live and in recording.

Comprehensive Internal Mattes for Precise Subject Isolation

To manage complex areas (shadows, reflections, screen edges, unwanted elements), the device handles internal mattes and dedicated layers: garbage, holdout, layer, and background. This increases precision in subject isolation and reduces spill, especially on wide shots or highly contrasted backgrounds.

Media Library and Control: A Quick-to-Configure Control Room

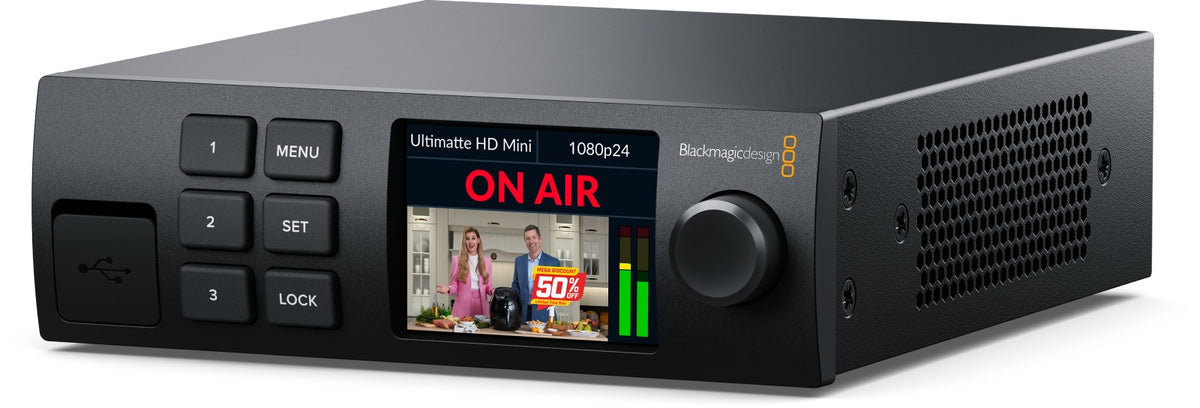

Ethernet connection up to 1 Gb/s allows fast loading of images and backgrounds into the library, while enabling automation (control via Ultimatte Software Control or network protocol). The 2.2-inch color front panel display speeds up on-site setup, while presets and control via USB-C simplify maintenance and updates.

Technical specifications

Type

Digital mixing engine

SDI video inputs	2	Layer	image from media library
SDI video outputs	2	Layer Matte	internal window; image from media library
HDMI video inputs	2	Program (PGM)	1 x HDMI; 1 x 3G-SDI
HDMI video outputs	1	Monitor output 1 x 3G-SDI	Program, FG In, BG In, Combined Matte, Internal Matte, Fill Out, Layer In, Background Matte In, Garbage Matte In, Holdout Matte In, Layer Matte In, Processed Layer Matte, Processed Holdout Matte, Processed Garbage Matte, Processed Background Matte, Screen Correction
Video input synchronization	on all inputs	BG formats	TGA, TIFF, BMP, PNG, JPG
SDI data rates	270 Mb/s, 1.5G, 3G	BG formats with alpha	TGA, TIFF, BMP
Ethernet	up to 1 Gb/s for control and image loading into the library	Layer formats	TGA, TIFF, BMP, PNG, JPG
Computer interface	1 x USB-C 3.0 for configuration and updates	Layer formats with alpha	TGA, TIFF, BMP
Monitor input	1 x 3G-SDI for cascade monitoring	G Matte formats	TIFF, BMP, PNG, JPG
Return input	for camera control	H Matte formats	TIFF, BMP, PNG, JPG
SD	525i59.94 NTSC, 625i50 PAL	Internal memory	6 GB non-volatile storage
HD	720p50/59.94/60; 1080i50/59.94/60; 1080p23.98/24/25/29.97/30/50/59.94/60	Built-in display	2.2-inch color screen for device name, video preview, standards, audio indicators, status, and menus
SDI compliance	SMPTE 259M, 292M, 296M, 424M, 425M level A and B	Front panel	2.2-inch screen, 3 preset buttons, 3 menu buttons, dial
Video sampling	4:2:2	Control	via network or Ethernet on computer with Ultimatte Software Control or Ultimatte Smart Remote 4
Color precision	10 bits	Software control	Ultimatte Software Control (Mac or Windows)
Color space	Rec 601, Rec 709	Hardware control panel	Ultimatte Smart Remote 4
Support for multiple data rates	automatic SD/HD detection	Camera control	Blackmagic Camera Control and tally supported with compatible ATEM cameras and switchers
Foreground (FG)	1 x HDMI input	Custom control	Ethernet protocol included in the Ultimatte user manual
Background (BG)	1 x HDMI input; image from media library	Software updates	via USB-C or Ethernet
Background Matte (BG Matte)	internal window; image from media library	Configuration	IP address adjustable via front panel or Ultimatte Setup utility over USB
Garbage Matte (G Matte)	internal window; image from media library	Operating systems	macOS 13 Ventura, macOS 14 Sonoma or later; Windows 10 64-bit, Windows 11
Holdout Matte (H Matte)	internal window; image from media library
