Blackmagic Design HyperDeck Extreme 4K HDR

Name: HyperDeck Extreme 4K HDR
Brand: Blackmagic Design
SKU: 426008
Price: 3238.00 EUR
Availability: InStock

3.238,00 €VAT incl.

4,70 € Ecotax included

Reference price

Available on order

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 426008

EAN : 9338716007831

This item is covered for 3 years

Information

Essential Information About the Blackmagic HyperDeck Extreme 4K HDR Recorder
• Recording up to 4K60 in H.265 10-bit for UHD HDR masters with broadcast quality and much lighter files.

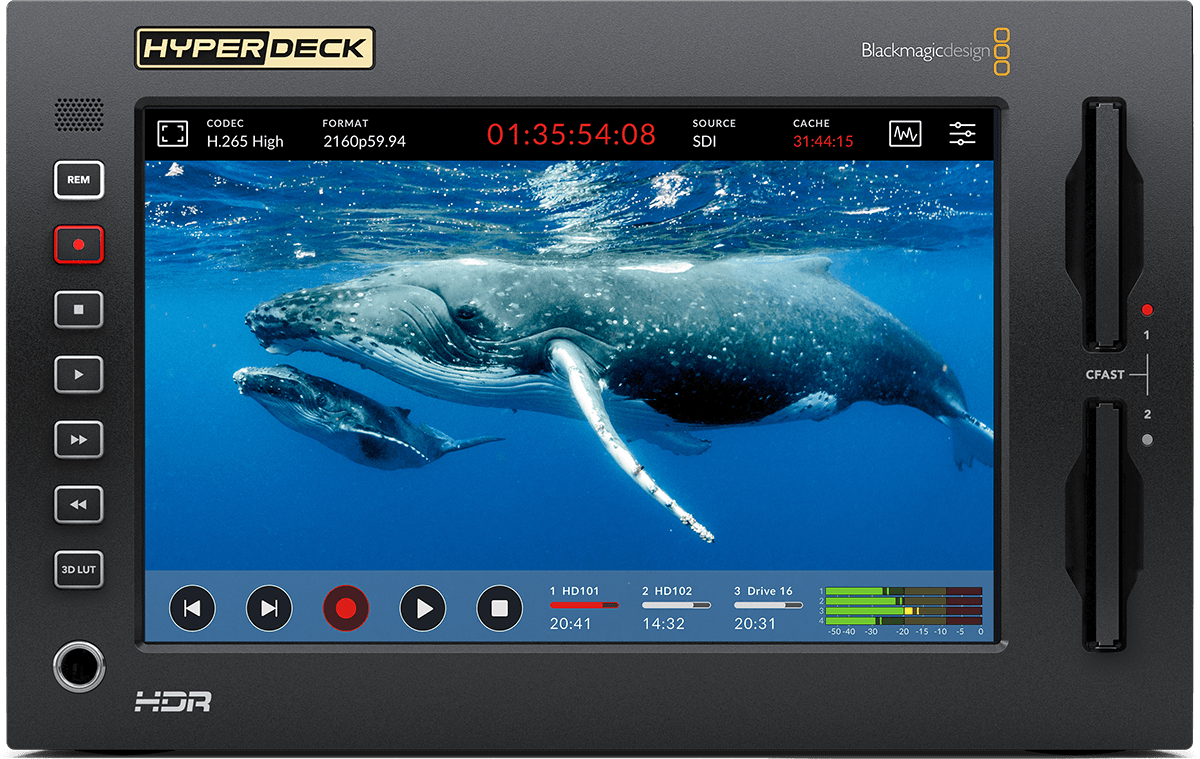

• 7-inch HDR touchscreen (1920 x 1200, 100 percent DCI-P3, 2000 nits) with 33-point 3D LUTs and 10-bit scopes to validate the image directly on set.
• Secure and continuous recording thanks to 2 CFast 2.0 slots, USB-C recording, and an optional internal M.2 NVMe cache (up to 16 Gb/s) designed to absorb bitrate spikes.

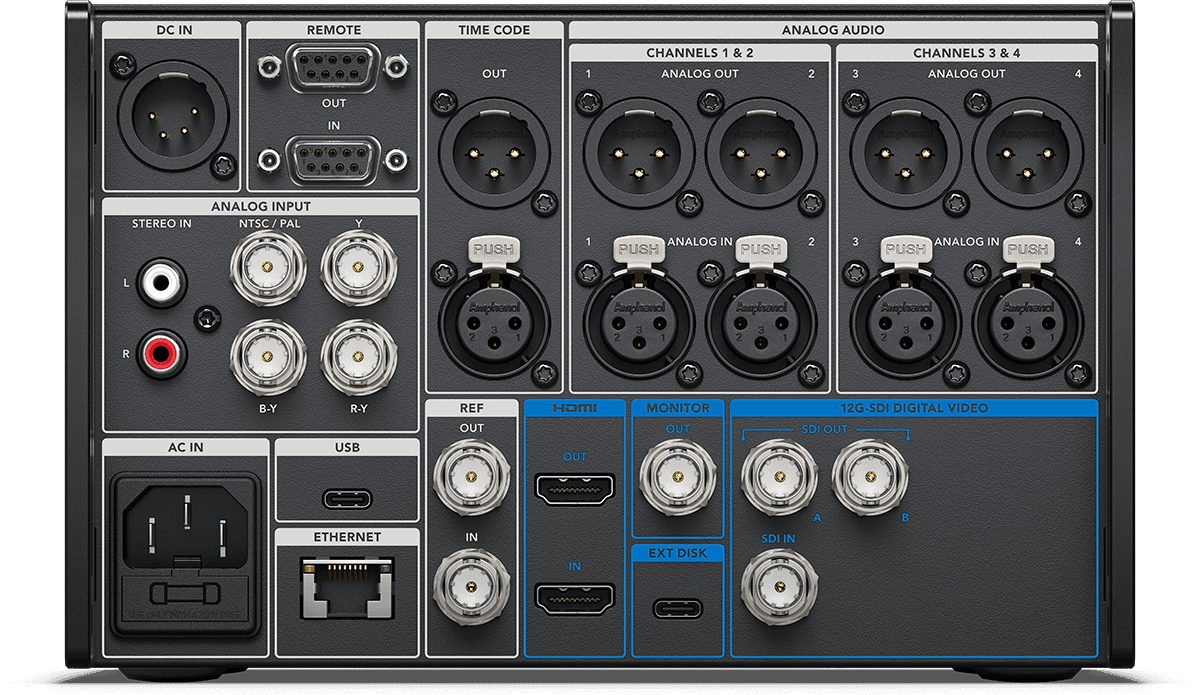

• Comprehensive professional connectivity: 12G-SDI, HDMI 2.0, 10 Gb/s Ethernet, RS-422, XLR timecode, Tri-Sync/Black Burst reference, and advanced integrated monitoring.

HyperDeck Extreme 4K HDR

3.238,00 €VAT incl.

4,70 € Ecotax included

Reference price

HyperDeck Extreme: The HDR-Focused Evolution with Modern Codecs and Faster Offloading

Within the HyperDeck family, this "Extreme 4K HDR" version represents an upgrade designed for demanding shoots and UHD control rooms: introduction of H.265 10-bit encoding, true high-brightness HDR display, and optional NVMe cache integration. While more traditional HyperDeck models focus on recording and playback, this model emphasizes monitoring (LUTs and scopes), reliability during long recordings, and efficiency in storage and transfer.

A Recorder Built for Live Capture, Multicam ISO, and Master Creation

The HyperDeck Extreme 4K HDR targets production and post-production teams needing to capture a program, camera ISOs, or create clean mezzanine files in ProRes, DNx, and HEVC. Whether in a truck control room, UHD multicam studio, control room, or event environment, it integrates easily thanks to RS-422 control, XLR timecode, and triggering via SDI and timecode. For fast workflows, the 10 Gb/s Ethernet and USB-C accelerate offloads, duplication, and media availability.

Technical specifications

Category	portable video recorder	Outputs	2x SDI, Timecode, SDI Ref, SDI Monitor, HDMI
Remote control	RS422	Power supply	100 - 240 V AC - 50/60 Hz, AC Adapter
Max resolution	2160p60	Display	7" color FHD
Storage	Cfast	Weight	3.6 kg
Inputs	SDI, HDMI, SDI Ref, Timecode, XLR	Dimensions (mm)	210 x 334 x 131

Questions frequently asked

Does the Blackmagic Design HyperDeck Extreme 4K HDR record in 4K 60p?

Recording supports a maximum resolution of 2160p60. ProRes, DNx, and 10-bit H.265 codecs are supported for masters and UHD captures.

How many audio channels can be recorded via SDI?

The SDI connection supports up to 64 audio channels input and 64 channels output. Four balanced analog inputs on XLR and two unbalanced RCA inputs complete the audio integration.

Which storage media are compatible with this video recorder?

Two CFast 2.0 slots and one USB-C 3.1 Gen 2 port accept CFast cards and external USB-C flash drives. Media can be formatted in ExFAT or HFS+. An optional M.2 PCIe NVMe slot can serve as a recording cache up to 16 Gb/s.

Is the built-in screen suitable for HDR monitoring on set?

The 7-inch HDR LCD screen displays 1920 x 1200 pixels, covers 100% of DCI-P3, and reaches 2000 nits, with integrated waveform, RGB parade, vectorscope, and histogram.

Can the HyperDeck Extreme 4K HDR be synchronized and controlled from a control room?

Control is provided via RS-422 or the HyperDeck Ethernet protocol over a 10 Gb/s network. Synchronization uses Tri-Sync or Black Burst reference, while timecode has both XLR input and output.
