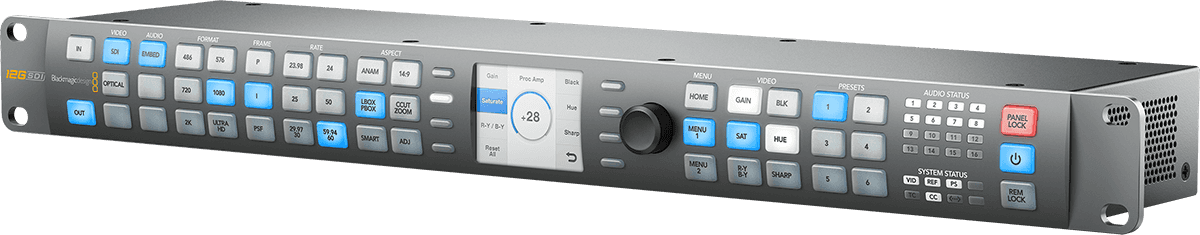

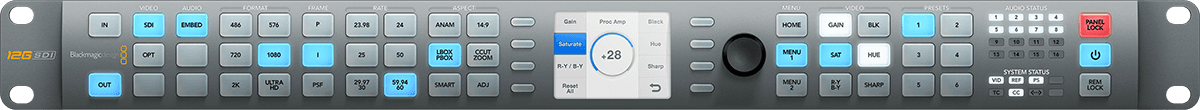

Blackmagic Design Teranex Express

The Teranex Range: Broadcast DNA Serving Standards Conversion

In many workflows, the real challenge is not producing a beautiful image, but making it flow losslessly between cameras, control rooms, recorders, and broadcast systems that do not always speak the same language. Teranex has established itself as a reference solution thanks to real-time conversions designed to meet the demands of studios and broadcasters. The Teranex Express fits this logic: a standards converter focused on reliability, format consistency, and signal integrity, from SD up to Ultra HD.

A Converter Tailored for Control Rooms, Outside Broadcast Trucks, and Post-Production Facilities

The Teranex Express is aimed at teams who must manage heterogeneous sources daily: live production, multi-camera sets, events, corporate, capture, or post-production when media arrives in various frame rates and standards. It becomes a central link to normalize an incoming feed, feed older equipment, secure a monitoring chain, or prepare a "clean" signal for recording and broadcast.
Thanks to its fixed and variable conversions, it allows quick adaptation to whatever arrives at the input, without multiplying devices or complicating the setup. The result: a smoother workflow and fewer surprises at critical moments.

Advanced Video Processing: Clean Conversions, Preserved Details, Controlled Rendering

Up/down/cross-conversion and real-time standards conversion

The Teranex Express supports a wide range of SD, HD, and Ultra HD conversions, with switchable SDI connections according to the standard used. You can convert to route a signal to a mixer, router, recorder, or monitor, while maintaining a coherent and immediately usable image. Support for 3:2 pulldown correction and insertion also facilitates integration of sources from different production chains.

Deinterlacing, noise reduction, and cadence detection

When the source is imperfect (interlaced content, noisy images, "edited" media), the Teranex Express relies on high-quality deinterlacing and noise reduction to preserve maximum detail without introducing artifacts. Automatic frequency detection, edited content removal and correction, as well as scene cut detection improve conversion stability, especially on edited programs.

Frame respect and rendering control

The aspect ratio conversion is adjustable to properly handle framing differences between standards. Going further, the Teranex Express also includes color correction and proc-amp control, useful for quickly harmonizing a signal before broadcast or securing display across a screen fleet.

Multichannel audio, timecode, and Dolby compatibility

Beyond the image, the Teranex Express addresses broadcast needs: multichannel audio conversion and timecode, with preservation of auxiliary data such as closed captions. It handles up to 16 audio channels with remapping support, and a delay up to 1 second to facilitate audio/video alignment. On the Dolby side, it supports Dolby-AC-3 bitstream for all conversions, as well as Dolby E pass-through (except during video frame rate conversions), preserving professional audio streams when the workflow requires it.

Technical specifications

Accessories included	Power cable	Outputs	Optical, 6G-SDI, 12G-SDI
Category	Format Converter	Power supply	100 - 240 V AC - 50/60 Hz
Requires power supply	Yes	Consumption	42 W
Maximum conversion resolution	4K/60	Weight	1.45 kg
Type	Video	Dimensions (mm)	482 x 125 x 44
Inputs	Optical, 6G-SDI, 12G-SDI, Loop 6G, Loop 12G

Power

100 - 240 V, 50 - 60 Hz

Dimensions (W x H x D)

482 x 44 x 125 mm
