Boss EV-1-wl Wireless Expression Pedal

A Milestone in MIDI Expression from BOSS

With the EV-1-WL, BOSS delivers the first MIDI expression pedal designed for reliable and simple wireless control. It stands as the modern solution for real-time parameter control needs, from guitar synths to racks and workstations, while remaining compact on a pedalboard.

For Guitarists, Keyboardists, and Mobile Creators

Whether you play blues, rock, metal, or ambient, the EV-1-WL integrates into a pedalboard, keyboard setup, or hybrid DAW rig. Live, it controls volume, wah, filters, effect morphing, or patch changes. In the studio, it offers precise CC control of virtual instruments and software, from sound design to take automation.

Triple Connectivity and Sharp Control

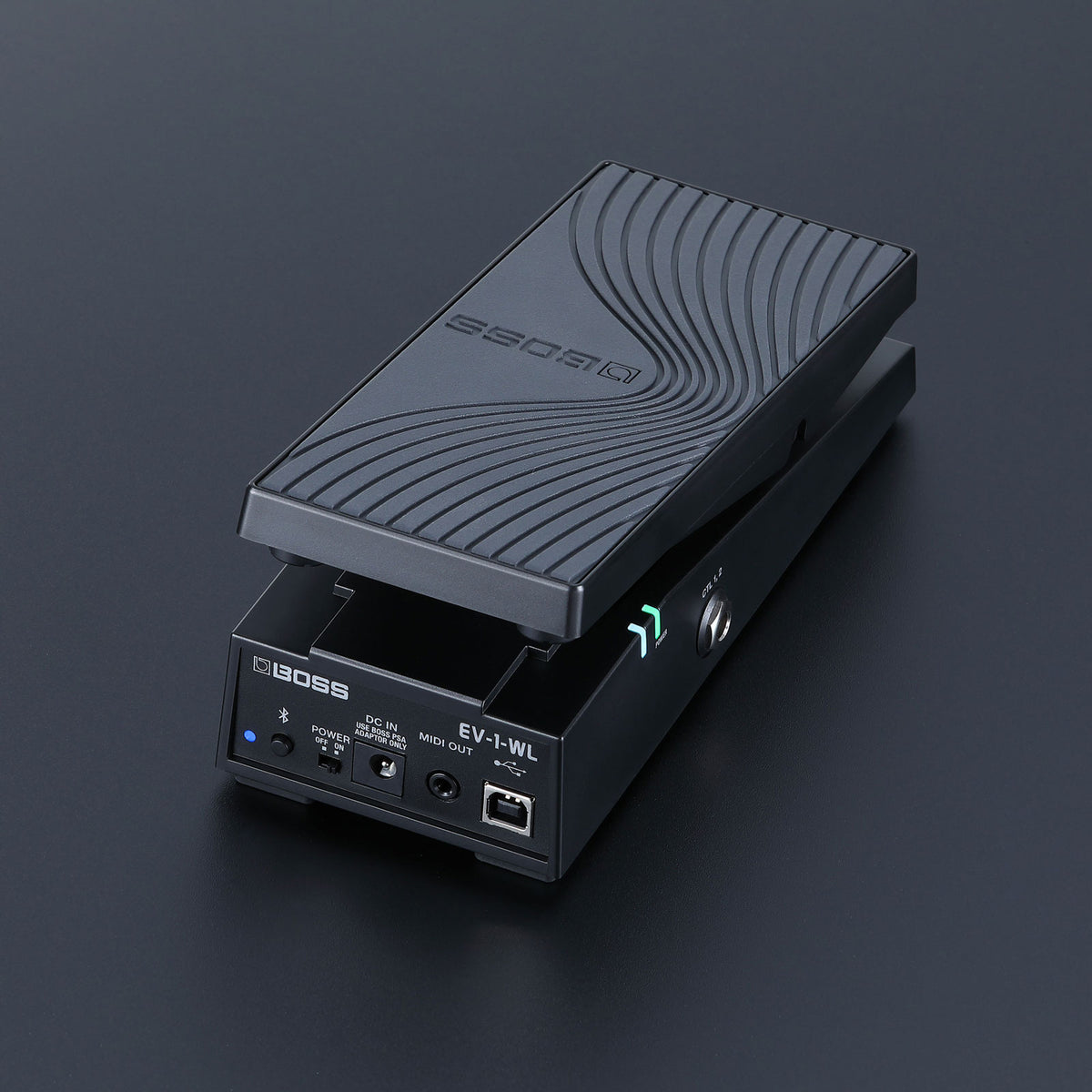

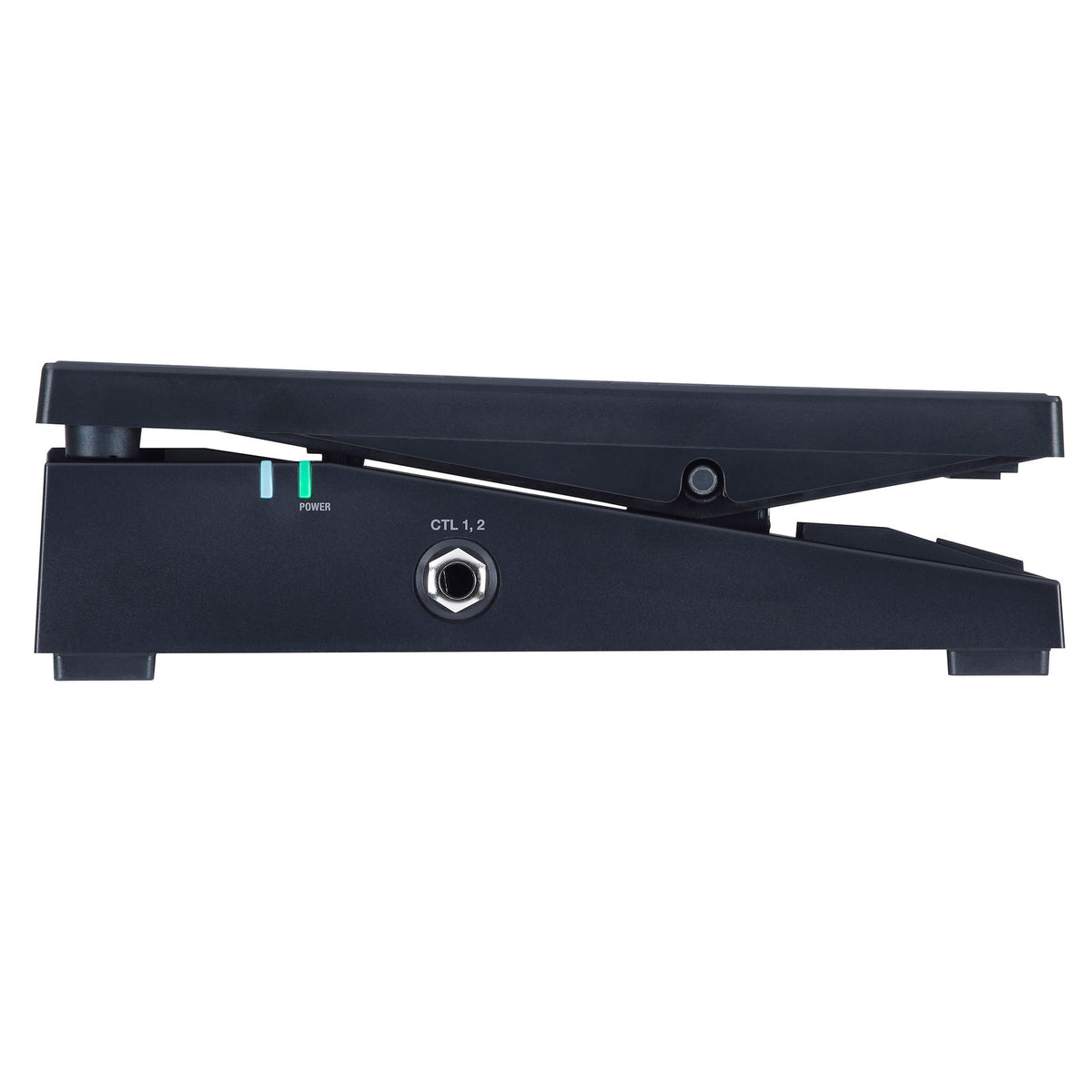

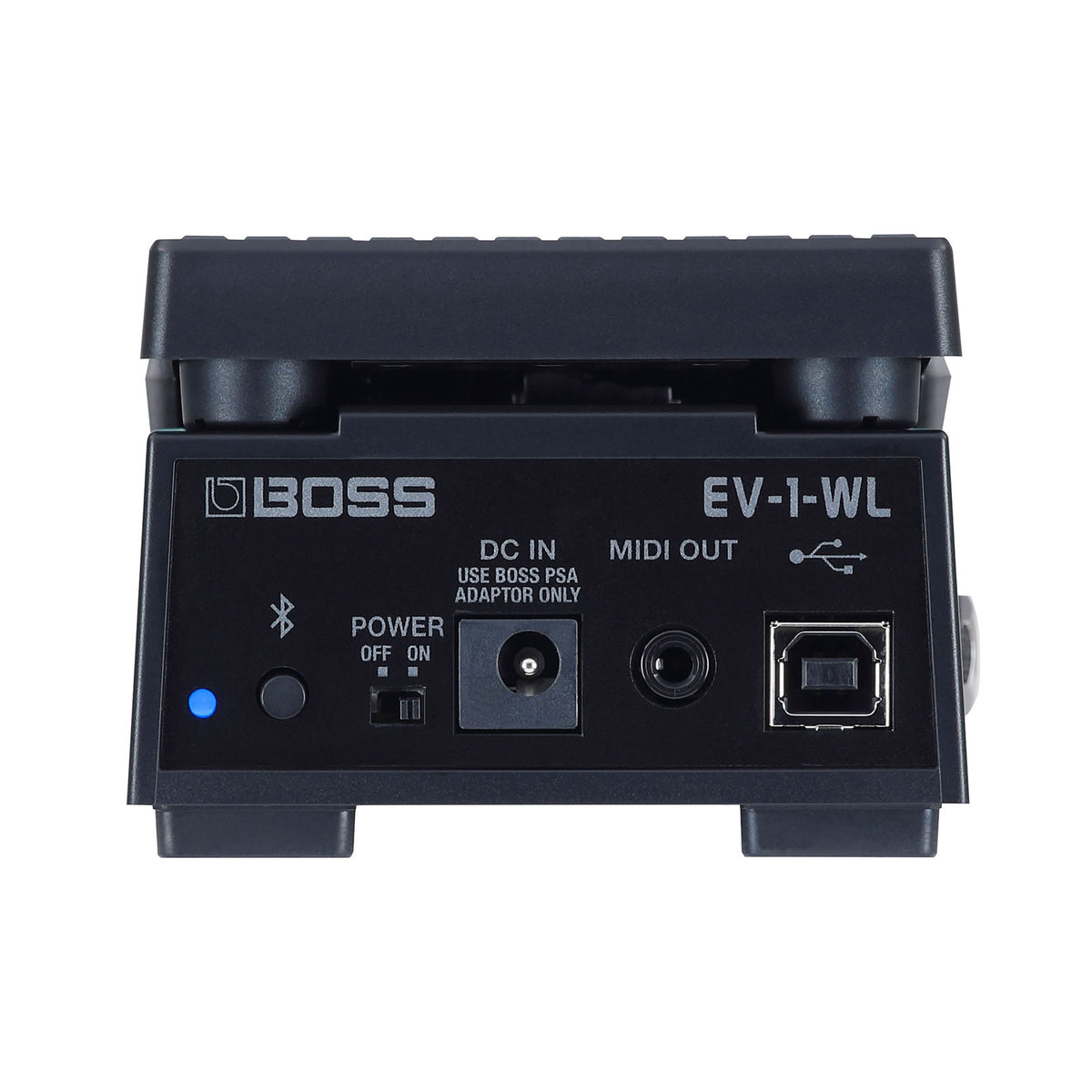

Bluetooth for freedom of movement, USB class compliant for Mac/PC Plug & Play, and TRS MIDI for modern pedals and processors (or 5-pin DIN via BMIDI-5-35 cable). The built-in switch, two external footswitch inputs, and dual-sided LED indicators simplify even the densest stage setups.

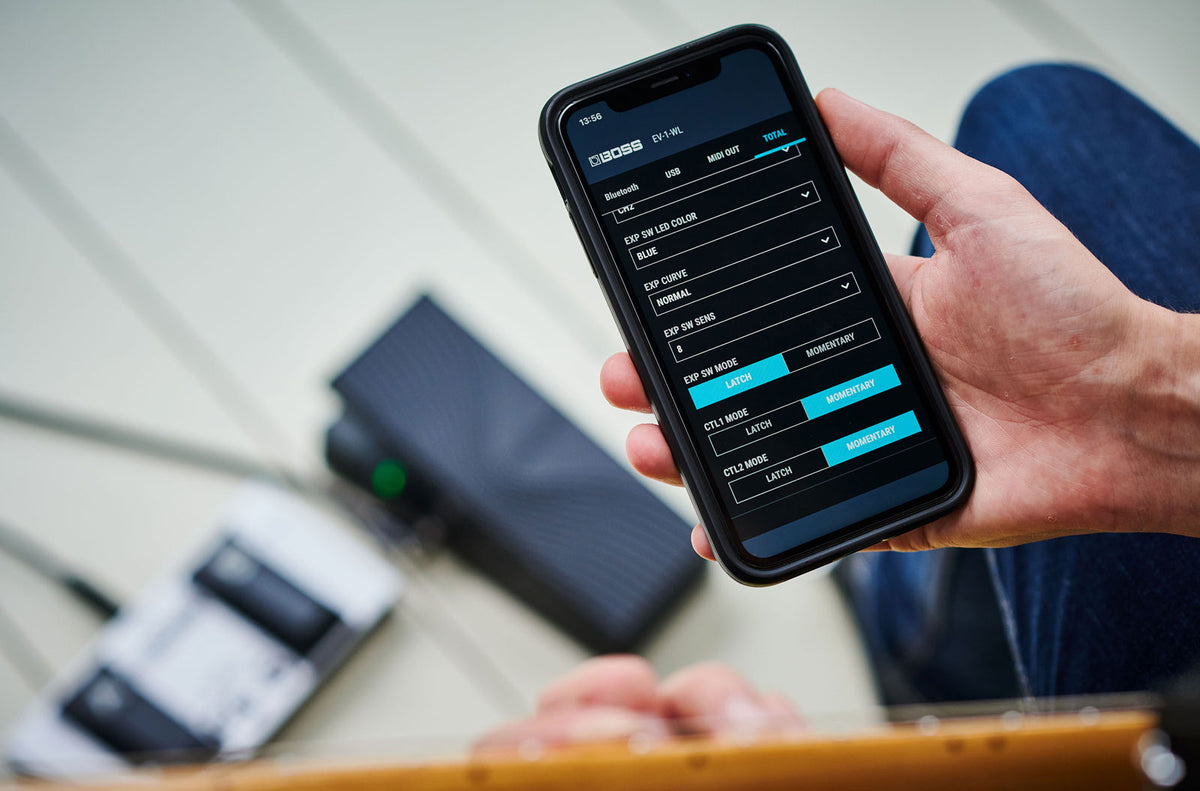

From the EV-1-WL Editor app, assign your CCs, choose the response curve ("Normal," "Slow1," "Slow2," "Fast"), set the switch mode ("Latch"/"Momentary"), and define distinct setups for each connection type, usable in parallel.

The Sound

Transparent by nature, the EV-1-WL preserves the character of your instruments and effects. Its smooth travel and adjustable curves provide a progressive and musical response, ideal for expressive wah sweeps, natural volume crescendos, or crisp filter openings, with precise foot feel and low latency.

Technical specifications

Effects	Volume / Expression	Use	electric guitar
Format	Pedal	Color	Black
Type	sector

Wireless connection	Bluetooth MIDI for controlling compatible devices.	Simultaneous connections	Bluetooth, USB and TRS with independent settings.
USB connection	class compliant, Mac/PC, Plug & Play operation.	BOSS products	EURUS GS-1, Waza-Air, Katana-Air, 200-series effects, RC-5/RC-500 Loop Stations.
MIDI output	compact TRS; 5-pin DIN compatibility via BMIDI-5-35 cable.	Wireless MIDI adapters	Roland WM-1 and WM-1D.
Inputs for external footswitches	2 (BOSS FS type).	Compatible applications	music apps compatible with Control Change, amp/effects simulators and virtual instruments.
MIDI channel	1 to 16.	Power sources	two AA batteries or BOSS PSA AC adapter (9 V DC).
Assignable CCs	ranges 1-31 and 64-95 (values 0-127).	Included accessories	documentation and quick start guide.
Response curves	" Normal ", " Slow1 ", " Slow2 ", " Fast ".	Voltage and power sources	9 V DC (via PSA adapter) or 2 x AA.
Switch modes	" Latch " or " Momentary ".	Typical power consumption	not provided by the manufacturer at the time of writing.
