Boss FZ-1W Vintage Fuzz Waza Craft

A Vintage Fuzz Reinvented in the Waza Craft Spirit

Fuzz is one of the very first saturation effects that revolutionized the electric guitar in the 1960s, with its proud, aggressive, and instantly recognizable grain. With the FZ-1W, BOSS doesn't just "clone" an old circuit: the brand offers a modern interpretation of vintage fuzz, fueled by experience gained from analyzing numerous historic pedals and the high standards of the Waza Craft line. The result: the retro character is definitely there, but with coherence and reliability worthy of current use (studio, touring, loaded pedalboard).

Who Is It For, and In Which Styles?

The BOSS FZ-1W is aimed both at guitarists discovering fuzz and vintage texture enthusiasts. Its Vintage mode will delight fans of 60's/70's rock, garage, blues rock, psychedelic, and anyone who likes to "drive" the saturation with the guitar's volume. The Modern mode, denser and tighter in the mids, adapts very well to alternative, stoner, grunge, shoegaze, modern pop/rock genres, and solos that require generous sustain.

On stage, it remains clear and consistent from one gig to another; in the home studio, it allows easy layering of takes without surprises. And if you already use an overdrive or a crunchy amp, the FZ-1W can also become an excellent boost pedal to push the input stage.

Controls, Modes, and Design: Simple but Deadly Effective

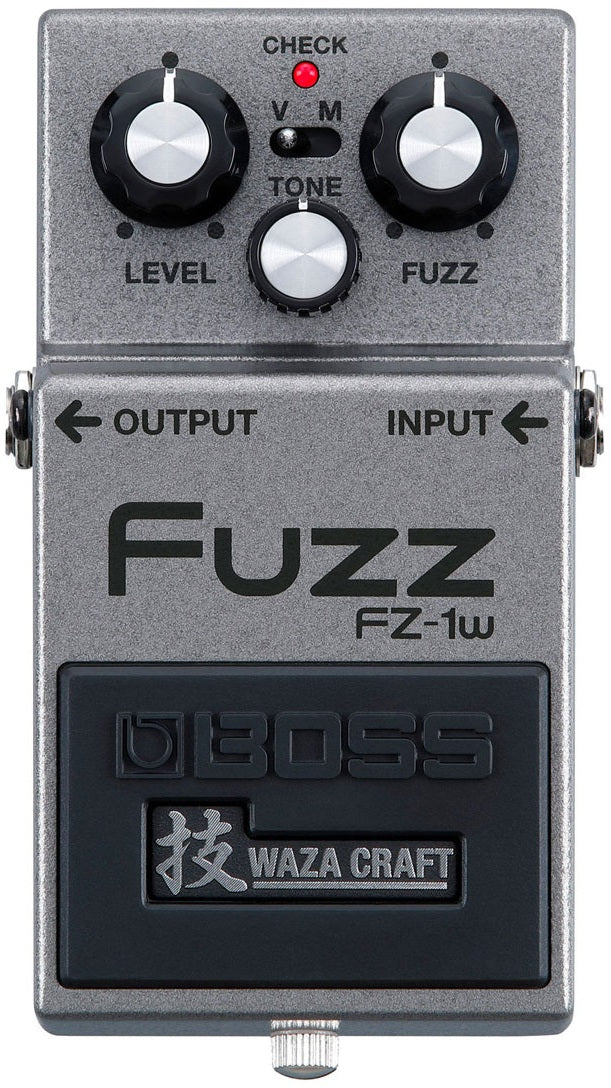

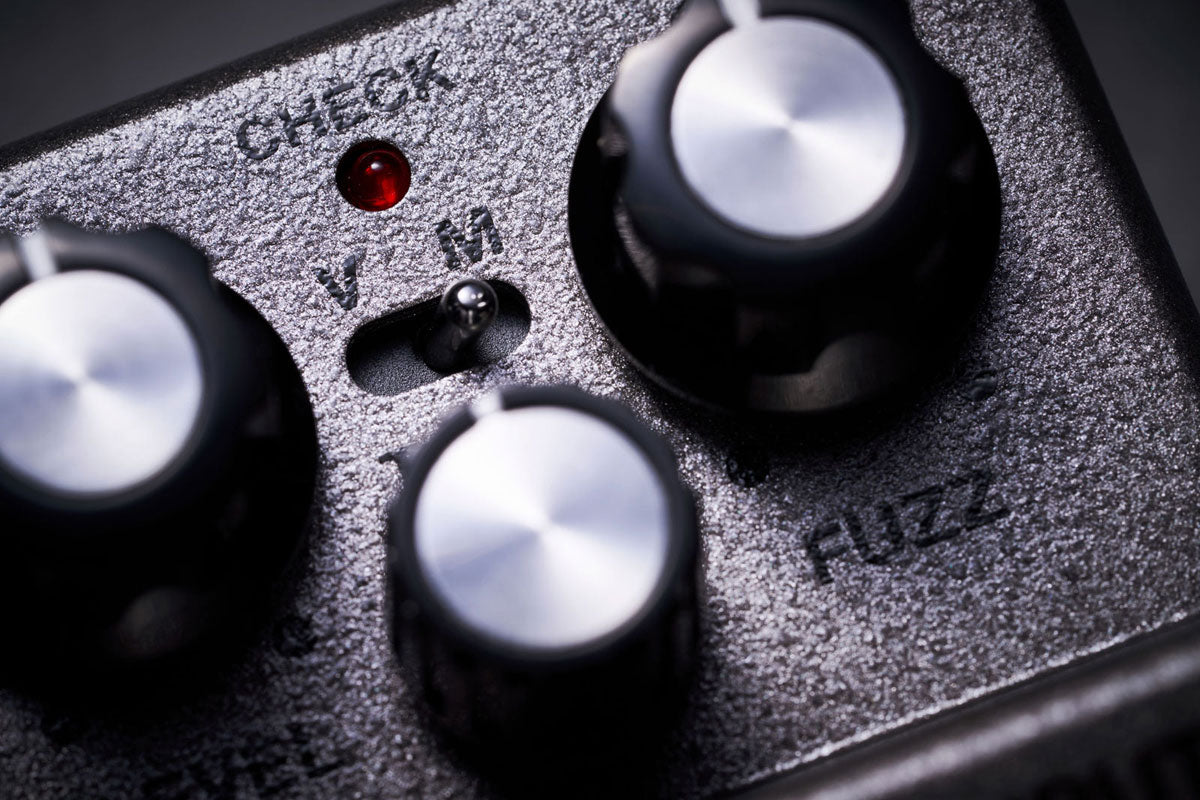

The FZ-1W goes straight to the point with typical BOSS ergonomics: a robust footswitch and three potentiometers FUZZ, TONE, and LEVEL, complemented by a mode selector (Vintage/Modern). The FUZZ control sets the amount of saturation and sustain; LEVEL adjusts the output volume to balance or push the amp; and TONE offers real sculpting work, with an action designed differently depending on the mode to remain musical.

On the design side, BOSS relies on a silicon transistor circuit to ensure stable and reproducible response, less sensitive to temperature or power supply variations. The built-in premium buffer helps maintain a clear signal in bypass, a crucial point when using long cables or multiple pedals on the pedalboard.

Sound Character

In Vintage mode, you get a snappy attack, a rough but controlled grain, and a very "alive" feel under the fingers: the pick, guitar volume, and playing intensity genuinely change the texture. It's the ideal mode to switch from thick fuzz to biting crunch, or even clearer sounds, without touching the pedal's settings.

In Modern mode, the fuzz becomes fatter, denser, with tighter mids that help the guitar stand out in a busy mix. Pushing FUZZ extends the sustain and makes it very singing for leads. In both cases, the FZ-1W maintains usable dynamics and a confident personality: an expressive fuzz, but designed for today's demands (precision, low noise, easy integration).

Technical specifications

Effects	Fuzz	Type	sector
Format	Pedal	Use	electric guitar
EQ	Yes	Color	Grey

Nominal Input Level	-20 dBu	INPUT jack	6.35 mm
Input Impedance	1 M ohm (effect off), 22 k ohms (effect on)	OUTPUT jack	6.35 mm
Nominal Output Level	-20 dBu	AC adapter (PSA series	sold separately)
Output Impedance	1 k ohm	Required Voltage	9 V
Recommended Load Impedance	10 k ohms or higher	Current Consumption	16 mA
Reference	0 dBu = 0.775 Vrms	Expected Battery Life in Continuous Use (varies with conditions)	alkaline approx. 33 hours, carbon approx. 14 hours
Indicator	CHECK (also serves as battery check indicator)
