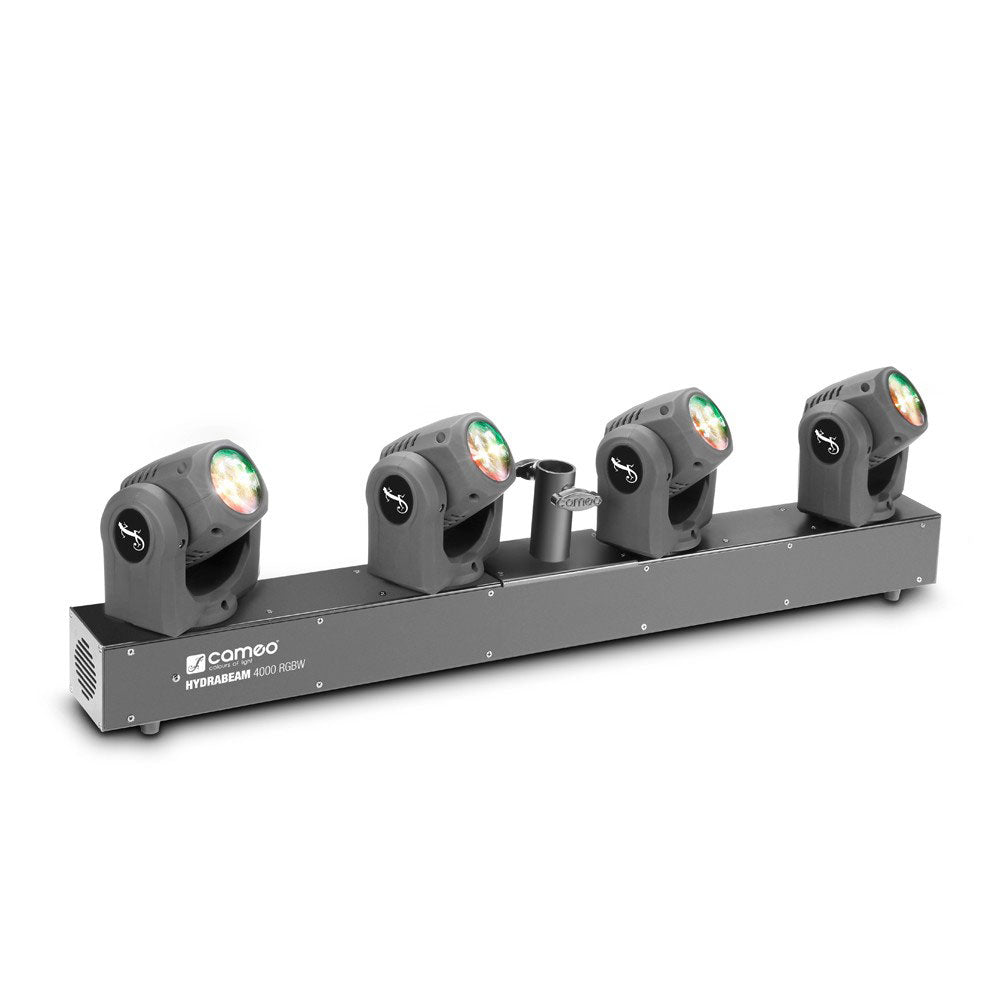

Cameo HYDRABEAM 4000 RGBW - LIGHTING SYSTEM WITH 4 MOVING HEADS AT 32W RGBW LED QUAD HIGH-SPEED
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Cameo
https://www.adamhall.com
info@adamhall.com
------------------------
Safety manager:
Adam Hall GmbH
Email: info@adamhall.com
Address:
Ideal for stage, club, and events
The Cameo Hydrabeam 4000 excels wherever visual impact matters: live stage, club, bar, wedding/event, DJ nights, and theater. Its tight "beam"-type beams carve the space, while internal programs ensure a dynamic show without a console, and DMX allows fine lighting design for both fixed and mobile installations.
Designed for professionals... and accessible to providers
Mobile DJs, lighting technicians, venue operators, or integrators will appreciate its versatility and quick setup. The 4-button color LCD screen simplifies configuration, and the compact bar easily fits on truss, totem, gantry, or pole for a clean and reliable rig.
Features and innovations
Each head houses a 32 W RGBW Quad LED for smooth color mixing and high intensity (up to 67200 lx @ 1 m in white). The 2.5deg beam creates sharp light peaks, enhanced by a high-speed strobe (1 to 20 Hz) and smooth dimmer. Control offers multiple DMX configurations, sound activation, and 16 auto-run programs. The 3/5-pin DMX connectors and Power Twist sockets enable clean daisy-chaining, while the silent fan preserves the atmosphere of performances.
Technical specifications
| Spotlight type | Motorized bar |
| Color | Black |
| Type | LED Moving Heads |
| Color Spectrum | RGBW |
| Number of LEDs | 4 |
| LED Type | 32 W |
| Average LED Lifespan | 50,000 hours |
| Refresh Rate | 6000 Hz |
| Beam Angle | 2.5deg |
| Luminous Flux | blue 9600 lx @ 1 m, green 42400 lx @ 1 m, red 17900 lx @ 1 m, white 67200 lx @ 1 m |
| PAN Movement | 540deg |
| TILT Movement | 270deg |
| High-frequency Strobe | 1 - 20 Hz |
| DMX Functions | Colour Change, Dimmer, PAN, Auto Programs, Strobe, TILT |
| Protocols | USITT DMX-512 |
| DMX Modes | 6 channels, 10 channels, 19 channels, 32 channels |
| Standalone Modes | Auto Run, Sound Control |
| Settings | LCD screen, Enter, Mode, Value Down, Value Up |
| Indicators | Color LCD screen |
| RDM | No |
| Wireless DMX | No |
| DMX Input | 3-pin male XLR connector, 5-pin male XLR connector |
| DMX Output | 3-pin female XLR connector, 5-pin female XLR connector |
| Power Socket | blue Power Twist male |
| Power Connector | grey Power Twist female |
| Daisy-Chaining | DMX and power via Power Twist |
| Mains Voltage | 100 - 240 V, 50 - 60 Hz |
| Power Consumption | 220 W |
| Maximum Output Current | 11 A |
| Chainable Units (110 V) | 3 |
| Chainable Units (240 V) | 5 |
| Housing Material | Metal, ABS plastic |
| Housing Color | Black |
| IP Rating | IP20 |
| Cooling | Silent fan |
| Maximum Operating Temperature | 0 - 40 degC |
| Width | 90 mm |
| Height | 270 mm |
| Depth | 1000 mm |
| Weight | 11.6 kg |
| Mounting Options | Universal (truss, totem, gantry, pole) |
| Included Accessories | 2 Omega brackets and pole mounting adapter |
| Bar | 100 cm (3.28 ft) with 4 individually adjustable moving heads |
Questions frequently asked
Is the Cameo Hydrabeam 4000 RGBW suitable for a stage or a club?
Its four 32 W Quad RGBW LED heads produce 2.5° beams, suitable for beam effects on stage, in clubs, or at events. The white light output reaches 67,200 lx at 1 m.
What DMX modes are available on this motorized bar?
USITT DMX-512 control is offered in 6, 10, 19, or 32 channels. Parameters include PAN, TILT, dimmer, strobe, and color change. The 3-pin and 5-pin DMX connectors allow integration into various installations.
Can the bar be used without a DMX controller?
16 internal programs are available in Auto Run or Sound Control mode, adjustable via the four-button color LCD screen.
What is the movement range of the Hydrabeam 4000 heads?
Each head covers a PAN of 540° and a TILT of 270°. The strobe frequency is adjustable from 1 to 20 Hz.
How many Hydrabeam 4000 units can be daisy-chained on mains power?
Power daisy-chaining is done via Power Twist connectors. Up to 5 units can be chained at 240 V, and up to 3 units at 110 V. The specified power consumption is 220 W.
