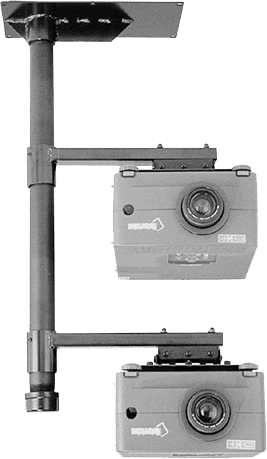

A Solution Designed for Fixed Installations and Dual Projector Configurations
This ceiling mount is designed to meet the needs of permanent installations where two projectors are to be stacked. It fits particularly well in demanding environments (equipped rooms, broadcast venues, event installations) where ceiling space is limited and mounting reliability is essential.
Who Is It For and What Is It Used For?
This product is intended for integrators, technicians, and venue managers looking to set up a dual projector configuration: redundancy to secure a broadcast, quick switching between two systems, or dual setups depending on events. The stacked mounting allows for a clean installation while maintaining a clear and professional setup logic.
Stacked Mounting: Easy Integration and Space Optimization
The stacking principle facilitates the installation of two projectors at the same ceiling attachment point. This provides better space management without multiplying attachment points.
To Be Provided: Projector Mounting Plate
The mount is delivered without a projector mounting plate. To complete the installation, it is necessary to add a compatible plate, notably RPAU or RPMAU, to ensure a proper fit for your projector model.
Technical specifications
| Category | projector | Pitch (± degree) | 12 |
| Max load | 45 kg | Color | Black |
| Yaw (degrees) | 25 | Weight | 7.76 kg |
| Roll (± degree) | 4 | Dimensions (mm) | 2 781x330x305 mm |
| Capacity | 45.5 kg | ||
Questions frequently asked
Does the Chief Support Plafond 2 VP allow mounting two projectors?
The stacked mounting is designed to install two projectors on the same ceiling attachment point.
Which plate should be added to attach the projectors?
The RPAU or RPMAU plates are recommended to complete the mounting, as the bracket is supplied without a projector plate. The plate must be adapted to the projector model used.
What is the maximum load this ceiling bracket can support?
The maximum load specified is 45 kg. A capacity of 45.5 kg is also mentioned in the specifications. The weight of the projectors and mounting components must remain compatible with these values.
What orientation adjustments are available?
Adjustments include a yaw of 25°, a roll of ±4°, and a pitch of ±12°.
What are the dimensions of the double projector bracket?
Its black structure measures 2 781 x 330 x 305 mm and weighs 7.76 kg.
