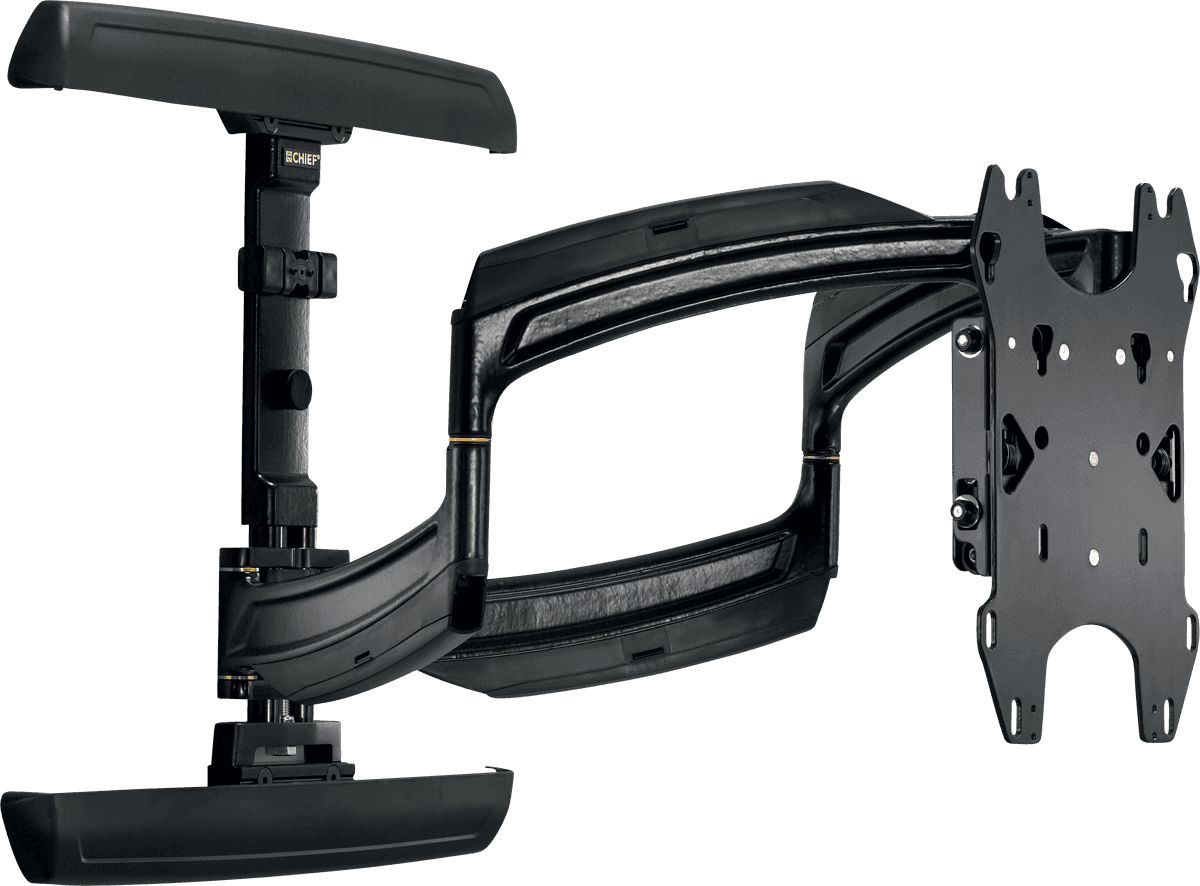

Chief TS525tu

A Wall Mount Designed for Modern Installations, from Living Rooms to Meeting Rooms

This articulated wall mount positions itself as a "practical premium" solution: it combines minimal footprint when folded with great placement flexibility when extended. The goal is clear: to maintain a sleek appearance on the wall daily, while keeping the necessary flexibility to optimize the viewing angle, recenter the screen after installation, and facilitate cable management during setup.

For Which Uses and Screens Is This Mount Intended?

Ideal for a living room TV, home cinema space, meeting room, or digital signage, this mount suits anyone seeking a wall installation that is both discreet and adjustable. It is especially suited for setups where one must accommodate an off-center sofa position, constrained mounting height, or regular access to connectors (power and signals) without removing the screen.

Thanks to its high load capacity, it is suitable for heavy screens while remaining relevant for lighter televisions when a comfortable adjustment range and refined finish are desired.

Adjustments, Ergonomics, and Finishes: What Changes Daily

Ultra-low profile: a more elegant integration

When folded back, the mount reduces the distance to the wall to only 38 mm. This ultra-low profile allows for a clean aesthetic, with the screen visually "resting" on the wall without visible arm effects. This is a major asset for contemporary interiors as well as professional spaces where a discreet installation is expected.

Extension up to 635 mm: more placement freedom

The full extension up to 635 mm optimizes visibility and facilitates adjustments. This extension provides real comfort when the screen needs to be oriented toward different areas (sofa, table, dining corner), or when quick access to ports and connectors on the back of the TV is required.

Centris Tilt: effortless angle adjustment

The low-profile tilt allows the screen to be angled up to 15 degrees to improve the viewing angle and reduce glare. The adjustment is smooth, which is particularly useful after installation when fine-tuning the display according to the actual mounting height and seating position.

Centerless Lateral Shift: simple recentering after installation

The post-installation lateral shift offers adjustment up to 406 mm. In practice, this allows recentering the screen even if wall constraints (studs, cable runs, mounting points) prevent drilling exactly in the ideal spot. The result: a perfectly aligned TV in the room without aesthetic compromise.

Integrated Cable Management: a cleaner installation

The included cable covers mount without tools, and the wide open wall plate facilitates the passage of power and signal cables. The routing is designed to guide cables toward the wall and contribute to a neater finish by limiting visual clutter around the screen.

Technical specifications

Category	flat screen	Finishing	Matt
Max load	56 kg	Weight	25 kg
Color	Black	Dimensions (mm)	800 x 527 x 39

Distance from wall (folded mount)	38 mm	Maximum mounting pattern	800 x 400 mm
Maximum extension	635 mm	Load capacity	56.7 kg
Tilt	up to 15 degrees	Integrated cable management	covers included, tool-free mounting
Post-installation lateral shift	up to 406 mm	Open wall plate	facilitates passage of power and signal cables
Height adjustment	25 mm
