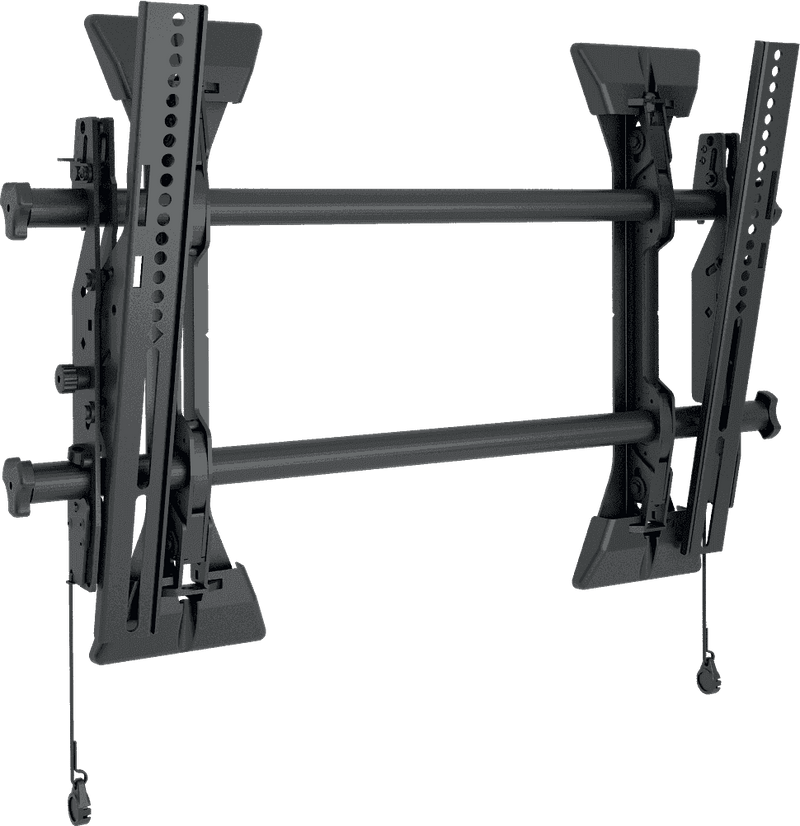

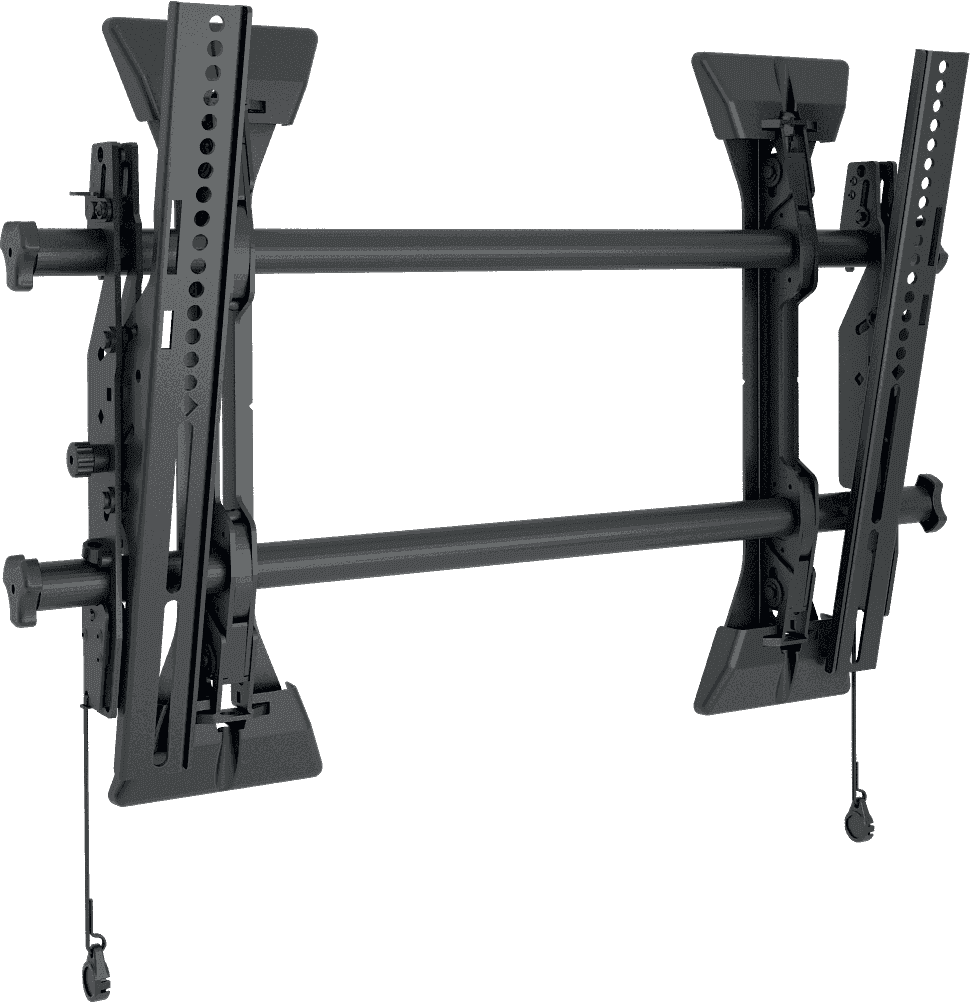

Chief MTM1U-b
Estimated Shipping Widget will be displayed here!
What you need to know
What you need to know
- Micro-adjustment for precise screen alignment (ideal for control rooms, studios, rehearsal rooms, or fixed installations)
- Tilt of +2 degrees / -12 degrees to optimize the viewing angle without repositioning the mount
- Lateral offset up to 327 mm to adjust centering on a wall, stud, or existing structure
- Sturdy and secure with a load capacity of up to 57 kg
Manufacturer Information
Chief
https://www.legrandav.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
A Mount Designed for Demanding Audiovisual Installations
This micro-adjustable screen mount fits within the concept of "clean" and durable setups, aiming to achieve perfectly aligned results from the first installation. Its size accommodates screens from 26 to 47 inches and supports a mounting pattern up to 600 x 400 mm, making it suitable for many display configurations.
Who Is It For, and What Are Its Uses?
Recommended for spaces where the screen must remain stable and well-positioned: recording studios, control rooms, performance halls, rehearsal studios, instrument stores, or classrooms. The micro-adjustment and lateral offset facilitate integration, especially when the location of studs or the room's axis imposes constraints.
Technical specifications
| Category | flat screen | Finishing | Matt |
| Max load | 56 kg | Weight | 8.76 kg |
| Color | Black | Dimensions (mm) | 432 x 654 x 51 |
| Screen size | 26 to 47 inches | Mounting | on a single stud or 16 to 24-inch stud spacing |
| Maximum mounting pattern | 600 x 400 mm | Capacity | 57 kg |
| Tilt | +2 degrees / -12 degrees | Dimensions | W 654 x H 432 x D 51 mm |
| Max. lateral shift | 327 mm | ||
You will also like
Blackmagic Design
Pocket Camera Battery Grip
Chief
RPMAU-w
Euromet
9060
Chief
KITEC030045-w
Elgato
Prompter
Chief
MTTU-b
Chief
RPMAU-b
Chief
Wall mount for flat-screen 400X400
Questions frequently asked
Is the Chief MTM1U-b compatible with a 43-inch screen?
Compatibility covers screens from 26 to 47 inches, including a 43-inch screen. However, the mounting pattern must be less than or equal to 600 x 400 mm.
What is the maximum load capacity of this screen mount?
The specified capacity is 57 kg. A maximum load of 56 kg is also indicated in the specifications.
Can the screen be tilted in a control room or studio?
Tilt adjustment ranges from +2° to -12°. This adjustment helps orient a screen installed at height or facing a workstation.
Does the mount allow lateral shifting of the screen?
A maximum lateral offset of 327 mm allows repositioning the screen along the axis of a stage, desk, or listening point.
What are the dimensions of the Chief wall mount?
The dimensions are 654 mm wide, 432 mm high, and 51 mm deep. The matte black finish complements a discreet audiovisual installation. The mount weighs 8.76 kg.
