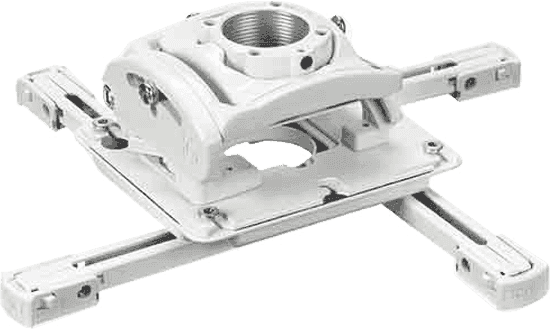

A Mount Designed for Demanding Installations
Designed to save time during installation and maintenance, this mount emphasizes precise adjustment and security. Fine tuning and integrated locking make it a particularly suitable solution for environments where the projector must remain perfectly aligned, even after regular interventions.
Who Is It For and What Are Its Uses?
Ideal for meeting rooms, classrooms, auditoriums, or home cinemas, this mount is aimed at integrators and users who want a clean setup, discreet cable management, and simple adjustments once the projector is in place.
Adjustments, Safety, and Everyday Comfort of Use
MicroZone Adjustments: Immediate Precision
The MicroZone feature allows for fine-tuning the projector's positioning to achieve a well-framed image quickly, including in flush mount configurations.
Centris Technology: Balance and Fingertip Handling
Centris technology facilitates positioning while automatically adjusting to support different projector weights, providing smoother and more reassuring adjustments.
Q-Lock: Simplified Maintenance
The Q-Lock lever enables quick removal of the projector for maintenance while adding a layer of security thanks to the integrated key and lock system.
Technical specifications
| Category | projector | Roll (± degree) | 3 |
| Max load | 22 kg | Color | White |
| Tilt (degrees) | 20 | Weight | 3.3 kg |
| Rotation (degrees) | 360 | Dimensions (mm) | 260 x 260 x 197 |
| Roll | plus or minus 3 degrees | Maximum load | 22.7 kg |
| Pitch | plus or minus 20 degrees | Dimensions (W x H x D) | 165 x 69 x 140 mm |
| Yaw | 360 degrees | ||
Questions frequently asked
What is the maximum load capacity for the Chief RPMAU-w?
The maximum announced load reaches 22.7 kg, with a value of 22 kg also indicated in the specifications.
Does the mount allow precise adjustment of the projector image?
MicroZone adjustments enable fine alignment of the projector. Roll adjusts ±3° and tilt ±20°, allowing for refined image framing.
Can the projector be rotated 360 degrees?
A 360° yaw rotation is provided. Centris technology supports positioning by automatically adapting to different projector weights.
How can the projector be removed for maintenance?
The Q-Lock lever allows quick removal of the projector. An integrated key-and-lock system adds security during installation. This design facilitates regular maintenance operations.
What are the dimensions and color of the mount?
The finish is white and the indicated weight is 3.3 kg. The listed dimensions are 260 x 260 x 197 mm, while a second measurement states 165 x 69 x 140 mm (W x H x D).
