A benchmark in the CopperSound "Substitution Box" range for DIY

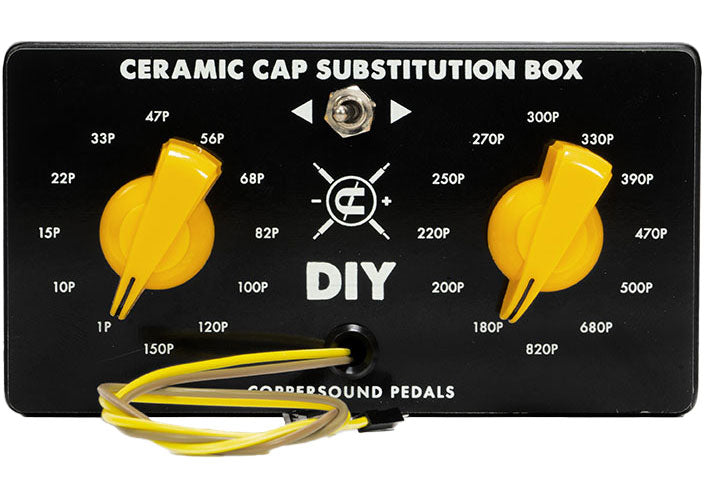

This "Ceramic Capacitor" version is part of the CopperSound substitution box family, designed to help designers select components in real time. Here, the approach is dedicated to ceramic capacitors, useful for quickly fine-tuning values during prototyping.
Who is it for and what are the uses?
Ideal for DIY audio enthusiasts, effects pedal designers, modders, and electronics engineers working on breadboards. It allows rapid iteration on an idea (filters, coupling, signal shaping) and validation of a value before final assembly.
Operating principle: select a value in one gesture
The concept is simple: you insert the wires at the desired points and switch between different ceramic capacitor values to immediately compare the result. This method limits handling, reduces wiring errors, and speeds up testing sessions.
Technical specifications
| Effects | Amp Simulator | Color | Black |
| Use | electric guitar | ||
| Number of values | 24 | Rated voltage | 50 V |
| Value range | 1 pF to 820 pF | ||
Questions frequently asked
What range of capacitance values does this substitution box offer?
The selection covers 24 ceramic capacitor values, from 1 pF to 820 pF. This range allows testing values during prototyping of audio circuits.
Is the CopperSound Substitution Box Ceramic Capacitor suitable for breadboard use?
Wires can be inserted at desired points on a breadboard. The capacitance value is then selected directly on the box without replacing each capacitor.
What rated voltage is specified for the capacitors?
The specified rated voltage is 50 V.
Can ceramic capacitors be used to test pedal filters?
This box is designed to quickly compare ceramic capacitor values in a prototype. It is suitable for testing filters, coupling, and signal shaping. Modders and pedal designers can thus validate a value before final assembly.
How many values are accessible on this Substitution Box?
A switch provides access to 24 capacitance values. Switching between values limits wiring manipulations during tests.
