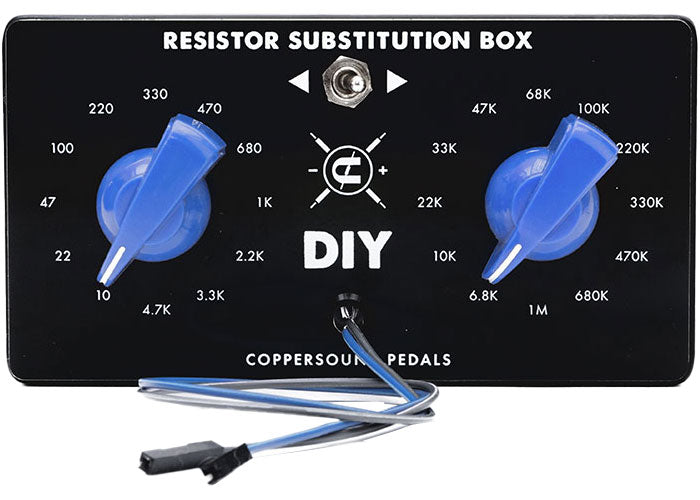

CopperSound Substitution Box Resistor

A Substitution Box Designed for Prototyping: the "Resistor" Version in the Range

Substitution boxes have become essential for anyone designing, modifying, or repairing circuits: they allow you to try component values on the fly, in a clean and reproducible way. The Coppersound Substitution Box Resistor follows this logic with an efficiency-oriented approach: instead of juggling loose resistors, clips, temporary soldering, and endless iterations, you switch from one value to another and quickly validate what works best in your setup.

Within the Substitution Box family, the Resistor version focuses on the most frequently adjusted element in prototyping: the resistor. It often determines gain level, feedback amount, bias, time constant, or stage interaction. With this box, "fine-tuning" finally becomes smooth, methodical, and much more musical to the ear.

Who Is It For and What Are Its Uses?

This resistor substitution box is aimed at effects pedal builders, enthusiasts of modular and DIY synths, technicians who do modding, as well as anyone designing circuits on breadboards (or testing on benches) who wants to drastically reduce iteration time. It is especially useful when you are looking for "the right value" not on paper, but by ear : more dynamics, smoother clipping, sharper attack, less noise, or the ideal balance point in a gain stage.

In practice, the Substitution Box Resistor also facilitates serial validations: you can quickly compare several options, note the chosen value, then move on to the next stage of the circuit without losing track of your session. It is a prototyping tool that improves both productivity and consistency of your choices, whether you are working on an original design or optimizing an existing schematic.

Key Features: Test, Compare, Choose... Without Interrupting Your Workflow

The principle is simple: instead of constantly removing and replacing components, you insert the wires of your setup at the desired points, then experiment in real time with different values. Result: fewer manipulations, fewer errors, and more reliable comparisons, as your circuit remains under the same test conditions.

What the Substitution Box Resistor Changes in Daily Use

• Faster Iterations : switch immediately from one value to another while the circuit is running.
• Facilitated Comparative Listening : ideal for choosing between close options and validating a value "by ear".
• Less Breadboard Handling : no more removing, replacing, mixing, or losing resistors between tests.
• Ready to Use : the model is delivered fully assembled, so you can focus on design instead of tooling.

With its 24 resistor values, you cover a wide range of experimentation, from fine adjustments to more significant changes. It's an excellent complement to a component stock: not only do you save time, but you also make your R&D process clearer, cleaner, and more enjoyable.

Technical specifications

Use

electric guitar

Color

Black

Model	Coppersound Substitution Box Resistor	Value range	from 10 Ohms to 1 MOhm
Number of values	24	Power rating	1/4 W
