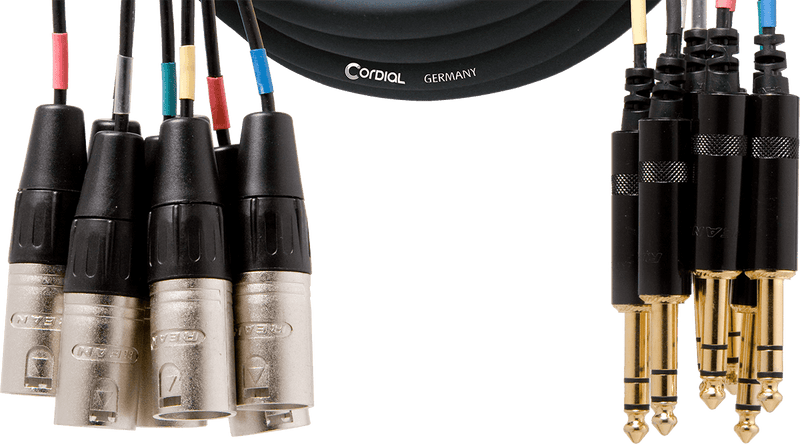

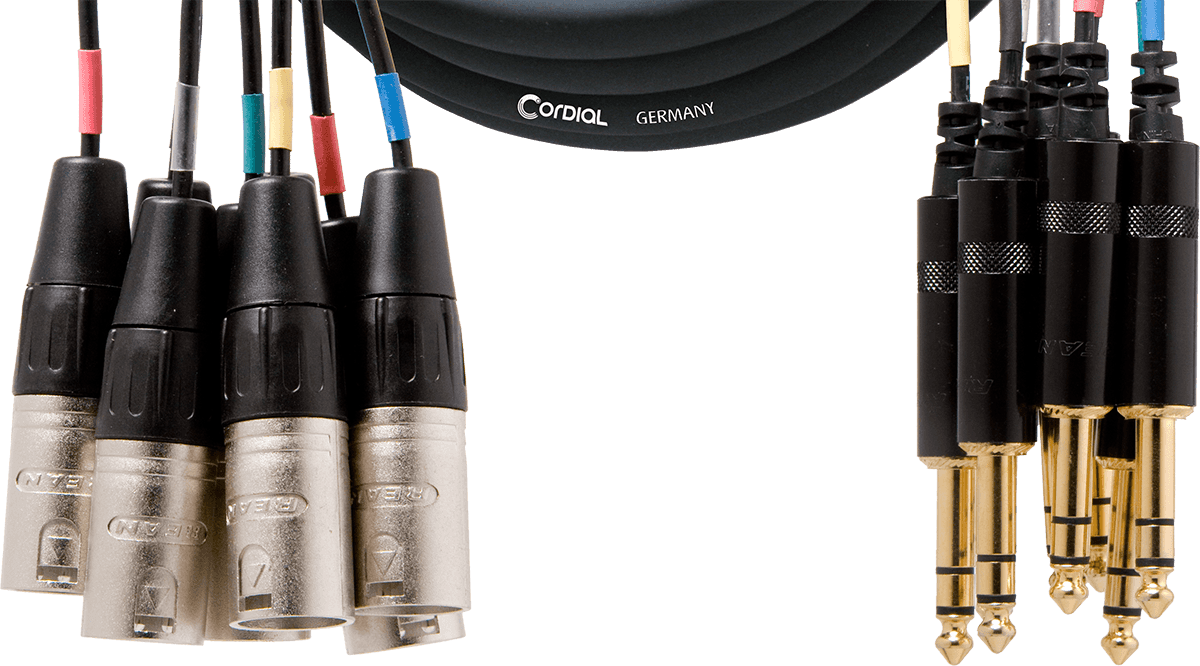

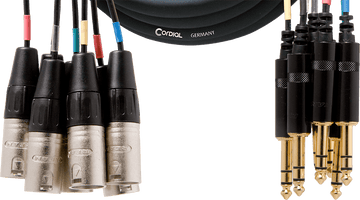

Essential Information About the Cordial CML8-0MV3C
- 8-channel multipair cable ideal for quickly connecting multiple audio outputs or inputs between a console, rack, interface, or studio peripherals.
- Professional connectors with 8 male XLRs on one end and 8 stereo TRS 6.35 mm jacks on the other for clean and efficient wiring.
- Color coding on each breakout to identify lines at a glance, even in low-light stage environments.
- Robust and flexible construction with black PVC jacket, oxygen-free copper conductors, and Rean connectors designed for regular use.
Technical specifications
| Number of channels | 8 | Oxygen-free copper | Yes |
| Connectors | 8 x stereo jack, 8 x XLR male | Connector brand | Rean |
| From connectivity | XLR 3-pin male | Number of pairs | 8 |
| Towards connectivity | 6.35mm stereo male jack | Cable cross-section (mm²) | 0.22 SQUARE_MILLIMETER |
| Category | Multipair cable | Color | Black |
| Format | straight | Length (m) | 3 m |
| Sheath material | PVC | ||
Questions frequently asked
What connectors does this 8-channel snake provide?
Each end features 8 male XLRs on one side and 8 stereo 6.35 mm TRS jacks on the other. The connectors are Rean brand.
Is the Cordial CML8-0MV3C really 3 m long?
The total cable length is 3 m. Each breakout is 40 cm long, which facilitates connection to nearby connectors.
Is this male XLR to TRS jack cable suitable for a mixing console and a rack?
It allows connecting eight audio outputs or inputs between a console, a rack, an interface, or studio devices. Its single cable bundle reduces the number of individual cables in an installation.
Are the snake channels easy to identify?
A color code is present on each breakout to identify the 8 lines.
What is the construction of the Cordial snake cable?
The black jacket is PVC and the cable bundle diameter is 15 mm. The oxygen-free copper conductors have a 0.22 mm² cross-section. An aluminum and polyester foil shield is used for each circuit.
