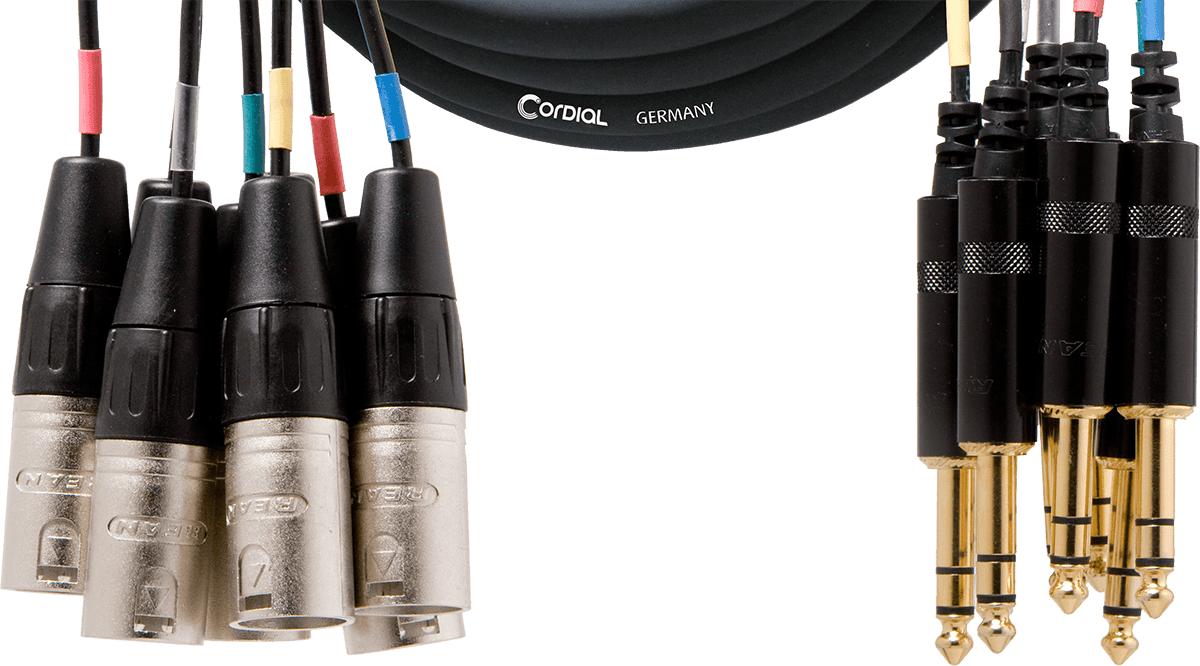

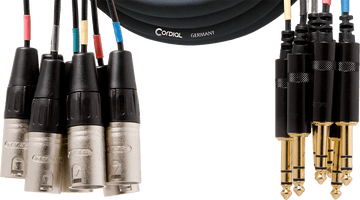

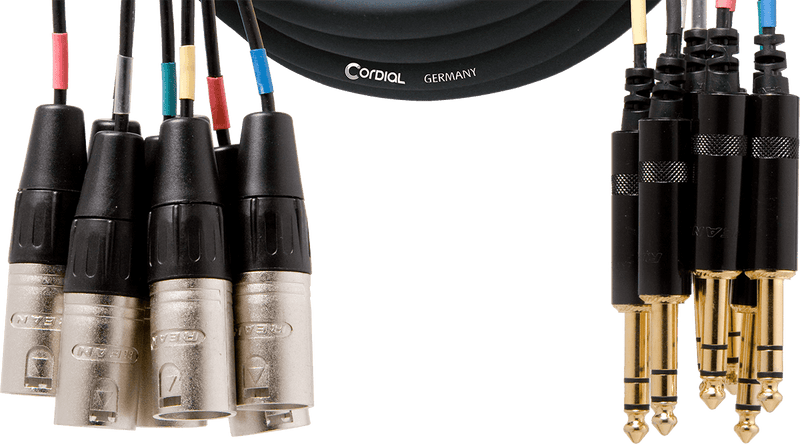

The Essentials to Know About the Cordial CML8-0MV5C
- 8-channel multipair cable ideal for quickly connecting a console, an audio interface, or a stage rack.
- Complete connectivity with 8 male XLRs on one side and 8 stereo TRS 6.35 mm jacks on the other.
- 5 m length practical for well-organized studio, live, or home studio setups.
- Connectors with color coding to identify each connection at a glance and save time during wiring.
Technical specifications
| Number of channels | 8 | Oxygen-free copper | Yes |
| Connectors | 8 x stereo jack, 8 x XLR male | Connector brand | Rean |
| From connectivity | XLR 3-pin male | Number of pairs | 8 |
| Towards connectivity | 6.35mm stereo male jack | Cable cross-section (mm²) | 0.22 SQUARE_MILLIMETER |
| Category | Multipair cable | Color | Black |
| Format | straight | Length (m) | 5 m |
| Sheath material | PVC | ||
Questions frequently asked
What connectors does the Cordial CML8-0MV5C feature?
This multicore cable combines 8 male 3-pin XLRs and 8 male stereo 6.35 mm TRS jacks. Each channel provides a separate connection between the connected equipment.
Is this 8-channel multicore suitable between a mixer and an audio interface?
The male XLR to 6.35 mm TRS jack configuration allows connecting a mixer, an audio interface, or a stage rack. The 8 pairs consolidate multiple connections into a single 5 m cable.
What is the length of the tails on this cable?
The tails measure 40 cm, providing enough slack for connection behind a mixer, a patch bay, or a preamp.
Are the channels easy to identify during wiring?
Each connector has a color code to identify the 8 channels. This setup reduces connection errors during installation or a stage change.
What is the design of the Cordial 5 m multicore cable?
The black PVC jacket surrounds a 15 mm diameter cable with 0.22 mm² oxygen-free copper conductors. Each pair is shielded. The connectors are branded Rean.
