Cordial DMX Cable 5-Pin 10 M
Estimated Shipping Widget will be displayed here!
Couldn't load pickup availability
Information
Information
Manufacturer Information
Cordial
https://www.cordial-cables.com
info@cordial-cables.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:

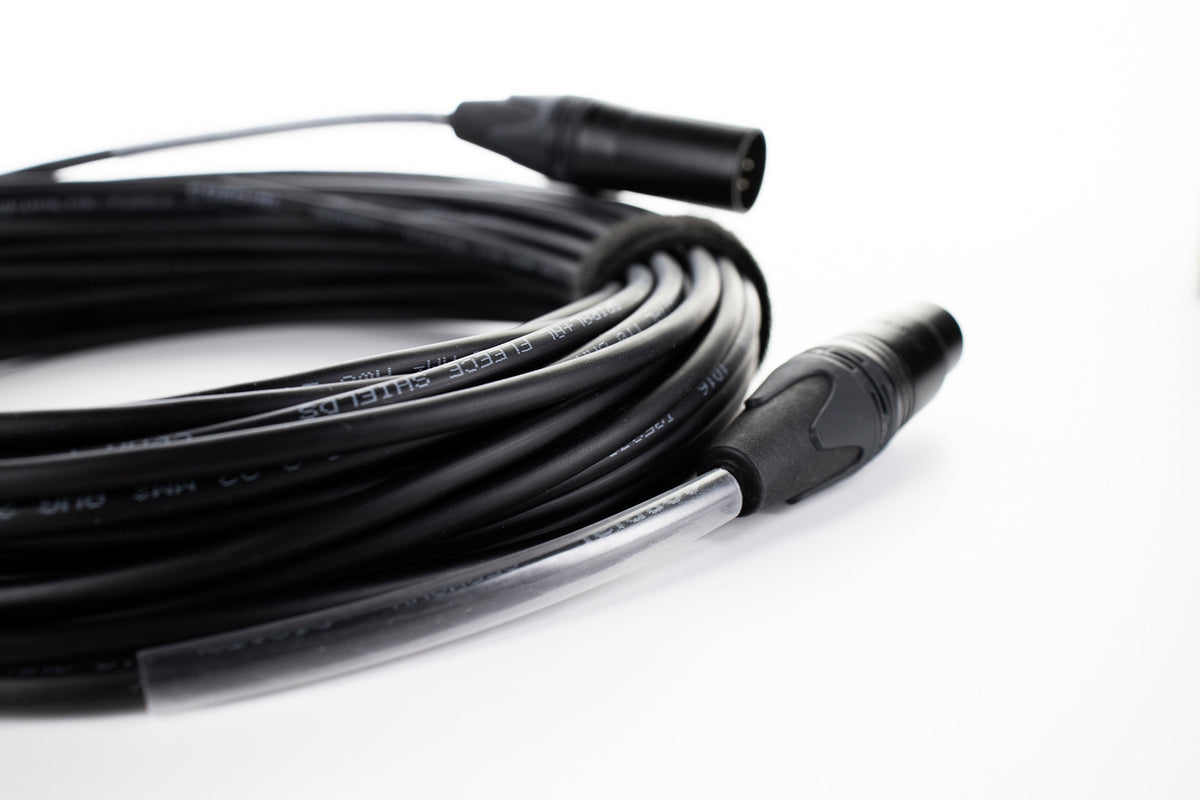

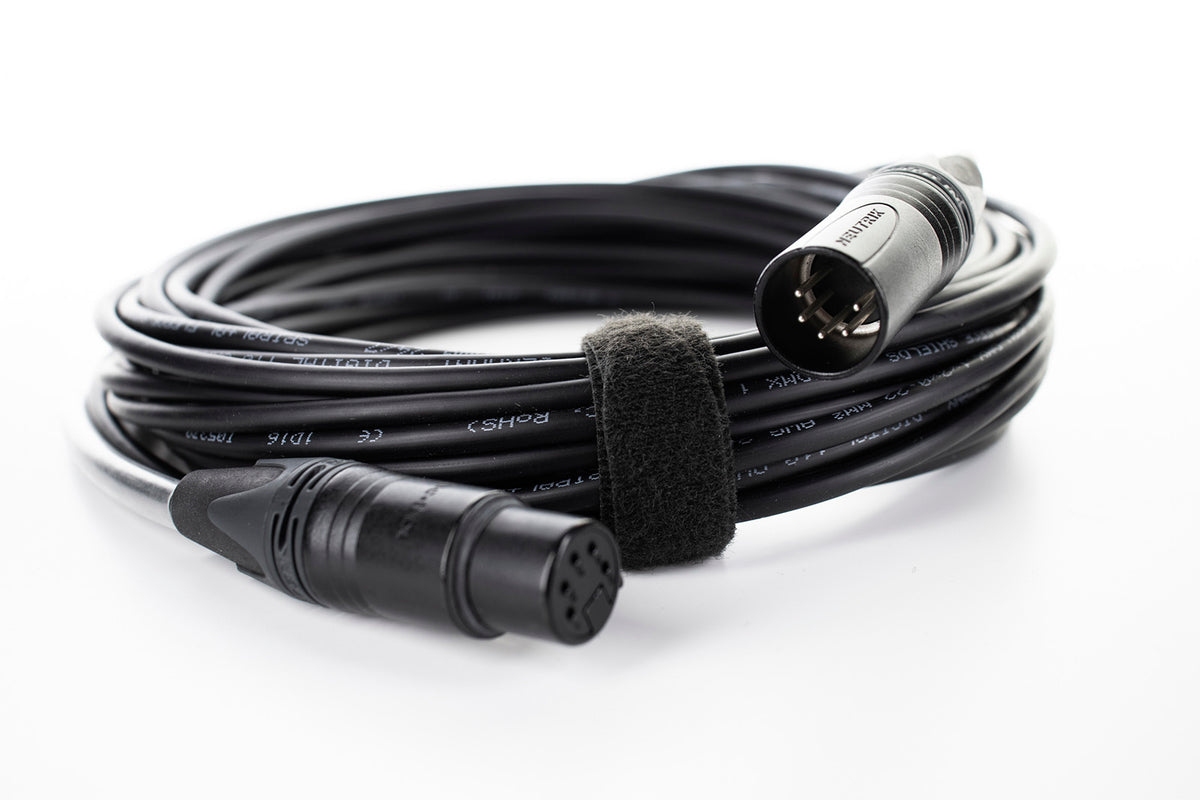

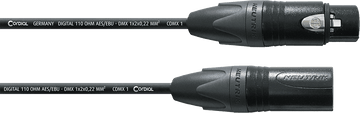

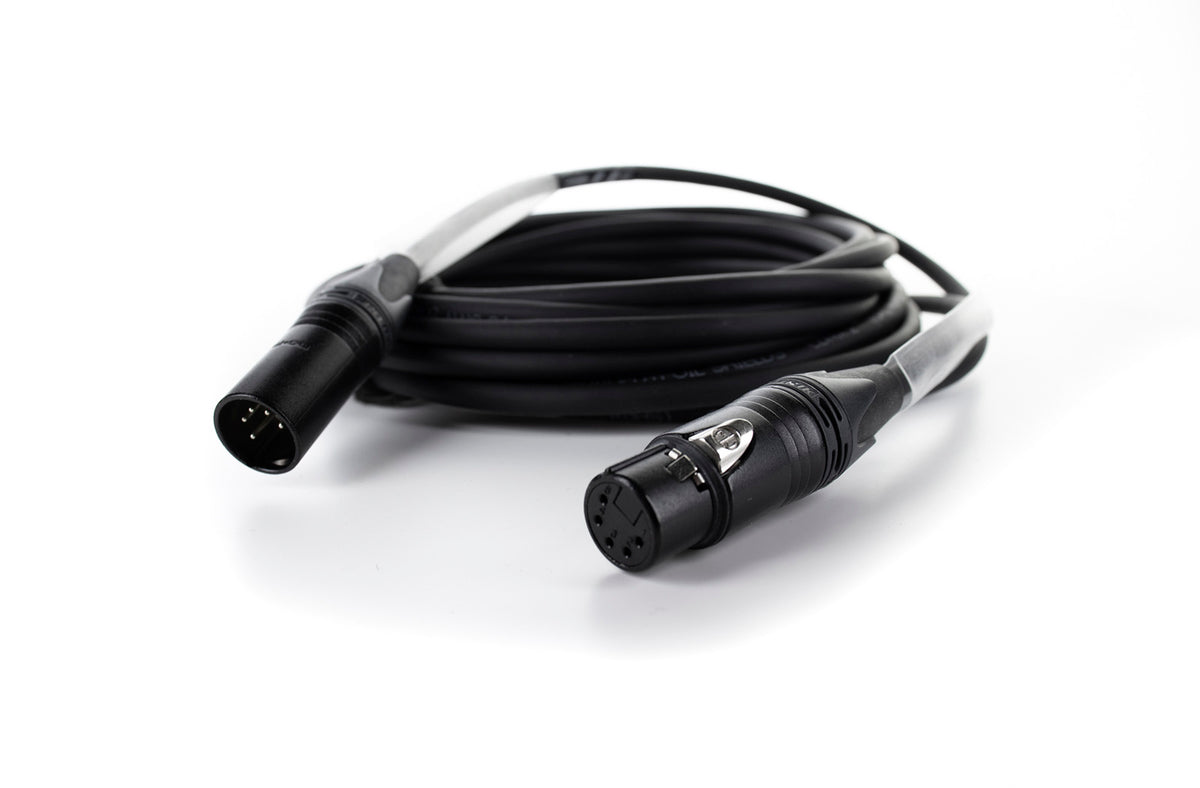

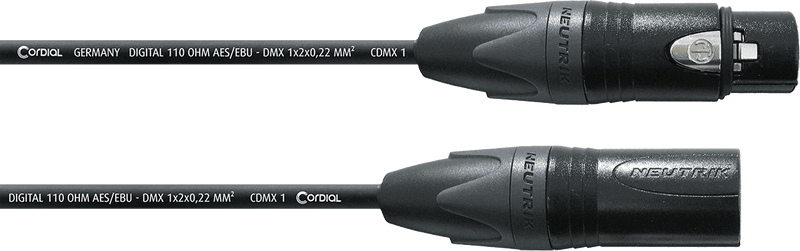

Essential Information About the Cordial CDX-1 10 m
- Professional DMX 512 cable designed for reliable transmission of lighting control signals in stage environments.
- 110-ohm impedance suited for DMX protocols and the EIA 485 standard, ensuring a stable digital signal.
- Neutrik 5-pin XLR connectors with 3 pins connected, robust and ready for demanding lighting installations.
- Double shielding with tinned copper braid and aluminum foil, ideal for minimizing interference both on stage and in the control room.
Technical specifications
| Connectors | 5-pin female XLR (3 connected), 5-pin male XLR (3 connected) | Connector brand | Neutrik |
| From connectivity | XLR 5-pin female | Number of pairs | 1 |
| Towards connectivity | XLR 5-pin male | Cable cross-section (mm²) | 0.22 SQUARE_MILLIMETER |
| Category | DMX cable | Shield type | tinned copper braid and laminated aluminum foil |
| Format | straight | Color | Black |
| Sheath material | PVC | Length (m) | 10 m |
| Oxygen-free copper | Yes | ||
Questions frequently asked
Is this DMX cable compatible with a console using 5-pin XLR?

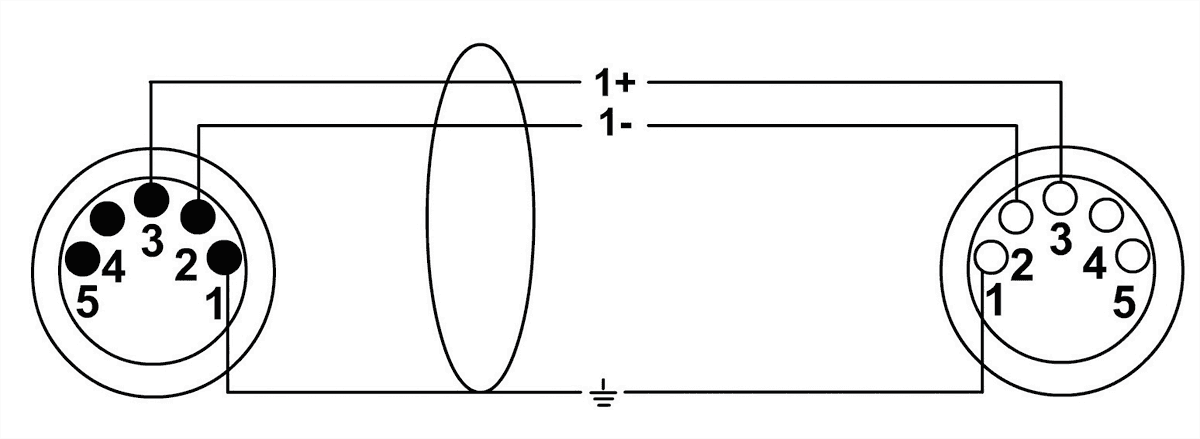

The connection uses a female 5-pin XLR on the input side and a male 5-pin XLR on the output side. Three pins are connected on each Neutrik connector.
What is the length of the Cordial CDX-1?
Its length is 10 m, suitable for connections between a lighting console and distant DMX devices.
Is the cable suitable for DMX 512?
The 110-ohm impedance is compatible with the DMX 512 protocol and the EIA 485 standard. The cable is based on a pair of 0.22 mm² conductors. This configuration promotes stable transmission of lighting control signals.
What shielding is used on this DMX cable?
The shielding combines a tinned copper braid with a laminated aluminum foil. This construction minimizes interference in stage and control room setups.
Are the connectors durable enough for a lighting installation?
The Neutrik 5-pin XLR connectors are combined with a black PVC jacket. Transparent heat-shrink tubing at the ends facilitates identification during patching.
