Cordial DMX XLR 5-pin + Powercon Cable 3 M
Estimated Shipping Widget will be displayed here!
Couldn't load pickup availability
Information
Information
Manufacturer Information
Cordial
https://www.cordial-cables.com
info@cordial-cables.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
Essential Information About the DMX PowerCon XLR 5-Pin 3 m Cable
- Hybrid DMX and power cable ideal for neatly connecting your spotlights, moving heads, LED bars, or compatible stage equipment.

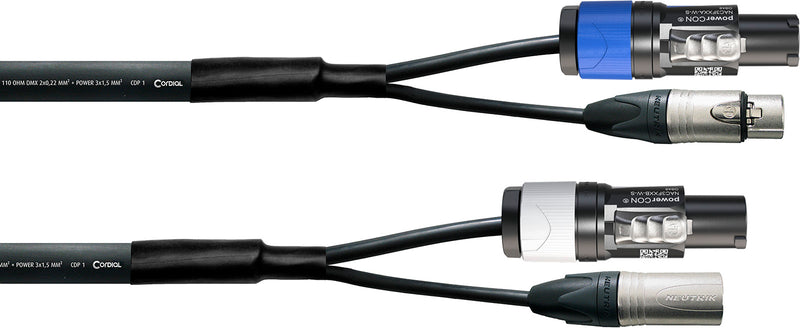

- Neutrik connectors with blue female PowerCon, female 5-pin XLR, grey male PowerCon, and male 5-pin XLR for a secure and durable connection.
- Oxygen-free copper and shielding with tinned bare copper braid to maintain DMX signal stability in demanding environments.
- 3 m length practical for lighting installations, stage, studio, or event performances.
Technical specifications
| Connectors | powerCon, 5-pin XLR | Oxygen-free copper | Yes |
| From connectivity | XLR 5-pin female | Connector brand | Neutrik |
| Towards connectivity | XLR 5-pin male | Cable cross-section (mm²) | 1.5 SQUARE_MILLIMETER |
| Category | DMX cable | Shield type | tinned bare copper braid |
| Format | straight | Color | Black |
| Sheath material | PVC | Length (m) | 3 m |
Questions frequently asked
Is this cable compatible with DMX control using 5-pin XLR?
The DMX connection uses a 5-pin female XLR at one end and a 5-pin male XLR at the other. Its 110 ohm impedance meets professional DMX usage standards.
Which PowerCon connectors are present on this cable?
Power is transmitted through a blue female PowerCon and a grey male PowerCon, both made by Neutrik.
Can a moving head be powered and controlled with a single DMX PowerCon 5-pin XLR cable?
This hybrid cable combines a PowerCon power line and a 5-pin DMX signal line. It can connect compatible fixtures, moving heads, or LED bars. Dedicated conductors separate the power and DMX functions.
What is the length of the Cordial Cable DMX XLR 5 Pins + PowerCon?
The length is 3 m, suitable for short connections on stage, in studios, or lighting installations.
Is the DMX signal protected against interference?
A shield made of bare tinned copper braid surrounds the DMX cable. The oxygen-free copper design helps maintain signal transmission stability.
