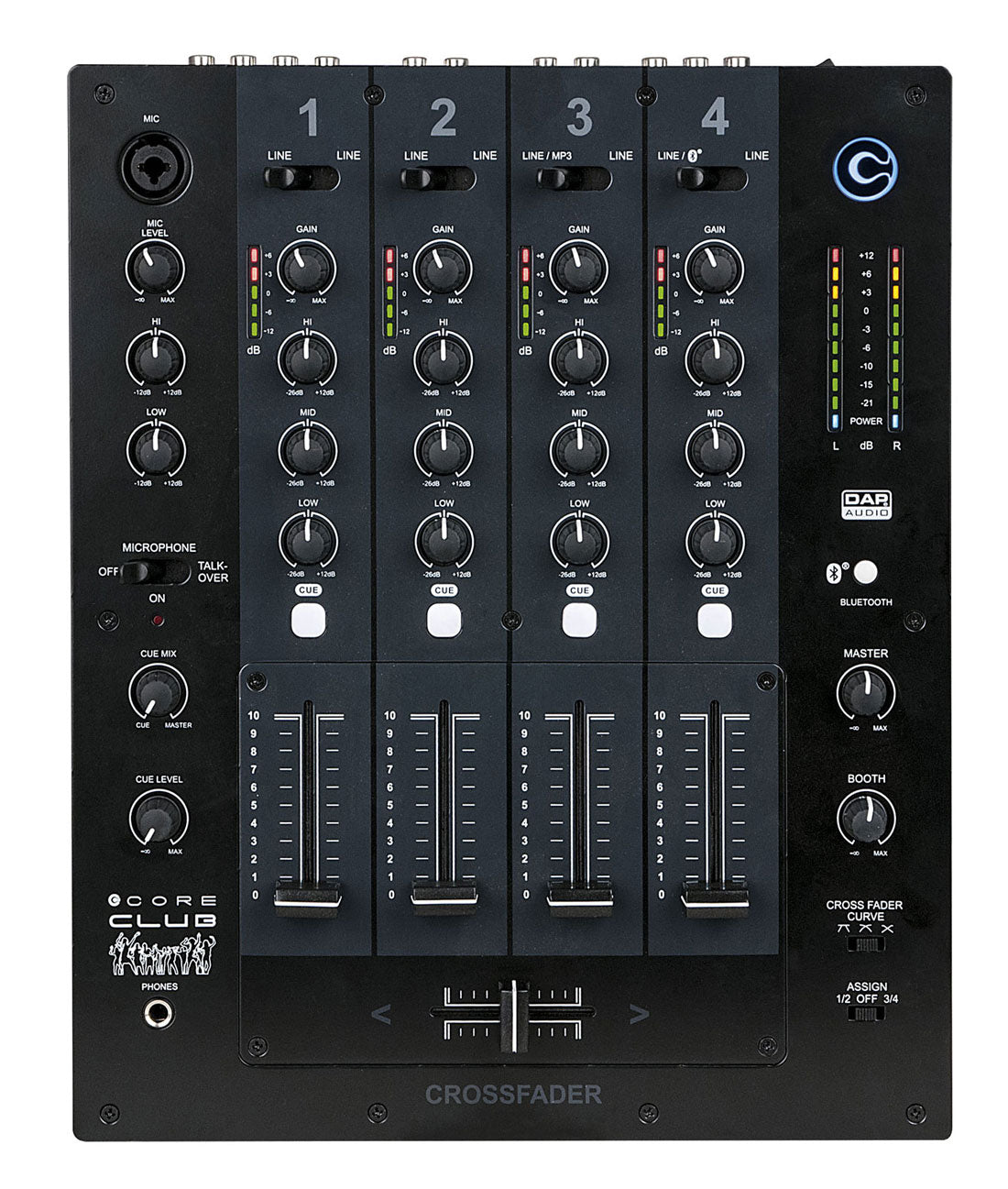

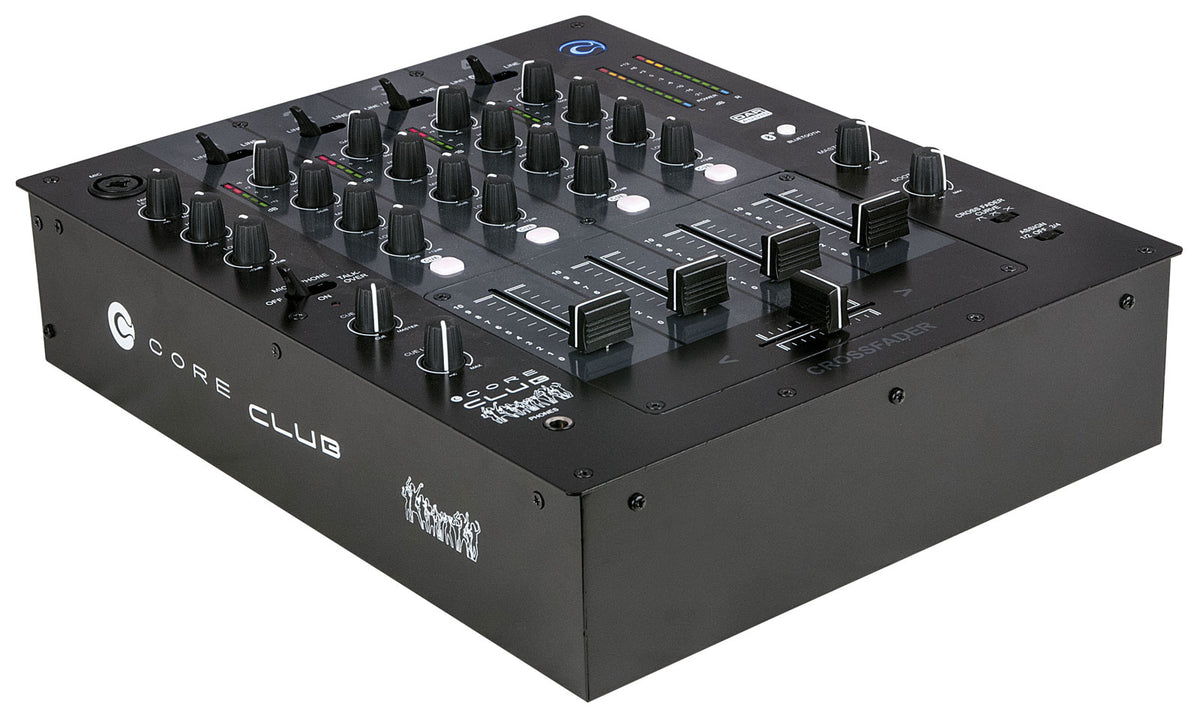

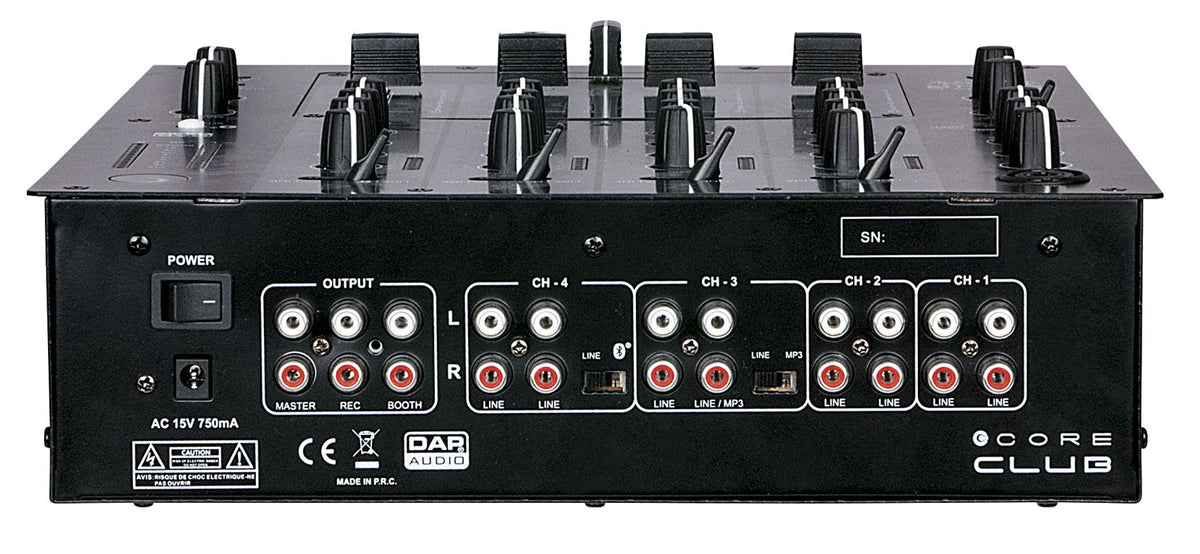

Dap Audio Core Club

A More Direct Alternative to the Core MIX-4 USB, Focused on the Essentials of DJing

The Core Club is a simplified version of the Core MIX-4 USB, designed to get straight to the point: offering a reliable, intuitive DJ mixer rich in inputs without complicating usage. It maintains a performance-oriented philosophy with manufacturing based on very high-quality components and a practical architecture for everyday use thanks to isolated faders, facilitating maintenance and servicing.

For Which DJs and Audio Setups?

The Core Club is aimed at beginner to advanced DJs who seek a mixer capable of centralizing multiple sources: DJ players, turntables, media players, and mobile devices. It is particularly well-suited for private parties, bars, small stages, associations, rehearsal studios, or mobile DJing when you want to connect several devices quickly and neatly, including wirelessly via Bluetooth.

Thanks to its dedicated outputs, it is also suitable for setups with main sound system (master) and booth monitor (booth), maintaining clear control over level and tonal balance to adapt to the venue.

Technical specifications

Type	analog Compact	Rackable	No
USB stereo recording / playback	No

Line inputs	8, RCA	Frequency response	20 Hz - 20 kHz
Bluetooth input	1	Microphone signal-to-noise ratio	over 80 dB
REC output	1, RCA	Line signal-to-noise ratio	over 85 dB
Booth output	1, RCA	Power input	15 V AC / 750 mA (adapter included)
Master output	1, unbalanced, RCA	Power consumption	8.2 W
Headphone output	1, 6.3 mm TRS jack	Dimensions	247 x 331 x 84 (W x D x H)
Channel equalizer	-26 dB / +12 dB	Weight	5 kg
Microphone equalizer	-12 dB / +12 dB
