DBX CT-3 - CABLES TESTER
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Essential Information About the CT3 Cable Tester
Essential Information About the CT3 Cable Tester
- Wide Compatibility: RJ45, RJ11, MIDI, Speakon, XLR, RCA, BNC, DIN, jacks, DMX, and banana plugs.
- Tests up to 8 conductors to quickly diagnose many types of connections.
- Detachable transmitter/receiver format: ideal for checking long-distance or pre-installed cables.
- Clear reading thanks to LEDs and a sound alarm for continuity testing.
Manufacturer Information
DBX
https://www.dbxpro.com
------------------------
Safety manager:
CSI audiovisuel
Email:
Address:
An "extended" tester designed to cover the essential field connections
The CT3 was designed as a versatile cable tester, capable of centralizing the verification of the most common connectors in audio, lighting, and installations into a single device. Its "multi-format" oriented design makes it a practical tool to reduce adapters and speed up diagnostics during setups, maintenance, and troubleshooting.
Who is the CT3 for and when to use it?
The CT3 is aimed at sound and lighting technicians, stage managers, installers, studios, schools, and workshops who want to validate the condition of a cable before a performance or identify a break/inversion of conductors on an already installed line. It is also well suited for environments where network cables, DMX links, and analog audio connections coexist.
Quick checks and reliable diagnostics, even on pre-installed cables

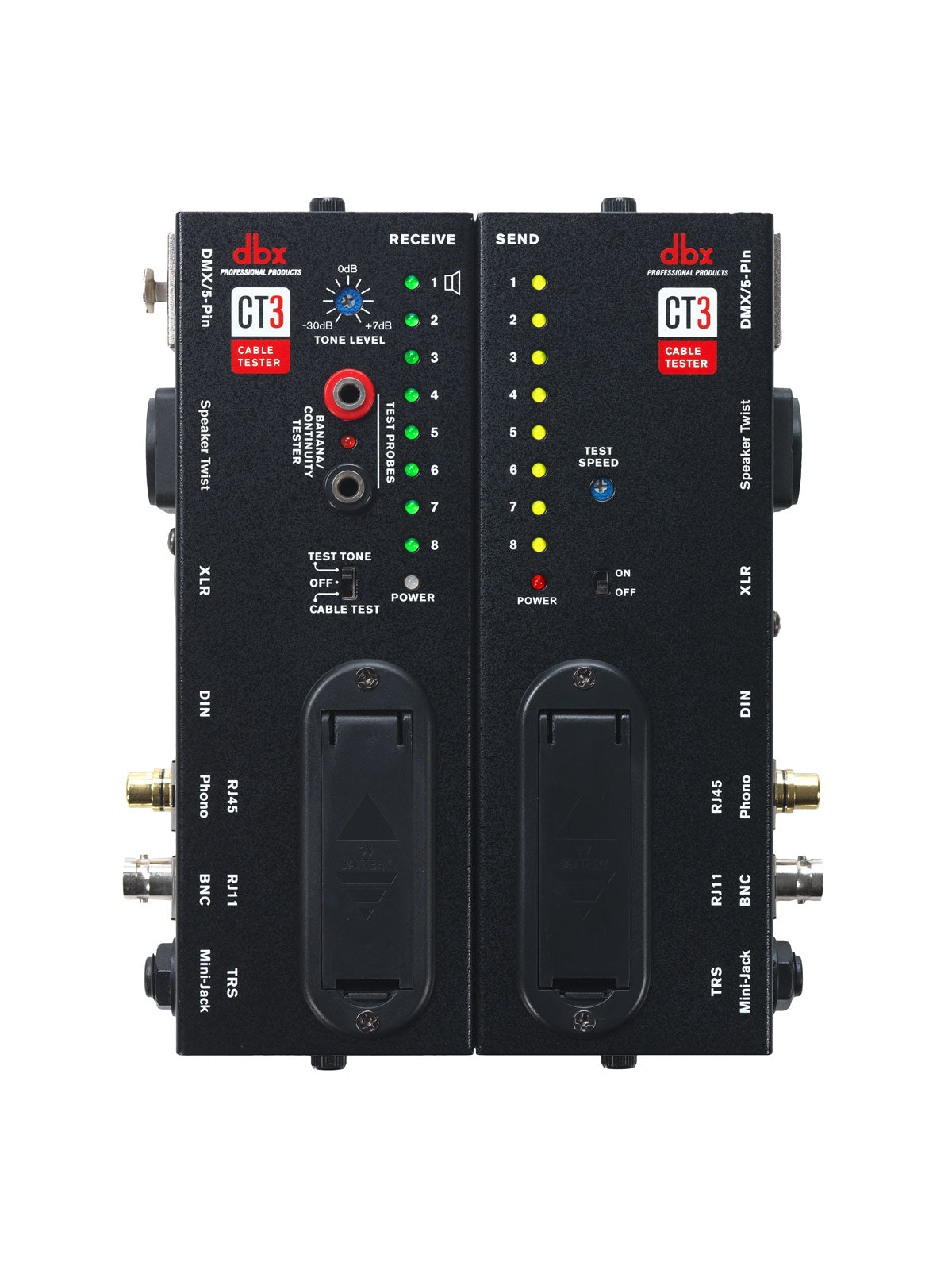

Two-part architecture for long lengths
The CT3 separates into two modules (transmitter and receiver), allowing easy testing of a connection installed between two distant points without having to bring the ends together. An effective solution for racks, stages, bays, and technical passages.
Continuity test with visual indicators and alarm
The integrated test generator, LED indicators, and sound alarm facilitate continuity checks and verification of "pin-to-pin" correspondences according to the connector type. The robust construction is suited for regular use in field conditions.
Technical specifications

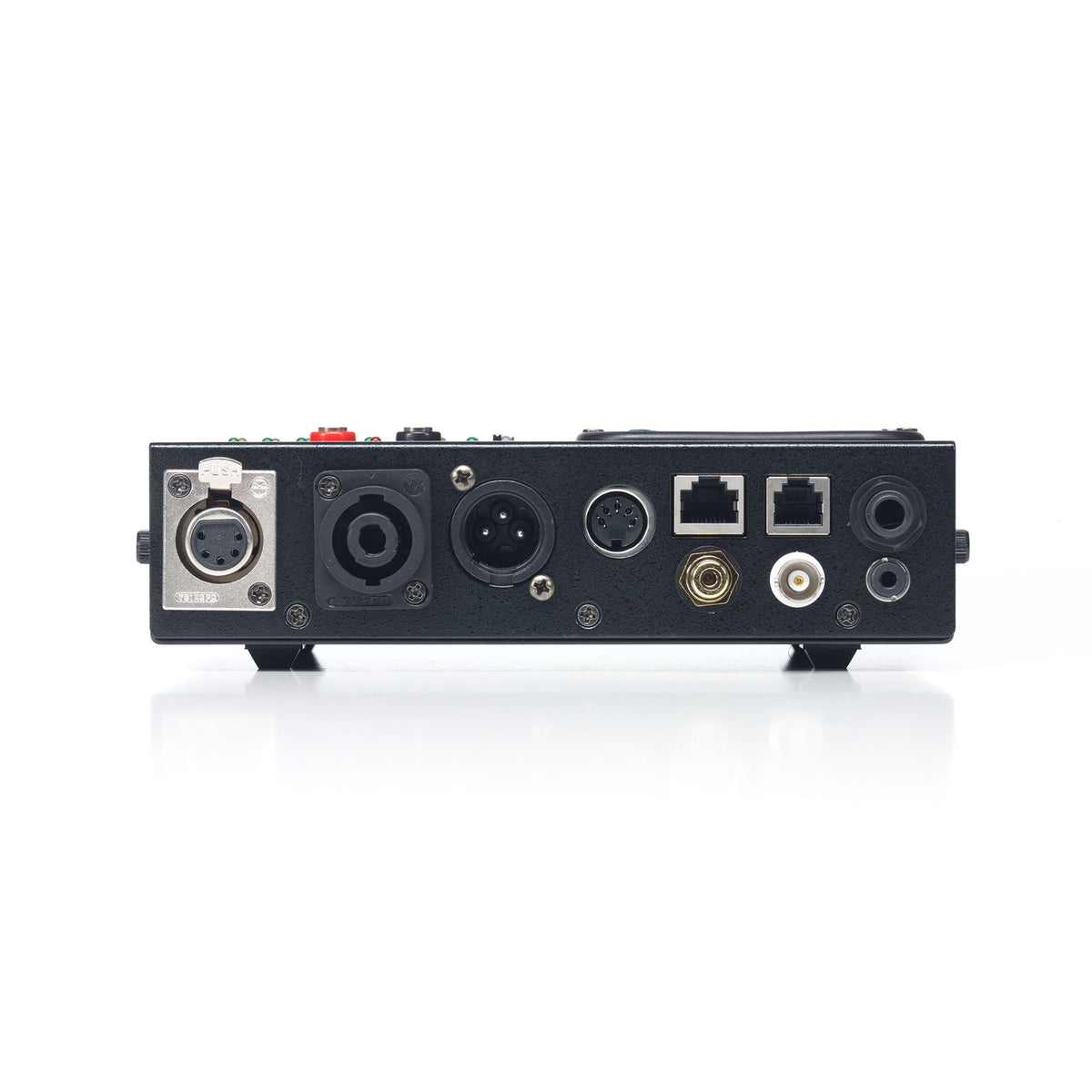

| Number of testable conductors | up to 8 | XLR connectors | 2 (1 male, 1 female), 3-pin-to-pin test |
| Pre-installed cable testing | device separable into two units | MIDI connectors | 2 (5-pin DIN), 5-pin-to-pin test |
| Test generator | integrated | Speakon connectors | 2, 4-pin-to-pin test |
| Connection test | with different connectors | Banana connectors | 2, 1-pin-to-pin test |
| Continuity test | with audible alarm and LED indicator | 6.35 mm jack connectors | 2, mono/stereo, 3-pin-to-pin test |
| DMX connectors | 2 (5-pin), 5-pin-to-pin test | 3.5 mm jack connectors | 2, mono/stereo, 3-pin-to-pin test |
| BNC connectors | 2, 2-pin-to-pin test | RJ45 connectors | 2, 8P8C connection test |
| RCA connectors | 2, 2-pin-to-pin test | ||
You will also like
Heritage Audio
Synth Buddy
LD Systems
LD X 223 - ACTIVE FILTER
ART Pro Audio
CX 311
Behringer
Ultradrive Pro DCX2496 Le
Cranborne Audio
N8
DBX
223XS
DBX
234XS - STEREO ACTIVE FILTER
Cranborne Audio
N22
Questions frequently asked
Does the DBX CT-3 test DMX and network cables?
This model covers connections used in audio, lighting, and installations, including network, DMX, and analog audio links.
Can a cable already installed in a wall or rack be tested?
Thanks to its two detachable modules, transmitter and receiver, testing can be performed from both ends of a remote link. This design is suitable for cables pre-installed in racks, bays, and technical conduits.
How to detect a break or reversed wires in a cable?
The LED indicators allow checking continuity and pin-to-pin correspondence. An audible alarm accompanies the diagnosis to signal the test result.
Can the CT-3 be used before a concert?
It is possible to verify a cableâs condition before a show using the built-in test generator. The LEDs and audible alarm enable quick on-site inspection.
Who is this cable tester intended for?
The device is designed for sound and lighting technicians, stage managers, installers, studios, schools, and workshops. Its robust construction is intended for regular use during setup, maintenance, and troubleshooting.
