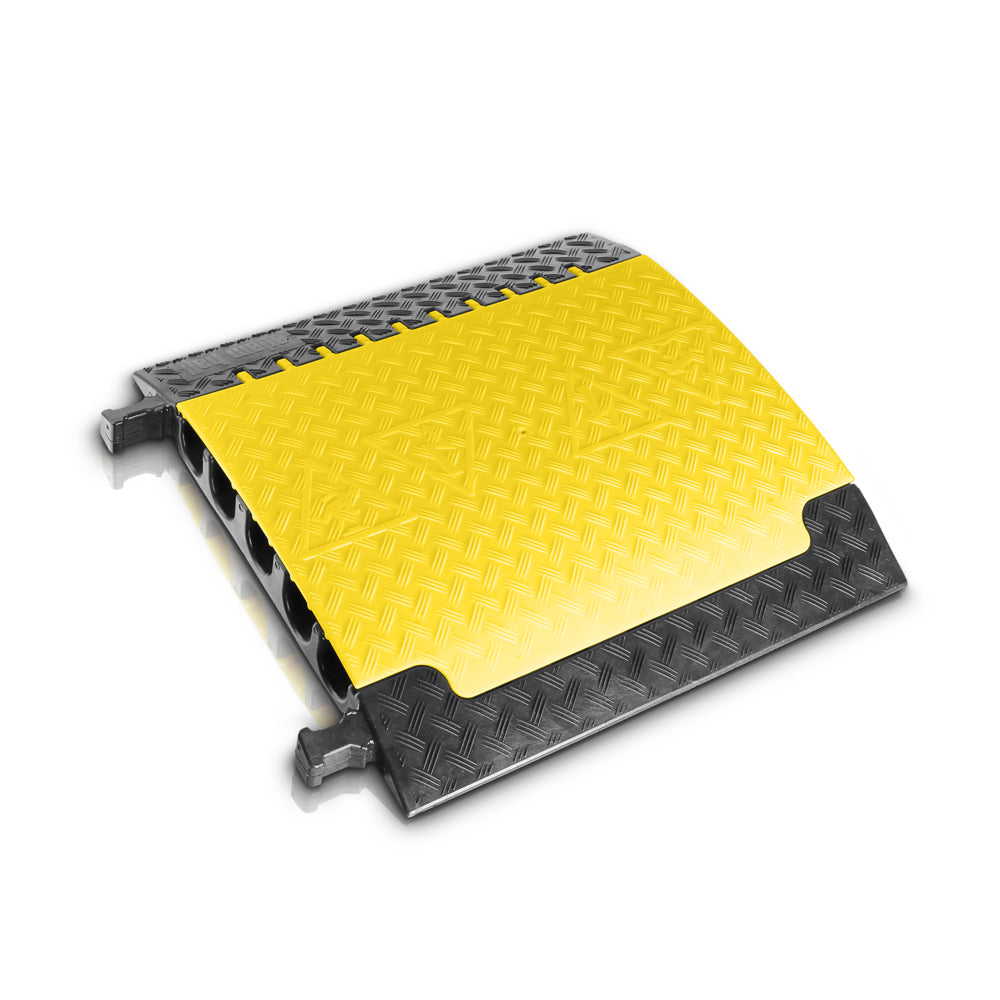

Defender DEFENDER XXL CABLE PROTECTOR 5-CHANNEL

Name: DEFENDER XXL CABLE PROTECTOR 5-CHANNEL
Brand: Defender
SKU: 166068
Price: 291.00 EUR
Availability: InStock

291,00 €VAT incl.

0,00 € Ecotax included

Reference price

Available on order

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 166068

EAN : 4049521015618

Information

Essential Information About the Defender XXL Cable Protector

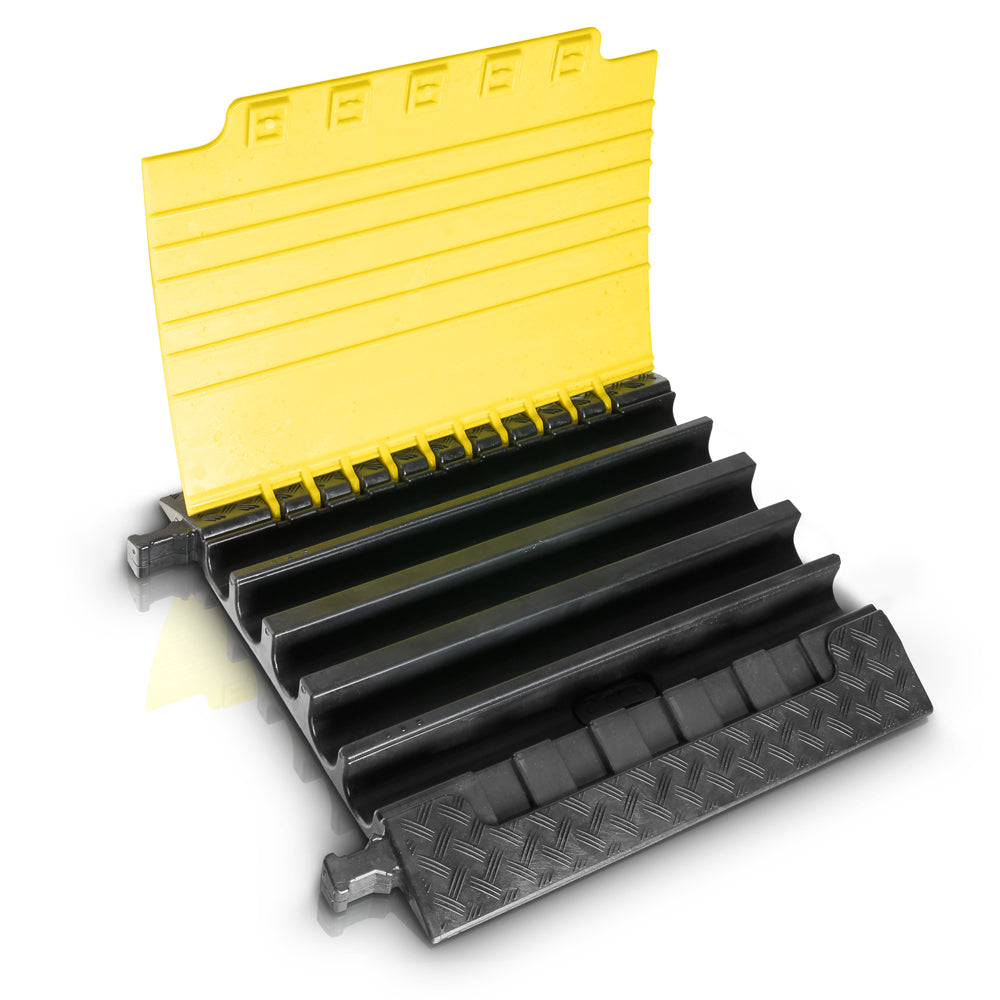

• 5 oversized channels for clean and secure ground cable management
• 3 channels compatible with type C pipes (62 mm diameter), ideal for emergency services and events
• Suitable for high voltage cables thanks to generous passages designed for demanding environments
• High resistance with a maximum load capacity of 6t per 20 cm² and TÜV SÜD certification

DEFENDER XXL CABLE PROTECTOR 5-CHANNEL

291,00 €VAT incl.

0,00 € Ecotax included

Reference price

A Model Designed with Field Requirements in Mind

Developed in collaboration with renowned companies in the event and industrial sectors, the Defender XXL meets the real constraints of temporary installations and technical zones: traffic, logistics, safety, and rapid deployment. It serves as a "large format" solution to effectively protect cables and pipes while securing the passage of teams and vehicles.

Who Is It For and What Are Its Uses?

This cable protector is intended for technical providers, stage managers, assembly teams, industrial sites, and communities that need to organize reliable ground routing. It is perfectly suited for stages, festivals, sets, warehouses, loading zones, as well as contexts where type C pipes can be deployed.

XL Channels, Pipe Compatibility, and Certified Safety

With its five channels, including three sized for type C pipes, the Defender XXL facilitates complex installations and reduces the risk of crushing. Its TÜV SÜD certification enhances peace of mind during intensive use, especially in public environments.

Technical specifications

Color

Black

Type	cable protector / cable ramp	Cables	suitable for high voltage cable installation
Number of channels	5	Maximum load capacity	6t per 20 cm²
Channels compatible with type C pipes	3	Certification	TÜV SÜD
Pipes	type C (62 mm diameter)

Questions frequently asked

Does the Defender XXL accept type C fire hoses?

Three of the five channels are sized for type C hoses with a diameter of 62 mm. This configuration meets hose deployment requirements in technical areas and event sites.

How many cables can this cable ramp accommodate?

Five channels are available to organize the passage of cables and hoses on the ground. The model is also suitable for laying high voltage cables.

What load can the Defender XXL 5-channel support?

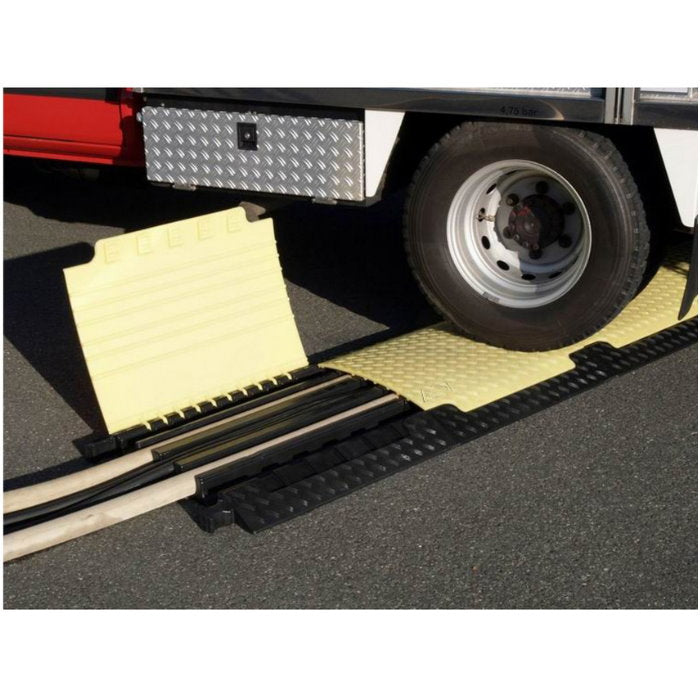

The maximum load capacity announced is 6 tons per 20 cm². This specification allows use in areas subject to vehicle traffic.

Is this cable protector suitable for a stage or festival?

Its format is designed for temporary installations such as stages, festivals, and studios. The TÜV SÜD certification provides a concrete reference for use in public environments. The five channels facilitate the organization of multiple lines on the ground.
