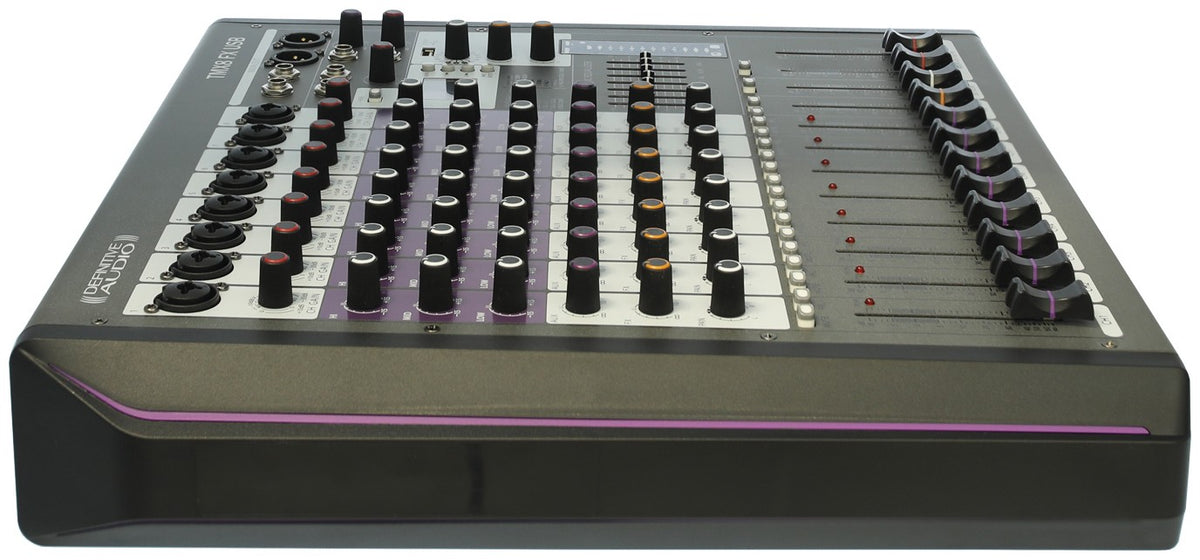

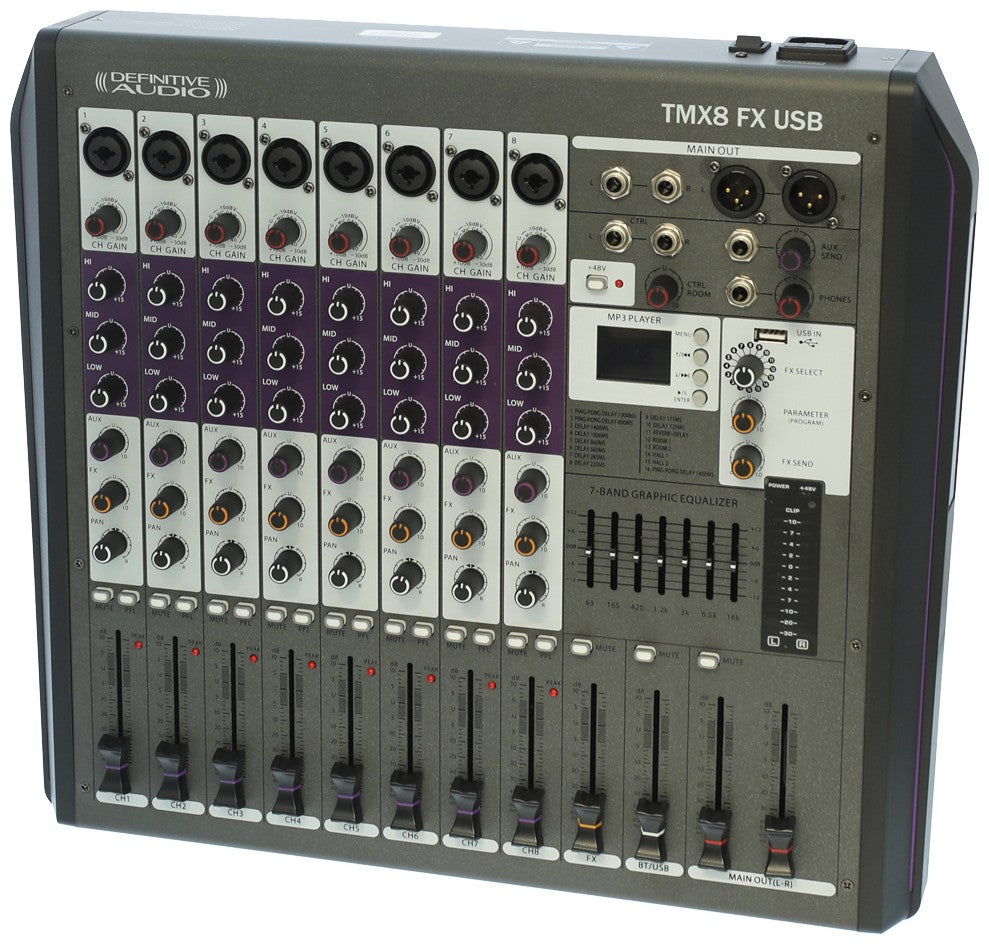

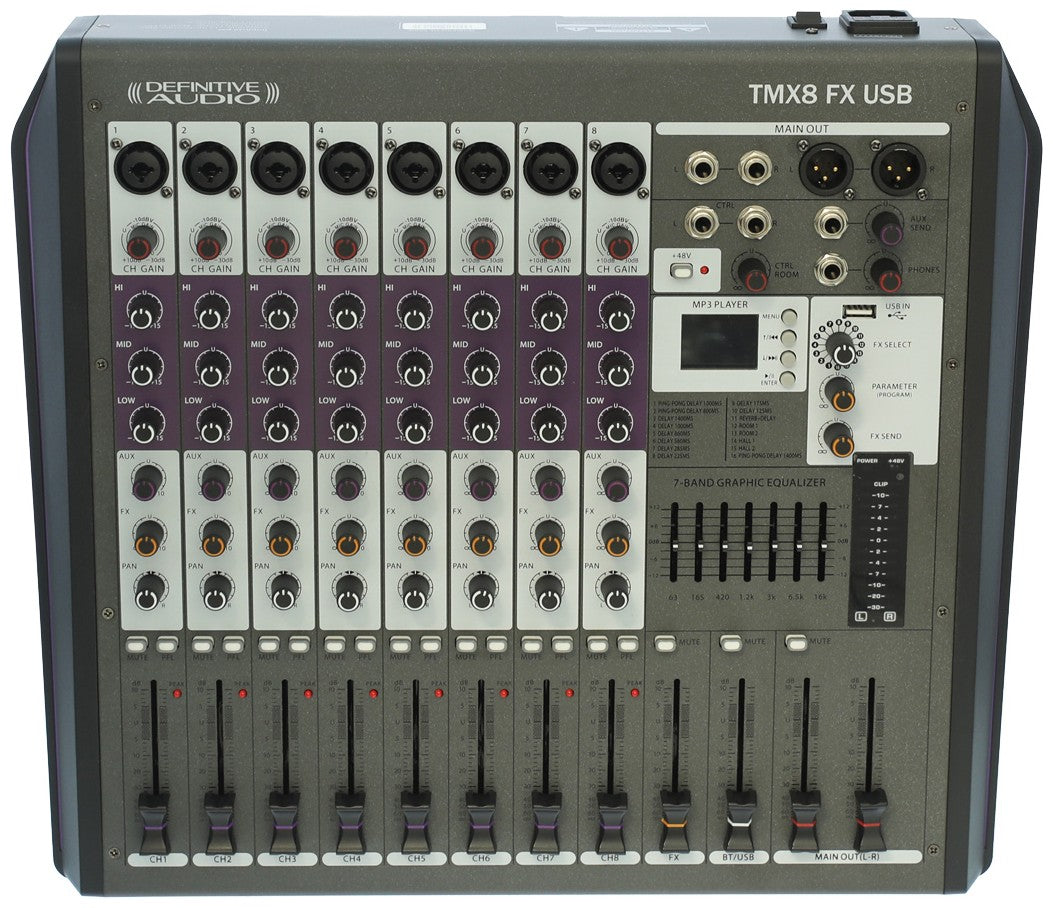

Definitive Audio TMX8 FX USB

Key facts about the Definitive Audio TMX8 FX USB mixing console

• 8 MIC/LINE channels for managing microphones, instruments and audio sources in a compact format.
• 16-effect DSP processor, 7-band graphic equalizer and comprehensive controls for precisely shaping the mix.
• MP3 player, USB input and dedicated BT/USB section: a practical solution for easily streaming background music or playlists.
• Complete connectivity for sound reinforcement, with MAIN OUT, AUX SEND, CTRL ROOM and headphone outputs.

A compact console designed for versatile mixing

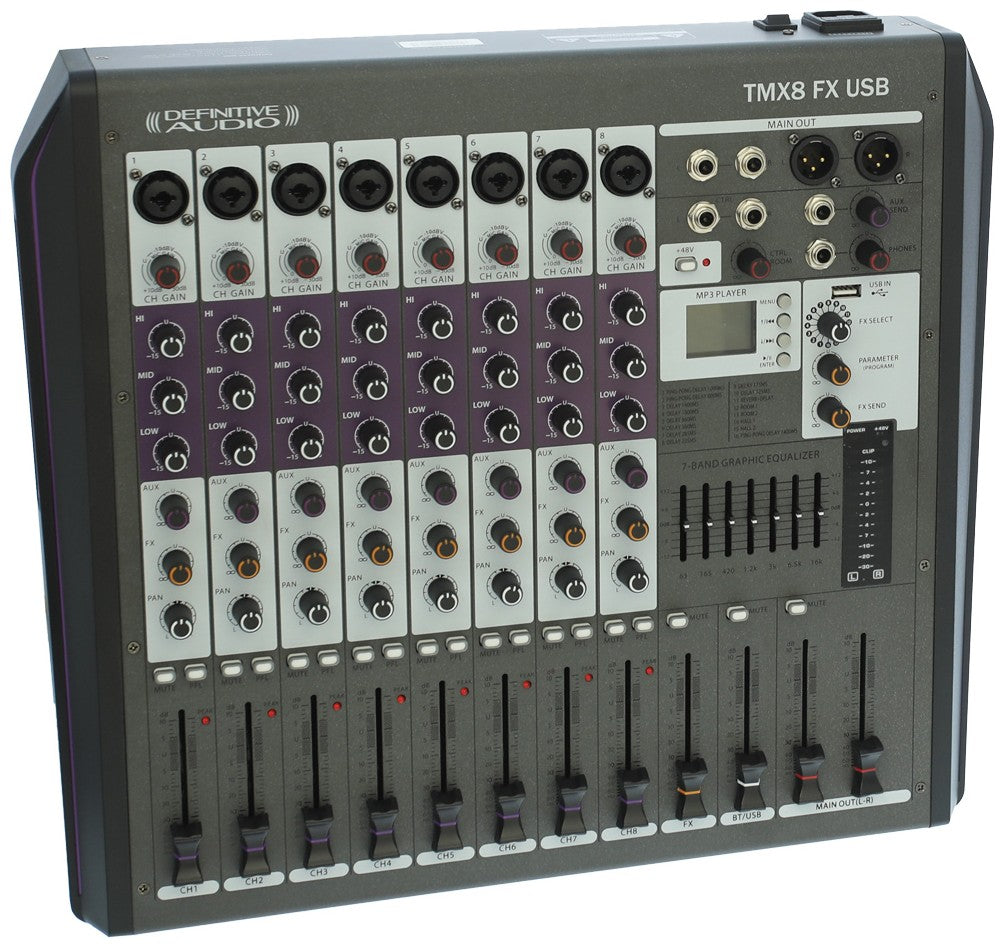

The Definitive Audio TMX8 FX USB brings together the essential features expected from a modern analog mixing console in an easy-to-transport chassis. It is a versatile tool for users looking for more control than a small basic console can provide, without moving up to a bulky model designed for large control rooms.

Its eight MIC/LINE channels, dedicated faders and integrated effects section make it possible to build a clear and responsive mix for a wide range of audio setups. From speeches to acoustic concerts, band rehearsals and musical entertainment, it offers straightforward, reassuring and effective operation.

For bands, entertainers and mobile sound reinforcement providers

The TMX8 FX USB is aimed at musicians, small live ensembles, associations, entertainers, schools and providers handling small- to medium-sized events. Its 8 channels allow several voices and instruments to be amplified simultaneously, while retaining individual control over each source.

It naturally fits into a permanent installation, multipurpose room, place of worship, rehearsal space or home studio. For mobile use, its USB connectivity and BT/USB section make it easy to play waiting music, backing tracks or interludes without having to add an external player.

Equalization, effects and routing: keep control of every source

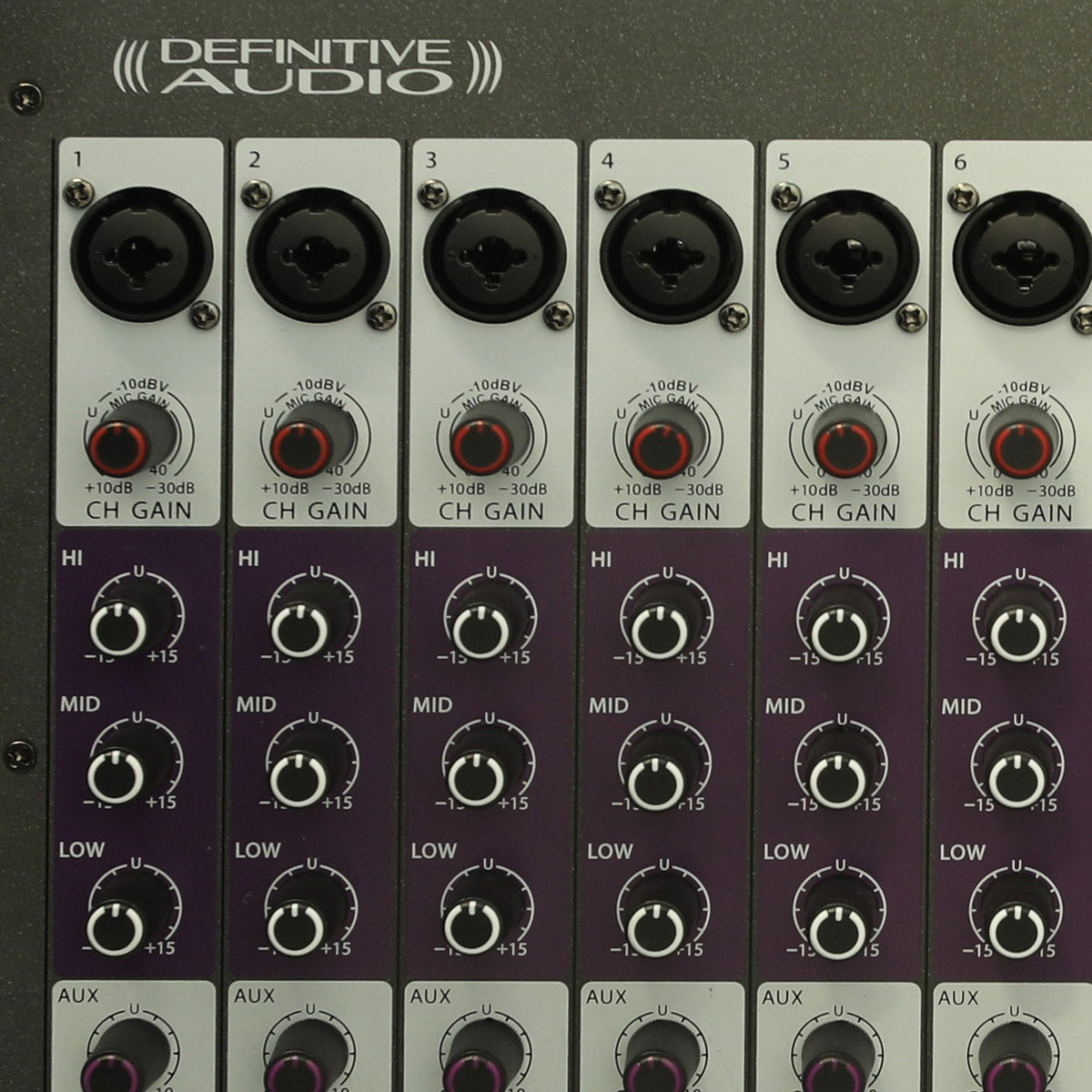

Each MIC/LINE channel features its own gain control, a 3-band HIGH, MID and LOW equalizer, an AUX send, an effects send level, PAN control, as well as MUTE and PFL functions. This layout allows you to quickly adjust the tonal balance and level of each connected microphone, instrument or player.

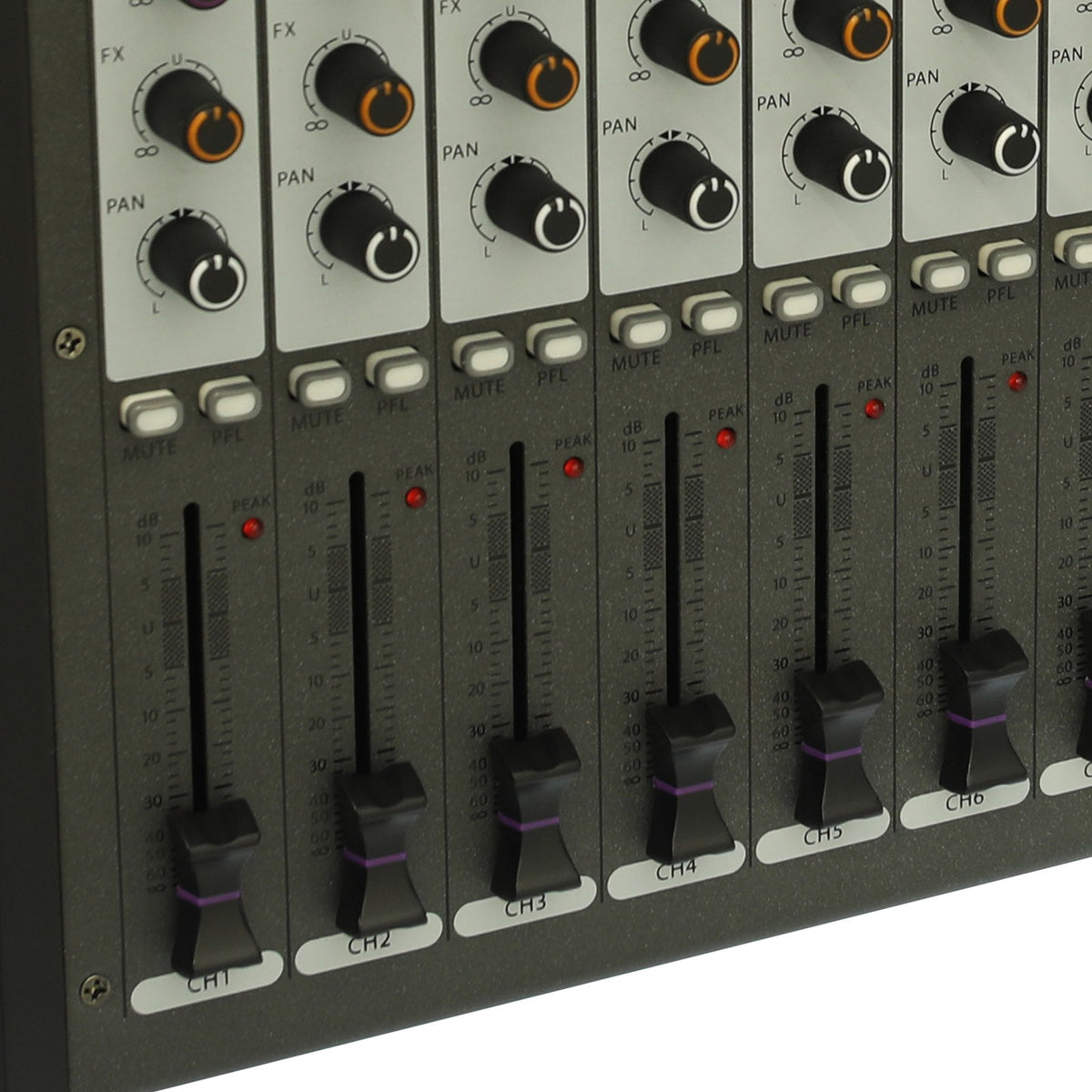

The PFL function is particularly useful for monitoring a channel through headphones before fully integrating it into the main mix. The PEAK indicators on each channel also help monitor levels and reduce the risk of clipping. Dedicated linear faders for the channels, effects, BT/USB section and master provide smooth control during a performance.

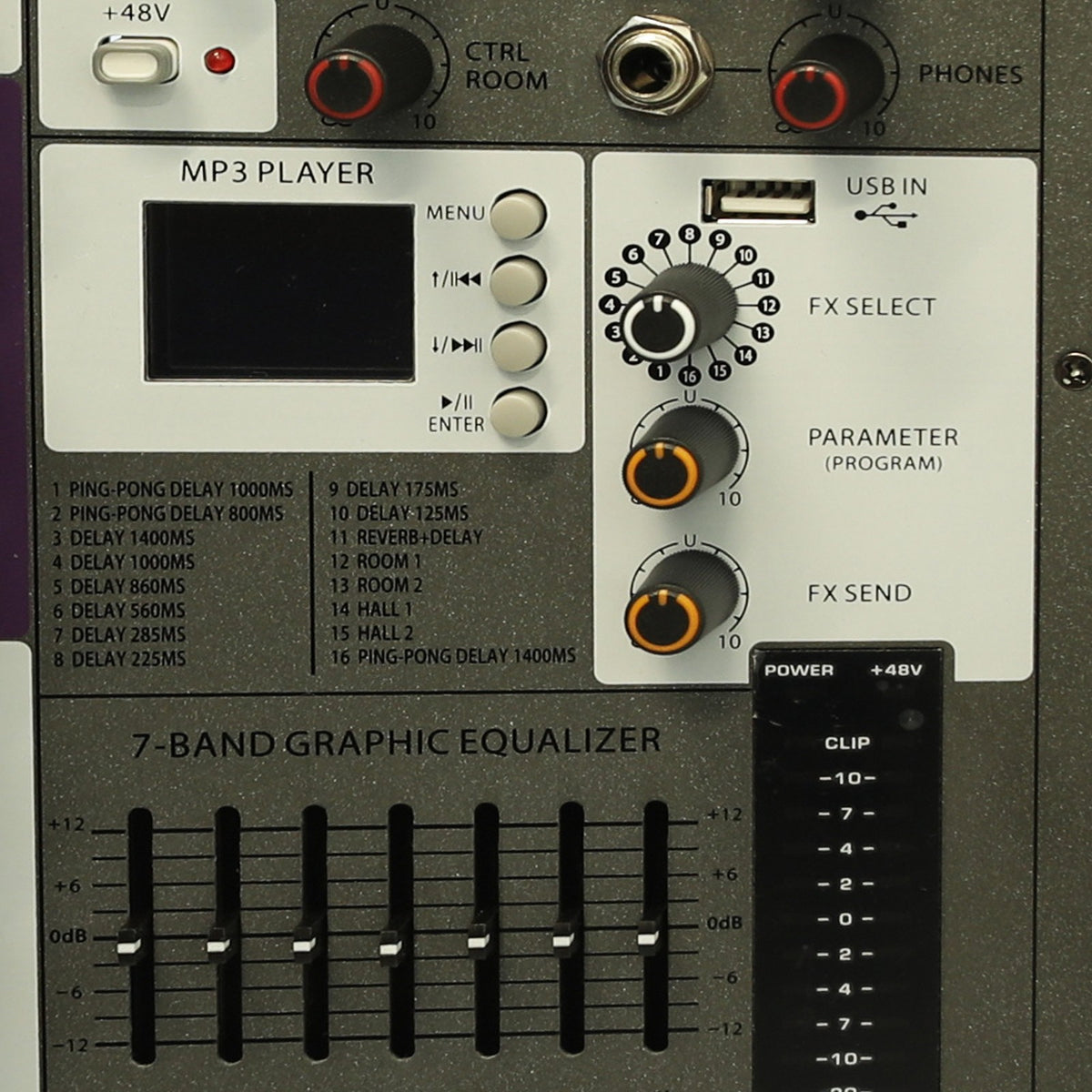

To add depth to vocals or integrate ambience into a performance, the console features a DSP processor offering 16 programmed effects. The FX Select, Parameter and FX Send controls let you select and adapt the processing to suit the situation: rehearsal, concert, speech or entertainment.

The 7-band graphic equalizer complements the channel-by-channel corrections. It allows you to adjust the key frequencies of the sound reinforcement system to fine-tune the overall sound, soften an overly harsh area or better adapt the sound reinforcement to the room's acoustics. The MAIN OUT L/R, AUX SEND, CTRL ROOM and PHONES outputs provide the routing required to feed main speakers, stage monitors, control room equipment or monitoring headphones.

Technical specifications

Type	Analog	Headphone output	Yes
Rackable	No

3-band EQ per channel	HIGH, MID, LOW	EIN noise	-122 dBu
Graphic equalizer frequencies	63 Hz, 165 Hz, 420 Hz, 1.2 kHz, 3 kHz, 6.5 kHz, 16 kHz	CMRR	greater than 75 dB at 1 kHz
Frequency response	20 Hz to 22 kHz, plus or minus 1 dB	Crosstalk	greater than 80 dB at 1 kHz, fader closed
Maximum input level	Mic +10 dBu / Line +22 dBu	Maximum output level	XLR +22 dBu, TRS +20 dBu
THD+N	less than 0.05% at 1 kHz
