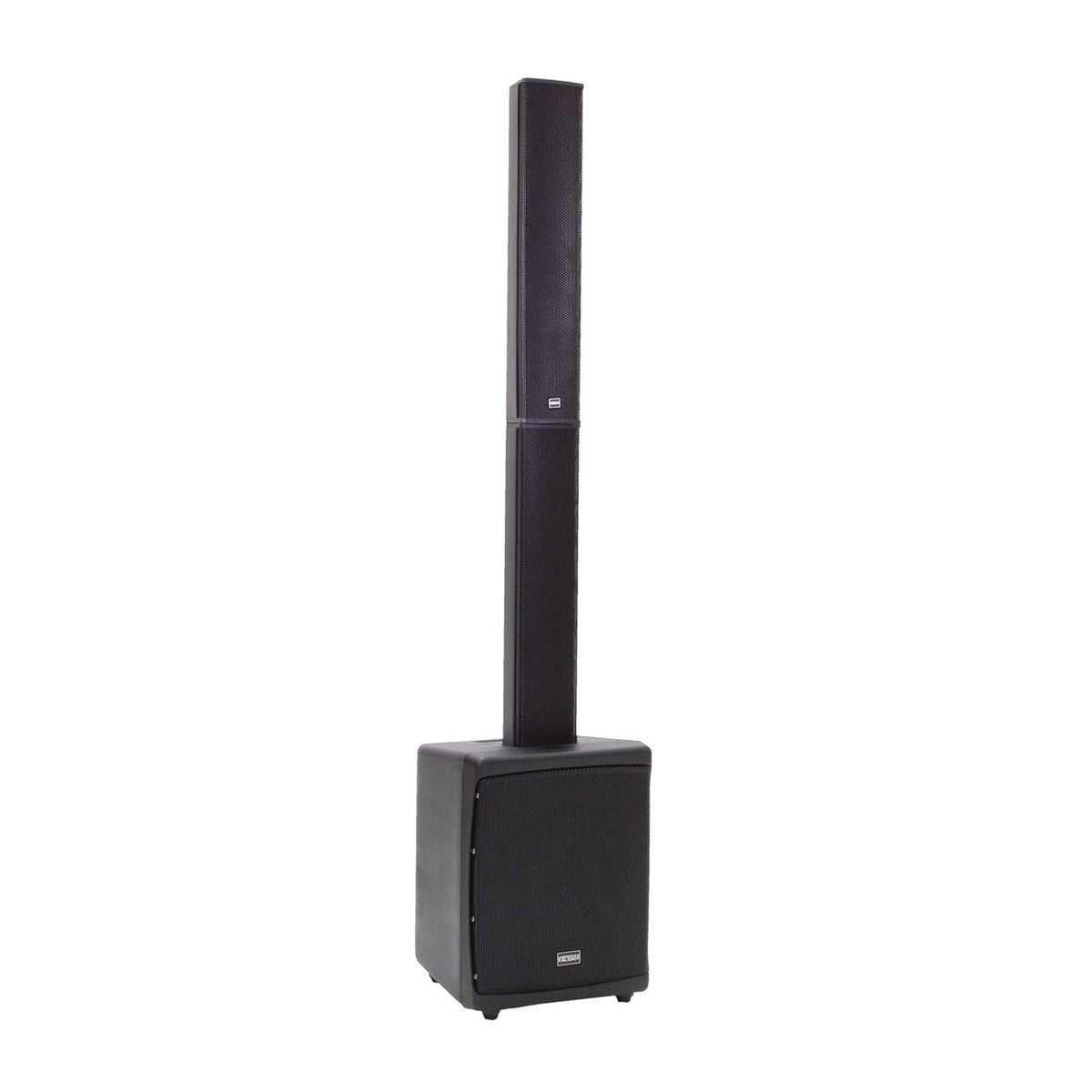

The Column Sound System: A Modern Solution Between Portable Speaker and Mini-PA
"Column" sound systems have become popular to meet a simple need: achieving even sound distribution in a room, with quick setup and minimal footprint. This format combines a bass cabinet and column elements to project sound more evenly than a floor-standing speaker, while remaining easy to transport. With its battery design and integrated mixer, this model fits into the all-in-one solutions category designed to perform anywhere, even without nearby mains power.
Intended Uses and Musicians
This battery-powered sound system is aimed at singers, guitarists, keyboardists, mobile DJs, hosts, as well as for speaking engagements (associations, multipurpose rooms, classes, conferences). Thanks to listening modes and comprehensive connectivity (Bluetooth, RCA, mini-jack, combo inputs), it suits both live performances and ambient music playback. The column format is particularly relevant when seeking wide coverage and discreet installation.
Key Features: Autonomy, Connectivity, and Controlled Dispersion
True Freedom to Play Thanks to the Lithium Battery
The built-in lithium battery allows sound reinforcement for outdoor events, rehearsals, ceremonies, or activities without relying on mains power. The LED charge indicator (25, 50, 75, and 100%) helps anticipate remaining battery life. The announced 3.5-hour charging time facilitates rotation between two gigs or recharging between sessions.
Integrated Mixer and Effects: Simple, Effective, Stage-Ready
The onboard mixer offers 2 Micro/Line channels (combo XLR/6.35mm Jack inputs) and 1 stereo AUX channel. Each Micro/Line channel features a reverb with ON/OFF selector, convenient for adding depth to a voice or softening an instrument without adding an external processor. For music, you can connect a source via 3.5mm Jack "MP3", RCA, or Bluetooth.
4 Listening Modes to Adapt the Sound Instantly
Depending on your context, select the most suitable profile: MUSIC for versatile playback, LIVE for presence during performance, HIFI for more "comfort" listening, or SPEECH to maximize speech intelligibility. This approach saves time during setup, especially in acoustically challenging venues.

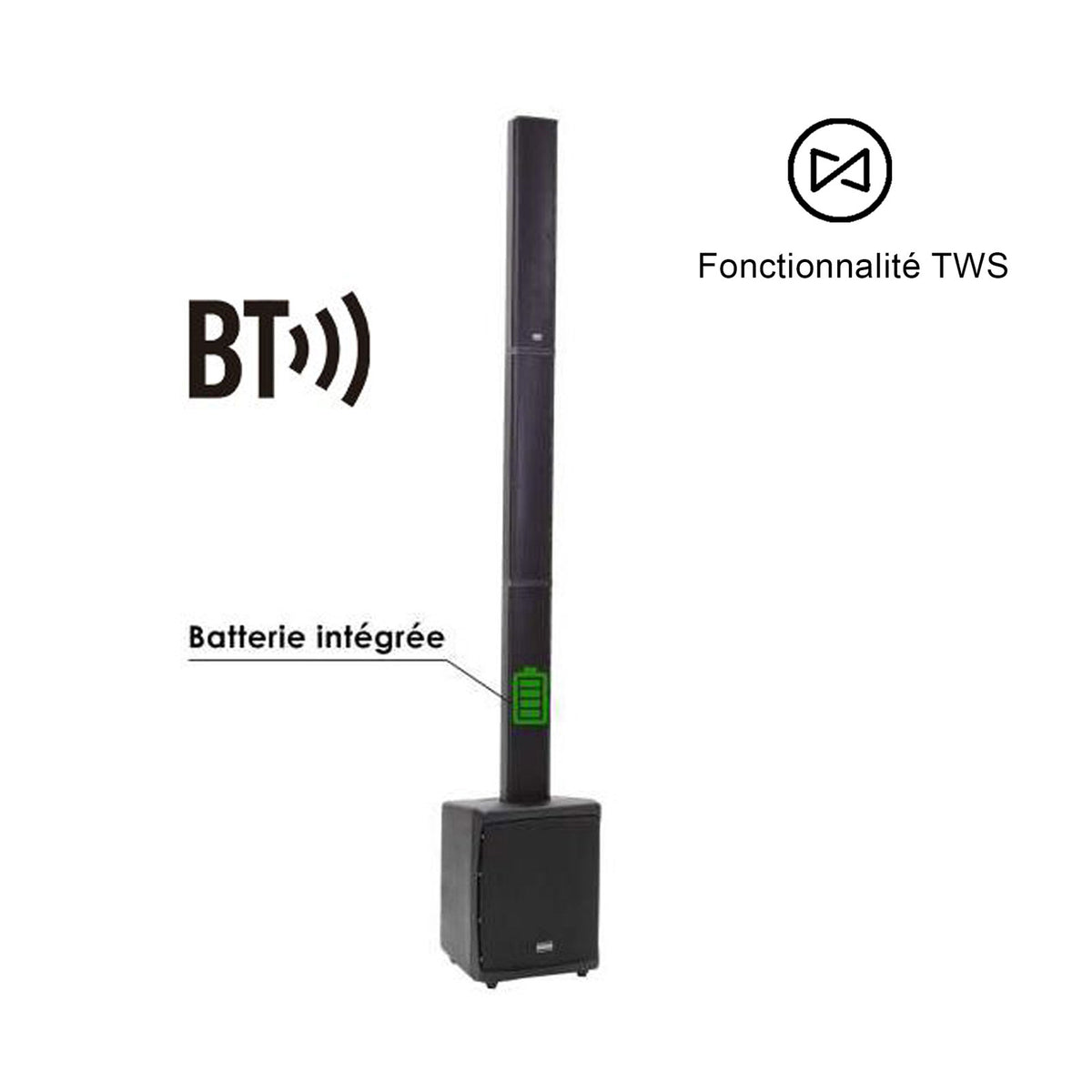

TWS: Double the System, Widen the Coverage
The TWS (True Wireless Stereo) mode allows pairing a second compatible amplified system to increase sound coverage and better distribute volume across the space. This is a useful option for longer events, large rooms, or performances where maintaining comfortable volume without stressing a single point of output is desired.
Amplification and Safety: DSP and Built-in Protections
With announced Class D + AB (satellites) amplification, the system aims for a good balance between efficiency and control. Protection via DSP limiter, as well as safeguards against short circuits, overvoltage, and overheating, contribute to safer use during performances.
Technical specifications
| Battery | Yes | Media Player | Bluetooth |
| Number of channels | 2 channels | Speaker structure | polymer molding |
| Bluetooth | Yes | Inputs | minijack, combo XLR/jack |
| Speaker diameter | 2,75", 8", 3,5" | Color | Black |
| Number of speakers | 7 | Power output | 1600 W |
| EQ | Yes | ||
| Type | Battery-powered column-type sound system | Listening Modes | MUSIC / LIVE / HIFI / SPEECH |
| Power | 400W RMS / 800W PROG / 1600W MAX | Protection | DSP limiter, short circuit, overvoltage, and overheating |
| Amplification | Class D + AB (satellites) | Bass Speaker | 203mm (8 inches) |
| Sensitivity | 95 dB | Woofer Voice Coil Diameter | 50mm (2 inches) |
| SPL | 121 dB | Woofer Impedance | 4 ohms |
| Frequency Response | 50 Hz - 20 kHz (-10dB) | HF Drivers | 6 x 76mm (2.75 inches) |
| Impedance | 4 Ohms | Columns | 4 x 3.5-inch speakers |
| Lithium Battery | 26V / 5200mAh | Column Impedance | 8 ohms |
| Autonomy | 6 hours (at 80% total volume) | Directivity | 120deg x 20deg |
| Battery Charging Time | 3.5 hours | Crossover | 250 Hz 18dB/Oct |
| Power Supply | 100-240V AC, 50/60Hz, 12-36V DC or internal battery | Build | Bass cabinet and satellites made of ABS |
| Charge Indicator | LED (25, 50, 75, and 100%) | Cabinet Dimensions | 325 x 305 x 412 mm |
| Mixer | 2 Micro/Line channels + 1 stereo AUX channel | Column Dimensions | 107 x 107 x 575 mm |
| Additional Inputs | 3.5mm Jack MP3, RCA | Column Weight | 1.7 Kg |
| Wireless Connectivity | Bluetooth | Cabinet Weight | 9.9 Kg |
| TWS | Pairing with a second amplified system | Total Weight (cabinet + 3 columns) | 15 Kg |
| Effect | Reverb with ON/OFF selector on both channels | ||
Questions frequently asked
What battery life does the Definitive Audio Vortex 420 Freedom MK2 offer?
The 26 V / 5200 mAh lithium battery provides up to 6 hours of playtime at 80% of the maximum volume. The charging time is approximately 3.5 hours, and the LEDs indicate battery levels from 25 to 100%.
Can microphones and guitars be connected to this speaker column?
Two combo XLR/6.35 mm jack inputs accept mic or line-level sources. Activatable reverb is available on each of these two channels.
Can the Vortex 420 Freedom MK2 operate without mains power?
This model runs on its internal battery and also supports power supplies compatible with 100-240 V AC and 12-36 V DC.
What power and sound level can be expected for an event?
The amplifier delivers 400 W RMS, 800 W program, and 1600 W peak power. The SPL level reaches 121 dB, with a frequency response of 50 Hz to 20 kHz (-10 dB). The column speaker has a dispersion pattern of 120° x 20°.
Is it possible to link two Vortex 420 Freedom MK2 systems wirelessly?
The TWS mode enables pairing with a second compatible powered system to extend sound coverage. Bluetooth streaming is also available for music sources.
