DPA 4099-dc-1-101-a

The 4099 Series: a DPA reference, now in CORE version

Already considered a standard for acoustic instrument capture, the d:vote 4099 takes a step further with CORE by DPA. This evolution aims to improve transparency and openness of sound across the entire dynamic range, while retaining the strengths of the 4099 line: faithful reproduction, excellent off-axis sound control, and true consistency from one instrument to another within the same setup.

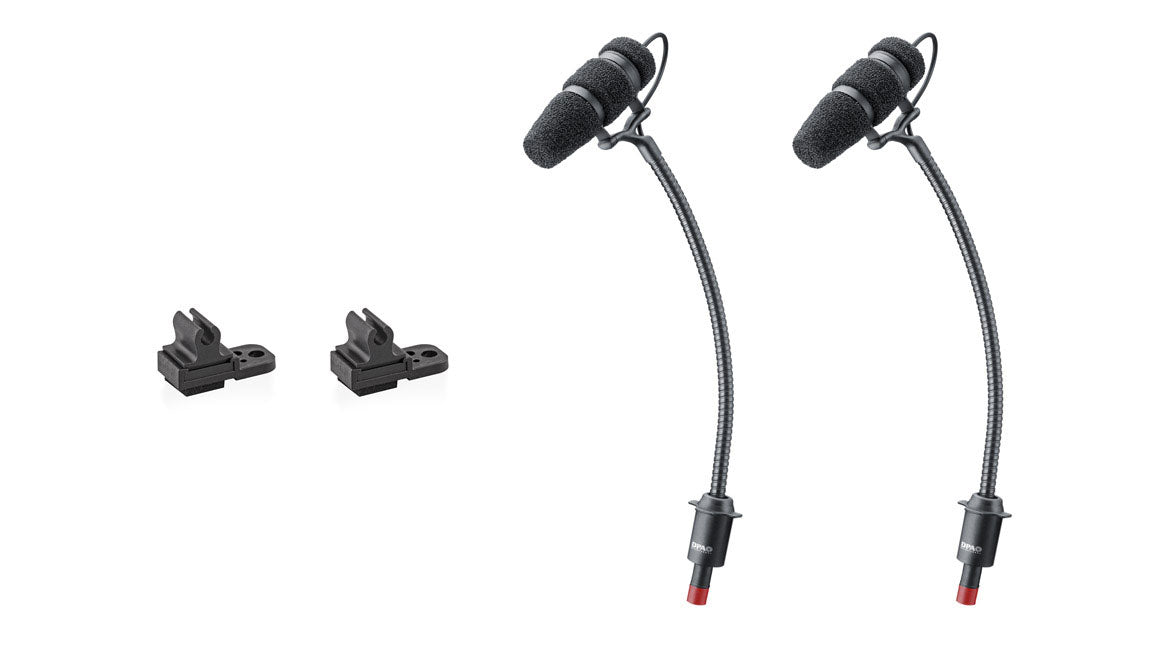

The series philosophy remains the same: the same microphone can be used on many instruments by simply changing the appropriate mounting system. In this kit, the setup is optimized for accordion to achieve clean, clear, and easy-to-manage stereo sound reinforcement.

For which accordionists and contexts?

This 2x DPA 4099 CORE stereo kit for accordion is aimed at demanding musicians, sound engineers, and touring setups seeking a capture that is both natural and highly isolated. The supercardioid pattern helps maintain a clean sound on busy stages (monitors, drums, brass, amps), while preserving the articulation and dynamics so characteristic of the accordion.

Thanks to instrument mounting, you maintain constant proximity to the source: the sound remains consistent even when moving, and the left/right stereo balance stays more stable than with distant miking.

Technology, mounting, and durability: what makes the difference on stage

CORE by DPA: more transparent reproduction

The CORE technology is designed to reduce distortion and enhance the sense of detail, especially on attacks and fine nuances. The result: a more intelligible accordion in the mix, better perception of transients, and an increased sense of openness, useful both in acoustic music and amplified contexts.

Supercardioid: isolation and gain before feedback

The supercardioid polar pattern focuses the capture on the instrument while reducing sensitivity to side and rear sounds. This is a major advantage for achieving higher usable gain before feedback and maintaining usable stereo even in dense stage environments. As with any directional microphone, placement is crucial: the gooseneck helps precisely aim at the most musical area and easily replicate the same positioning from one gig to another.

Accordion mounting, quick repositioning, and instrument protection

The microphones can be unclipped and repositioned easily. The mounting system is designed to avoid damaging or scratching the instrument's finish. In this "accordion" configuration, the kit provides a complete solution designed to achieve clean and transparent stereo, with a selected pair for level coherence between the two microphones.

Built to last: IP58 certification and detachable cables

The CORE by DPA models, including the 4099 CORE, are IP58 certified for enhanced durability in real-world conditions. The design includes moisture protection and material choices focused on reliability. Detachable cables (lightweight or rugged versions depending on the application) facilitate installation and handling while meeting the demands of daily use.

Technical specifications

Frequency response	20 Hz - 20 kHz	Capsule	static electret
Category	instrument microphone	Color	Black
Directivity	supercardioid

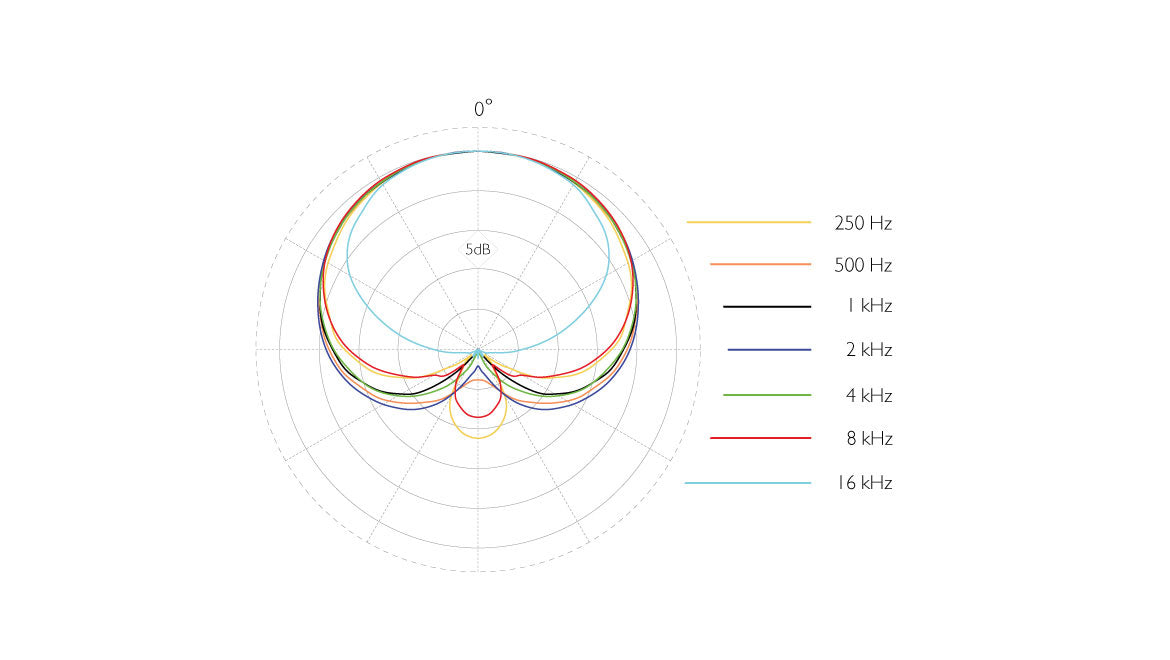

Polar pattern	Supercardioid	Output balancing principle	Balanced signal with XLR adapter DAD4099-BC or DAD6001-BC
Operating principle	Pressure gradient	Common mode rejection ratio (CMRR)	> 60 dB from 50 Hz to 15 kHz with XLR adapter DAD4099-BC or DAD6001-BC
Cartridge type	Pre-polarized condenser	Polarity	+V at MicroDot pin for positive acoustic pressure (and pin 2 on XLR adapter DAD4099-BC or DAD6001-BC)

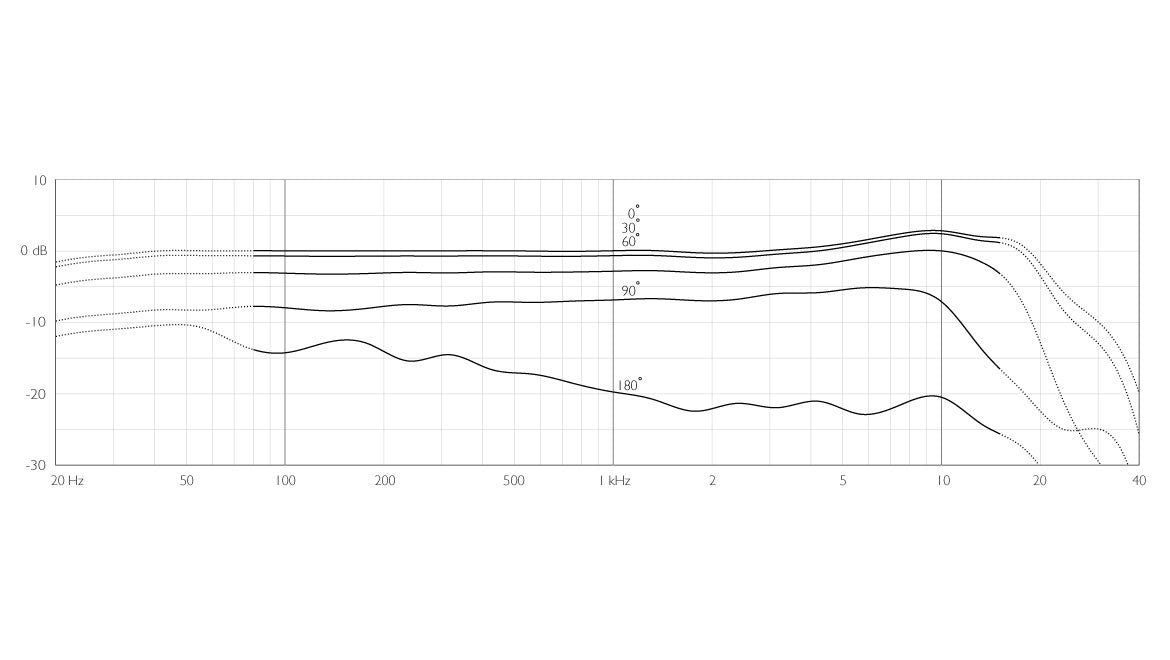

Effective frequency range +/-2 dB at 20 cm (7.9 in)	80 Hz - 15 kHz with a gentle 2 dB boost at 10-12 kHz. Second-order high-pass filter at 80 Hz with DAD4099-BC	Power supply (for optimal performance)	For wireless systems: Min. 5 V - max. 10 V via DPA adapter. With DAD6001-BC or DAD4099-BC: P48 (phantom power). Operates from 12 V
Nominal sensitivity, +/-3 dB at 1 kHz	6 mV/Pa; -44 dB re. 1 V/Pa	Current consumption	Typ. 1.5 mA (microphone). 3.5 mA with XLR adapter DAD4099-BC or DAD6001-BC
Equivalent noise level, A-weighted	Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))	Connector	MicroDot
Distortion, THD < 1%	128 dB SPL RMS, 131 dB SPL peak	Microphone diameter	5.7 mm (0.22 in)
Dynamic range	Typ. 108 dB	Microphone length	45 mm (1.8 in)
Max SPL, THD 10%	142 dB SPL peak	Cable length	1.8 m (5.9 ft)
Sensitivity matching tolerance (at 1 kHz)	+/-1 dB	Cable diameter	1.6 mm (0.06 in) / 2.2 mm (0.09 in)
Nominal output impedance	MicroDot: 30 - 40 ohms. With DAD4099-BC or DAD6001-BC adapter: 100 ohms	Gooseneck length	140 mm (5.5 in)
Cable transmission capacity	Up to 300 m with XLR adapter DAD6001-BC/DAD4099-BC
