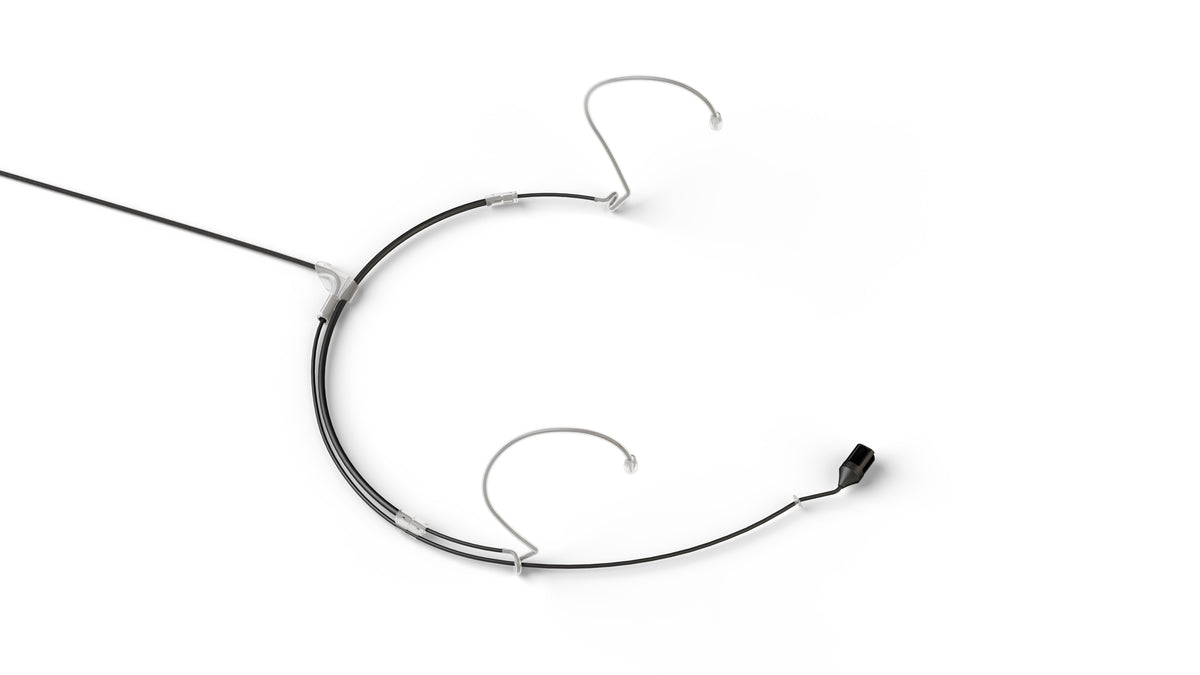

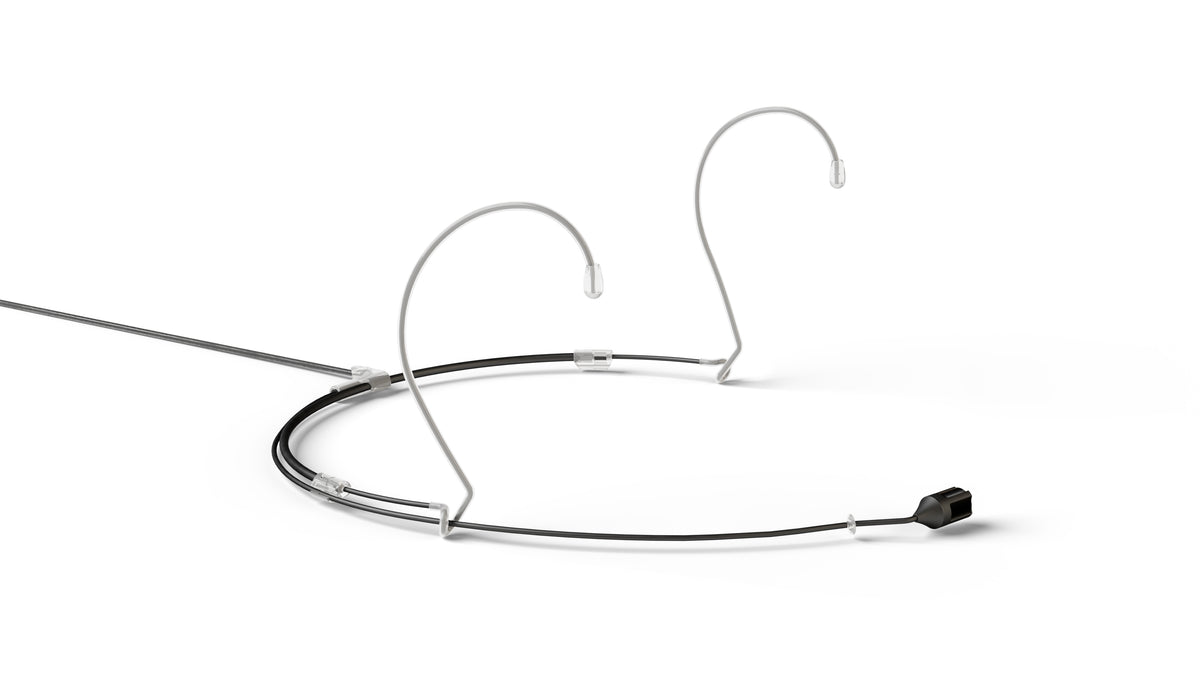

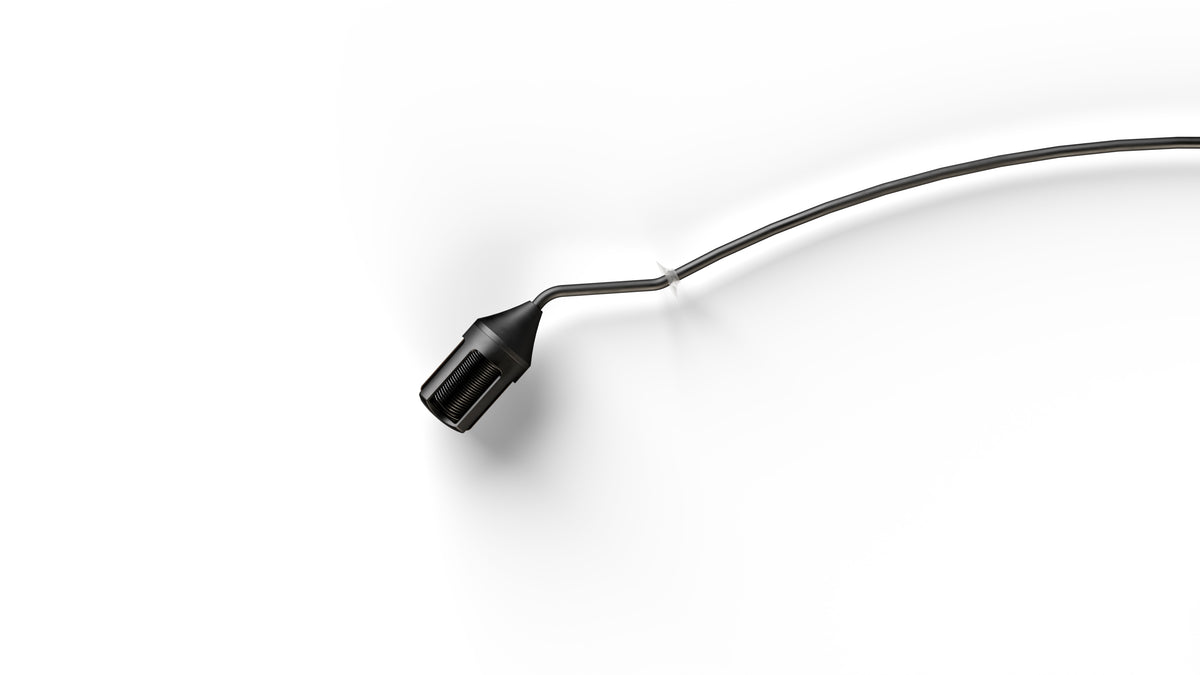

DPA 6388 CORE+ directional micro headband black MicroLock
Regular price
945,00 €VAT incl.
0,07 € Ecotax included
Sale price
Reference price
0,07 € Ecotax included
Regular price
Available on order
Store: on order
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
DPA
https://www.dpamicrophones.com
info-fr@dpamicrophones.com
------------------------
Safety manager:
DPA France
Email: info-fr@dpamicrophones.com
Address:
Technical specifications
| Type | directional headset microphone with a pre-polarized condenser capsule | Power with DAD9001 adapter | P48 phantom power, maximum performance from 14 V |
| Polar pattern | supercardioid | Available connectors | MicroLock, TA4F Mini-XLR, 3-pin and mini-jack |
| Operating principle | pressure gradient | Frame | Act, an evolution of the frame used in the 4066 and 4088 series |
| Capsule technology | CORE+ by DPA | Reversible boom | left- or right-side positioning |
| Frequency response | 20 Hz to 20 kHz | Finishing | non-reflective PVD treatment matching the color of the microphone |
| Useful frequency range within ±2 dB, at 3 cm | 100 Hz to 18 kHz | Clips | transparent and reinforced to retain the selected adjustment |
| Useful response | slight 1 dB boost at 14 kHz | Ear contours | redesigned shapes and rounded tips for enhanced comfort |
| Nominal sensitivity at 1 kHz | 8.0 mV/Pa, or -42 dB re 1 V/Pa | Cable management | output facing downward at the boom-cable junction, with a 90-degree orientation |
| A-weighted equivalent noise level | typical 26 dB(A), maximum 28 dB(A), re 20 micropascals | Capsule protection rating | IP58 against moisture and dust |
| Equivalent noise level according to ITU-R BS.468-4 | typical 37 dB, maximum 39 dB | Design | robust, repairable and suited to everyday professional use |
| Total harmonic distortion below 0.5 percent | 138 dB SPL RMS and 141 dB SPL peak | Cable diameter | 1.6 mm |
| Total harmonic distortion below 1 percent | 140 dB SPL RMS and 143 dB SPL peak | Cable length | 1.3 m |
| Dynamic range | typical 117 dB | Capsule diameter | 5.1 mm |
| Maximum SPL level at 10 percent distortion | 144 dB SPL peak | Microphone head dimensions | diameter 6.3 mm / 13.3 mm |
| Nominal output impedance with MicroLock | 60 to 80 ohms | Weight | 15 g, including cable and MicroLock connector |
| Nominal output impedance with DAD9099 or DAD9001 adapter | 100 ohms | Available colors | beige, brown and Black |
| Power with wireless systems | 5 V to 10 V via DPA adapter | ||
