A Field-Ready Variant: The Spirit of the DAD6001 with Added Practicality

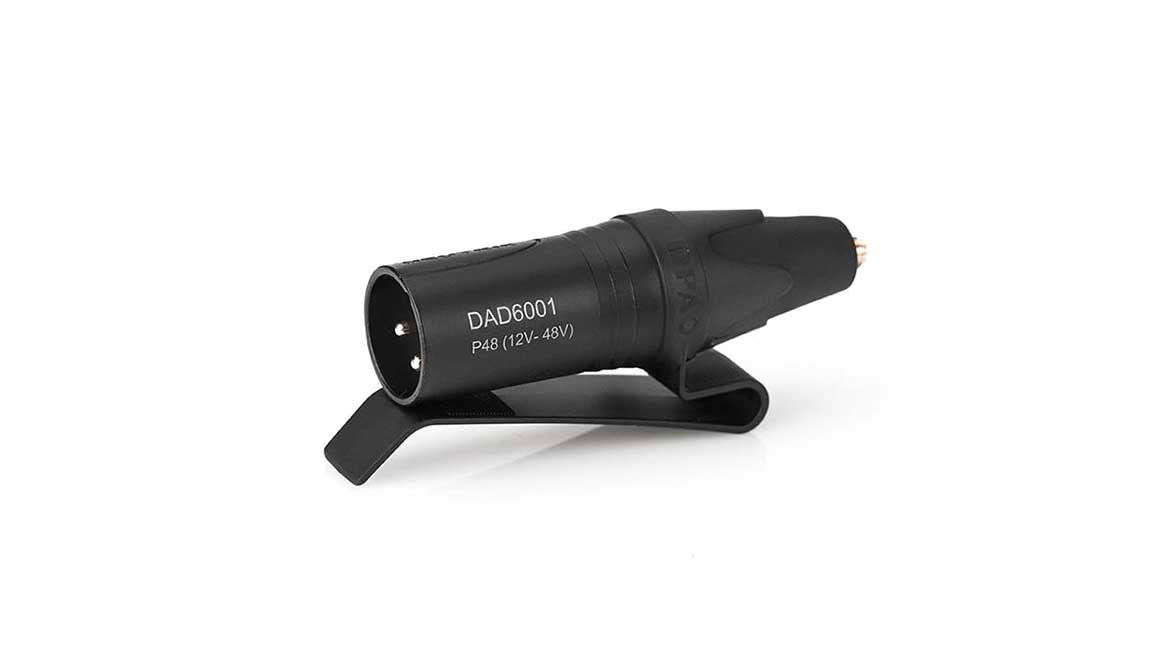

The DPA DAD6001-BC builds on the principle of the DAD6001 by adding a belt clip, particularly useful for mobile recording, on stage, or during filming. It is aimed at those who want to connect a DPA miniature microphone while maintaining a reliable and easy-to-manage setup on a daily basis.
Who Is It For and What Is It Used For?
This adapter is ideal for users of DPA miniature microphones who need a standard XLR connection and P48 power supply (console, audio interface, preamp). The belt clip facilitates placement and reduces cable strain, an advantage in dynamic use.
Operation and Key Points
48V Phantom Power and Dedicated Compatibility
Designed to power miniature microphones via 48V phantom power, the DAD6001-BC is a passive adapter. It is therefore specifically intended for DPA Miniature Microphones and should not be used as a universal adapter with other brands or microphone families.
Technical specifications
| Type | adapter |
| Connection | MicroDot to 3-pin XLR (P48) |
| Power | 48V phantom power (P48) |
| Compatibility | DPA Miniature Microphones only |
| Design | passive adapter |
| Feature | belt clip (BC version), similar to the DAD6001 |
Questions frequently asked
Is the DPA DAD6001-BC compatible with all DPA microphones?
Compatibility is limited to DPA miniature microphones. This MicroDot to 3-pin XLR adapter is not intended for other DPA microphone families.
What power supply is required for this MicroDot to XLR adapter?
A 48 V phantom power (P48), supplied by a mixer, audio interface, or preamp, is necessary.
Is the belt clip on the DAD6001-BC useful for stage use?
The belt clip facilitates positioning the adapter during mobile use. It reduces strain on the cable, especially on stage or during filming.
Can the DAD6001-BC be connected to a standard XLR input?
The output uses a standard 3-pin XLR connection. It should be connected to an XLR input capable of providing P48 power.
Does this DPA adapter work with microphones from other brands?
No, its passive design is exclusively dedicated to DPA miniature microphones using a MicroDot connection. It is not intended as a universal adapter.
