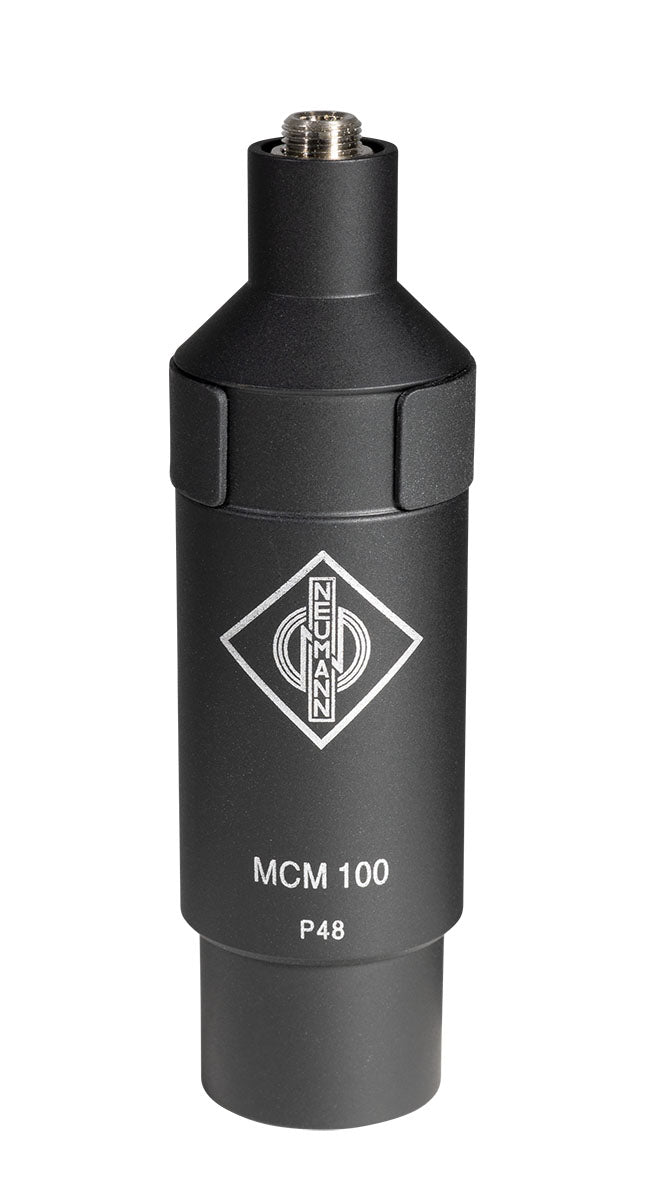

Neumann MCM 100
Estimated Shipping Widget will be displayed here!
Essential Information About the Neumann MCM 100 Output Stage
Essential Information About the Neumann MCM 100 Output Stage
- Direct Interface to XLR: allows the use of a Neumann MCM microphone on an XLR mic input with phantom power.
- 48 V Phantom Power Required (P48): no additional external power supply needed.
- Compact and Reliable Design: an output stage designed for clean integration both in the studio and on stage.
- Included: (1) MCM 100.
Manufacturer Information
Neumann
https://www.neumann.com
contact@sennheiser.com
------------------------
Safety manager:
Sennheiser electronic SE & Co.
Email: contact@sennheiser.com
Address:
A Key Component of the Neumann Miniature Clip Mic (MCM) System
The Neumann MCM 100 is the output stage designed for the wired operation of the Neumann Miniature Clip Mic system. It provides the necessary adaptation to use your MCM setup on a standard XLR microphone input, relying on the widely available 48 V phantom power from consoles, preamps, and audio interfaces.
Who Is the MCM 100 For and When to Use It?
The MCM 100 is intended for musicians, sound engineers, and studios seeking a simple and secure connection of an MCM miniature microphone to a professional audio chain. Ideal when you want a clean, robust, and quick-to-deploy solution on stage (orchestra, TV set, backline) or for close-miking in the studio.
Connectivity and Power: Simplicity and Efficiency
With its 3.5 mm mini-jack input and XLR-3M output, the MCM 100 naturally fits between your MCM system and an XLR mic input. It operates on 48 V phantom power (P48), enabling immediate use upon connection.
Technical specifications
| Type | adapter | Nominal mode power consumption (Wh) | 0 W |
| Input | 3.5 mm mini-jack | Power supply | 48 V +/- 4 V (P48, IEC 61938) |
| Output | XLR-3M | Current consumption | 3.5 mA |
| Required connector | XLR 3 F | Length | 77 mm |
| Nominal impedance | 50 ohms | Diameter | 22 mm |
| Nominal load impedance | 1000 ohms | Weight | 96 g |
You will also like
D'ADDARIO
IR Mic Mute - PW-IRMM-01
Rode
Boompole
DPA
DAD9010
Coles
4071B
DPA
DAD9017
Rode
R100126 Rode Microphone Adapter for Sennheiser Lemo System
DPA
DAD9034
DPA
DAD6001-BC
Questions frequently asked
Is the Neumann MCM 100 compatible with an XLR console?
The XLR-3M output allows connection to a standard XLR microphone input using a 3-pin female XLR connector. Phantom power P48 at 48 V is required for operation.
What power supply is needed for the MCM 100?
A 48 V ± 4 V phantom power supply, compliant with the P48 IEC 61938 standard, is necessary. The current consumption is 3.5 mA.
Can an MCM miniature microphone be connected via mini-jack?
The 3.5 mm mini-jack input is intended to integrate the Neumann Miniature Clip Mic system into a wired audio chain. The adapter then provides an output on XLR-3M.
What is the load impedance for this XLR adapter?
The nominal impedance is 50 ohms and the nominal load impedance is 1000 ohms. These values correspond to its integration on a professional XLR microphone input.
What are the dimensions of the MCM 100?
Its size measures 77 mm in length and 22 mm in diameter, with a weight of 96 g. This design facilitates its deployment in an MCM sound recording setup. The nominal power consumption stated is 0 W.
