DPA DAD9032
Estimated Shipping Widget will be displayed here!
What you need to know
What you need to know
- Allows connection of a DPA microphone equipped with MicroLock to a compatible Mipro beltpack transmitter.
- Transmitter side connection via TA4F (Mini-XLR 4-pin) for clean integration into wireless systems.
- Ideal solution to reuse the same DPA microphone (headset, lavalier, instrument) across different wireless environments.
- Official DPA adapter, designed for stage, theater, conference, and broadcast use.
Manufacturer Information
DPA
https://www.dpamicrophones.com
info-fr@dpamicrophones.com
------------------------
Safety manager:
DPA France
Email: info-fr@dpamicrophones.com
Address:

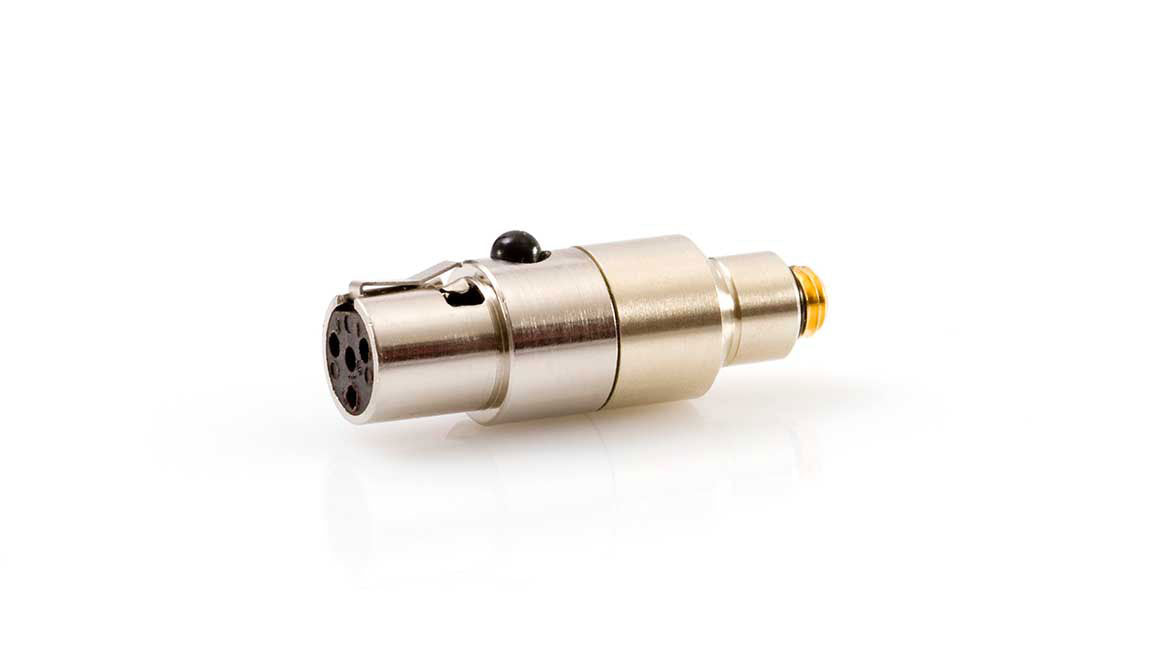

A DPA Adapter Designed for Wireless System Flexibility
The DAD9032 is part of DPA's range of adapters that allow pairing a DPA microphone with various wireless systems. It is presented as the successor to the DAD6032, featuring a MicroLock to TA4F connection suitable for compatible transmitters.
Who Is It For and What For?
This model is intended for users of DPA microphones with MicroLock who want to connect them to a Mipro beltpack transmitter (series ACT/TE/TM/TS and models MT103/303/801/808) without changing the microphone or cabling.
Reliable Connectivity and Quick Integration
With its MicroLock to TA4F interface, the adapter facilitates configuration changes (rentals, multi-brand wireless fleets, events). Once connected, it ensures a direct link between the microphone and transmitter, adapted to field requirements.
Technical specifications
| Type | adapter | ||
| GTIN/EAN | 5713055027094 | Mipro | ACT/TE/TM/TS/MT103/303/801/808 |
| Microphone side connector | DPA MicroLock | Beyerdynamic | OPUS 300/500/800/900 |
| Transmitter side connector | TA4F (Mini-XLR 4-pin, Switchcraft) | ||
You will also like
D'ADDARIO
IR Mic Mute - PW-IRMM-01
Rode
Boompole
DPA
DAD9010
Coles
4071B
DPA
DAD9017
Rode
R100126 Rode Microphone Adapter for Sennheiser Lemo System
Neumann
MCM 100
DPA
DAD9034
Questions frequently asked
Is the DPA DAD9032 compatible with Mipro ACT transmitters?
The TA4F mini-XLR 4-pin connector allows connection to Mipro transmitters from the ACT, TE, TM, and TS series. The models MT103, MT303, MT801, and MT808 are also listed as compatible.
What connector is used on the microphone side?
On the microphone side, this adapter accepts a DPA MicroLock connector.
Can a DPA MicroLock microphone be connected to a Beyerdynamic OPUS transmitter?
Compatibility is stated with Beyerdynamic OPUS 300, 500, 800, and 900 systems. The connection on the transmitter side is made via a 4-pin TA4F Switchcraft connector.
Does the DAD9032 replace the DAD6032?
Presented as the successor to the DAD6032, this model features a DPA MicroLock to TA4F interface. It allows retaining a DPA microphone equipped with MicroLock when switching to a compatible transmitter.
What is the manufacturer's reference for this MicroLock to TA4F adapter?
The manufacturer reference is DAD9032. Its GTIN/EAN is 5713055027094. The TA4F connector on the transmitter side corresponds to a Switchcraft 4-pin Mini-XLR format.
