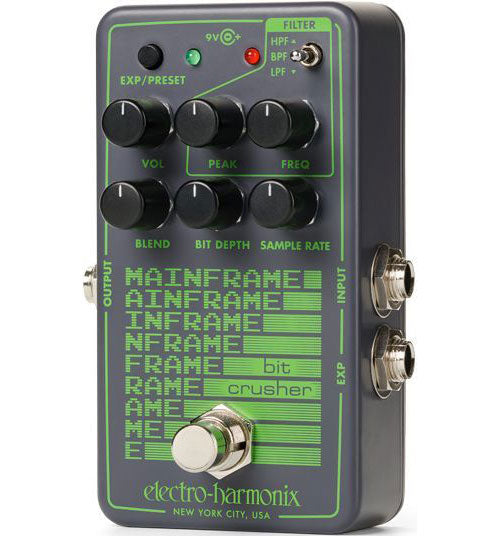

Electro Harmonix Nano Mainframe

A "Digital Studio" Approach Designed for the Pedalboard

The Mainframe follows in the footsteps of lo-fi and "digital grit" effects that have marked modern production: resolution reduction, aliasing artifacts, and intentionally degraded textures. Whereas a classic bitcrusher simply dirties the signal, the Mainframe offers a very wide range of settings, capable of going from a slight pixelation effect to a radical and unrecognizable transformation of your sound. Released in 2020, it clearly targets guitarists, bassists, and sound tinkerers who want to recapture "old school" sensations (digital machines, video game sounds, brutal sampling), while maintaining pedal ergonomics.

For Which Musicians and Styles?

The Mainframe appeals equally to guitarists, bassists, synth players, and mono sources looking for lo-fi textures and glitch effects without using a computer. It is ideal if you play electro, hip-hop, post-rock, ambient, noise, experimental metal, or even modern funk when you want to "break up" a passage with controlled digital grain.

In the studio, it is used to create very characterful layers (degraded guitar doubles, 8-bit leads, twisted basses). Live, it becomes a transition weapon: a hit of sample rate reduction and you instantly switch from a hi-fi sound to a saturated, fragmented aesthetic with a very distinctive identity. On a pedalboard, it works very well before delays/reverbs to "spread out" the artifacts, or before a fuzz for unpredictable walls of texture.

Features and Control: From Surgical Detail to Wide Sonic Range

The heart of the Mainframe combines two complementary degradation axes. On one side, sample rate reduction (from 48 kHz down to 110 Hz): the lower you go, the more the signal loses fidelity and aliasing artifacts appear, that typical "stepped" and metallic side of extreme digital conversions. On the other, bit depth reduction (from 24 bits to 1 bit), which crushes dynamics and introduces aggressive granulation, perfect for "retro-digital" sounds.

To keep the effect musical, the Mainframe integrates a selectable High/Low/Band-Pass filter. This is a key point: instead of suffering from unwanted frequencies, you shape them. A low-pass can thicken and calm artifacts, a high-pass can bring out the sharp and percussive side, and the band-pass allows targeting a precise area for very "radio", "console", or "synthesis" style effects.

The pedal also offers a sample rate tuning mode: it analyzes your signal in real-time and adjusts the sampling based on the played pitch (or a defined interval above). Result: you can lock the effect to the key of a song to avoid "out-of-context" frequencies, or conversely evolve the sample rate reduction throughout your playing for lively and expressive movements.

For practical use, the Mainframe allows programmable settings oriented towards presets or expression pedal control: you can save a sound and recall it, or control a combination of parameters via an external expression pedal. Finally, secondary parameters (advanced functions linked to controls) serve to refine the effect's response and precisely lock your texture, from subtle lo-fi to massive glitch.

The Sound

The Mainframe does not seek transparency: it imposes a bold digital signature, with grain that can range from simple roughness to total signal destruction. At low reduction, you get a "pixelated" brightness, slight stepping, and texture compression that adds character without erasing the attack. Going lower, the sound becomes more "square", more unstable, with artificial harmonics and a synthesis-like feel, as if your guitar passed through a deliberately abused converter.

The dynamics remain very responsive to playing: hitting harder brings out the artifacts and increases the "grain" sensation, making the effect particularly expressive for percussive riffs, snapping bass lines, or leads that need to cut through a dense mix. With the filter, you can choose between a round and thick lo-fi or an acidic and sharp rendering, perfect for modern textures and experimental soundscapes.

Technical specifications

Effects	Effects	Type	sector
Technology	Digital	Use	electric guitar
Format	Pedal	Color	Grey

Circuit	digital	Audio	mono
Year of release	2020	Bypass	buffered bypass
Sample rate reduction	48 kHz to 110 Hz	Switching	silent
Bit depth reduction	24 bits to 1 bit	Dimensions	4.5 x 2.75 x 2.1 inches (approximately 114 x 70 x 53 mm)
Selectable filter	High-Pass, Low-Pass, Band-Pass	Required power supply	9.6V DC
Sample rate tuning mode	real-time signal analysis, adjustment based on played pitch or defined interval	Adapter provided	9.6V DC, 200 mA
Programmable settings	presets or control via external expression pedal (control of parameter combinations)	Current consumption	90 mA
Secondary parameters	advanced settings to refine the effect
