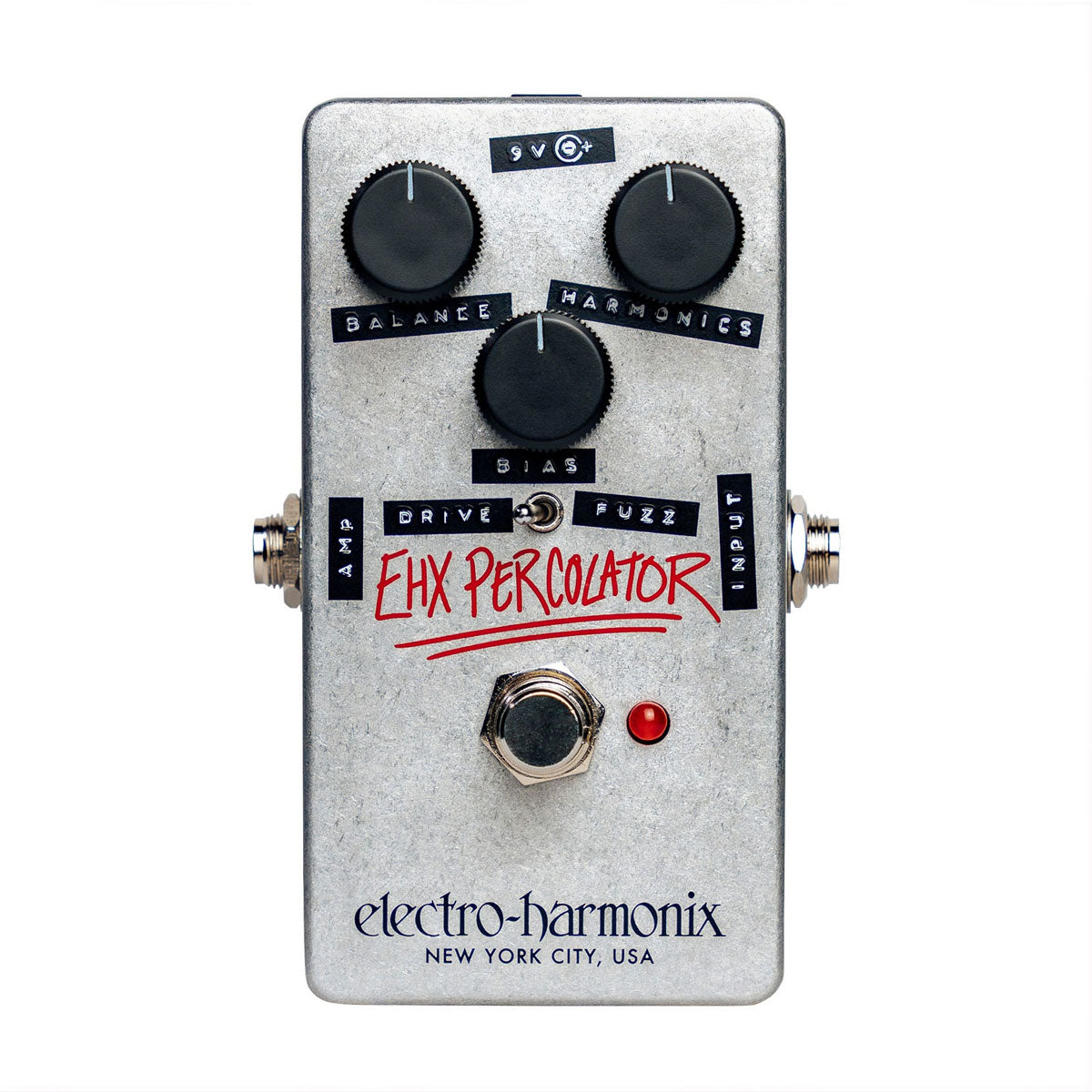

Electro Harmonix PERCOLATOR - Saturation

From the underground seventies myth to the Electro-Harmonix version designed for today

In the large family of fuzz pedals, some have become cult classics both for their rarity and their unpredictable behavior. The Harmonic Percolator, born in the 70s, is one of those circuits often mentioned as a well-kept secret: a saturation that is at once edgy, abrasive, and surprisingly expressive.
With the Harmonic Saturator, Electro-Harmonix does not aim to "tame" the character to the point of smoothing it out. The idea is rather to make this type of texture usable on a modern pedalboard, with clear reference points, two clipping architectures, and an internal adjustment range to push saturation and thickness in the low end.

A fuzz for guitarists who love control... and danger

The Harmonic Saturator is aimed at musicians who want to feel the circuit working under their fingers. If you play with a firm pick attack, you get a saturation that bites and cuts through the mix. If you lighten your right hand or lower the guitar volume, the pedal can clean up and become closer to a dirty overdrive, like a transistor preamp.
In terms of styles, it feels at home in garage, punk, noise rock, stoner, grunge, indie, and alternative, but it can also become a texture weapon for more experimental atmospheres. In the studio, it delivers takes that "speak" and an immediately identifiable personality. On stage, the momentary mode is perfect for punctuating a riff, a fill, or the end of a measure without having to choreograph your pedalboard.

Controls and modes: calibrated chaos to stay musical

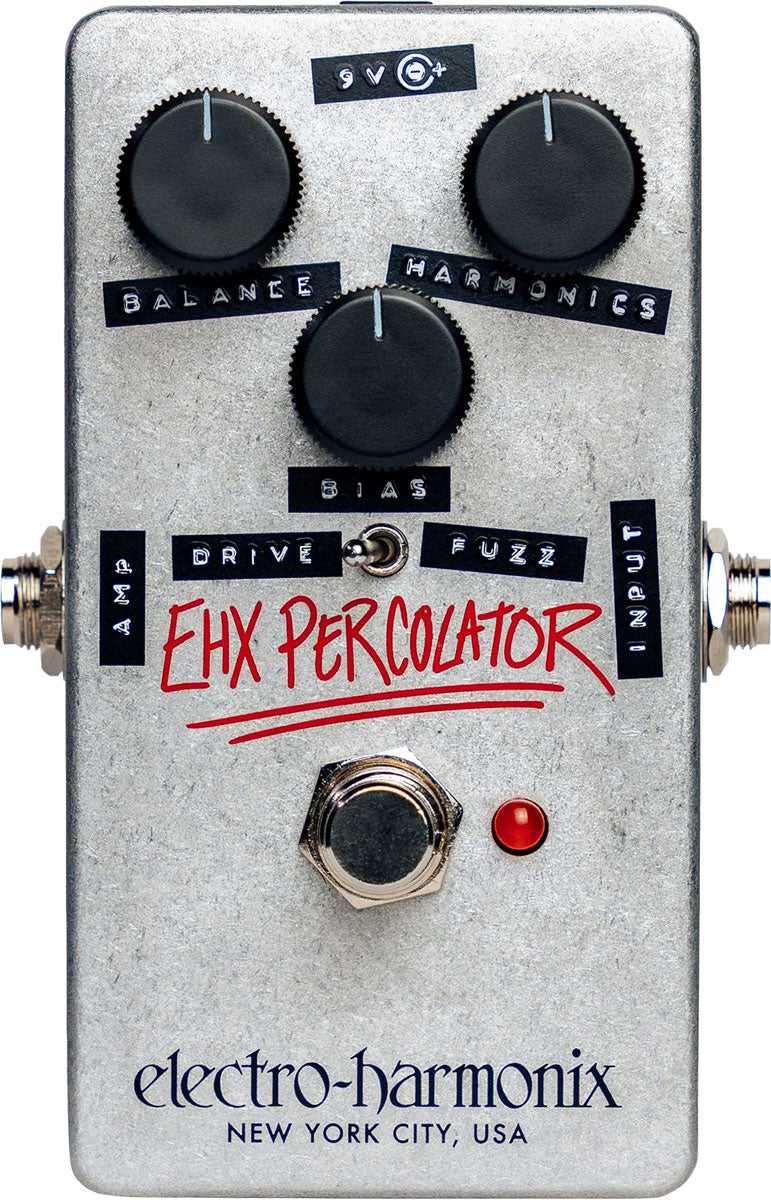

The control panel is straightforward, but each setting carries weight. HARMONICS sets the input saturation level, from granular drive to aggressive fuzz. BIAS adjusts the circuit bias: set low, the sound remains more stable and tight, and as you raise it, more unstable behaviors appear, pseudo-octave sensations, and very pronounced gating.
BALANCE controls the output level, useful both for preserving headroom and for pushing the amp's input. The DRIVE/FUZZ switch changes the clipping structure: in DRIVE, the pedal behaves like a raw transistor distortion or overdrive, very organic, with a "chewy" and edgy grain. In FUZZ, the clipping diodes engage and you get a more massive, sharper fuzz capable of abrasive sustain.
Inside, the trim pot allows you to adjust the amount of gain and the sub-octave emphasis. This is a real trick to tailor the pedal to your amp and pickups: thicken a rhythm part, densify a riff, or get a grumbling fuzz without losing articulation.
Finally, the footswitch offers two very practical behaviors: latching for classic on/off, or momentary (held press) to trigger the effect only for the duration of a note or phrase. Combined with the mechanical relay True Bypass, you keep a clean and direct signal when the effect is off.

The sound

The Harmonic Saturator stands out with a dense and "electric" saturation, driven by asymmetric clipping that enhances the sense of harmonics and texture. The low end remains present, the mids cut through with an incisive edge, and the whole maintains dynamics that follow your playing instead of crushing it. It's a pedal that rewards nuance while being capable of becoming downright nasty.
In DRIVE mode, you get a dirty and granular drive, very lively, which can serve as a base to dirty up a clean tone, push an amp crunch, or provide a deliberately lo-fi character. In FUZZ mode, the attack hardens, sustain becomes more aggressive, and by pushing the BIAS you can reach that percussive gated "Velcro" vibe, perfect for tight riffs and snapping leads.
The real charm is the interaction: same settings, different sensations depending on the guitar, pickups, amp, and especially your right hand. Placed before a warm amp, it becomes a harmonic machine. Placed on a very clean amp, it reveals all its raw personality, from edgy crunch to ripping fuzz.

Technical specifications

Effects	Distortion / Overdrive / Fuzz, Fuzz, Distortion, Overdrive	Type	sector
Technology	Analog	Use	electric guitar
Format	Pedal	Color	Grey

Circuit	analog	Output	1 x 6.35mm Jack
Bypass	mechanical relay True Bypass	Input impedance	70 kOhms
Release year	2026	Output impedance	0 to 12.5 kOhms (depending on BALANCE setting)
Potentiometers	HARMONICS, BIAS, BALANCE	Dimensions	4.5 x 2.75 x 2.1 inches (approx. 114 x 70 x 53 mm)
Switch	DRIVE/FUZZ (clipping diodes disengaged or engaged)	Power supply	9V DC center negative (9V battery included or optional power adapter)
Footswitch	latching (standard) + momentary function (held press) + status LED	Current consumption	10 mA
Internal adjustment	trim pot (overall gain and sub-octave emphasis)	Recommended adapter	9.6V DC 200 mA
Audio format	mono	Do not exceed	12V DC
Input	1 x 6.35mm Jack
