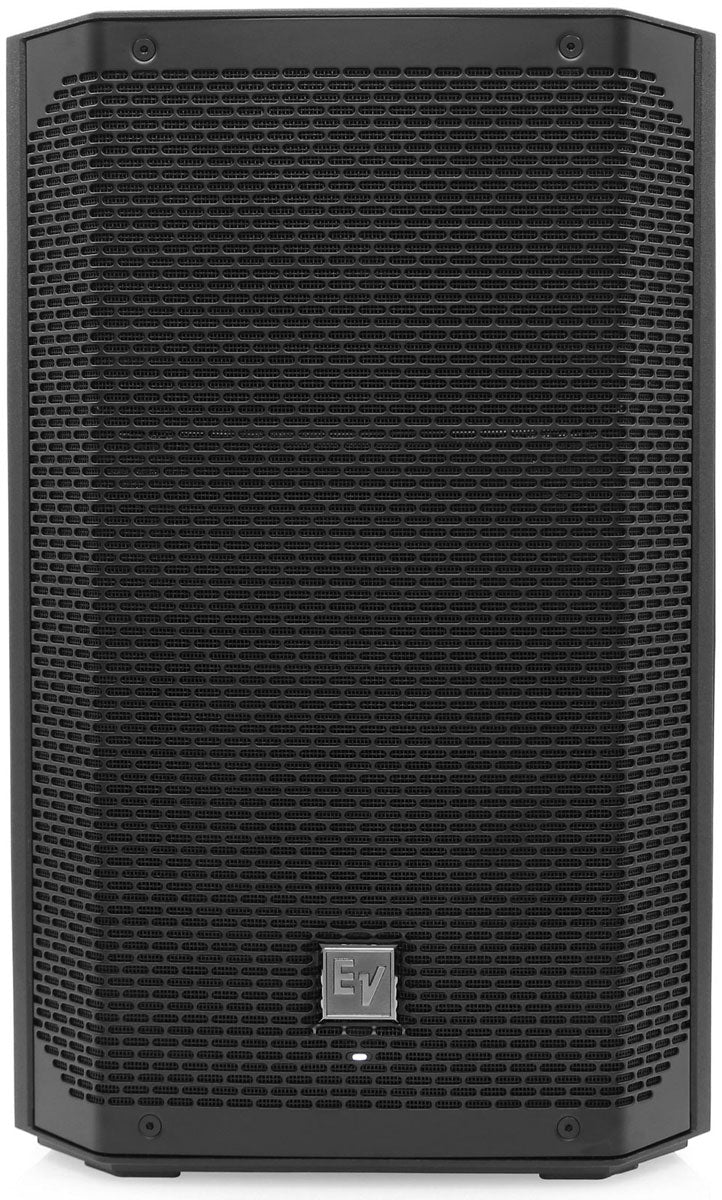

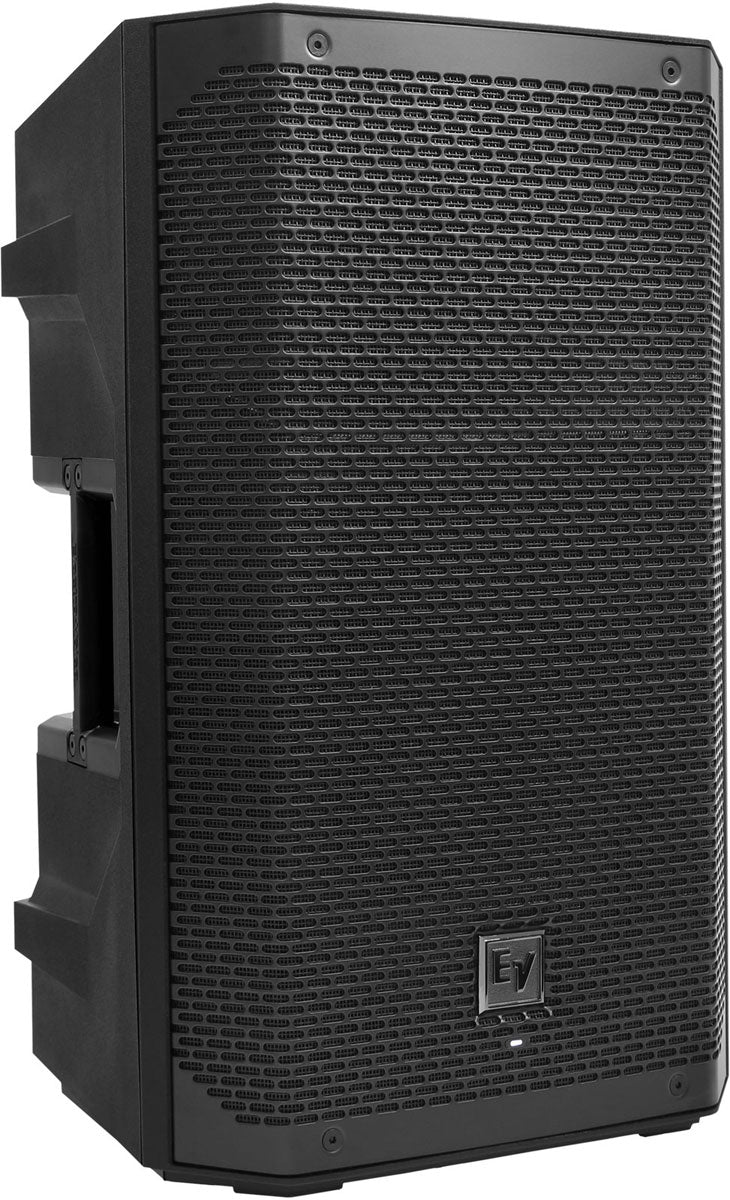

Electrovoice ELX200-10P

An ELX200 Speaker Designed for Contemporary Sound Reinforcement

The Electro-Voice ELX200-10P is part of the ELX200 series, a range designed to provide a reliable, easy-to-deploy active sound reinforcement solution that delivers consistent performance from one gig to another. With its 10-inch driver, it offers an excellent balance between compact size, effective projection, and clarity, while maintaining a level reserve suitable for many setups. This approach makes it a particularly relevant speaker for contractors, bands, and venues seeking a serious, portable, and quick-to-set-up system.

Who and What: Live, DJ, Speech, Stage Monitors

Thanks to its 10-inch format, the ELX200-10P is well suited for performances where a clean and precise sound is desired without carrying a bulky speaker. It can serve as a front-of-house speaker for small to medium stages, as a supplementary reinforcement speaker, or as a stage monitor when midrange clarity is a priority (vocals, guitars, keyboards, brass). It also meets the needs of mobile DJs, multipurpose rooms, establishments, conferences, and corporate events, with connectivity adapted to both consumer sources and professional audio equipment.

DSP, Sound Dispersion, and Connectivity: Electro-Voice Efficiency in Daily Use

QuickSmartDSP: Fast Setup, Consistent Results

The QuickSmartDSP simplifies startup and fine-tuning in the field. You have 4 presets, a 3-band equalizer, 5 user presets, and essential control tools such as limiter monitoring, input level control, and main volume adjustment. The LCD screen improves parameter readability and speeds up adjustments, even when the speaker is mounted on a stand.

Remote Control with EV QuickSmart Mobile App

To save time during soundchecks or to adjust settings from the audience area, the EV QuickSmart Mobile App allows remote configuration, control, and monitoring of the speaker. This is a real advantage for installations where rear access to the cabinet is not always practical, or when you want to quickly check levels and limiter behavior.

Controlled Dispersion and Optimized Transducer

The ELX200-10P combines a 10-inch EVS-10M driver and a 1-inch DH-1L titanium diaphragm tweeter with an SST (Signal Synchronized Transducers) waveguide. The goal is to achieve even dispersion and good coherence between drivers, maintaining a stable listening experience when moving within the coverage area. With an extended frequency response and a crossover at 1.8 kHz, the speaker aims for clear sound reproduction, particularly useful for vocal intelligibility and instrument attack.

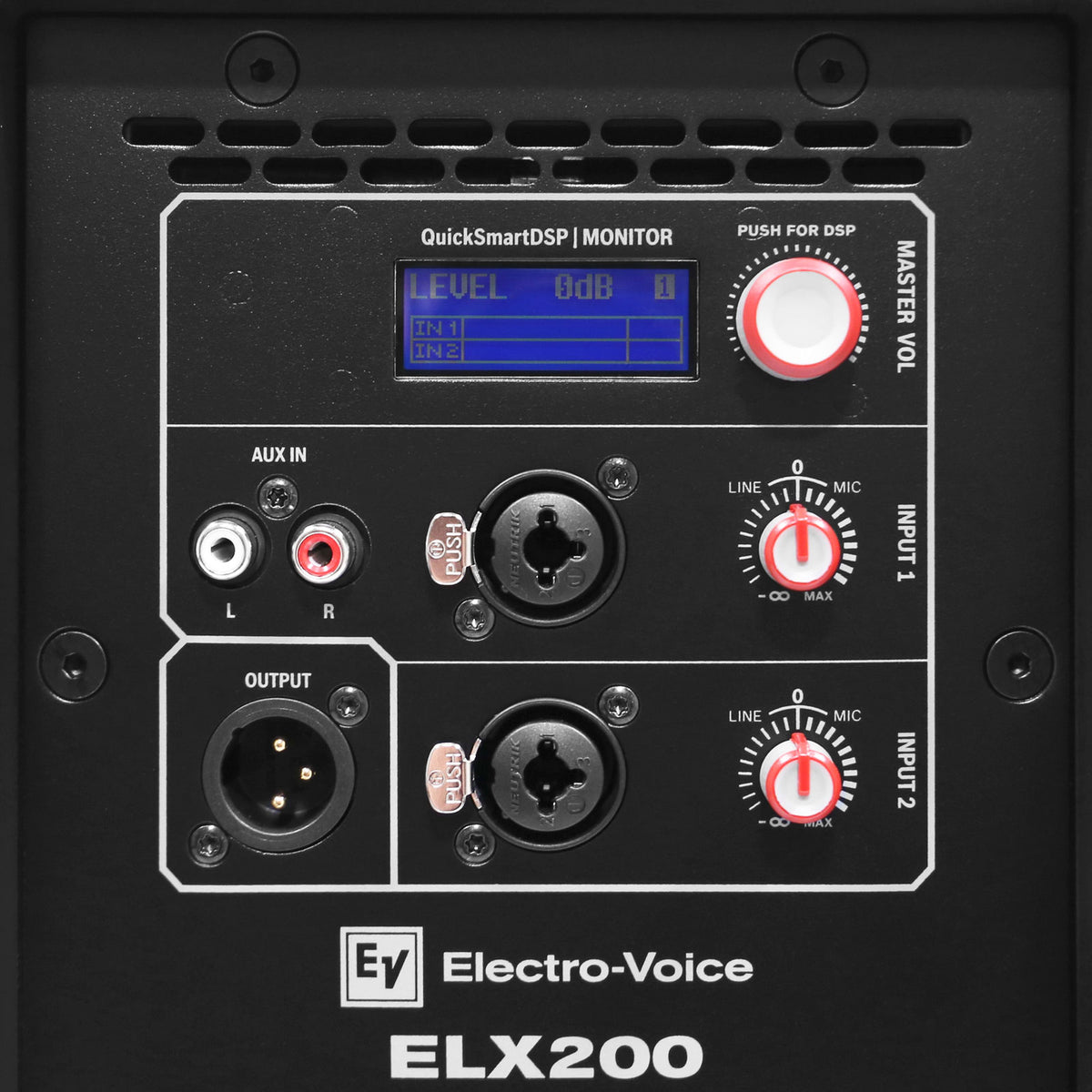

Connections: From DJ Sets to Live Mixing

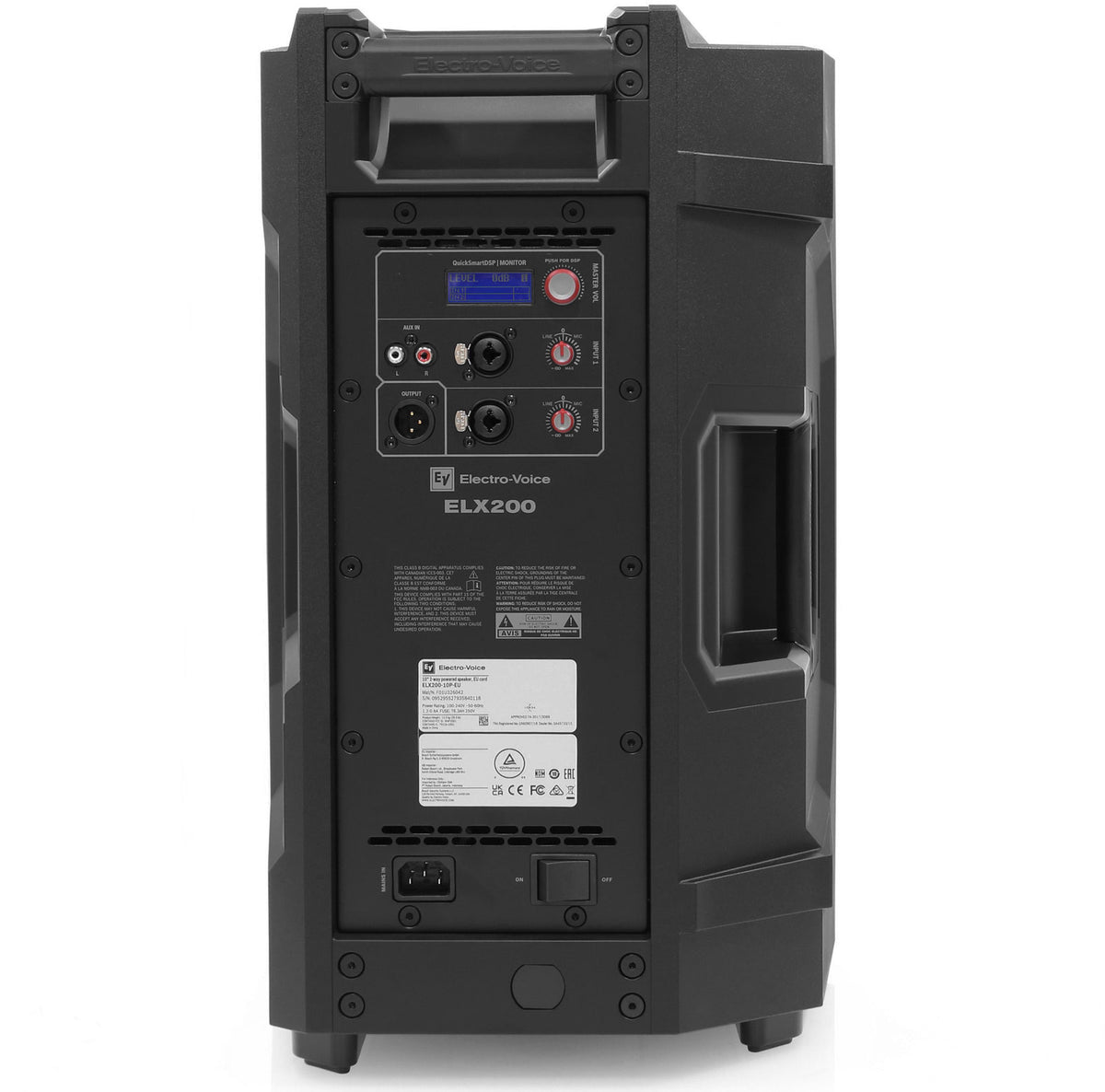

The RCA inputs are convenient for simple sources (DJ controller, player, computer via interface), while the two combo XLR/6.35 mm TRS jack inputs allow connection of a mixer, a microphone via preamp, or line outputs. The XLR output facilitates daisy-chaining to another speaker, to create a stereo system or distribute the signal to a second sound point.

Technical specifications

Bluetooth

No

Model	Electro-Voice ELX200-10P	EV QuickSmart Mobile App	remote configuration, control, and monitoring of the speaker
Type	active speaker	QuickSmartDSP	4 presets, 3-band equalizer, 5 user presets, limiter monitoring, input level control, main volume control
Amplification	Class D	Display	LCD
Power	600 W RMS / 1200 W peak	Inputs	2 RCA
Max SPL	130 dB	Output	XLR
Frequency Response (-3 dB)	59 Hz / 18 kHz	Enclosure	polypropylene composite
Frequency Response (-10 dB)	53 Hz / 20 kHz	Color	black

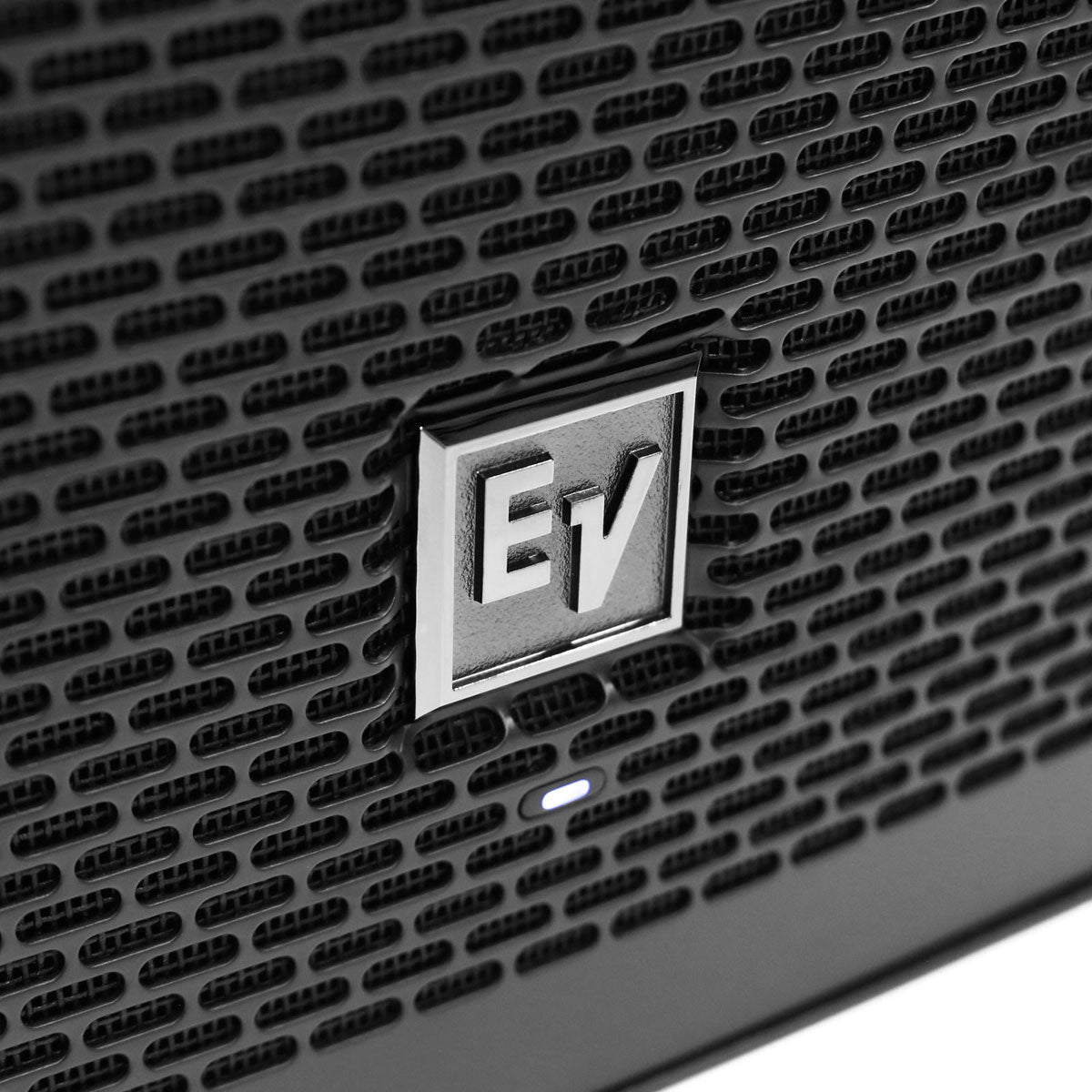

Crossover	1.8 kHz	Grille	18 AWG steel with powder coating

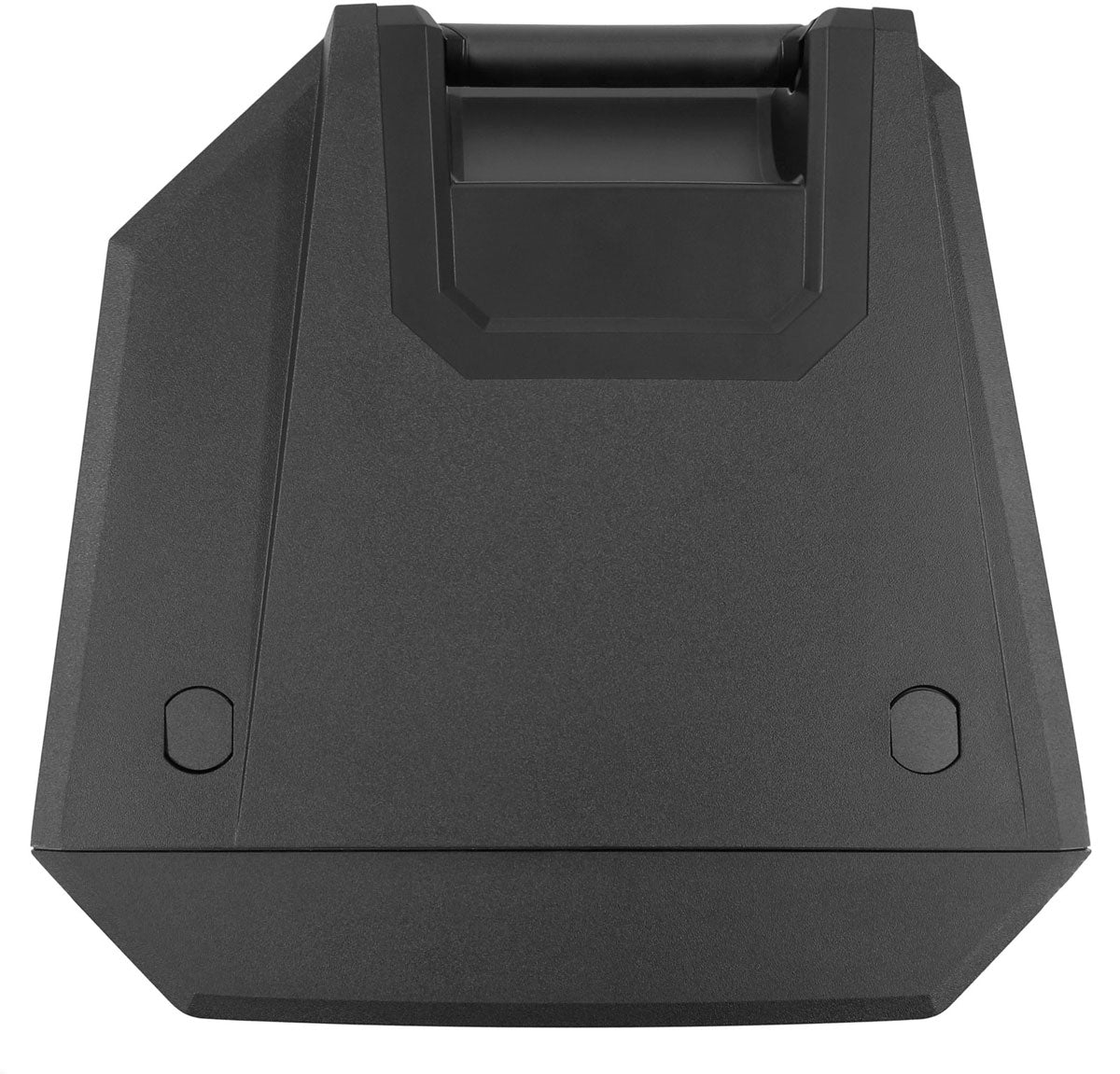

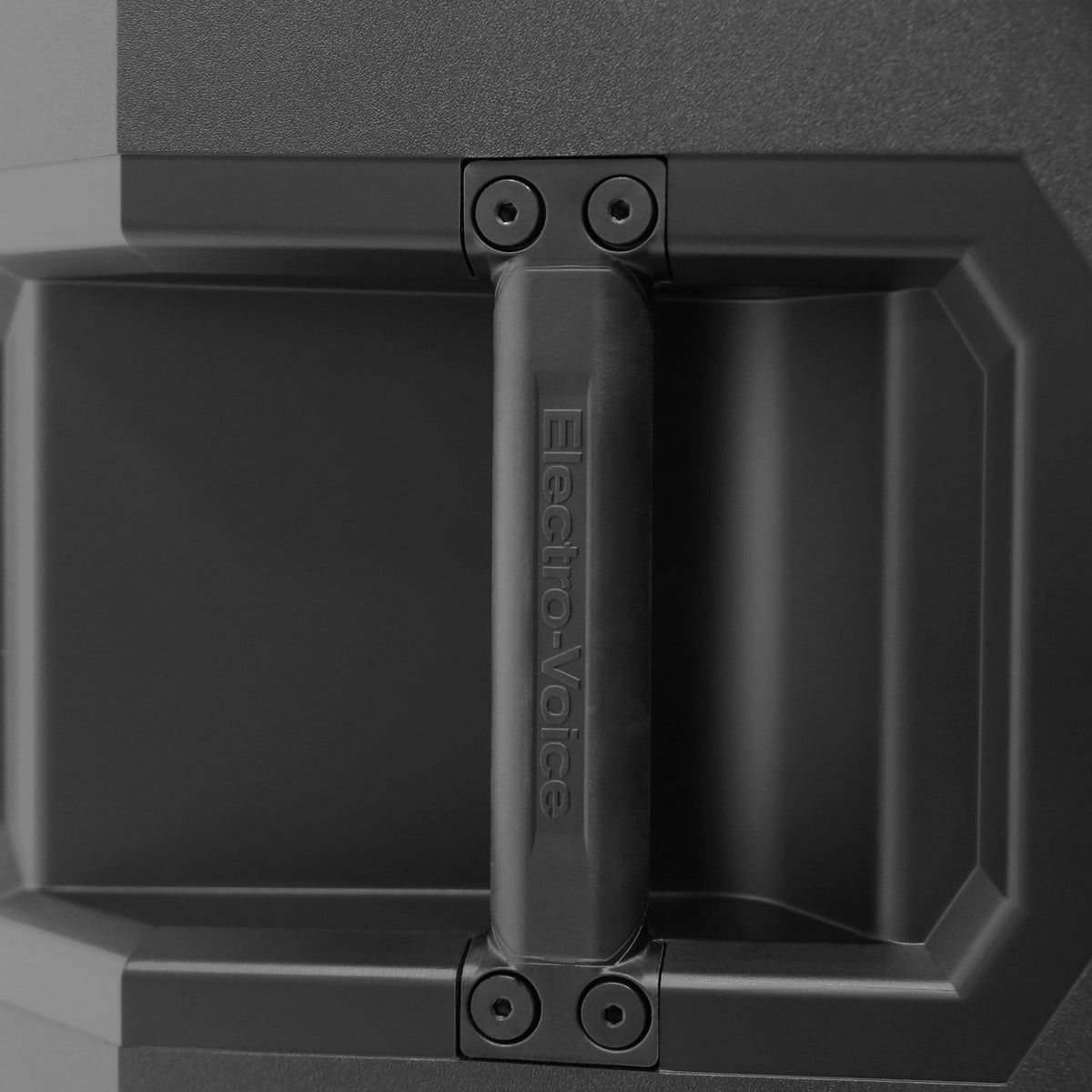

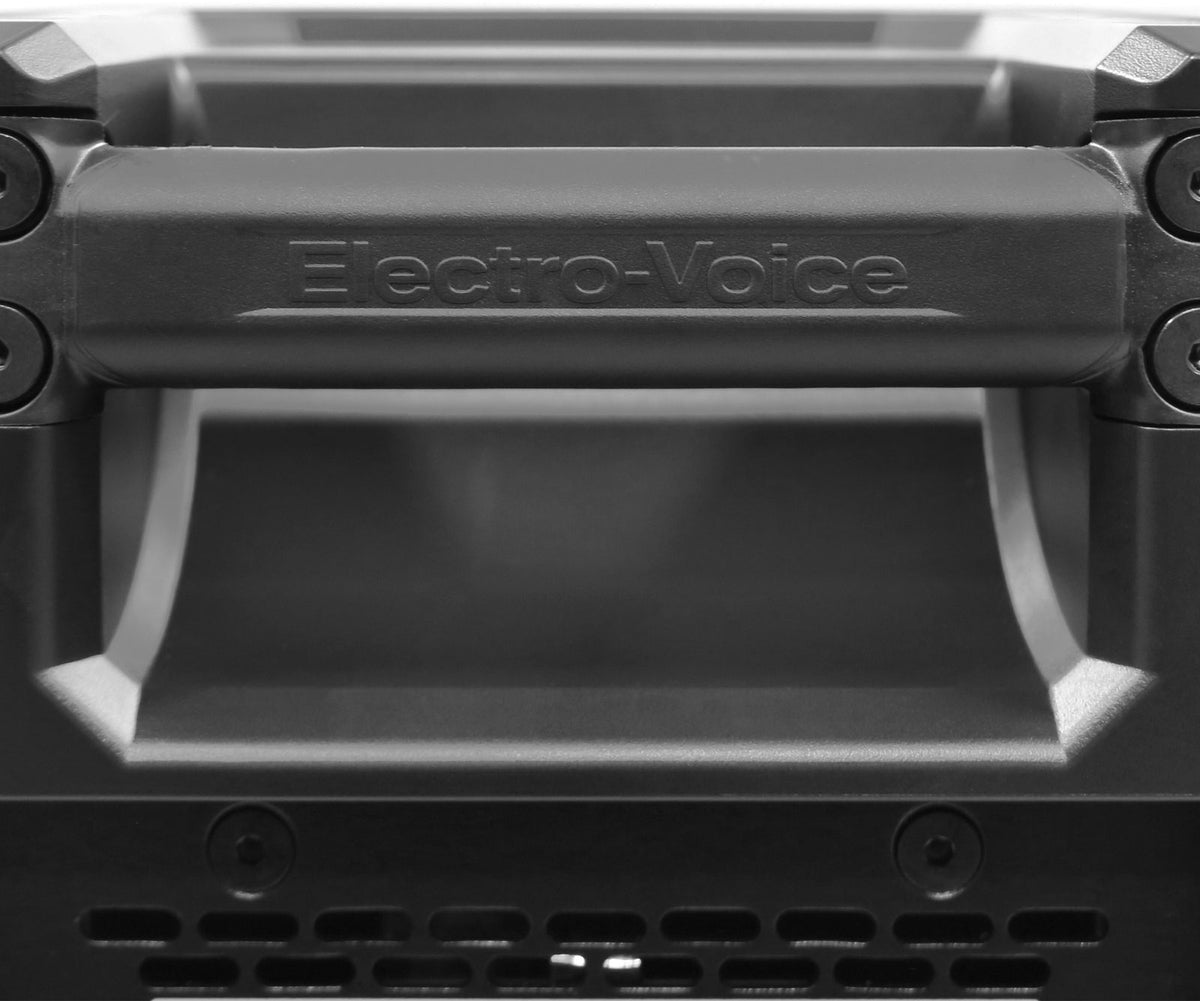

Dispersion (H x V)	90deg x 60deg	Handles	2

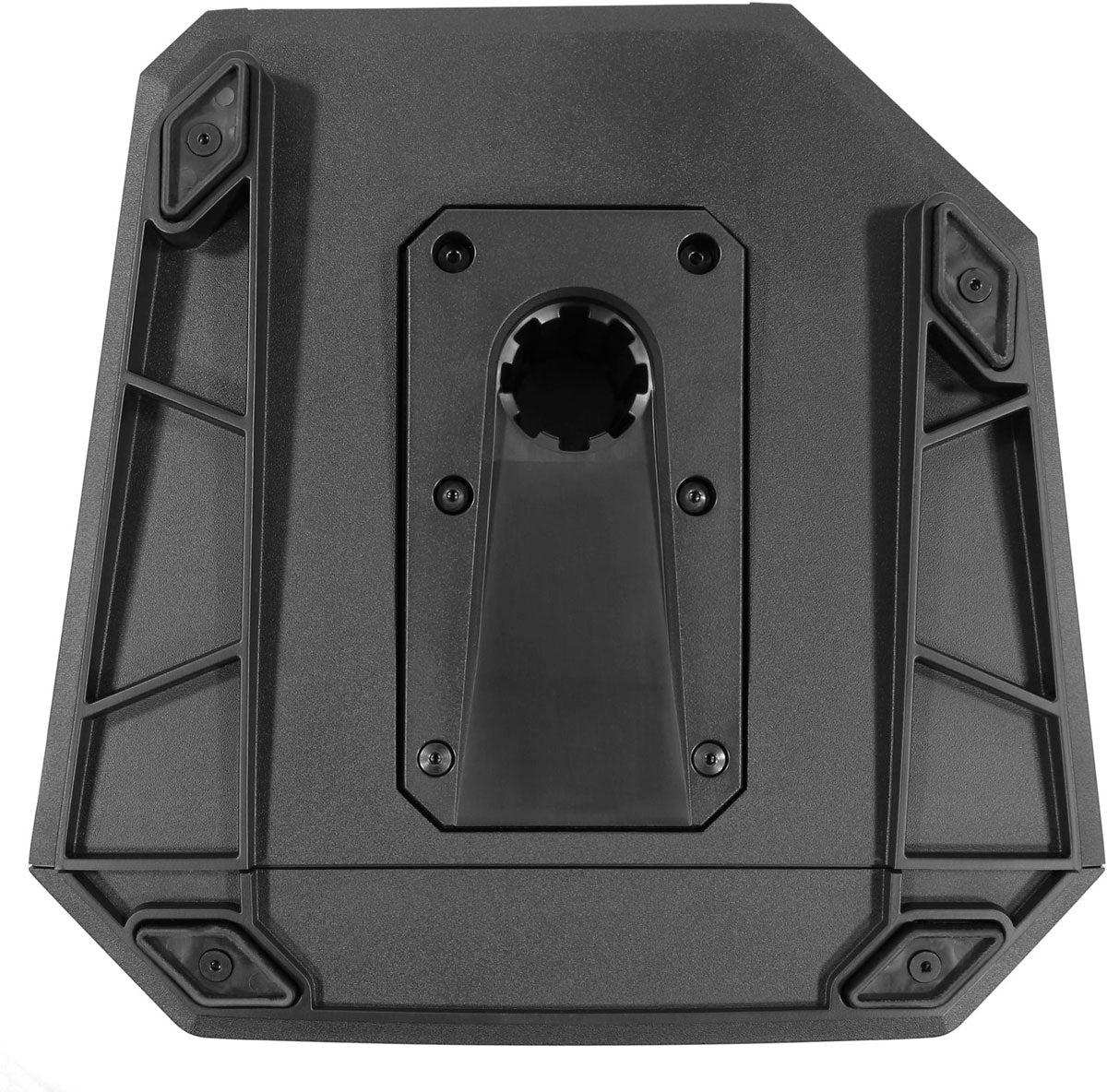

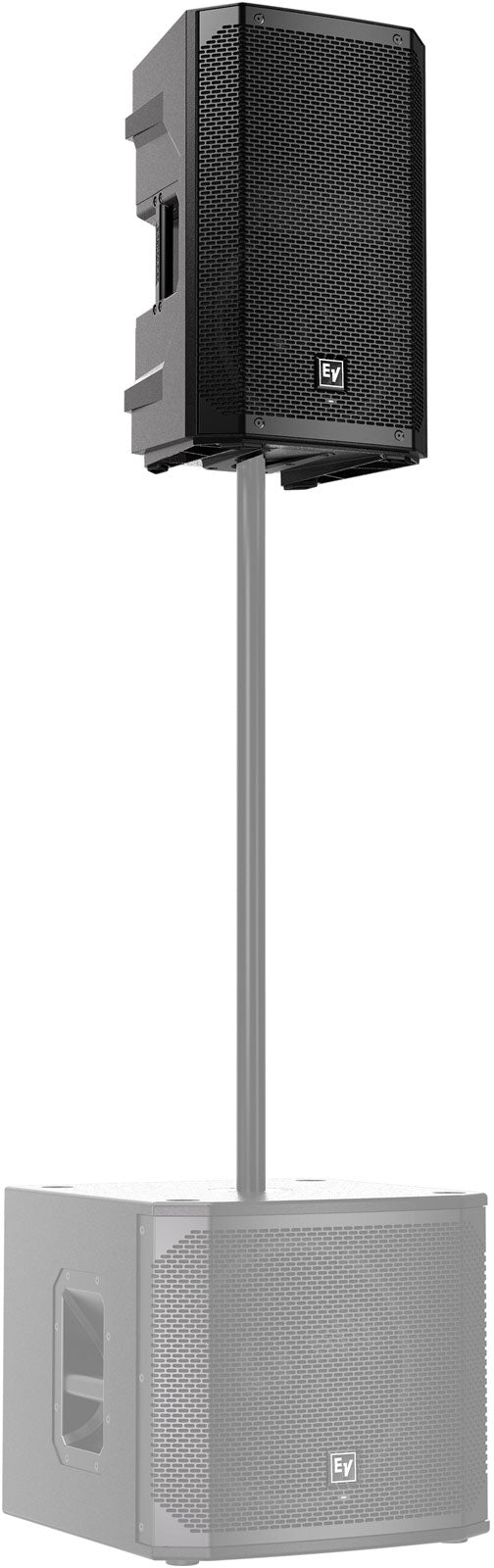

Driver	10-inch (254 mm) EVS-10M	Pole Mount	35 mm
Tweeter	1-inch (25.4 mm) DH-1L titanium	Rigging Points	3 x M10
Patented Waveguide	SST (Signal Synchronized Transducers)
