Electrovoice ELX200-12P-W White

The ELX200 Series: A Versatile Approach by Electro-Voice

The ELX200-12P-W is part of the ELX200 range, designed to offer a relevant balance between power, ease of use, and mobility. This active model integrates amplification and DSP processing in a robust format to meet the needs of both service providers and more permanent setups, while maintaining quick handling on site.

A Speaker Designed for DJs, Bands, and Discreet Installations

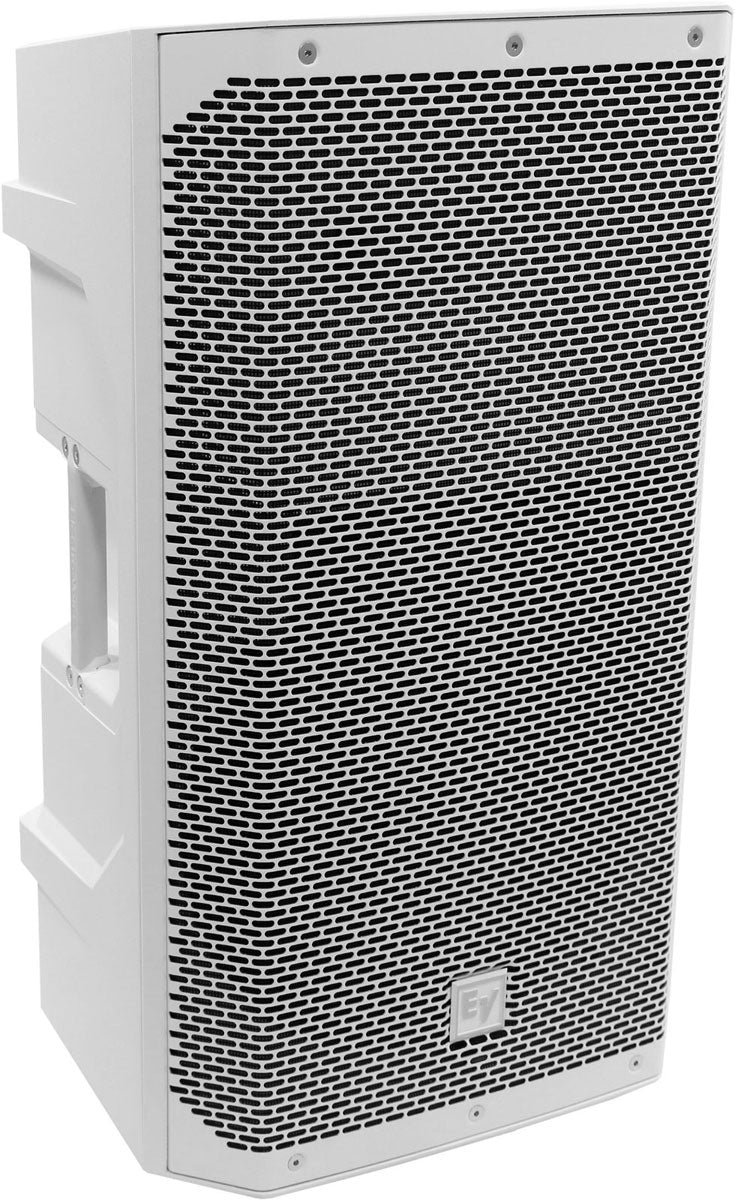

With its 12-inch format and wide dispersion, the ELX200-12P-W is perfectly suited as a front-of-house speaker for small to medium venues, as a powerful stage monitor, or as a sound reinforcement solution for a room, place of worship, or corporate event. Its white color is a real asset when visual integration matters, especially in premium environments, clean stages, or installations where minimizing the equipment's aesthetic impact is desired.

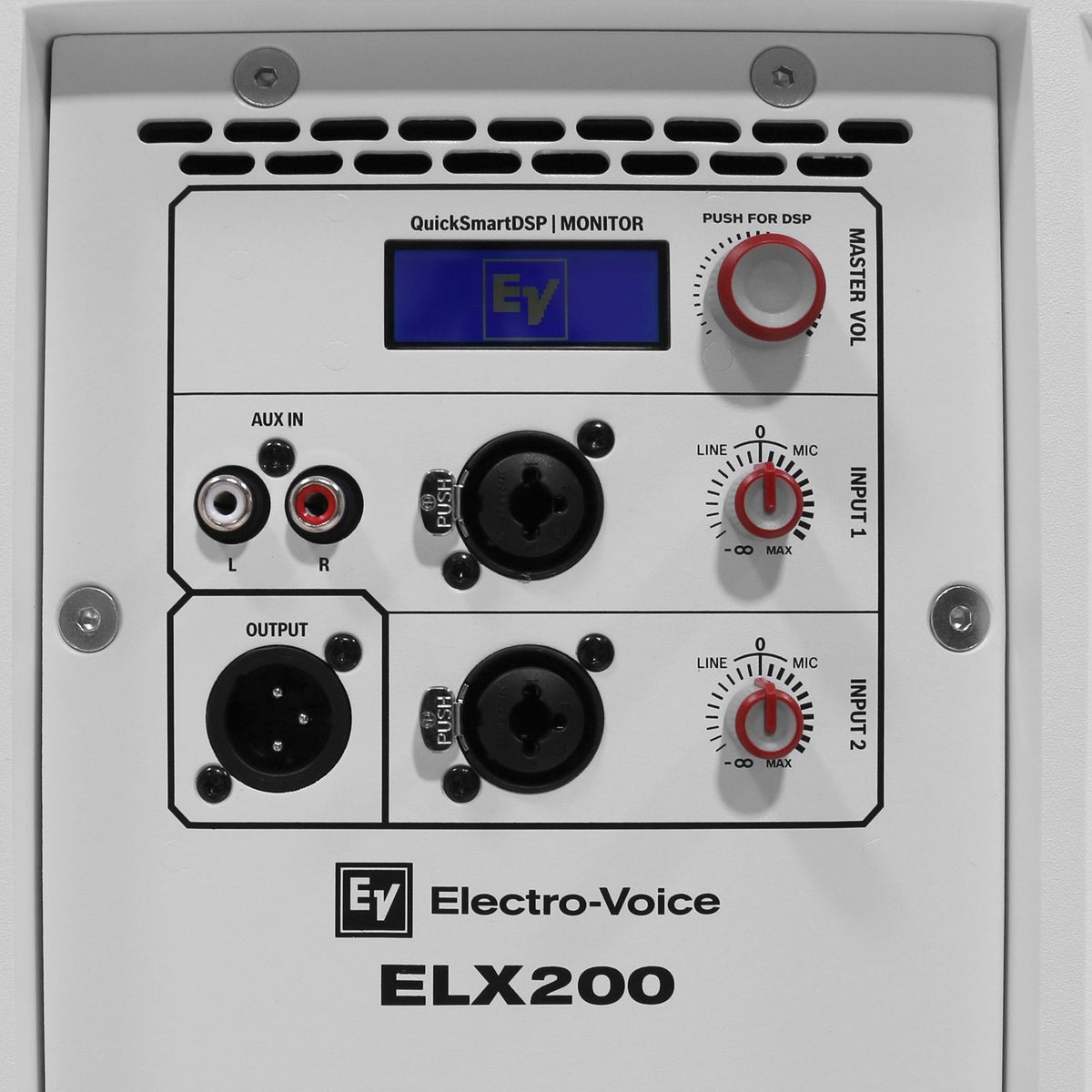

Its dual input set simplifies life in DJ setups (player, controller, mixer) as well as live situations (vocals, keyboard, DI), with an XLR output to daisy-chain a second speaker or feed an extended system. The result: an active speaker capable of adapting to many scenarios without complicating cabling.

DSP Processing, Remote Control, and Controlled Sound Dispersion

QuickSmartDSP: Fast, Useful, and Field-Oriented Settings

The QuickSmartDSP offers a clear and efficient configuration: 4 presets to quickly adapt the speaker to the context, a 3-band equalizer to adjust tonal balance, 5 user presets to save your settings, as well as monitoring functions such as limiter monitoring. You also maintain control over the input level and main volume to optimize gain staging and preserve dynamic headroom.

EV QuickSmart Mobile App: Bluetooth Control

The Bluetooth control capability via the EV QuickSmart Mobile App allows you to configure, control, and monitor the speaker remotely. This is especially practical during soundcheck when the speaker is on a stand, hung, or at a distance: you save time, reduce trips back and forth, and fine-tune your system within the listening area.

EV Transducers and SST Waveguide for Coherent Projection

The ELX200-12P-W combines a 12-inch EVS-12M woofer and a 1-inch titanium DH-1L tweeter, with an SST waveguide (Signal Synchronized Transducers). The goal is to maintain consistent dispersion and good intelligibility, especially for vocals, while controlling coverage (90 by 60 degrees). The 1.7 kHz crossover contributes to a coherent transition between low-mid and high frequencies, for a more homogeneous sound at higher volumes.

Practical Design: Robust, Portable, and Ready for Rigging

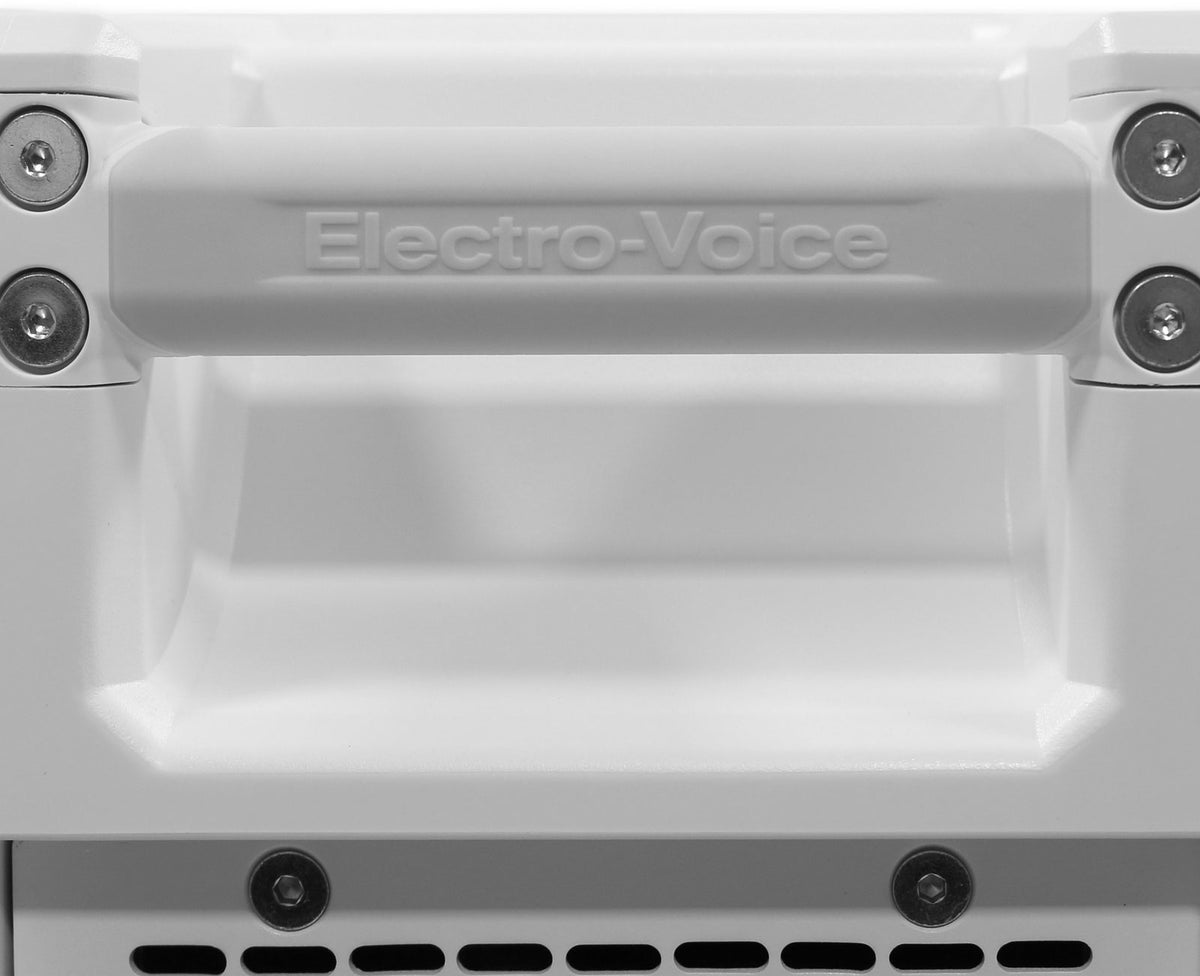

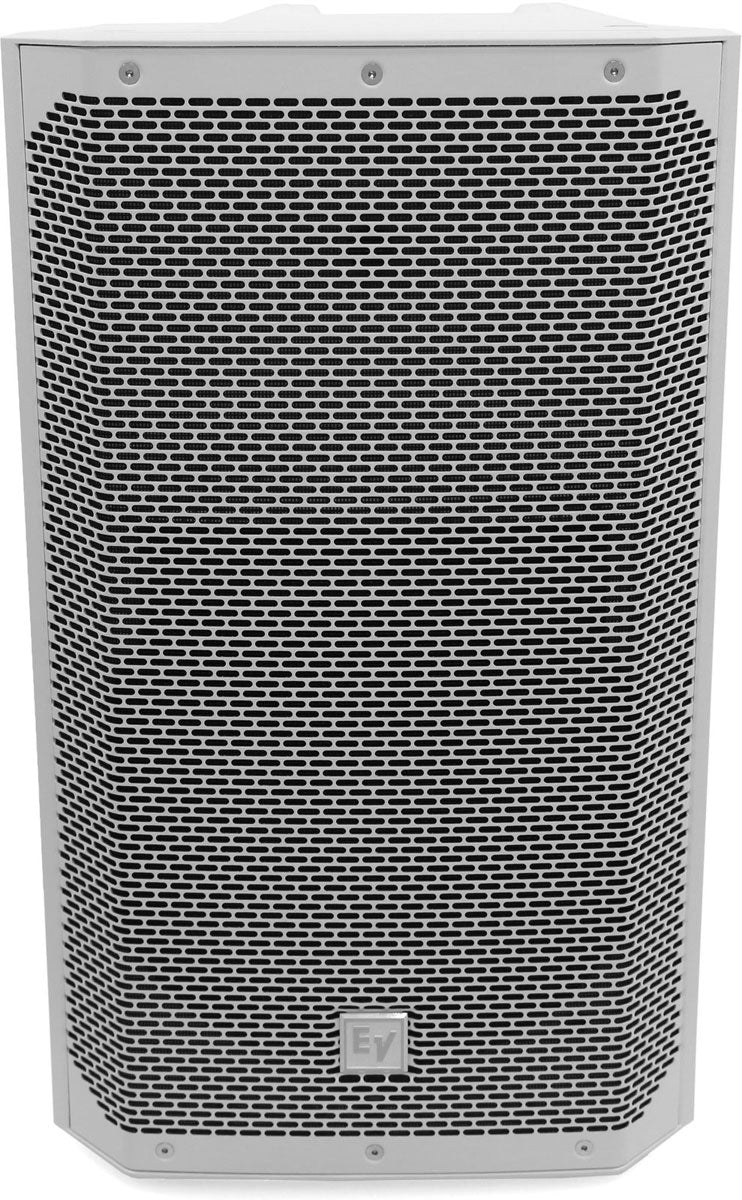

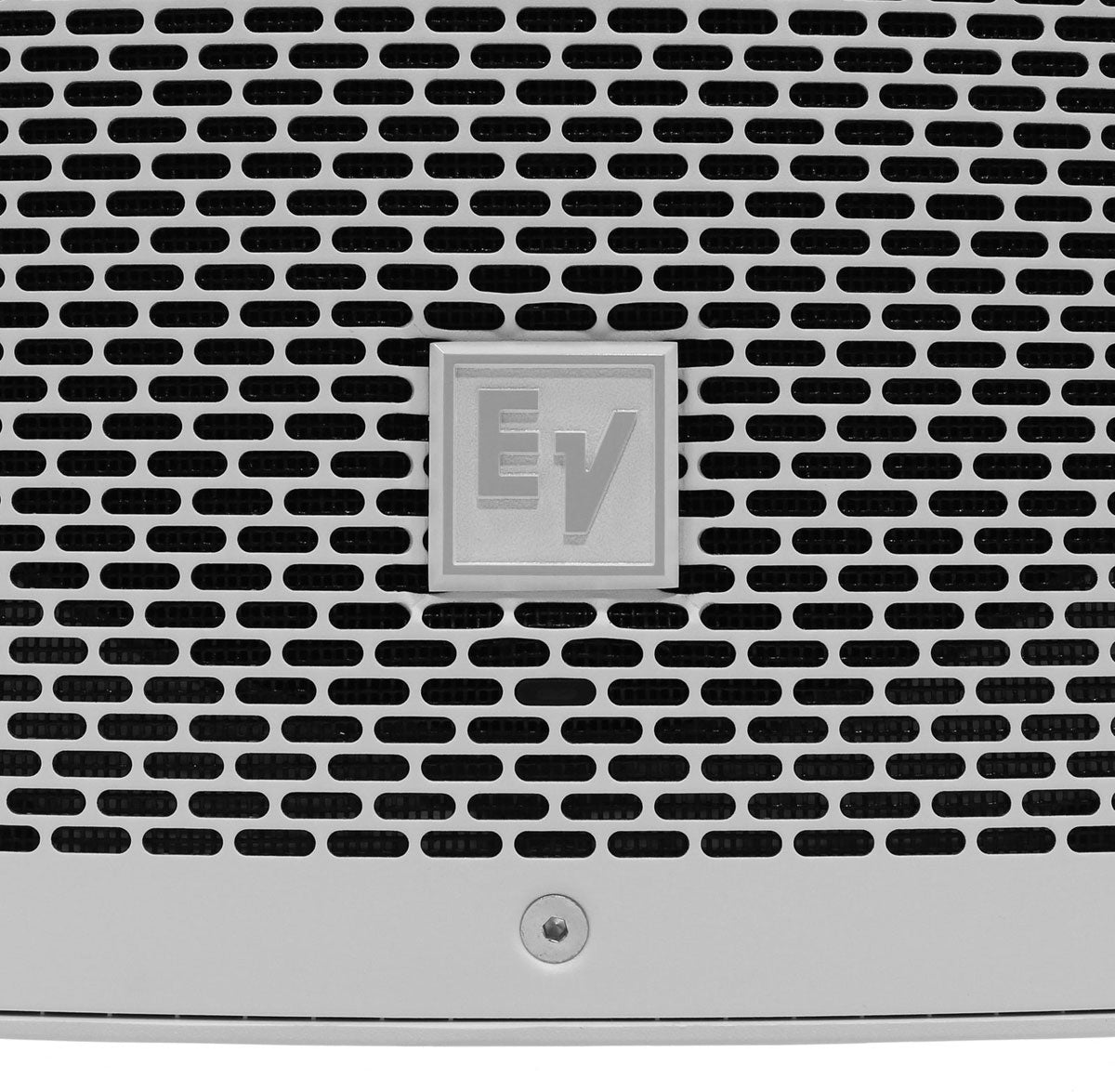

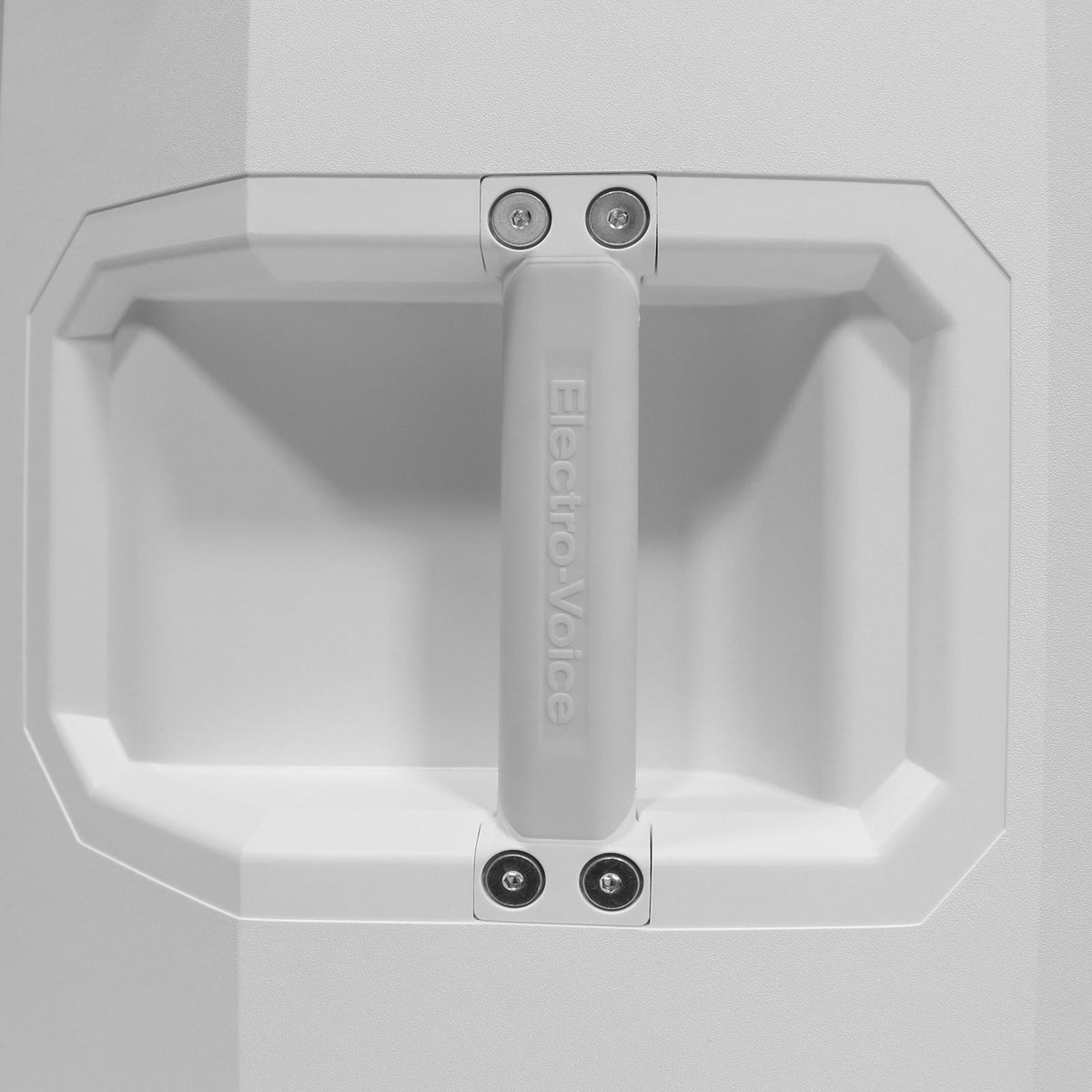

Its polypropylene composite enclosure is designed for the demands of live performance, featuring an 18 AWG steel grille with powder coating and 3 handles for easy handling. The speaker can be mounted on a stand via the 35 mm pole socket or integrated into an installation using the 3 M10 rigging points, making it a truly versatile solution for both stage and fixed installations.

Technical specifications

Bluetooth

Yes

Model	Electro-Voice ELX200-12P-W	Dispersion (H x V)	90deg x 60deg
Type	active speaker	EV QuickSmart Mobile App	remote configuration, control, and monitoring of the speaker
Amplification	Class D	QuickSmartDSP	4 presets, 3-band equalizer, 5 user presets, limiter monitoring, input level control, main volume control
Power	600 W RMS / 1200 W peak	Inputs	2 RCA, 2 combo XLR / 6.35 mm TRS jack
Max SPL	130 dB	Output	XLR
Frequency response (-3 dB)	57 Hz to 16 kHz	Enclosure	polypropylene composite
Frequency response (-10 dB)	51 Hz to 20 kHz	Color	white
Speaker	12 inches (305 mm) EVS-12M	Grille	18 AWG steel with powder coating
Tweeter	1 inch (25.4 mm) DH-1L titanium	Handles	3
Patented waveguide	SST (Signal Synchronized Transducers)	Pole socket	35 mm
Crossover	1.7 kHz	Rigging points	3 x M10
