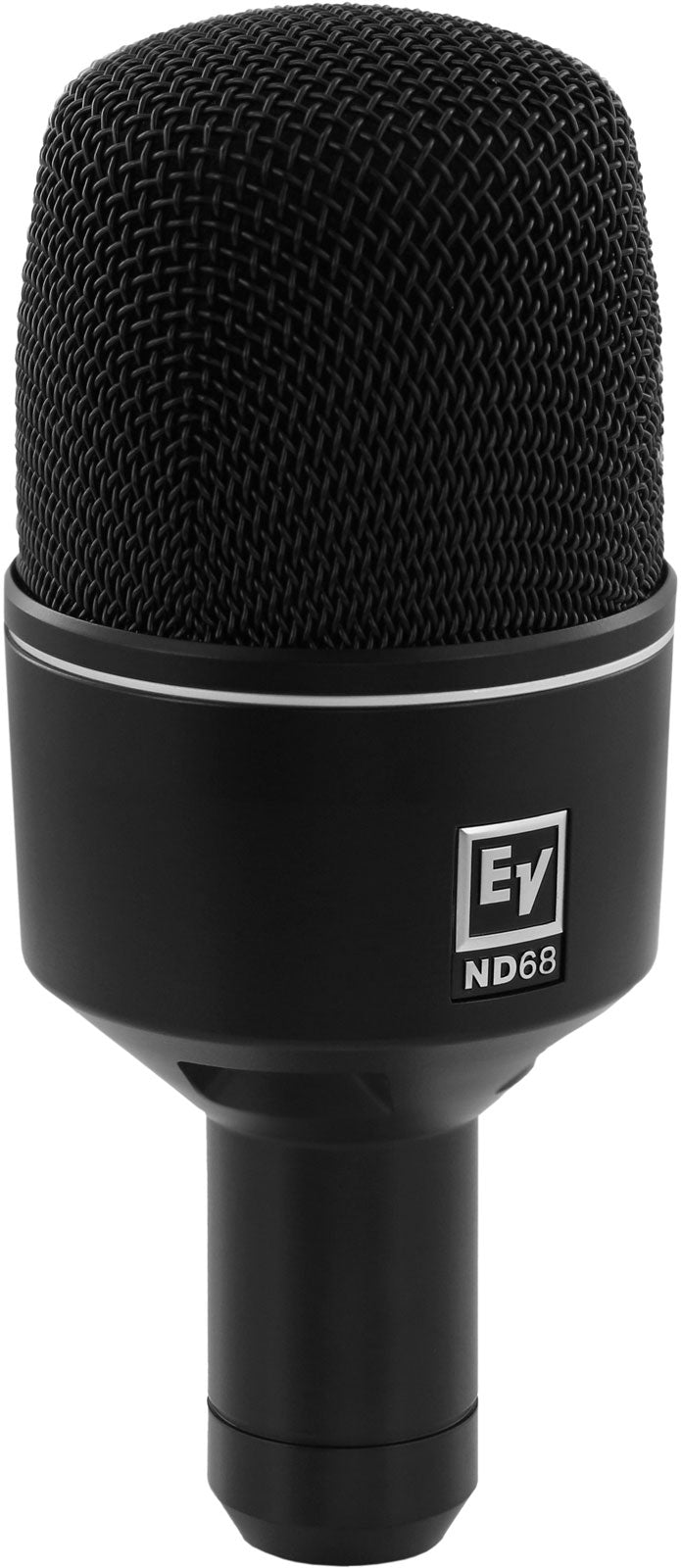

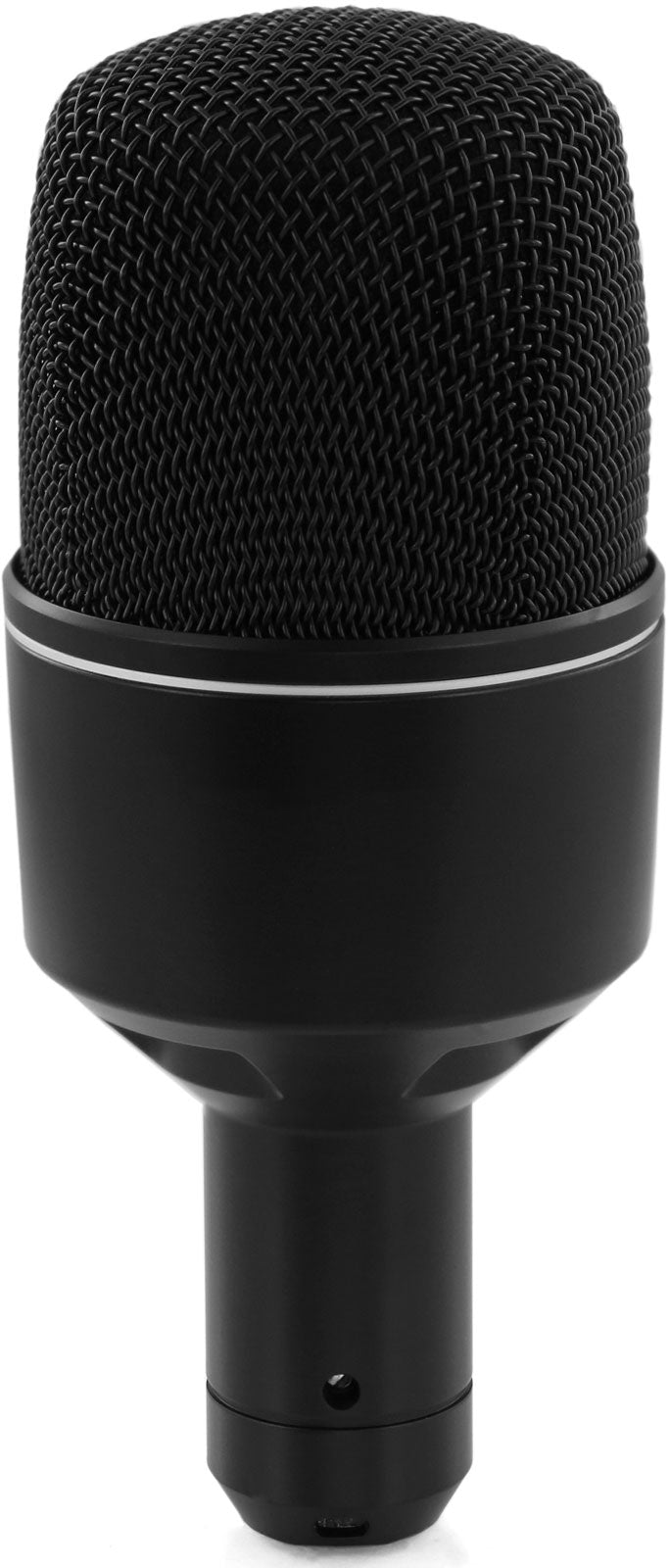

Electrovoice ND68

A microphone tailored for high-dynamic instrument recordings

The ND68 is a dynamic microphone designed to meet the demands of instruments: high volumes, fast transients, and the need for stable capture, whether in rehearsal, live performance, or recording. Its positioning is understood as a "field" solution: a microphone that prioritizes level handling, control of bleed, and coherent reproduction to obtain a track that is easy to place in a mix.

For which uses and musicians?

This model is aimed at musicians, technicians, and home studio users looking for a microphone capable of handling very energetic sound sources without flinching. It is particularly suitable for situations where the microphone is placed close to the instrument to gain impact while maintaining control over the surrounding environment (other drum shells, monitors, nearby amps, etc.). In practice, it is often chosen for percussive instruments or close high-level sources whenever tight directivity and good volume resistance are priorities.

Directivity, level handling, and sound: what makes the difference

Supercardioid directivity: more focus, less bleed

The supercardioid directivity helps concentrate the capture on the main source. This is an asset both on stage and in the studio, especially when the environment is dense: it improves clarity and simplifies corrective work afterward (equalization, gate/expander, compression). To make the most of this behavior, it is recommended to carefully orient the microphone so that the areas of least sensitivity face unwanted sources.

A dynamic microphone built to handle high levels

With a maximum sound pressure level rated above 140 dB, the ND68 is designed for close miking where impact is essential. This margin allows for clean capture when the instrument delivers a lot of energy, while providing a solid foundation to shape the sound during mixing. The sensitivity of 0.8 mV/Pa indicates an output suitable for microphone preamps: gain is adjusted in the usual way depending on distance and source.

3-pin XLR connection: immediate compatibility

The ND68 uses a 3-pin XLR, standard in sound reinforcement and studio environments. As a dynamic microphone, it integrates into a traditional audio chain (preamp, console, interface) without special implementation requirements. Its format and weight also contribute to stable mounting on a stand, useful when placement must remain constant throughout a performance.

Technical specifications

Category	instrument microphone	Capsule	dynamic
Directivity	supercardioid	Color	Black

Model	Electro-Voice ND68	Sensitivity	0.8 mV/Pa
Type	dynamic instrument microphone	Connector	3-pin XLR
Frequency response	20 Hz to 11 kHz	Dimensions	143 mm x 60.8 mm diameter
Impedance	150 Ohm	Weight	374 g
Maximum sound pressure level	above 140 dB
