Electrovoice ND76-RC3
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years

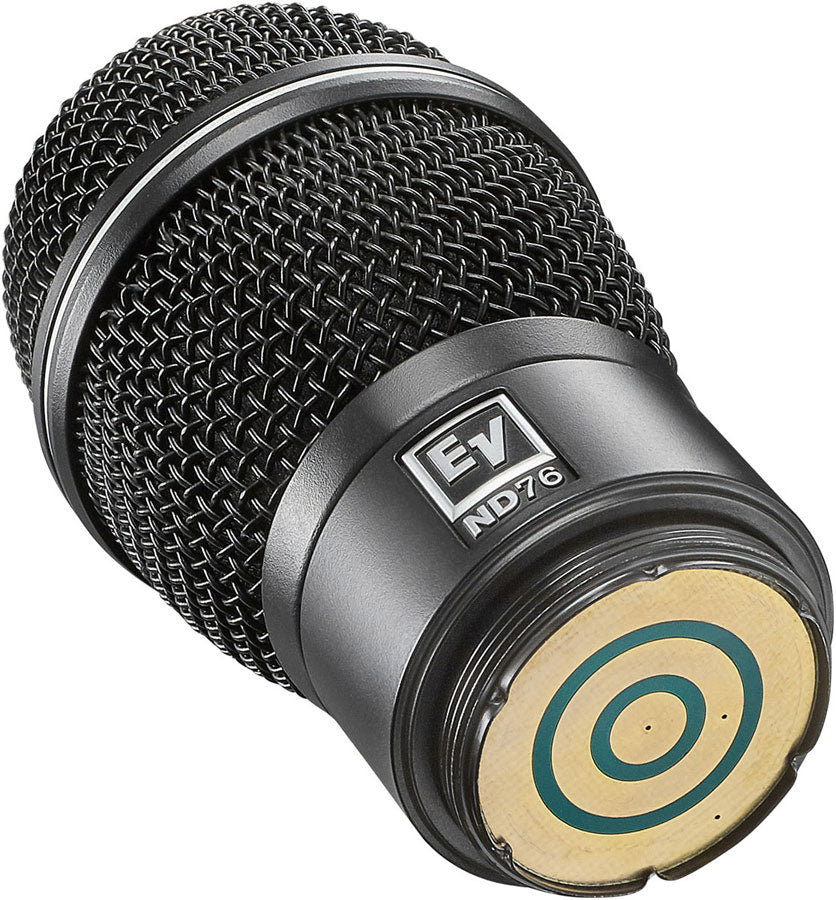

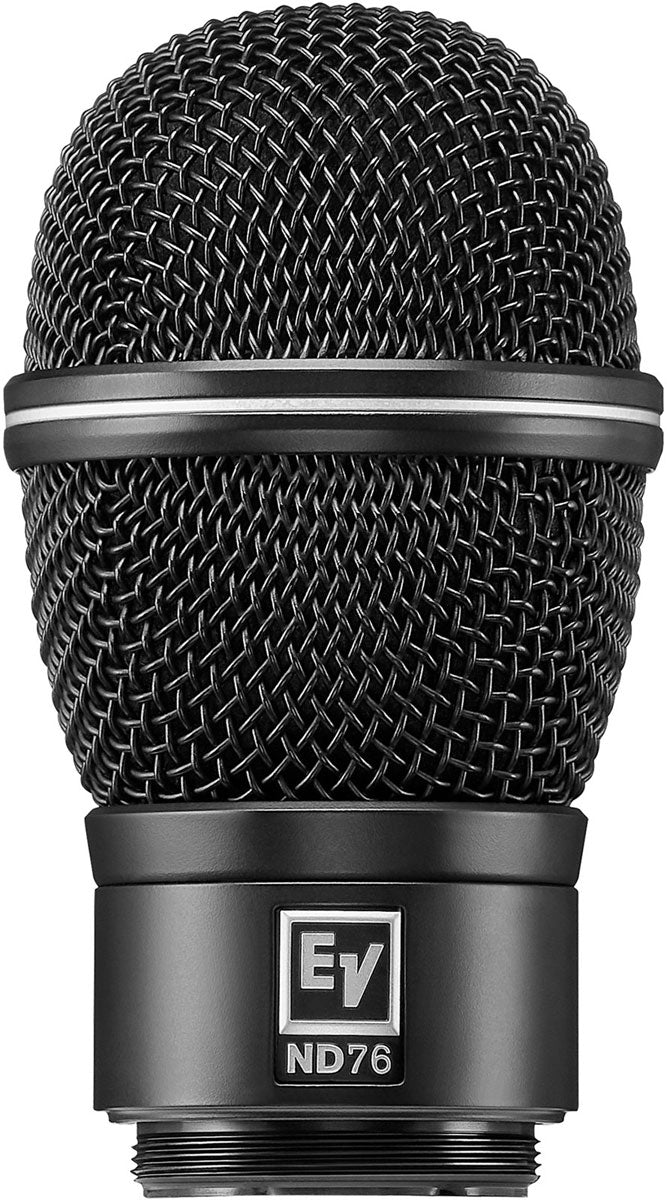

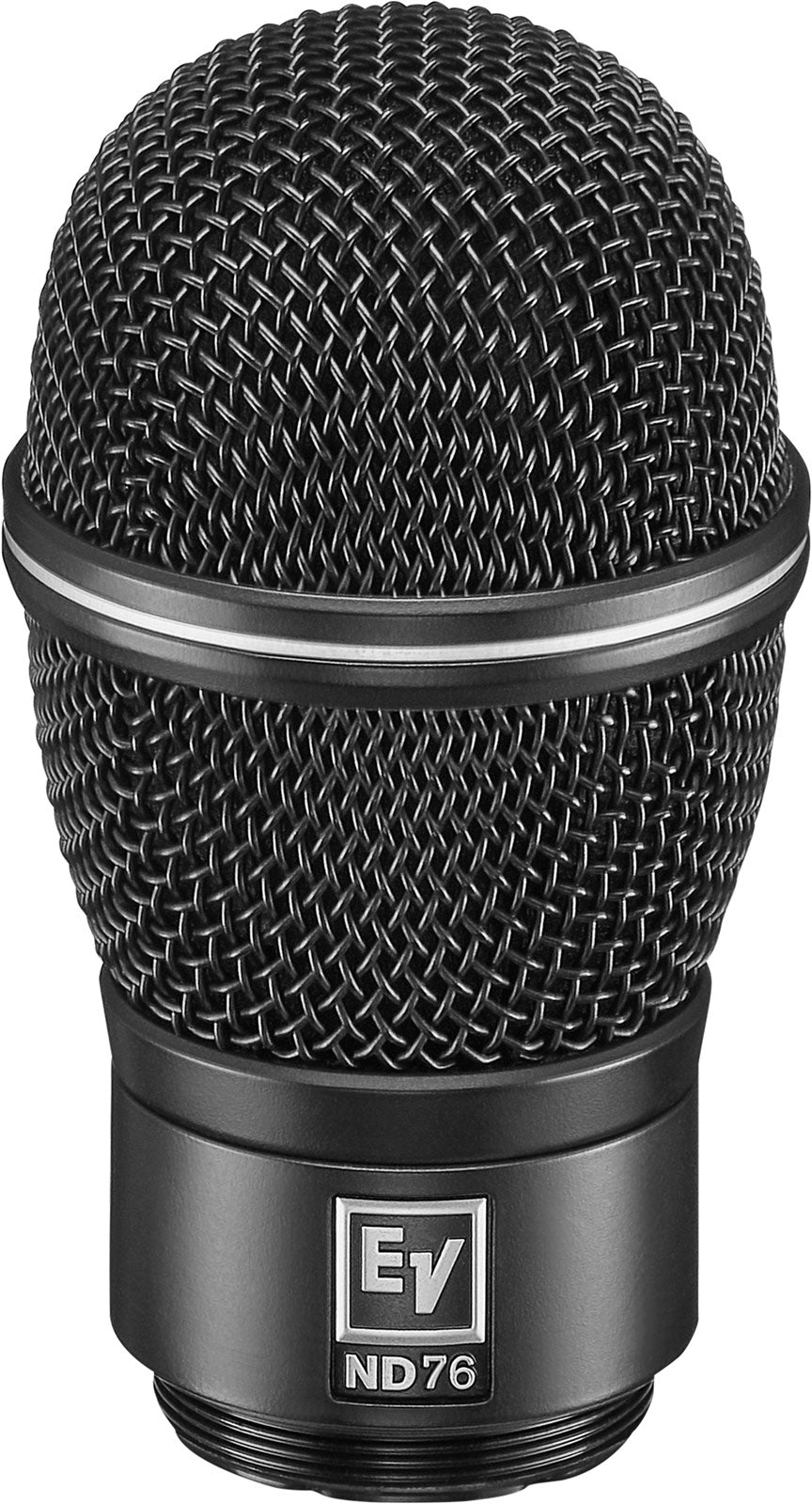

Essential Information About the Electro-Voice ND76-RC3 Capsule
Essential Information About the Electro-Voice ND76-RC3 Capsule
- Dynamic capsule dedicated to vocals, ideal for stage and rehearsals
- Cardioid directivity to prioritize the frontal source and limit ambient pickup
- Compatible with Electro-Voice RE3 wireless handheld transmitters
- Threaded format with 3-point electrical contact, convenient for replacement or upgrade
Manufacturer Information
Electrovoice
https://www.electrovoice.com
------------------------
Safety manager:
MSC Distribution
Email: infos@msc-distribution.com
Address:
A Capsule Designed for the Electro-Voice RE3 Wireless Ecosystem
The ND76-RC3 is designed as a simple and reliable solution to equip an Electro-Voice RE3 handheld transmitter or replace an existing capsule. Its threaded mounting and 3-point electrical interface facilitate installation and ensure a clean integration into your setup.
For Which Singers and Situations?
This capsule is intended for singers, hosts, and speakers seeking a clear vocal sound with good handling at high levels. Its cardioid directivity helps maintain intelligible vocals on stage, even in noisy environments.
Key Points for Live Performance
Level and Vocal Spectrum Management
With a frequency response from 70 Hz to 17 kHz and a maximum sound pressure level exceeding 135.5 dB, the ND76-RC3 is suitable for powerful voices and close-miking applications. It operates with a required power supply of 4 to 8 V, depending on the compatible transmitter.
Technical specifications
| Category | transmitter | Capsule | dynamic |
| Directivity | cardioid | Color | Black |
| Model | Electro-Voice ND76-RC3 | Sensitivity | 5.6 mV/Pa |
| Electrical contact | 3 points | Required power supply | 4 to 8 V |
| Frequency response | 70 Hz to 17 kHz | Dimensions | 91 mm x 50.5 mm diameter |
| Maximum sound pressure level | above 135.5 dB | Net weight | 184 g |
| Impedance | 1000 ohms | ||
You will also like
Shure
BLX1-M17
Shure
BLX4E-M17
Shure
BLX2-SM58-M17
Shure
BLX2-PG58-M17
Sennheiser
SKM XSW-825-B (B : 614?638 MHZ)
LD Systems
Mei 1000 G2 BPR
Shure
RPW112
LD Systems
Mei 1000 G2 BPR - (584 - 607 MHZ)
Questions frequently asked
Is the ND76-RC3 capsule compatible with Electro-Voice RE3 handheld transmitters?
This capsule is designed for the Electro-Voice RE3 wireless ecosystem and mounts on a compatible handheld transmitter. The connection uses a threaded mount and a 3-point electrical interface.
What is the polar pattern of this wireless vocal capsule?
The cardioid polar pattern helps focus on the voice in front of the capsule and maintains intelligibility in a noisy stage environment.
Can the ND76-RC3 handle powerful vocals?
With a maximum sound pressure level exceeding 135.5 dB, this model is suitable for powerful vocals and close-miking. Its dynamic capsule covers a frequency response from 70 Hz to 17 kHz. The rated sensitivity is 5.6 mV/Pa.
What power supply does the Electro-Voice capsule require?
A power supply of 4 to 8 V is required, depending on the compatible RE3 transmitter used.
What are the dimensions and weight of the capsule?
The size measures 91 mm in length with a diameter of 50.5 mm. The net weight is 184 g and the finish is black.
