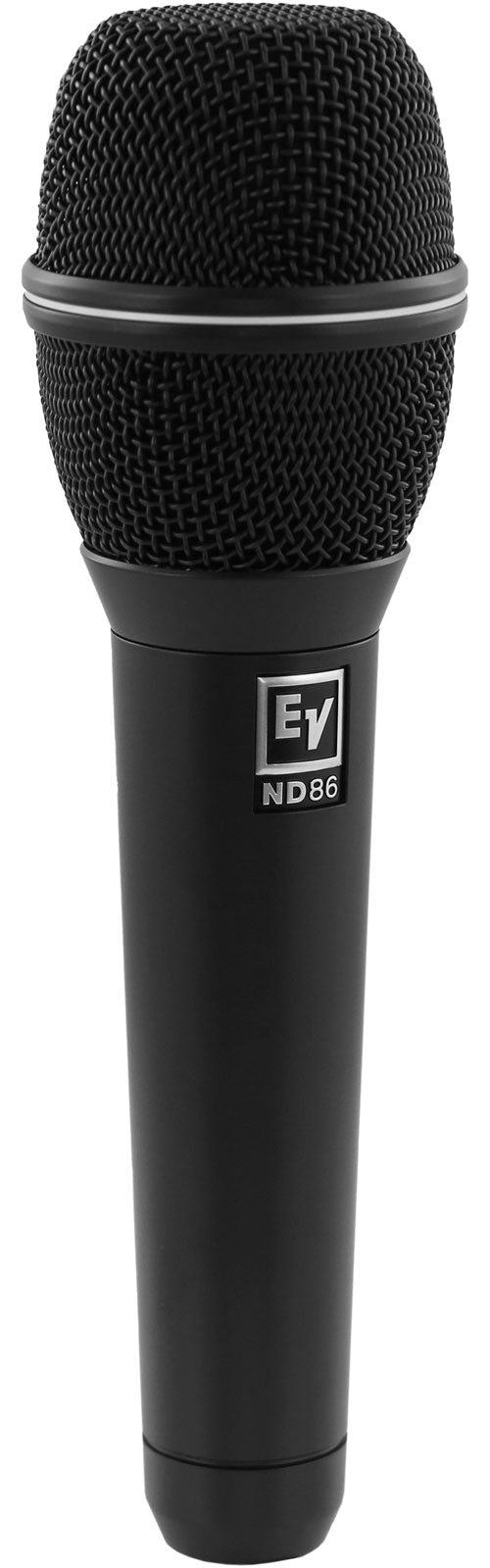

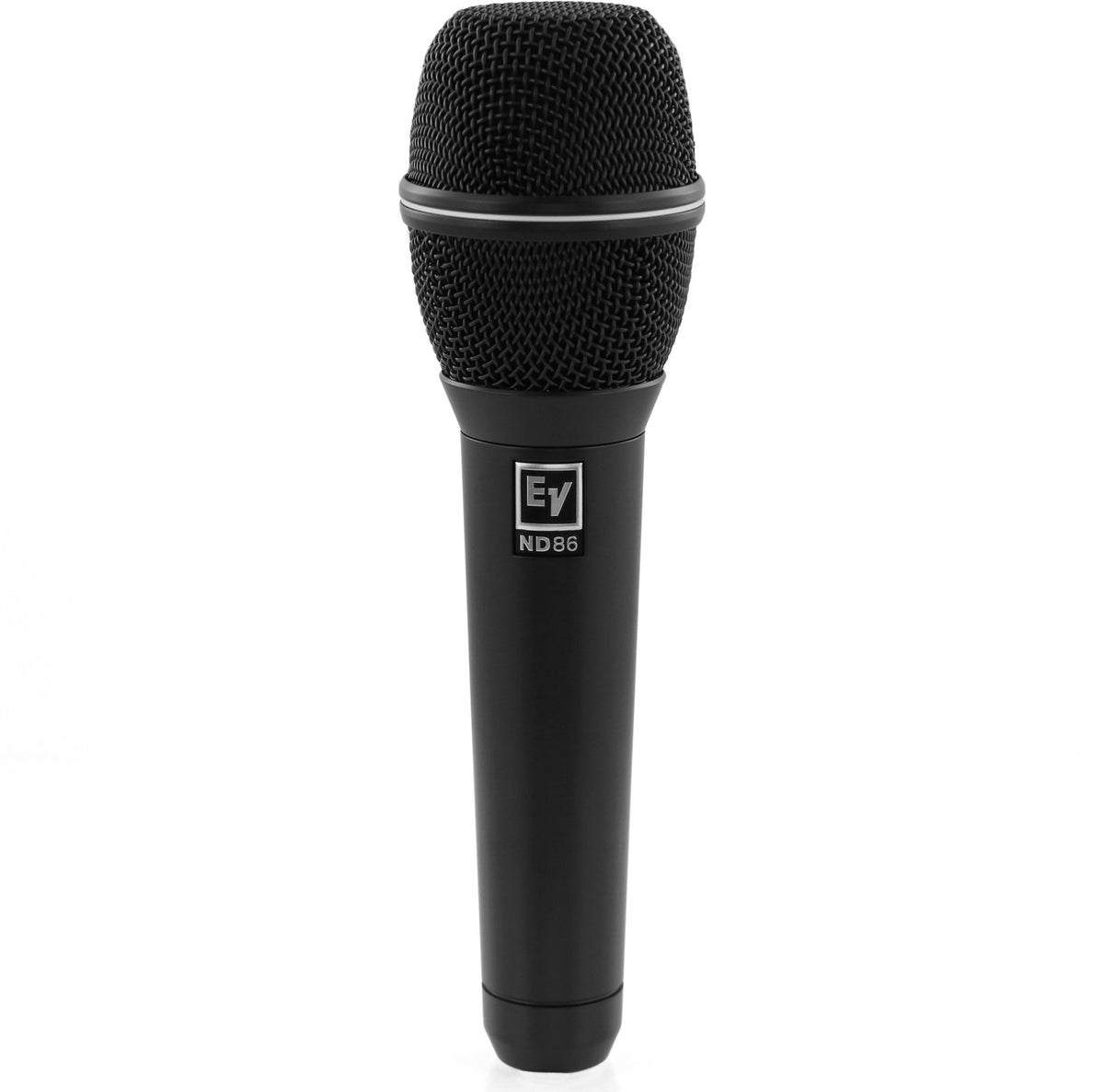

Electrovoice ND86

A stage model in the Electro-Voice spirit, within the ND range

The ND86 fits into Electro-Voice's approach: offering microphones tailored for real stage conditions, where isolation, consistent pickup, and durability are paramount. Within the ND range, this model is positioned as a dedicated vocal microphone in handheld format, with a tight directivity and specifications designed to facilitate work in concerts, rehearsals, or performances.

Who is it for and what are the uses?

The Electro-Voice ND86 is aimed at singers, hosts, speakers, and more broadly any situation requiring a reliable handheld mic. Its supercardioid directivity is particularly useful in noisy environments (studio, stage, rehearsal rooms) or when multiple sources are close by (monitors, backline, other vocals). The desired outcome: a clearer voice in the mix and a more focused capture on the performer.

Thanks to its ability to handle high sound pressure levels, it suits both powerful voices and contexts where capsule proximity varies (singing technique, alternating speech/singing). It is a relevant choice for live performances, event sound reinforcement, and applications where a simple-to-deploy microphone without power requirements is needed.

Directivity, performance, and handling: what makes the difference

Supercardioid directivity to better "frame" the voice

The ND86's supercardioid pattern aims to prioritize the source facing the microphone while reducing side sound pickup. Practically, this can help improve intelligibility and keep the voice cleaner, especially when the stage is busy. To get the best results, it is ideally used with a stable orientation toward the mouth, which promotes consistent capture.

Frequency response suited for singing and speech

With a frequency response rated from 70 Hz to 17 kHz, the ND86 covers the essential vocal spectrum: fundamentals, presence, and articulation. This range allows for a balanced sound and generally easier equalization depending on vocal range, musical style, and sound system.

High tolerance for loud sound levels

The maximum SPL rated at over 140 dB provides comfortable headroom for dynamic situations: projected voices, close proximity, or stages with high ambient volume. This reserve helps maintain a usable signal and limits unpleasant surprises when intensity rises.

A microphone ready to go, with accessories

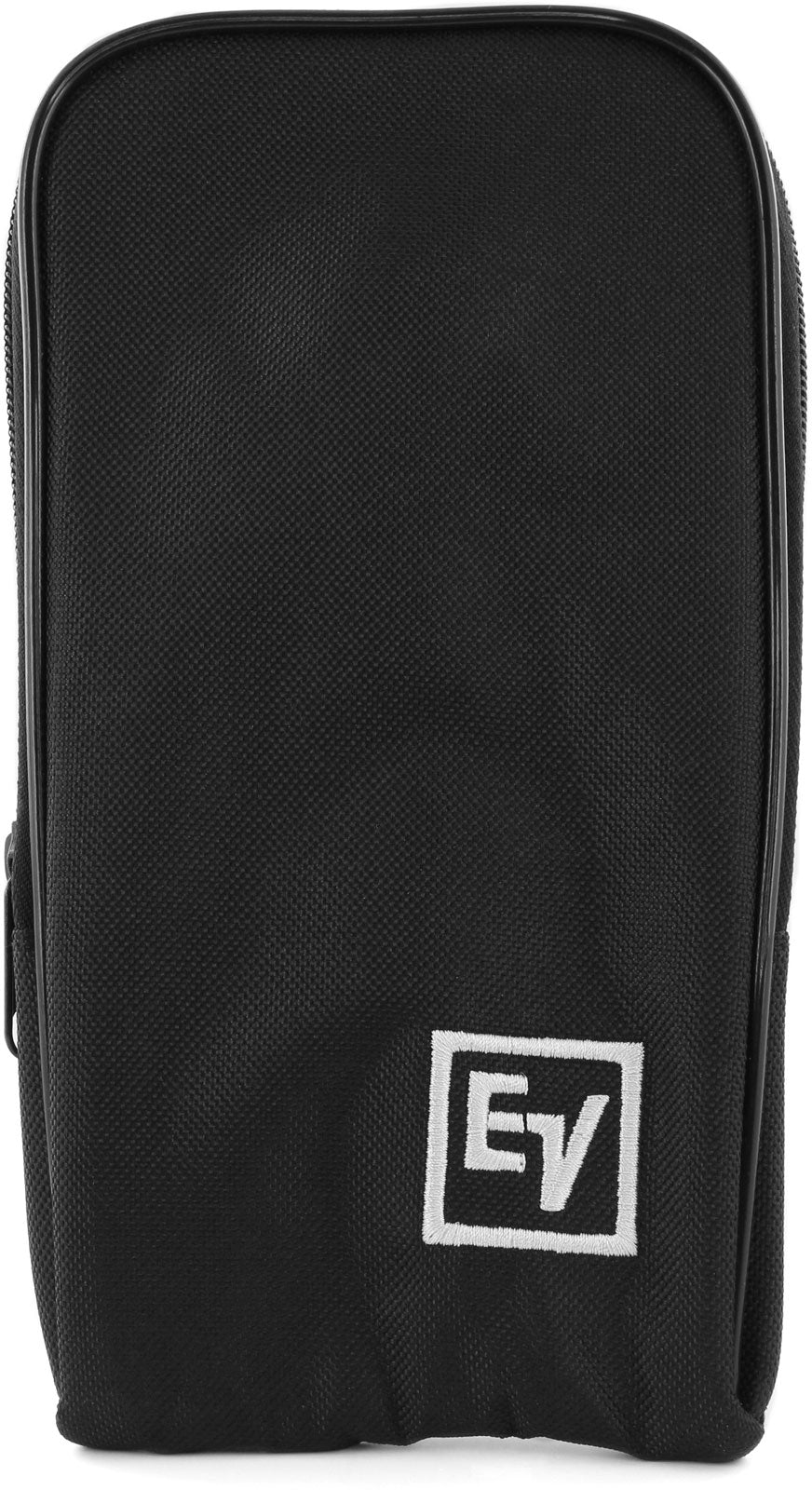

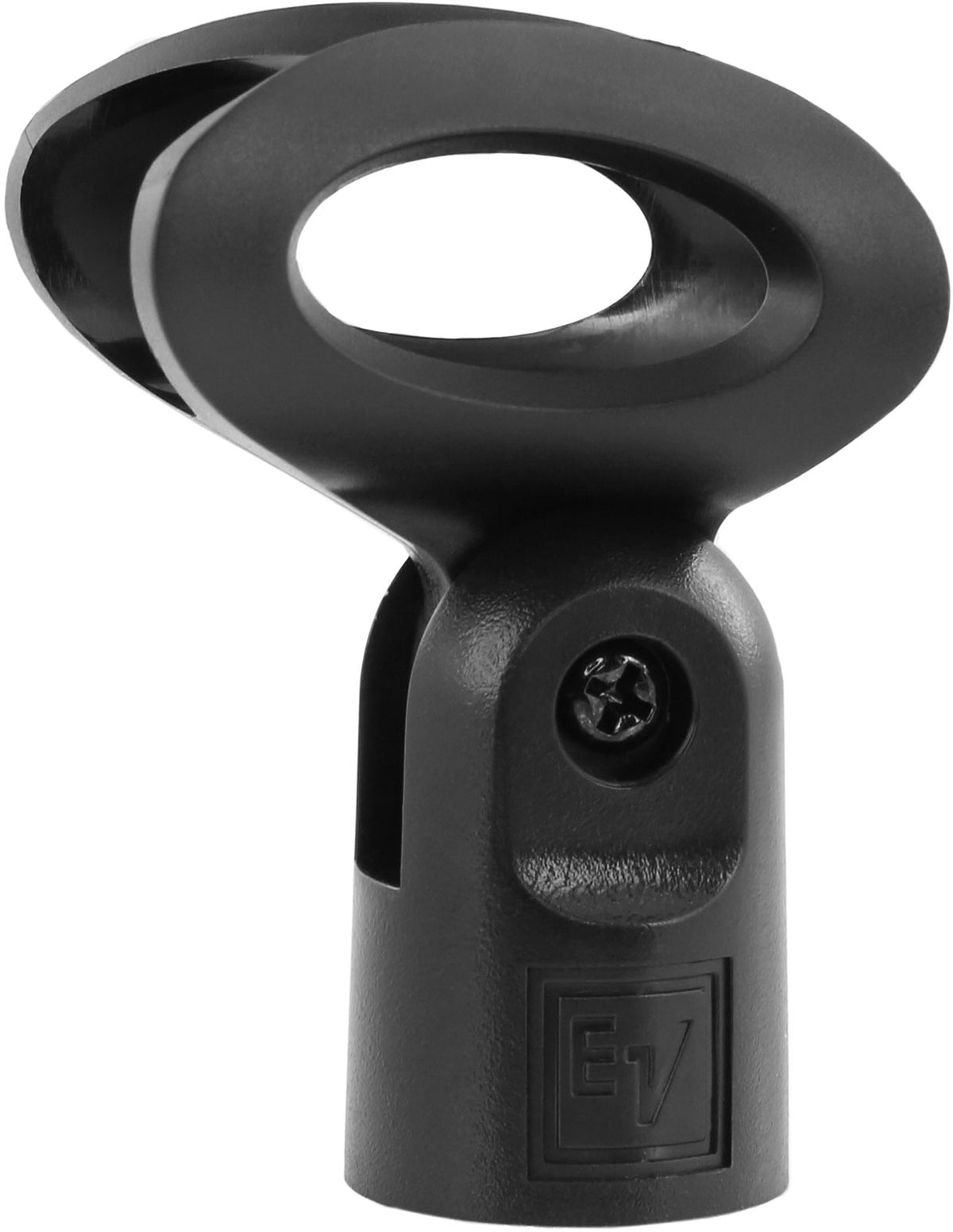

The ND86 comes with a clip and a carrying pouch, convenient for secure transport and quick mounting on a stand when needed. Its handheld format, black finish, and standard size make it an easy option to integrate into a microphone inventory, both for performances and regular use.

Technical specifications

Category	voice microphone	Capsule	dynamic
Directivity	supercardioid	Color	Black

Model	Electro-Voice ND86	Maximum sound pressure level	over 140 dB
Type	dynamic microphone	Impedance	350 Ohm
Application	vocals	Sensitivity	2.4 mV/Pa
Format	handheld microphone	Dimensions	182.5 mm x 50.5 mm diameter
Frequency response	70 Hz to 17 kHz	Net weight	326 g
