A Replacement Capsule Designed for RE3 Wireless Systems

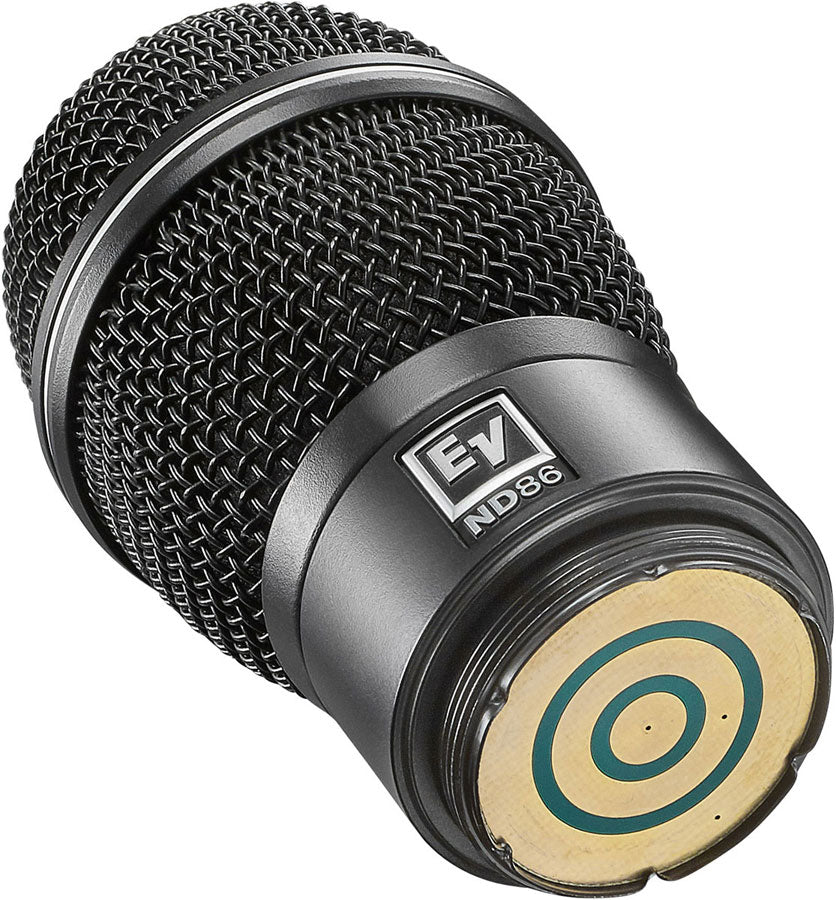

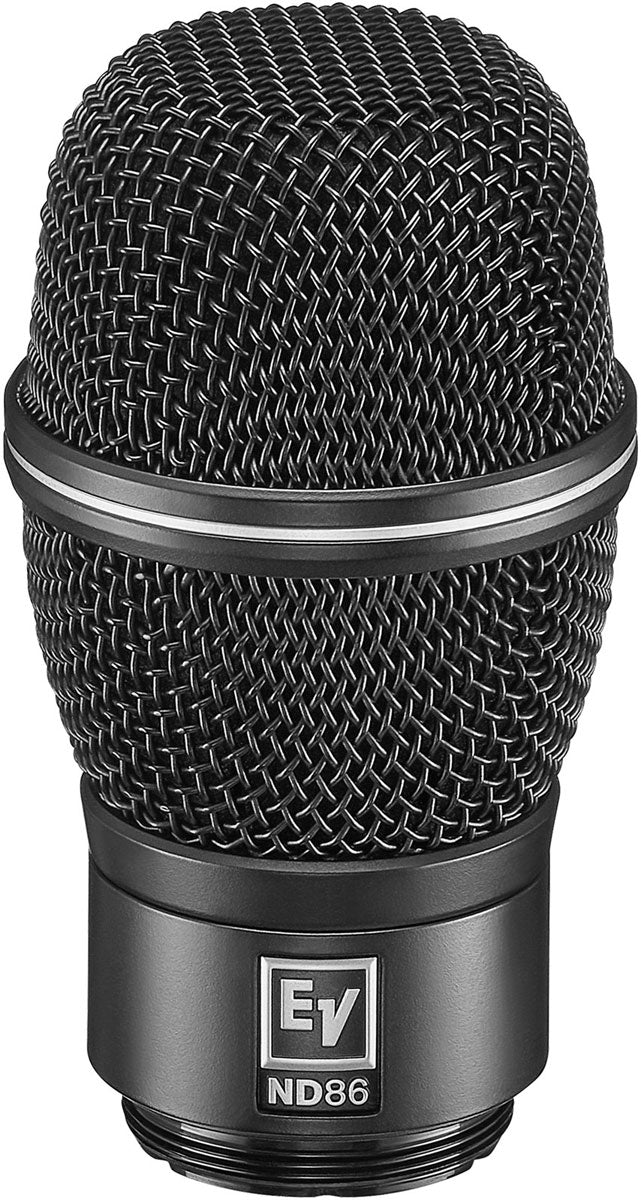

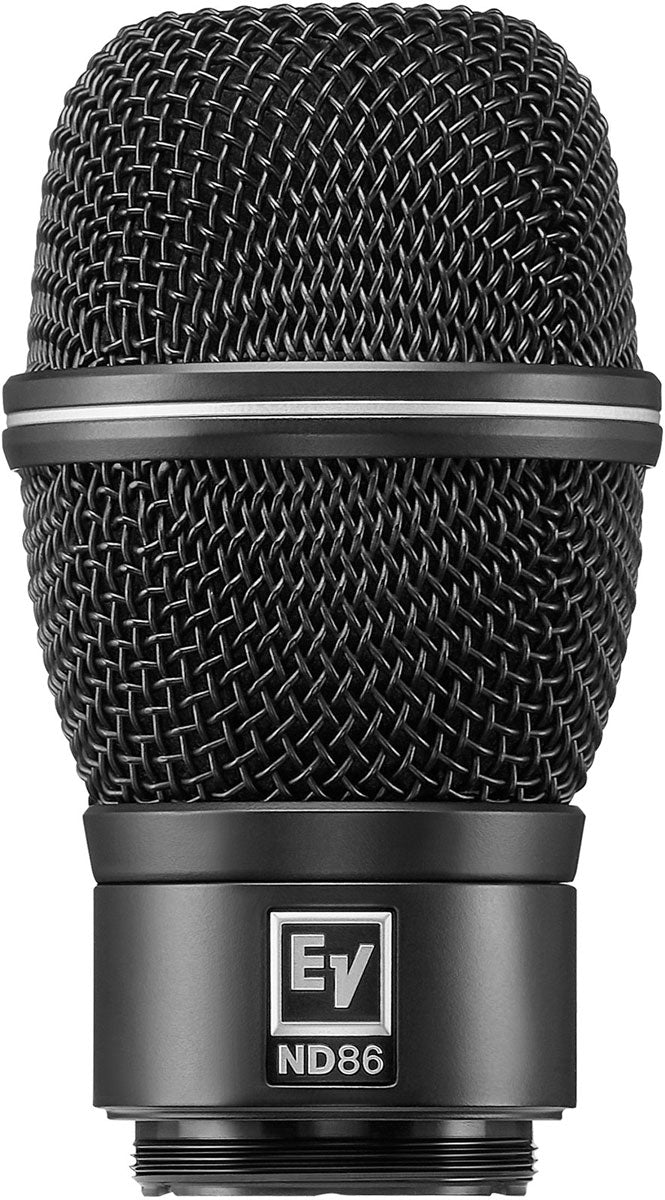

The ND86-RC3 is a screw-on capsule intended to equip or replace the microphone head of an Electro-Voice RE3 handheld transmitter, while maintaining simple ergonomics and direct integration thanks to the 3-point electrical contact.
Who Is It For and What Are Its Uses?
This capsule is aimed at singers, choristers, presenters, and speakers who seek precise vocal capture for concerts, rehearsals, conferences, or event performances using an RE3 wireless system.
Directivity, Vocal Rendering, and Sound Level Handling
Supercardioid: More Focus on the Voice
The supercardioid directivity helps concentrate the pickup on the voice and better manage noisy environments, maintaining a clearer signal in the mix.
Frequency Range and SPL
With a frequency response from 70 Hz to 17 kHz and a maximum sound pressure level above 134.5 dB, the ND86-RC3 is suitable for projected vocals and dynamic stage settings.
Technical specifications
| Directivity | supercardioid |
| Capsule | dynamic |
| Color | Black |
| Model | Electro-Voice ND86-RC3 |
| Type | dynamic vocal capsule |
| Compatible with | Electro-Voice RE3 wireless handheld transmitters |
| Mounting | screw thread |
| Electrical contact | 3 points |
| Frequency response | 70 Hz to 17 kHz |
| Maximum sound pressure level | above 134.5 dB |
| Impedance | 1000 Ohms |
| Sensitivity | 5.6 mV/Pa |
| Required power | 4 to 8 V |
| Dimensions | 91 mm x 50.5 mm diameter |
| Net weight | 184 g |
Questions frequently asked
Is the ND86-RC3 capsule compatible with Electro-Voice RE3 transmitters?
This capsule is designed exclusively for Electro-Voice RE3 handheld wireless transmitters. It mounts by threading with a 3-point electrical contact.
What is the polar pattern of this wireless vocal capsule?
The supercardioid pattern focuses on voice pickup. It helps to reduce ambient sound pickup in stage or event settings.
Can the capsule handle powerful voices?
With a maximum sound pressure level above 134.5 dB, this model suits projected voices. Its frequency response ranges from 70 Hz to 17 kHz. The dynamic capsule has a sensitivity of 5.6 mV/Pa.
What are the dimensions of the RE3 ND86-RC3 microphone head?
The size measures 91 mm in length with a diameter of 50.5 mm, and a net weight of 184 g.
What power supply is required for the ND86-RC3?
A power supply of 4 to 8 V is required. The stated impedance is 1000 ohms.
