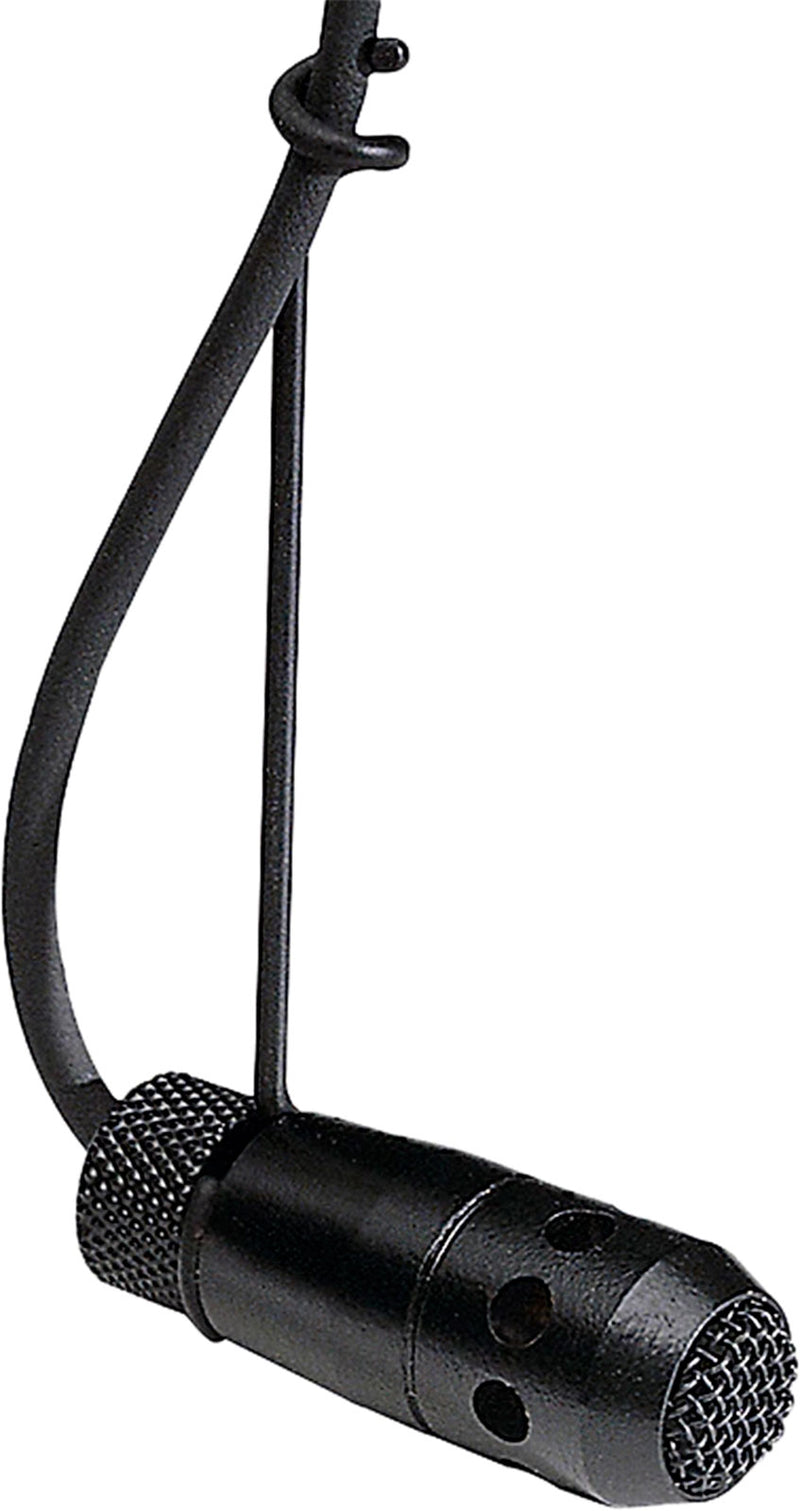

Electrovoice RE90H

A Reference Designed for Integration: Electro-Voice Discretion in Suspended Version

The RE90H fits into Electro-Voice's installation approach: offering compact microphones that are easy to deploy and consistent over time. Its "suspended mic" format meets the constraints of venues where multiple mic stands cannot be used, nor can the visual field be cluttered. The matte black finish reinforces this discretion logic on stage, in the control room, or on the ceiling, and there is also a white version under the reference RE90HW to adapt to light-colored ceilings.

Intended Uses and Profiles

The RE90H is ideal if you seek stable and consistent capture without requiring a handheld microphone. It is particularly suitable for conference rooms, places of worship, theaters, schools, video sets, and corporate audio systems, but also for certain musical recordings (choirs, ensembles, ambiance) when a fixed and clean setup is desired.

Thanks to its cardioid directivity and wideband response, it enhances voice intelligibility and source clarity while limiting unwanted bleed. The suspended format also helps position the microphone as close as possible to the useful area, often improving clarity and gain before feedback compared to more distant capture.

Key Features: Clarity, Reliability, and Quick Integration

Back electret capsule: precision and consistency in daily use

The back electret condenser technology provides detailed reproduction, suitable for applications where a defined voice and clear articulation are sought. With a frequency response of 75 Hz to 15 kHz, the RE90H covers the essential speech frequency range while maintaining sufficient openness for broader captures.

Cardioid: more focus, less unwanted noise

The cardioid directivity prioritizes the chosen pickup area and reduces side and rear sound pickup. This is a decisive advantage in reverberant environments (high rooms, hard walls) or when multiple microphones are installed, helping maintain a cleaner and more controllable mix.

Built-in preamp, phantom power, and interference immunity

The RE90H includes a preamp and requires phantom power from 9 to 52 V, facilitating compatibility with most consoles, audio interfaces, and mic preamps. The RFI/GSM protection helps limit disturbances caused by radio frequencies (telephony, networks, transmitters), a crucial point for stable professional installations.

Integral cable and XLR: clean setup without unnecessary accessories

The 7.6-meter black shielded integral cable simplifies routing and installation. The 3-pin male XLR output naturally integrates into the standard audio ecosystem for direct connection to your mic lines and stageboxes.

Technical specifications

Category	installation microphone	Connection	XLR
Directivity	cardioid	Color	Black

Model	Electro-Voice RE90H	Required power	phantom 9 to 52 V
Technology	condenser, back electret	Radio frequency protection	RFI/GSM
Format	suspended microphone	Preamp	built-in
Frequency range	wideband	Cable	black shielded integral
Frequency response	75 Hz to 15 kHz	Cable length	7.6 meters
Sensitivity	20 mV/Pa	Output connector	3-pin male XLR
Maximum sound pressure level	120 dB SPL	Microphone dimensions	36.8 mm x 12.7 mm diameter
Self-noise	25 dB SPL A-weighted	Electronics module dimensions	9.4 mm x 19 mm diameter
Dynamic range	95 dB	Net weight	157 g
Output impedance at 1 kHz	200 Ohms	Alternative version	white under reference RE90HW
