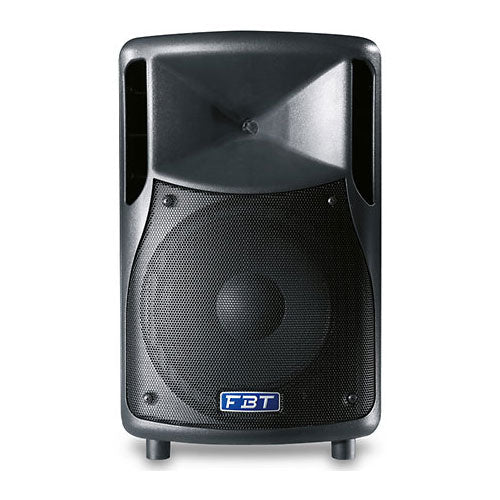

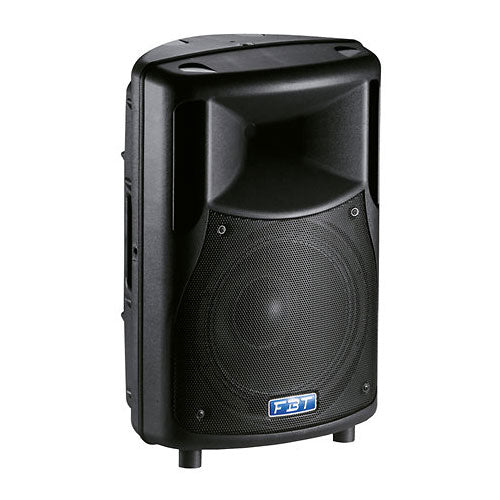

FBT HiMaxX 40

The HiMaxX Series: FBT's DNA Between Italian Tradition and "Field" Approach

FBT is a well-known manufacturer recognized for its expertise in sound reinforcement, with production in Italy for this model. The HiMaxX series follows a simple philosophy: to offer efficient passive speakers ready to withstand the demands of live performance and installation, while maintaining clear reproduction and quick setup. The HiMaxX 40 adopts a particularly versatile format, based on a 12-inch driver and a 1-inch tweeter, a popular standard appreciated for its ability to cover a wide range of uses without becoming overly bulky.

For Whom and What: Front of House, Monitor, Multipurpose Rooms, and Fixed Installations

The FBT HiMaxX 40 targets bands, DJs, service providers, and communities seeking a 2-way passive speaker capable of delivering substantial sound levels while remaining portable. With a 99 dB sensitivity and a 131 dB max peak SPL, it meets the needs for front-of-house sound reinforcement for small to medium-sized events, system fill, or multipurpose rooms where intelligibility is a priority.

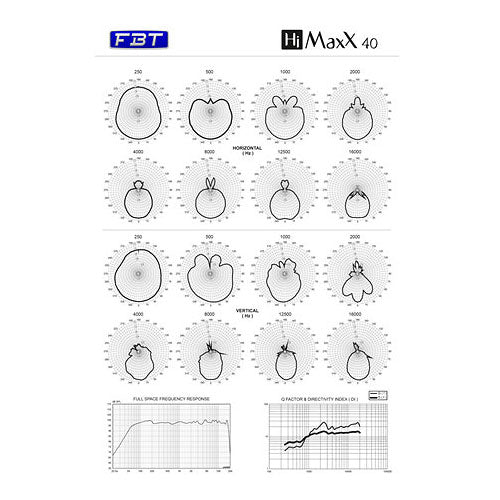

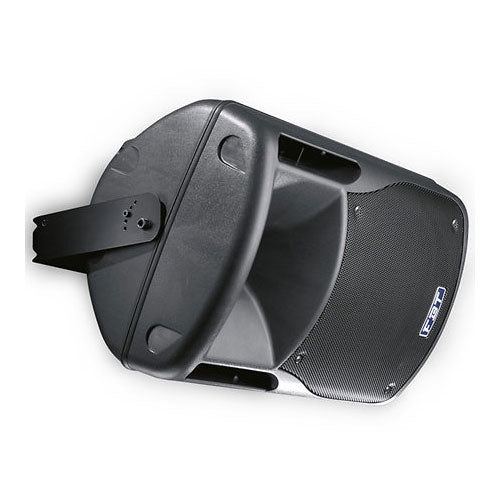

Its format and directivity (90deg x 60deg) promote clean dispersion: useful for limiting unwanted reflections in reverberant rooms or focusing sound energy toward the audience. Thanks to its 35 mm pole mount, it can be quickly placed on a stand, and its M10 rigging points facilitate elevated installation. For wall-mount configurations, an adjustable wall bracket is available as an option (BOX 100 / BOX 101), convenient for directing sound according to the setup.

Design and Performance: Efficiency, Recommended Filtering, and Stage-Ready Connectivity

The HiMaxX 40 is based on a 2-way Bass Reflex configuration combining a 12-inch driver (3-inch voice coil) and a 1-inch tweeter (1.7-inch voice coil). This choice aims for energetic reproduction of low-mids, essential for vocals and instruments, while maintaining a clear attack in the high frequencies. The frequency response from 50 Hz to 20 kHz makes it a coherent speaker for standalone use and particularly relevant when paired with a subwoofer to extend the low-end foundation.

Managing the Low End: The Right Reflex with the High-Pass Filter

To protect the driver and optimize power handling, a recommended high-pass filter at 45 Hz with a slope of 24 dB per octave is advised. In practice, this recommendation helps limit unnecessary excursions in the sub-bass region (often unusable in small speakers) and keeps the bass cleaner at higher levels. This is especially useful in subwoofer configurations: you gain headroom and clarity in the low-midrange.

Amplification and Overall Coherence

With a nominal impedance of 8 ohms, the HiMaxX 40 easily integrates with most sound reinforcement amplifiers. The recommended amplification of 500 W RMS provides comfortable dynamic margin while maintaining precise transient control. For optimal results, prioritize suitable amplification, a well-adjusted limiter, and, if possible, sound processing (EQ and filtering) tailored to the room and application.

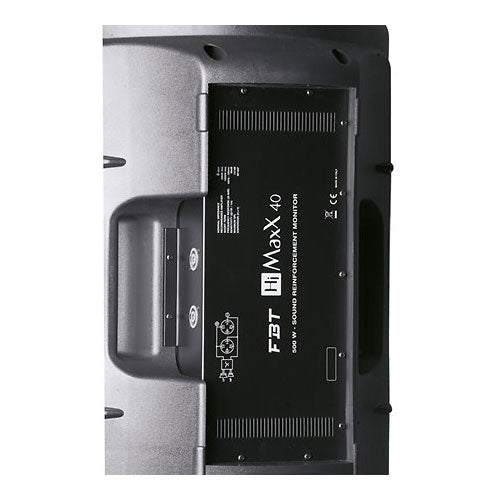

Speakon Connectivity and Mechanical Integration

The 2 x Speakon input connectors are designed for stage cabling: reliable, lockable connections that facilitate daisy-chaining multiple speakers depending on the setup. For transport and handling, the PVC enclosure and 2 integrated handles simplify movement, while the 4 M10 points and 35 mm pole mount offer real installation flexibility (stand, suspension via dedicated points, or wall mounting with optional bracket).

Technical specifications

Bluetooth

No

Model	FBT HiMaxX 40	Sensitivity	99 dB
Type	passive speaker	Max peak SPL	131 dB
Ways	2-way	Driver	12 inches (305 mm), 3-inch (76 mm) voice coil
Series	HiMaxX	Tweeter	1 inch (25 mm), 1.7-inch (44 mm) voice coil
Manufacturer reference	26938	Dispersion	90deg (H) x 60deg (V)
Made in	Italy	Crossover frequency	1.6 kHz
Color	black	Recommended high-pass filter	45 Hz - 24 dB/oct
Configuration	2-way Bass Reflex	Input connectors	2 x Speakon
Recommended amplifier	500 W RMS	Enclosure material	PVC
RMS power	250 W	Mounting	4 x M10 + 35 mm pole mount
Peak power	1000 W	Adjustable wall bracket sold separately	BOX 100 / BOX 101
Nominal impedance	8 ohms	Handling	2 integrated handles
Frequency response	50 Hz - 20 kHz
