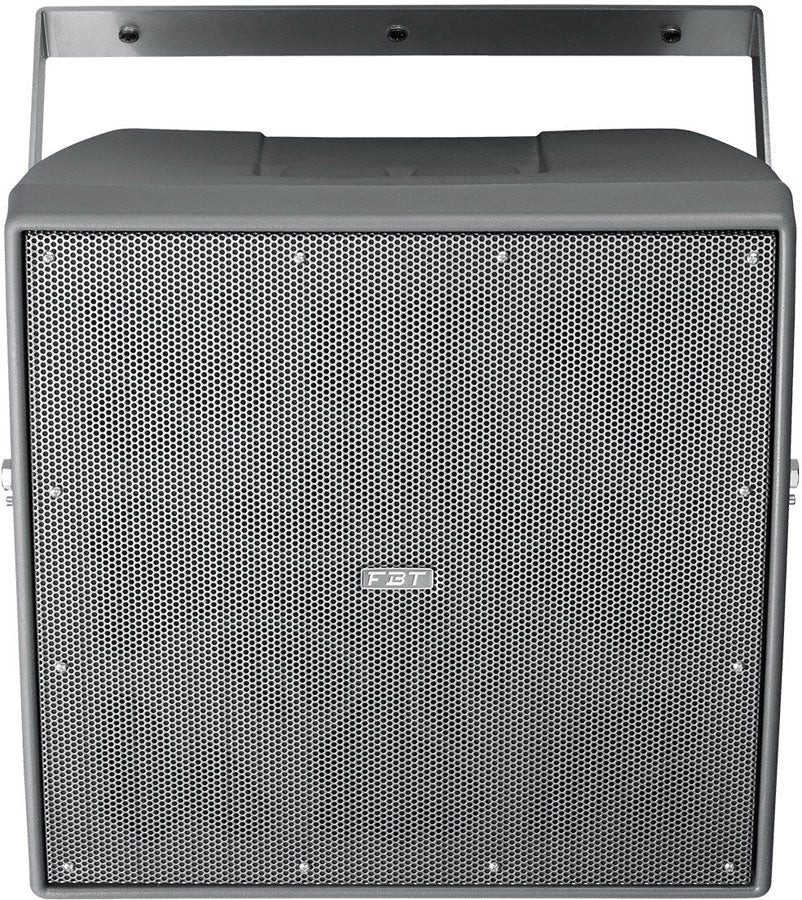

Essential Information About the Passive 2-Way 12-Inch Speaker "600 W RMS"
• Versatile 2-way format : 12-inch woofer + 1-inch tweeter for balanced sound distribution between bass, midrange, and treble.
• High sound pressure level : up to 128 dB SPL max to effectively amplify an area, even at high volume.
• Controlled coverage : 90deg horizontal x 60deg vertical dispersion, ideal for targeting the audience and limiting side losses.

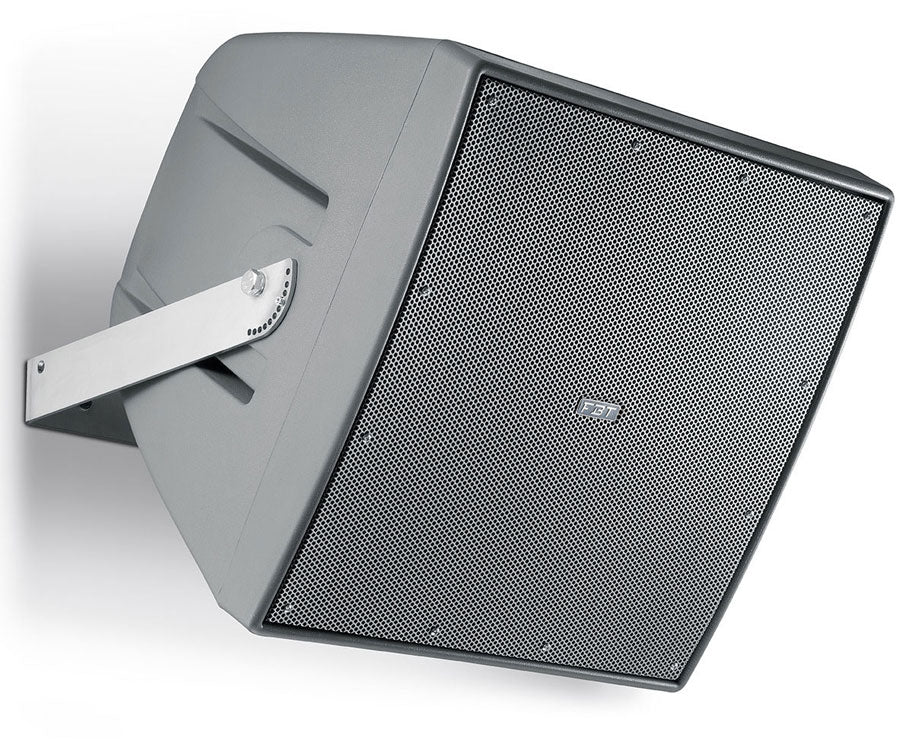

• Ready for installation : wall mount included for easy mounting and optimized placement.

Shadow 112HC T

1.171,00 €VAT incl.

3,10 € Ecotax included

Reference price

An Installation Speaker Designed for Efficiency and Simplicity

12-inch passive 2-way speakers are a classic in fixed sound reinforcement systems: they offer an excellent compromise between low-end impact, vocal clarity, and reasonable size. With a frequency response rated from 70 Hz to 20 kHz and a crossover at 1.6 kHz, this model fits this logic: coherent reproduction, quick setup, and easy integration alongside an external power amplifier.

Who Is It For and What Are Its Uses?

This speaker is intended for users who prefer a passive system : fixed installations (bars, meeting rooms, rehearsal studios, multipurpose spaces), mobile performances with remote amplification, or front fill/monitoring reinforcement depending on the configuration. The 90deg H x 60deg V directivity facilitates positioning to cover a specific area without unnecessarily spilling sound onto walls and ceilings, while the included wall mount helps secure the installation and save floor space.

A Design Focused on Performance: Impact, Intelligibility, Control

2-Way Architecture: Solid Bass and Defined Highs

The 12-inch woofer provides a consistent sonic foundation, particularly useful for amplified music, dynamic background playlists, or speeches requiring presence. The 1-inch tweeter delivers the attack and precision needed to maintain clear highs, even at elevated volume levels.

Crossover and Dispersion: More Homogeneous Listening

The crossover set at 1.6 kHz divides the workload between the drivers to improve coherence in sensitive areas (upper midrange, vocal articulation, instrument attacks). The 90deg H x 60deg V dispersion contributes to a more even sound distribution along the listening axis, which helps achieve reliable results in installations, especially in rooms where acoustics may vary.

Simplified Installation

Thanks to the included wall mount, the speaker can be positioned at the correct height and aimed toward the listening area. This is an advantage for safety, coverage optimization, and aesthetics, especially in public venues.

Technical specifications

Bluetooth

Amplification power	600 W RMS	Max SPL	128 dB
Nominal impedance	8 ohms	Dispersion	90deg H x 60deg V
Low-frequency unit	12-inch woofer	Input connectors	4 cables
High-frequency unit	1-inch tweeter	Dimensions	430 x 430 x 400 mm
Crossover frequency	1.6 kHz	Weight	15 kg

Questions frequently asked

Which amplification should be chosen for an 8 ohm passive speaker?

The nominal impedance is 8 ohms, which requires the use of an external power amplifier compatible with this load. No amplification module is integrated.

Is the FBT Install Shadow 112HC T suitable for wall mounting?

A wall bracket is provided to allow installation at height and orientation towards the listening area. The speaker weighs 15 kg and measures 430 x 430 x 400 mm.

What sound coverage does the 90° x 60° dispersion offer?

The specified dispersion is 90° horizontal and 60° vertical. This directivity targets a listening area while limiting sound spread towards walls and ceiling.

Is the 12-inch woofer suitable for vocals and music?

The 2-way design combines a 12-inch woofer with a 1-inch tweeter, with a crossover set at 1.6 kHz. The stated frequency response ranges from 70 Hz to 20 kHz. A maximum SPL of 128 dB is indicated.
