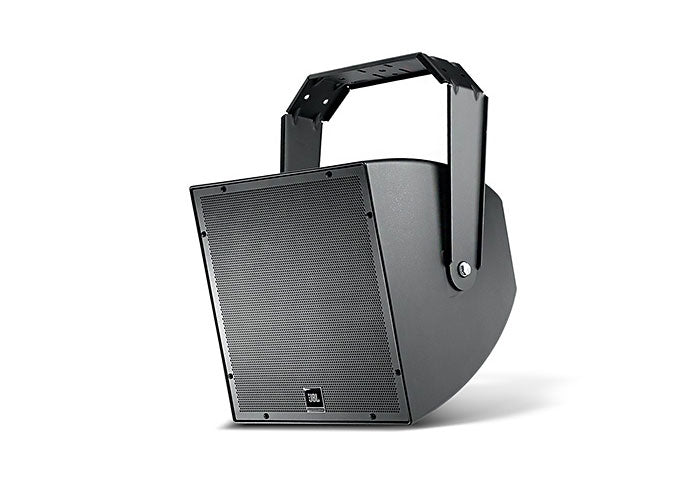

JBL SCS12 Overhead Speaker
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
JBL
https://www.jbl.com
------------------------
Safety manager:
CSI audiovisuel
Email:
Address:
A Speaker Designed for Multichannel Surround Formats, Both Wall-Mounted and Overhead
The SCS 12 is a fullrange cinema surround speaker with a 2-way coaxial design, engineered to meet the demands of modern multichannel systems. Its architecture favors wide and even dispersion to maintain the continuity of the sound field around the audience, whether the speaker is used laterally/rear or in overhead installation (ceiling). The choice of a coaxial driver also facilitates source coherence, a key factor for stable and credible spatialization in a room.
Who Is the SCS 12 For?
The SCS 12 is aimed at integrators, operators, and "pro" home cinema enthusiasts seeking a cinema surround speaker capable of delivering high levels without sacrificing definition. Thanks to its high sensitivity and power handling, it is particularly suited for rooms where crisp transients and immersive rendering of atmospheres, movements, and special effects are expected. Its size and mounting options make it relevant for both wall-mounted configurations and layouts where the speaker must be suspended above the listening area.
Questions frequently asked
Can the JBL SCS12 be installed on the ceiling?
Overhead installation is designed with two M10 points compatible with the supplied U-bracket. A rear M6 point allows for the addition of a secondary safety.
What is the sound coverage of this surround speaker?
The stated coverage is 100° x 100°, with a directivity factor Q of 10.1 between 1 kHz and 16 kHz. This even dispersion meets the needs of surround and overhead channels.
Which amplifier should be used with an 8-ohm JBL SCS12 speaker?
The nominal impedance is 8 ohms and the indicated power reaches 250 W, with 1000 W peak. The amplifier must be compatible with an 8-ohm load.
What sound pressure level can the SCS12 reach?
The maximum SPL is 122 dB at 1 m, with peaks stated at 128 dB.
Which drivers are integrated in this cinema speaker?

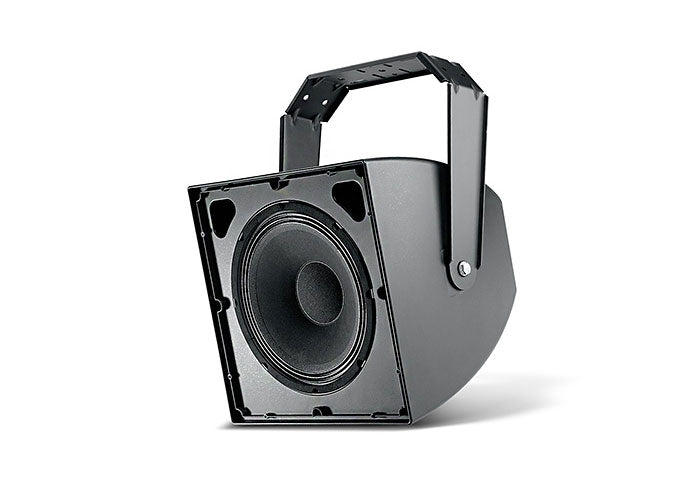

The low-frequency section uses a 300 mm woofer with a Kevlar-reinforced cone and a 75 mm voice coil. The high-frequency reproduction is based on a 25 mm compression driver with a fluid-cooled polymer diaphragm. The passive crossover provides a 1.8 kHz cutoff and includes SonicGuard HF protection.
