FBT Install Shadow 114S

Name: Shadow 114S
Brand: FBT Install
SKU: 422515
Price: 869.00 EUR
Availability: InStock

869,00 €VAT incl.

3,00 € Ecotax included

Reference price

Available on order

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 422515

EAN : 8034138361964

FBT Install

This item is covered for 3 years

Information

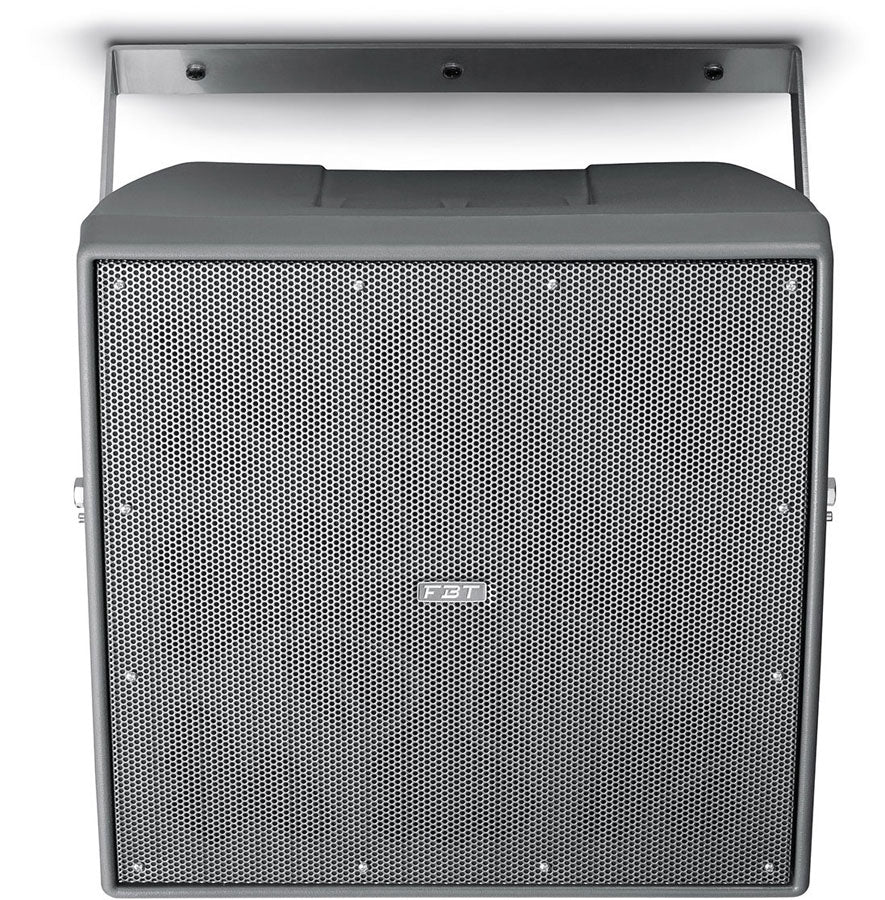

Essential Information About the Passive 14-Inch 700 W RMS Subwoofer
• Solid and clear bass thanks to a 14-inch woofer and a frequency response of 60 Hz to 400 Hz.
• High output level with a max SPL of 129.5 dB, ideal for supporting a sound reinforcement system.
• Easy integration in fixed installations: omnidirectional dispersion and wall mount included.
• Amplifier compatibility : 700 W RMS at 8 ohms, a common standard in sound reinforcement.

Shadow 114S

869,00 €VAT incl.

3,00 € Ecotax included

Reference price

A Subwoofer Designed to Effectively Reinforce a Sound System

This passive subwoofer fits within systems where a reliable bass reinforcement is sought without built-in electronics, allowing external amplification full control over power and processing. Its size, specified workload, and frequency range make it a coherent choice to complement main speakers or satellites while maintaining a simple architecture that is easy to maintain and upgrade.

Being passive also allows centralizing amplification in a rack or cabinet, convenient for both live events and permanent installations, with more uniform level management and protection via the amplifier or sound processor.

Who Is It For and What Are Its Uses?

This subwoofer is aimed at users who want present and clean bass in various contexts: small and medium stages, multipurpose rooms, bars, event spaces, places of worship, or fixed systems requiring a discreet yet powerful solution. Its omnidirectional dispersion helps naturally fill the space with low frequencies, facilitating placement and overall system coherence.

It is especially suitable for configurations where the goal is to relieve the main speakers from the low end: the subwoofer handles the foundation (kick, bass, synths), while the tops gain in comfort, headroom, and clarity in the low-mid range.

Technical specifications

Bluetooth

Questions frequently asked

What amplification should be used with the FBT Install Shadow 114S?

This passive subwoofer has a nominal impedance of 8 ohms and a rated power of 700 W RMS. External amplification is required, with processing and protection managed by the amplifier or the broadcast processor.

What is the frequency response of this 14-inch subwoofer?

The 14-inch driver covers a stated range of 60 Hz to 400 Hz. This response helps reinforce the kick drum, bass, and synths, while offloading the main speakers from the low end of the spectrum.

What is the maximum sound pressure level this subwoofer can reach?

The maximum SPL indicated is 129.5 dB.

Can the subwoofer be wall-mounted?

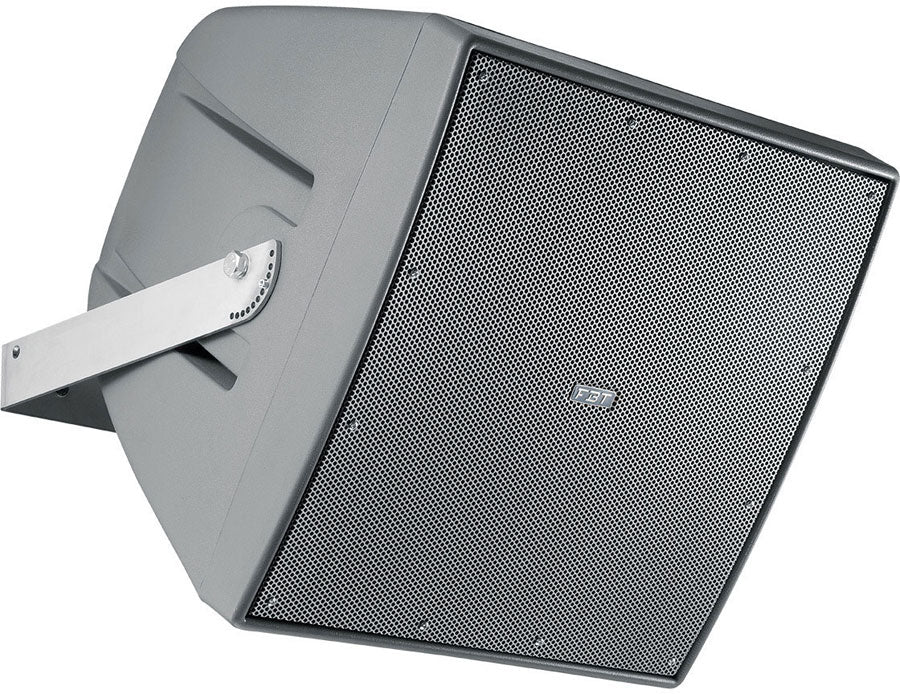

A wall bracket is provided for fixed installation. The subwoofer measures 430 x 430 x 400 mm and weighs 17 kg. This mounting frees up floor space in multipurpose rooms, bars, or places of worship.

What connectors are provided for connection?

The input is specified for 4-conductor wiring. This configuration facilitates integration into a fixed installed sound system using this type of connection.
