FBT Install Shadow 114S-T

Name: Shadow 114S-T
Brand: FBT Install
SKU: 422516
Price: 990.00 EUR
Availability: InStock

990,00 €VAT incl.

3,00 € Ecotax included

Reference price

Available on order

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 422516

EAN : 8034138379433

FBT Install

This item is covered for 3 years

Information

Essential Information About the FBT Install Shadow 114S-T Subwoofer
• Passive subwoofer dedicated to 100V installations : ideal for fixed Public Address sound systems requiring reliable and uniform sound distribution.
• Designed for outdoor use : IP55 certification, weather-resistant molded polyethylene enclosure, and 3-layer protective waterproof grille.
• Solid and controlled bass : 14" driver with 3" voice coil, frequency response 60 Hz - 400 Hz, to reinforce the foundation of front speakers.
• Simplified installation : steel U-bracket included and input via 4-wire cable, designed for quick integration in ambient sound systems.

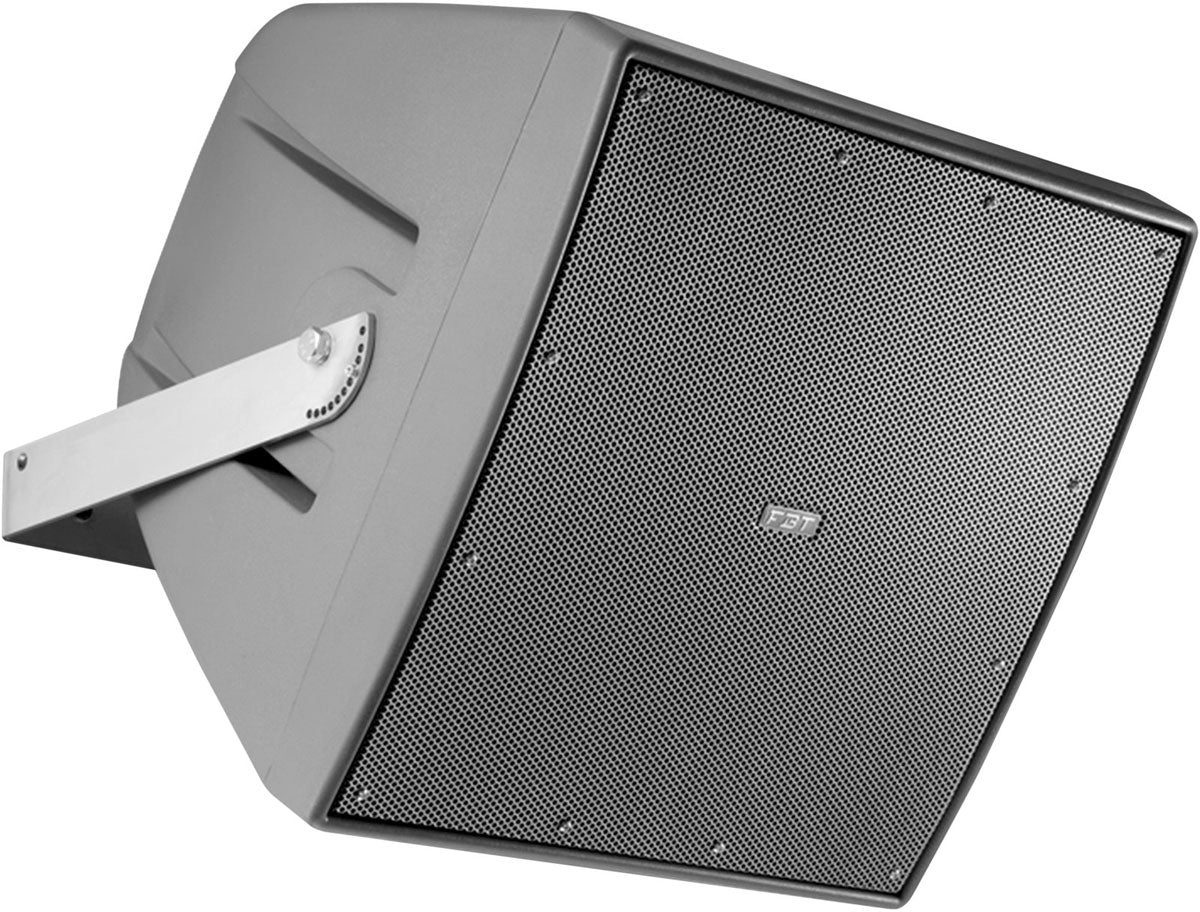

Shadow 114S-T

990,00 €VAT incl.

3,00 € Ecotax included

Reference price

Shadow Series: an installation solution built to last

The FBT Install Shadow 114S-T belongs to the Shadow series, a range designed to meet the demands of fixed installations, especially in challenging environments. Combining resistance to outdoor conditions and an "install"-oriented design, this subwoofer naturally integrates into a 100V distribution system, whether for a public venue, covered area, or spaces requiring constant and robust sound reinforcement.

For which installations and uses?

This subwoofer is intended for integrators, operators, and installers seeking a passive 100V solution capable of adding weight to the low end without complicating the system. Thanks to its omnidirectional dispersion, the bass spreads naturally throughout the space, making it an excellent choice to complement main sound distribution in locations such as lobbies, reception areas, covered terraces, commercial spaces, or site-wide sound reinforcement installations.

With an RMS power of 350 W (and 1400 W Peak ) and a sensitivity of 97 dB, the Shadow 114S-T is sized to provide clear bass reinforcement, particularly useful for dynamic background music, warmer voice announcements, or any installation where a fuller sound foundation is desired.

Technical specifications

Bluetooth

Questions frequently asked

Can the Shadow 114S-T be installed outdoors?

Its IP55 rating, molded polyethylene enclosure, and three-layer waterproof grille are designed to withstand weather conditions.

Is this subwoofer compatible with a 100V line?

The built-in 100V transformer is rated for 300 W and allows connection to a Public Address 100V line system. A nominal impedance of 8 ohms is also specified.

What frequency range does this subwoofer cover?

The specified frequency response ranges from 60 Hz to 400 Hz. The 14-inch driver features a 3-inch voice coil. The omnidirectional dispersion promotes a natural bass distribution in space.

Does the FBT Install Shadow 114S-T come with a mounting bracket?

A steel U-bracket is supplied to facilitate wall or under-structure mounting.

What amplifier and filtering are recommended for this subwoofer?

A 700 W amplifier is recommended, with a peak power rating of 1400 W. A high-pass filter set at 40 Hz with a 24 dB/oct slope is advised for operating the subwoofer.
