FBT J MAxX 114A
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
The essentials to know about the FBT J MAxX 114A active loudspeaker
The essentials to know about the FBT J MAxX 114A active loudspeaker
- Class D bi-amplification: 700W + 200W RMS for ample dynamic headroom at FOH and when used as a monitor.
- Effective projection: up to 132dB SPL max. and 90deg x 60deg dispersion for cleanly covering a sound reinforcement area.
- Quickly refined sound: integrated DSP with 4 EQ presets to adapt the loudspeaker to the application (vocals, music, speech, etc.).

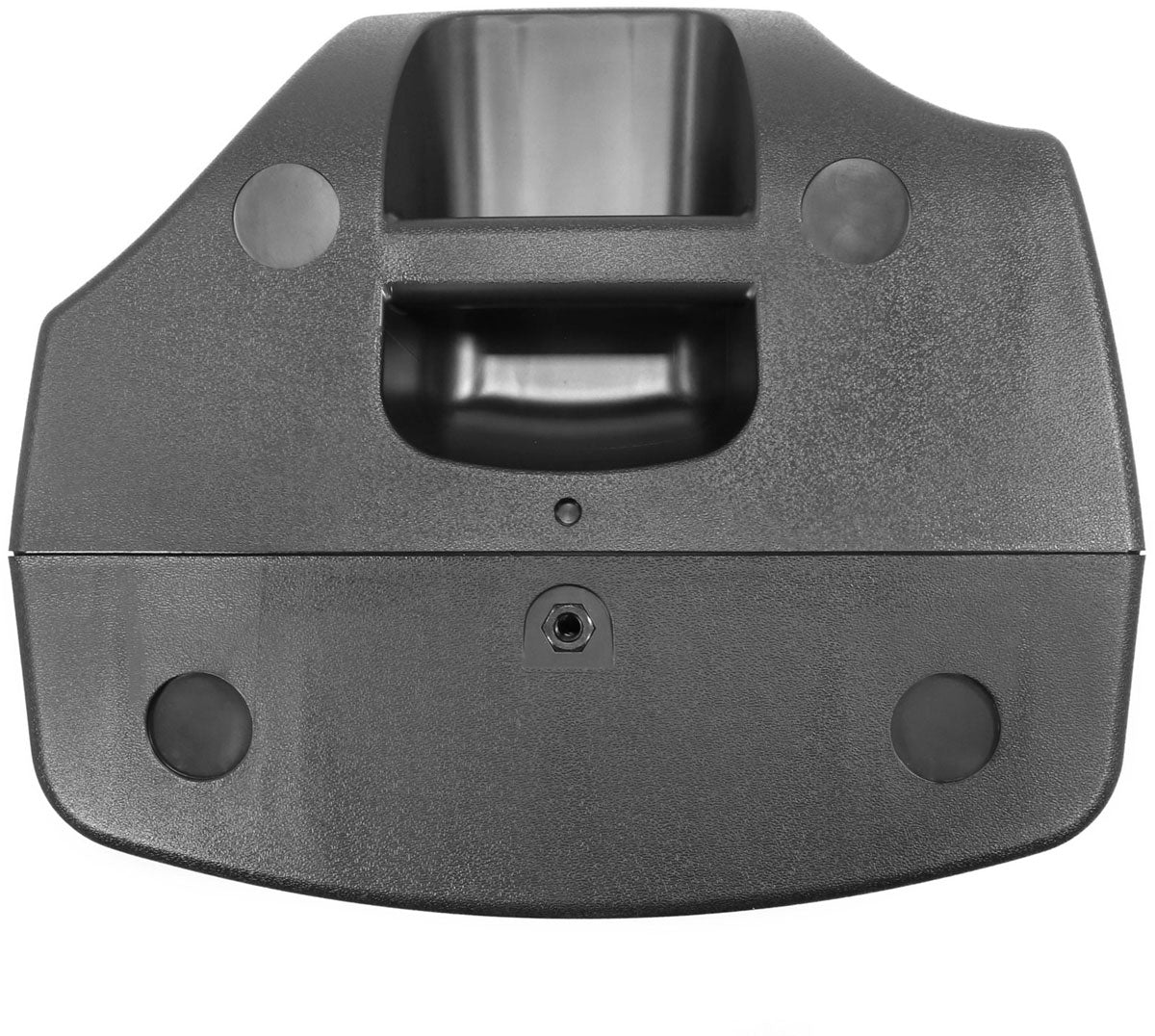

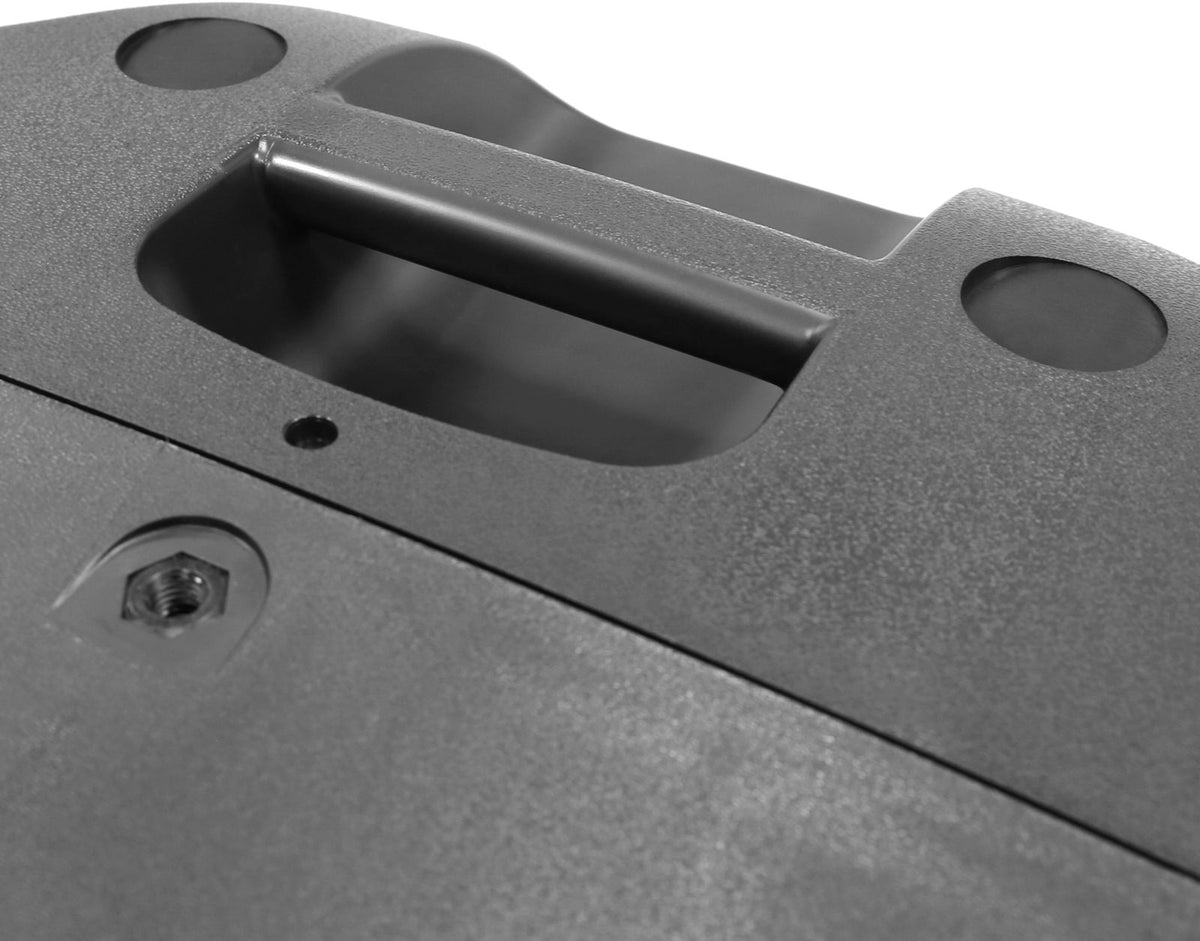

- Stage-ready: 35mm pole socket, M10 threaded inserts for suspension, moulded handles and an easy-to-transport format (14 kg).
Manufacturer Information
FBT
https://www.fbt.it
------------------------
Safety manager:
MSC Distribution
Email: infos@msc-distribution.com
Address:

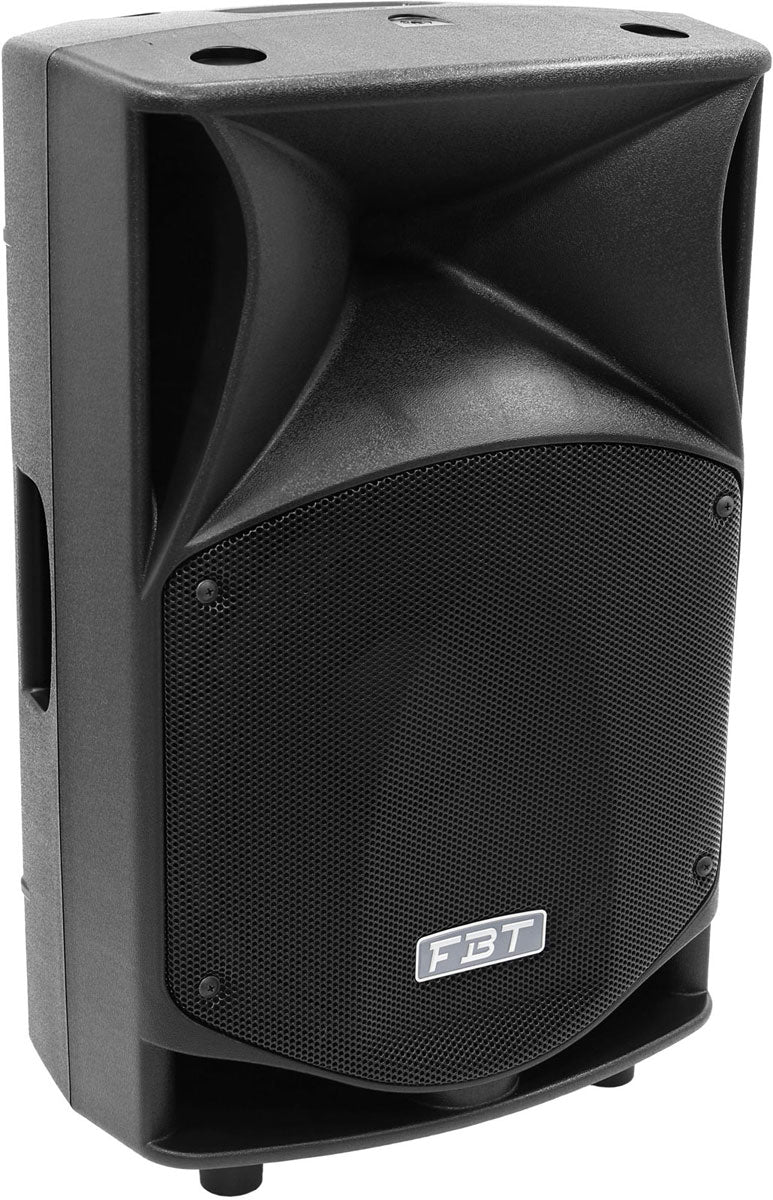

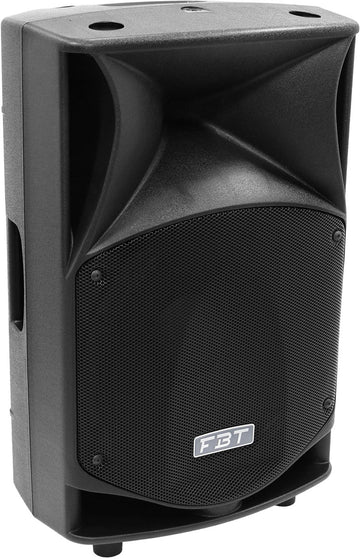

A loudspeaker from the J MAxX range designed for mobile sound reinforcement
The FBT J MAxX 114A is designed for versatile sound reinforcement: an active loudspeaker created to meet the needs of performances where you want to move quickly without sacrificing clarity. Its bass reflex design and bi-amplification deliver a balanced sound, with useful low-end support while retaining presence for vocals and melodic sources.
In a lightweight sound reinforcement setup, it is a reliable solution as a main loudspeaker on a stand, a close-range fill, or an addition to an existing system. The goal is simple: provide solid sound levels, controlled directivity and accessible settings, all in a format suited to frequent transport.
Who is it for and what is it used for?
The J MAxX 114A is aimed at musicians, DJs, service providers, associations and venues (bars, small rooms, multipurpose halls) looking for an active loudspeaker capable of delivering clear, energetic sound reinforcement. It is also very well suited to public speaking applications (conferences, presentations, ceremonies), thanks to its extended response up to 20kHz and EQ presets that quickly help stabilize the sound.
Thanks to its 35mm pole mount socket, it naturally fits on a stand for even audience coverage. The M10 nuts also allow for suspended installation (depending on the infrastructure and suitable accessories), which is practical for permanent stages or performances requiring clean and secure rigging.
Technical specifications
| Bluetooth | No | ||
| Class D digital amplification | 700W + 200W RMS | Dispersion (H x V) | 90deg x 60deg |
| Frequency response (at -6 dB) | 45Hz / 20kHz | DSP | 4 EQ programs |
| Loudspeaker | 14 inches (35.5cm) | Inputs | XLR + 6.35mm jack |
| Voice coil | 2 inches | Link outputs | XLR |
| Driver | 1 inch | Net dimensions | 402 x 644 x 345mm |
| Max. SPL | 132dB | Net weight | 14kg |
You will also like
RCF
Art 715-A MK5
RCF
Art 915-A
RCF
Art 712-A MK5
JBL
EON715
QSC Pro audio
CP12
RCF
Art 910-A
DB Technologies
Es 802
Yamaha
DBR 15 (unit)
Questions frequently asked
Is the FBT J MAxX 114A suitable for a DJ or a mobile performance band?
With 900 W RMS of bi-amped Class D power (700 W + 200 W) and a maximum SPL of 132 dB, this speaker is suitable for mobile sound reinforcement. Its weight of 14 kg and 35 mm pole mount socket facilitate stand installation.
What connections are available on this active speaker?
The XLR input and 6.35 mm jack input allow connection of various audio sources. A Link XLR output is provided to chain a second speaker or send the signal to another system component.
Is the bass response sufficient without a subwoofer?
The specified frequency response extends down to 45 Hz at -6 dB, thanks to the 14-inch driver and bass-reflex enclosure. This extension suits many light sound reinforcement applications, providing a solid low-end foundation.
What DSP settings does the J MAxX 114A offer?
Four EQ presets are integrated into the DSP. They allow adaptation of the sound to the source, room acoustics, or speaker placement. Corrections can thus be limited to the mixer.
Can it be suspended in a venue?
The M10 threads allow for suspended installation, provided that appropriate rigging hardware and infrastructure are used.
