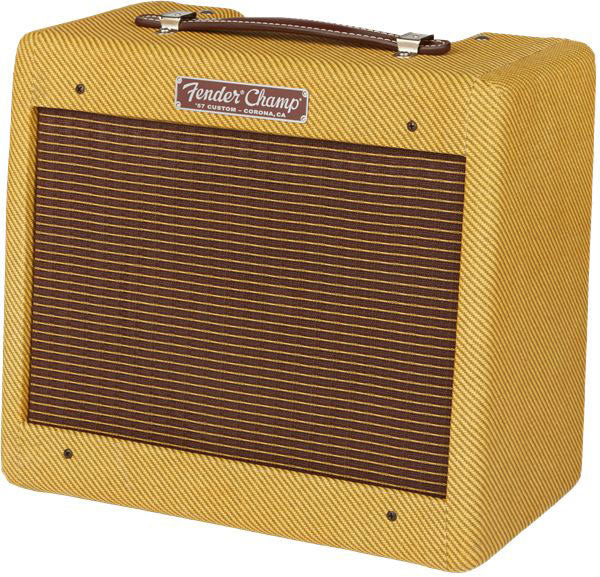

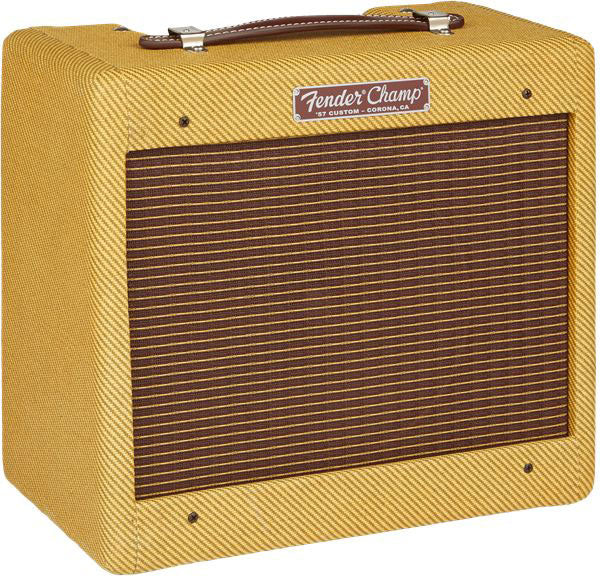

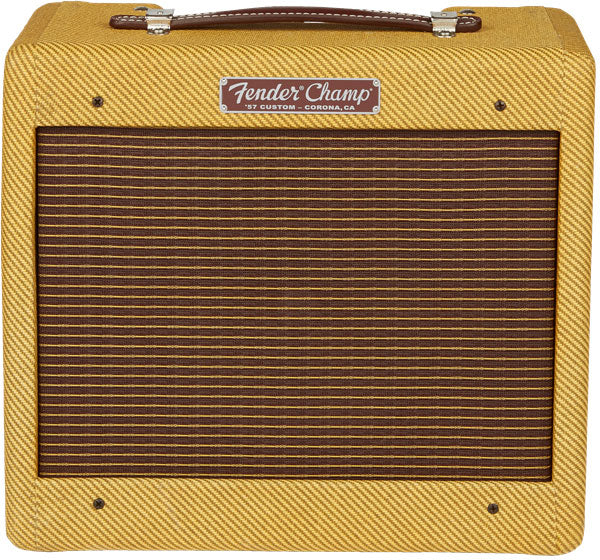

Essential Information About the Fender '57 Custom Champ Handwired Amp
- True all-tube 5W combo handwired: vintage Tweed sound and "old school" response at your fingertips.
- Authentic 5F1 circuit with vintage-style components (Fender Pure Vintage "yellow" capacitors, Schumacher transformers) for a tone faithful to the originals.
- 8" Weber Special Design AlNiCo speaker: dynamic, surprisingly projecting, with a superb transition from clean to overdrive.

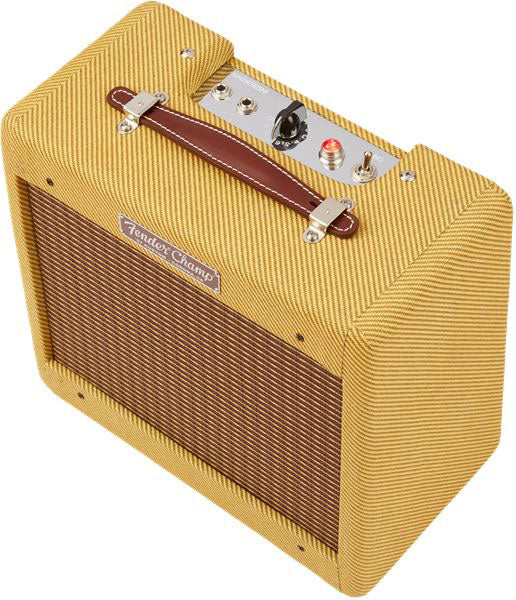

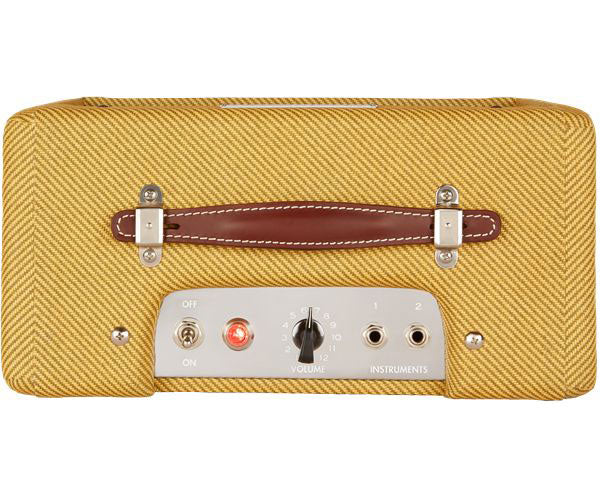

- Ultra simple and inspiring: two 6.35mm Jack inputs and a single volume control, ideal for playing with the guitar's knob and attack.
Historical Context and Positioning in the Range
The Champ is one of Fender's most recorded and recognizable amps: small size, modest power, but huge personality. The Fender '57 Custom Champ Handwired is in the spirit of late 1950s Tweed combos, featuring the 5F1 circuit, famous for its musicality and simplicity. Within the Fender lineup, this "Custom" model is positioned as a premium version focused on authenticity, with handwired construction and component choices designed to replicate the behavior and feel of vintage amps.
Who This Amp Is For
This Champ is aimed at guitarists who want an immediately usable vintage tone, without menus or modeling, and who enjoy sculpting their drive with the guitar. Perfect for studio use to capture takes rich in character, it also excels at home if you want an amp that "lives" when pushed (keeping in mind that 5W all-tube can already be quite loud). For rehearsals, it suits controlled environments (small room, light drummer, mic'd sound). Style-wise, it shines in blues, vintage rock, country, roots, and anything requiring a snappy clean and organic crunch.
Technical specifications
| Category | Guitar combo | Speaker diameter | 8" |
| Technology | Tubes | Number of speakers | 1 |
| Amp tubes | 6V6 | Color | Yellow |
| Category | Amplifier | Finishing | Tweed |
| Number of channels | 1 | Power output | 5 W |
Questions frequently asked
Is the Fender '57 Custom Champ Handwired powerful enough for home use?
Its 5 W all-tube design allows for home use while already sounding full when the volume is increased. The crunch appears gradually with the volume control and the guitar's own volume.
What sound does the 5F1 circuit produce?
The 5F1 circuit delivers a clear and sharp clean tone, then a dense crunch at high volume. The 5Y3 tube provides natural compression and a sag feel.
Which tubes are installed in this combo?
The setup includes a 12AY7 in the preamp section, a 6V6 for power, and a 5Y3 for rectification.
What is the purpose of the -6 dB second input?
Input 2 on the 6.35 mm TS jack is attenuated by 6 dB. It is designed to accommodate hotter pickups or to preserve more headroom before distortion.
What speaker does the 5 W Tweed Champ feature?
A Weber Special Design 8-inch AlNiCo speaker is housed in a solid pine cabinet. This 1x8 inch configuration contributes to the amp's dynamic response. Weighing 7.5 kg with dimensions of 343 x 318 x 193 mm, the format remains compact.
