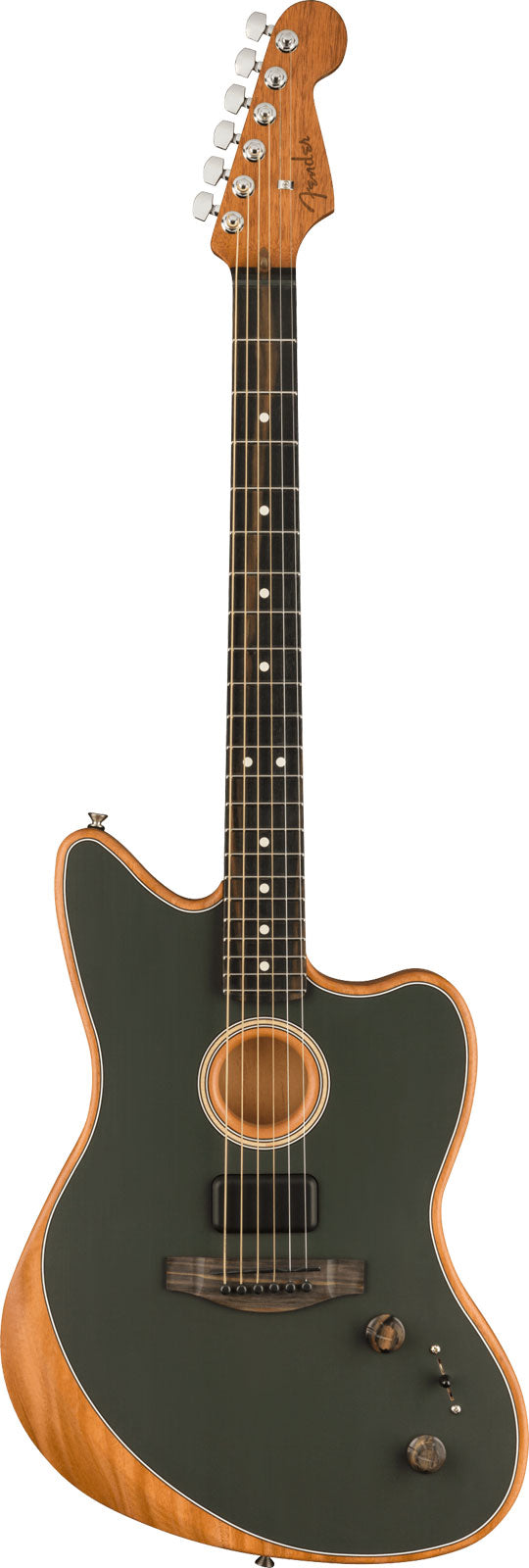

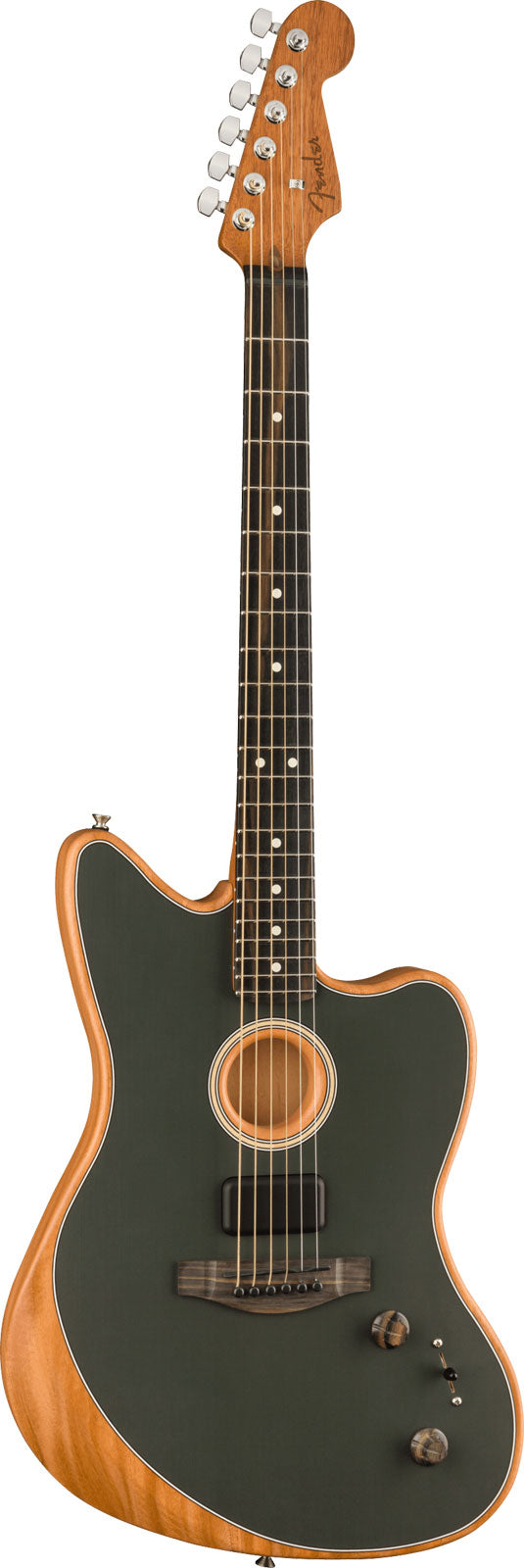

Fender Jazzmaster American Acoustasonic Ebo Tungsten

An Acoustasonic in Jazzmaster Format: Fender Innovation Serving Versatility

The American Acoustasonic Jazzmaster is part of Fender's approach to fuse the acoustic and electric worlds within a single instrument. Its large hollow body inspired by the Jazzmaster (the largest format in the Acoustasonic series) emphasizes a powerful acoustic response, while the Acoustic Engine developed with Fishman opens access to unprecedented tone combinations. Made in Corona, California, it embodies a high-end approach to the modern electro-acoustic guitar.

Who It's For, and Which Styles

This guitar is aimed at intermediate to advanced musicians who want to cover multiple registers with one instrument: acoustic accompaniment, detailed arpeggios, pop/rock, indie, groove in rhythm playing, and more cutting sounds when the humbucker is engaged. It is especially suitable for stage and studio guitarists seeking a smooth transition between acoustic timbres and more electric attack without changing guitars.

Sound

The solid Sitka spruce top provides clarity, dynamics, and definition, while the mahogany body/back/sides enhance warmth, roundness, and presence in the low-midrange. The "Modified Jazzmaster" format and body design favor broad projection with well-grounded lows. On the amplification side, the 3-system configuration (piezo under the saddle, internal body sensor, and Acoustasonic Shawbucker) allows for a range from precise acoustic response to denser, more aggressive humbucker-style textures, with progressive blending via the Mod knob and quick selection via the 5-position switch.

Recommended Compatible Accessories

The guitar comes with a Deluxe 1225 gig bag. For power, plan on a 5 V DC / 1,000 mA USB charger and a micro USB cable (not included), according to the specified requirements.

Technical specifications

Electronics: microphone configuration	Hybrid	Body	Mahogany
Category	Asymmetric	Bridge / tailpiece	Fixed
Left handed	No	Electronics	Active
Strings	Steel	Electroacoustic	Yes
Nbr of strings	6	Color	Grey
Top	Sitka Spruce	Finishing	Satin
Fingerboard	Ebony	Hardware	Chromed
Nbrs of frets	22

Format	Modified Jazzmaster	Inlays	white dots
Back	mahogany	Number of frets	22
Sides	mahogany	Fret size	narrow tall
Bracing	cross bracing	Scale length	25.5" / 647.7 mm
Body finish	satin matte polyester	Nut	Graph Tech TUSQ
Rosette	2-ring B/W/B	Nut width	1.6875" / 42.86 mm
Pickguard	none	Truss rod	Bi-Flex
Neck material	mahogany	Truss rod access/nut	1/8" American Series
Profile	modern deep C (C shape)	Truss rod wrench	1/8" hex (Allen) / 3.18 mm
Neck finish	satin urethane	Hardware finish	chrome
Radius	12" / 305 mm	Bridge	modern asymmetrical
Radius type	modern	Tuners	Fender Standard Cast/Sealed Staggered
