Headliner R2

An Accessible Rotary Inspired by the Classics

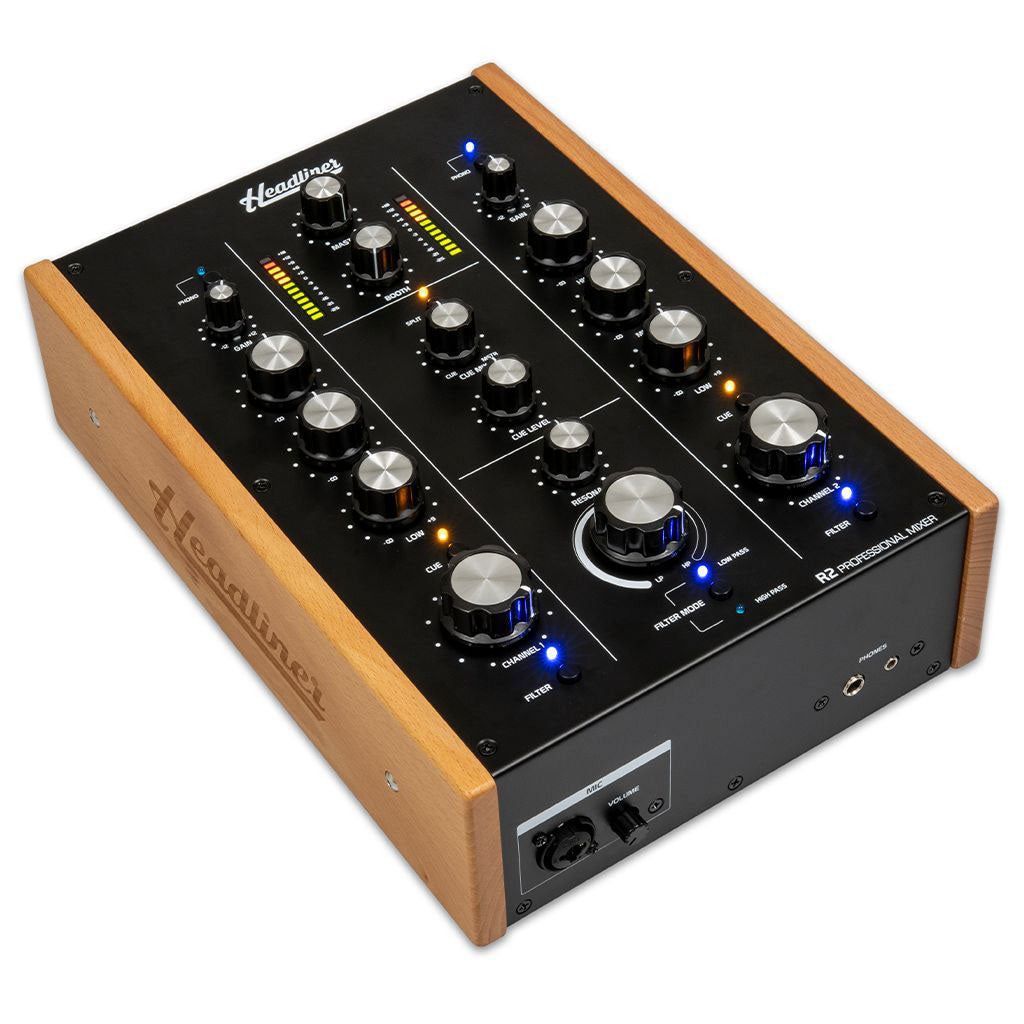

The Headliner R2 adopts the aesthetics and handling of classic rotary mixers while remaining affordable. Its robust metal chassis, stained wooden side panels, and ALPS potentiometers provide a premium feel. Its modular internal construction and externally lockable mini-XLR power supply ensure stability and signal cleanliness, even on demanding sound systems.

For Which DJs and Uses?

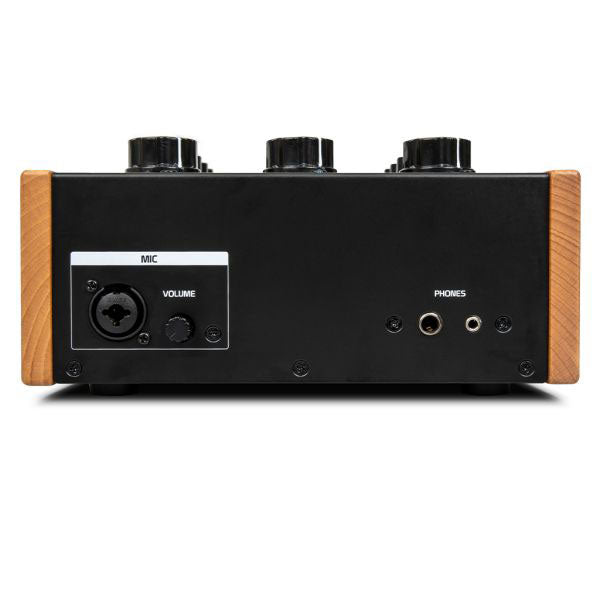

Ideal for house and techno DJs who favor smooth fades and organic timbres, the R2 is also suitable for funk, soul, or disco enthusiasts. Its 2-channel format makes it a perfect ally for vinyl sets, intimate bars and clubs, mobile gigs, or studio use. Independent Master and Booth outputs facilitate balance between front-of-house and monitor, while the front mic input simplifies announcements.

Features and Innovations

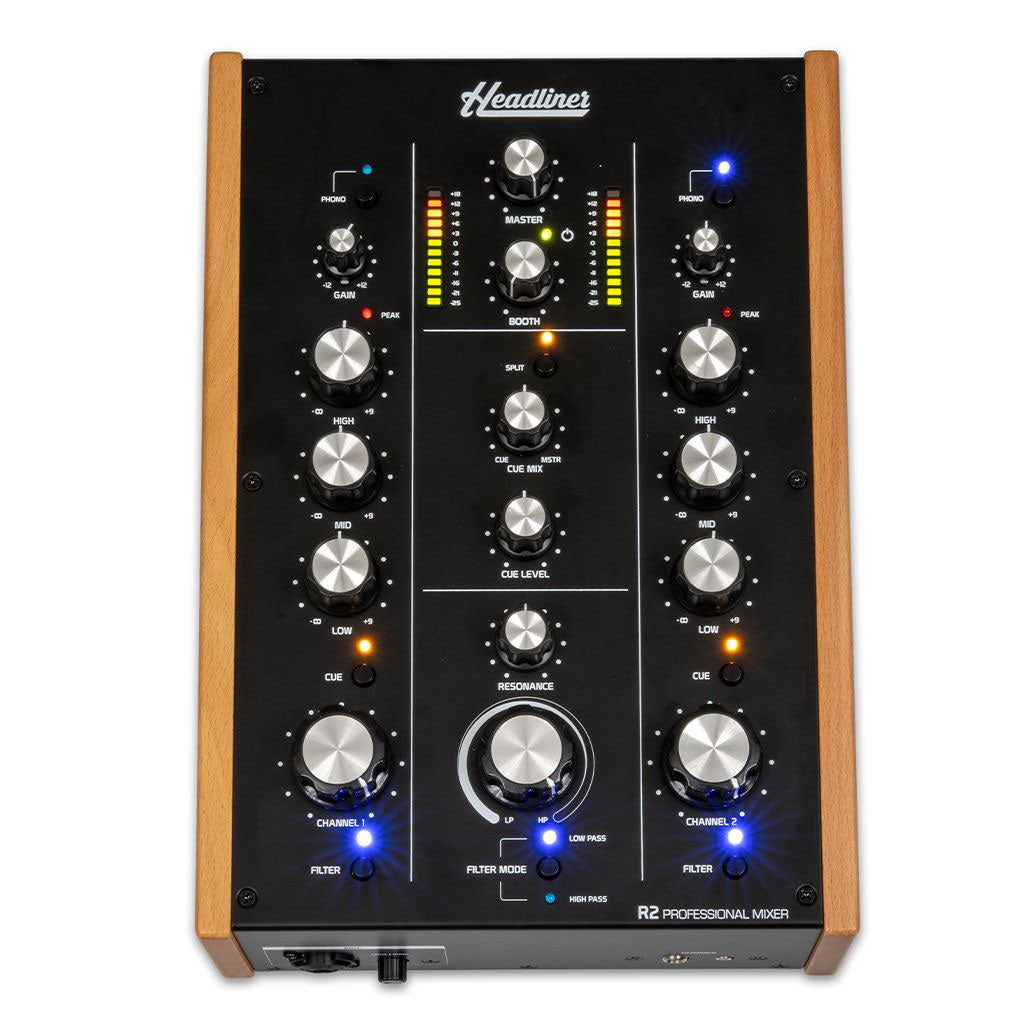

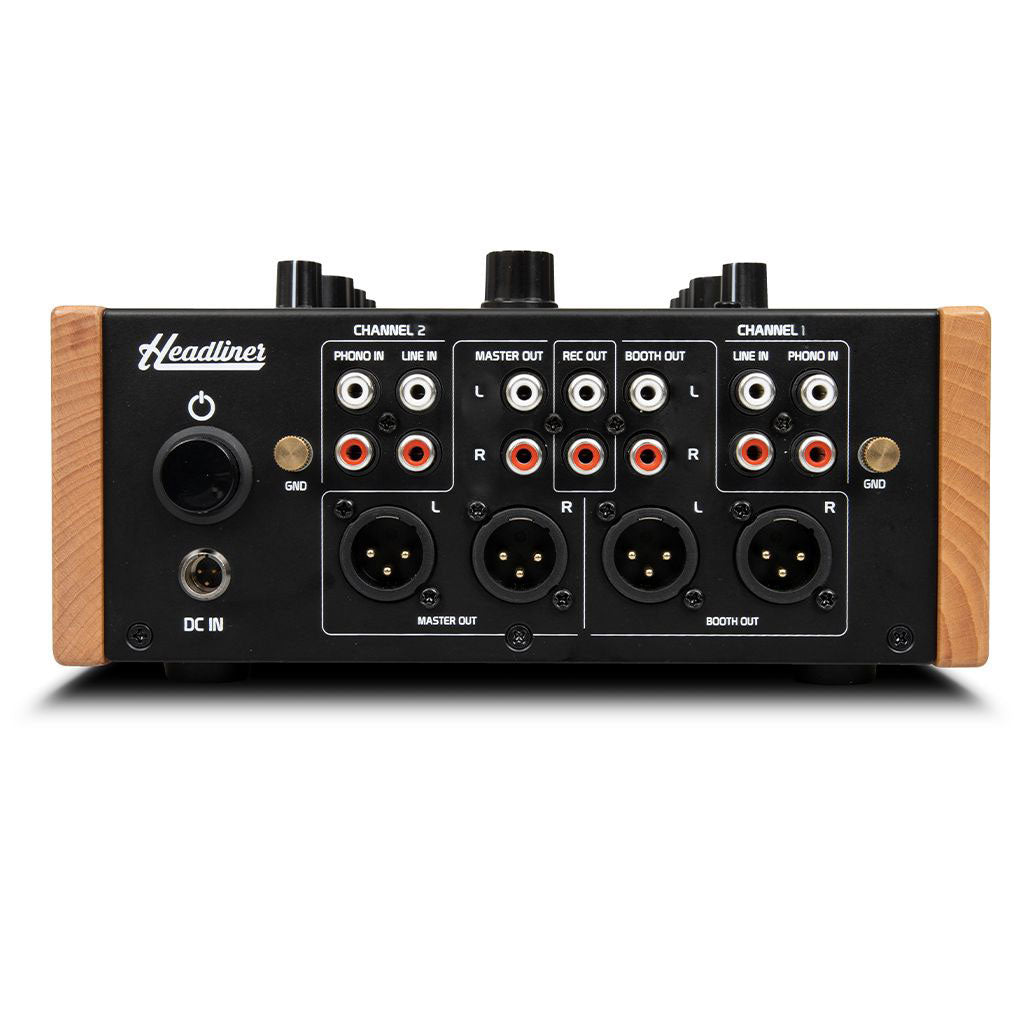

Each channel offers gain control with peak LED, 3-band isolator EQ, headphone monitoring selector with LED, large volume potentiometer, and filter activation switch. The Master channel includes an analog filter with selectable high-pass/low-pass modes, frequency and resonance controls to precisely sculpt the mix. On the output side, the R2 provides independent Master and Booth outputs with volume controls, selectable between symmetrical XLR or asymmetrical RCA, plus a dedicated RCA Record output.

The Cue section is particularly comprehensive: headphone volume, Cue/Master mix, and Split Cue switching to separate signals in each ear. The high-current headphone amplifier effortlessly powers most headphones via 6.35 mm and 3.5 mm jacks. Two LED VU meters monitor the Master output, a push-button power switch is located on the rear, and the unit remains compact (320 x 219 x 106 mm, 2.8 kg) to fit any setup.

Technical specifications

Type	Analog	Number of faders	2
USB stereo recording / playback	No	Rackable	No

Nominal input level	-50 dBu	Residual noise	less than -86 dBu (line to Master) (A-weighted)
Frequency response	20 Hz - 20 kHz (+/- 0.1 dB)	Dynamic range	greater than 100 dB (A-weighted)
THD + N	less than 0.1%	Crosstalk	less than -65 dB
Input impedance	1.2 kOhm	Maximum output level	70 mA/channel into 150 Ohms
Gain range	-12 dB to +12 dB	Minimum load impedance	32 Ohms/channel
Input capacitance	100 pF	Input voltage	100-240 V ~ 50/60 Hz
Nominal output levels, balanced	+4 dBu	Output voltage	+/-15 V; 500 mA
Maximum output level, balanced	+20 dBu	Dimensions	320 x 219 x 106 mm (12.6 x 8.6 x 4.2 inches)
Nominal output levels, unbalanced	-10 dBV (-7.8 dBu)	Weight	2.8 kg (6.15 lb)
Maximum output level, unbalanced	+12 dBu
