Allen & Heath XONE 24
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
What you need to know
What you need to know
Essential Information About the Allen & Heath Xone:24 Mixer
- Analog Xone sound with VCF high-pass/low-pass filter to shape the texture of your sets.
- 2+1 channel architecture and low-noise RIAA preamps to utilize vinyl, players, and line sources.
- Mini InnoFADER 45 mm, VCA faders, and two crossfader curves for precise scratching or smooth mixing.

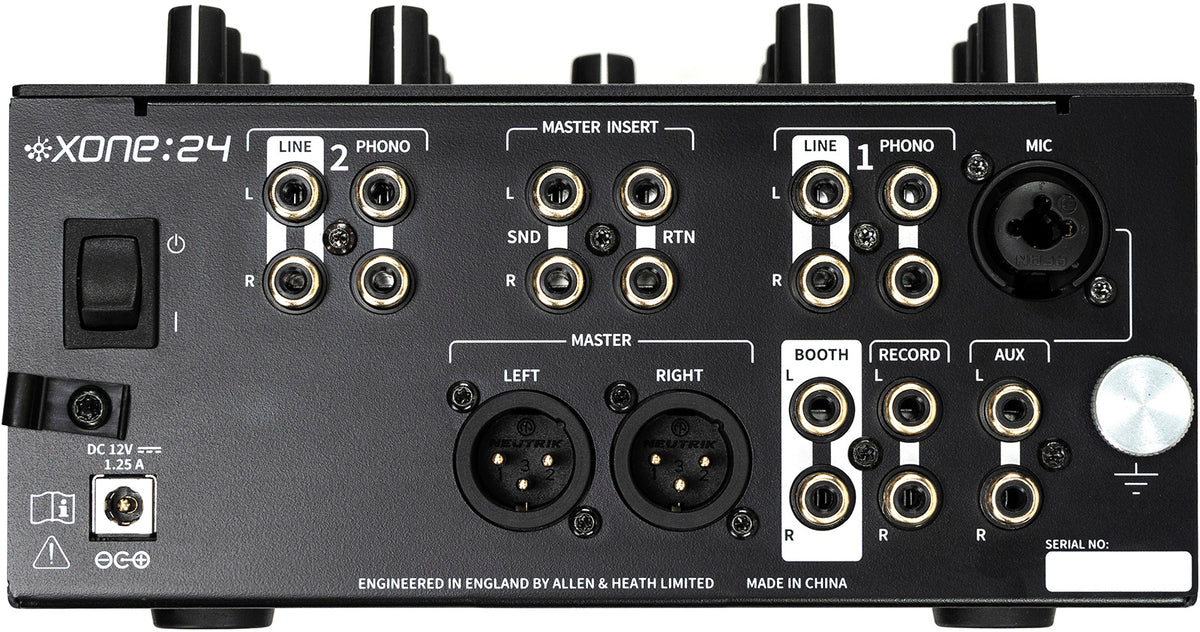

- Essential connectivity with Master XLR, Booth/Record RCA, FX Loop, and dual headphone outputs.
Manufacturer Information
Allen&Heath
https://www.allen-heath.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:

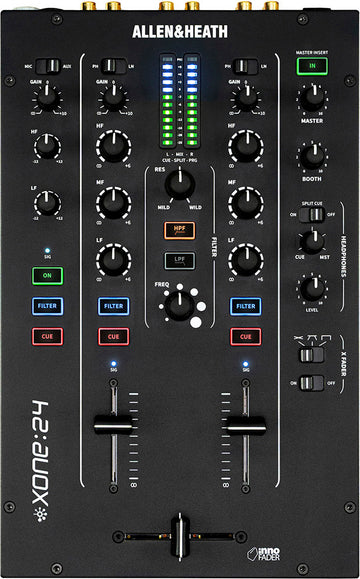

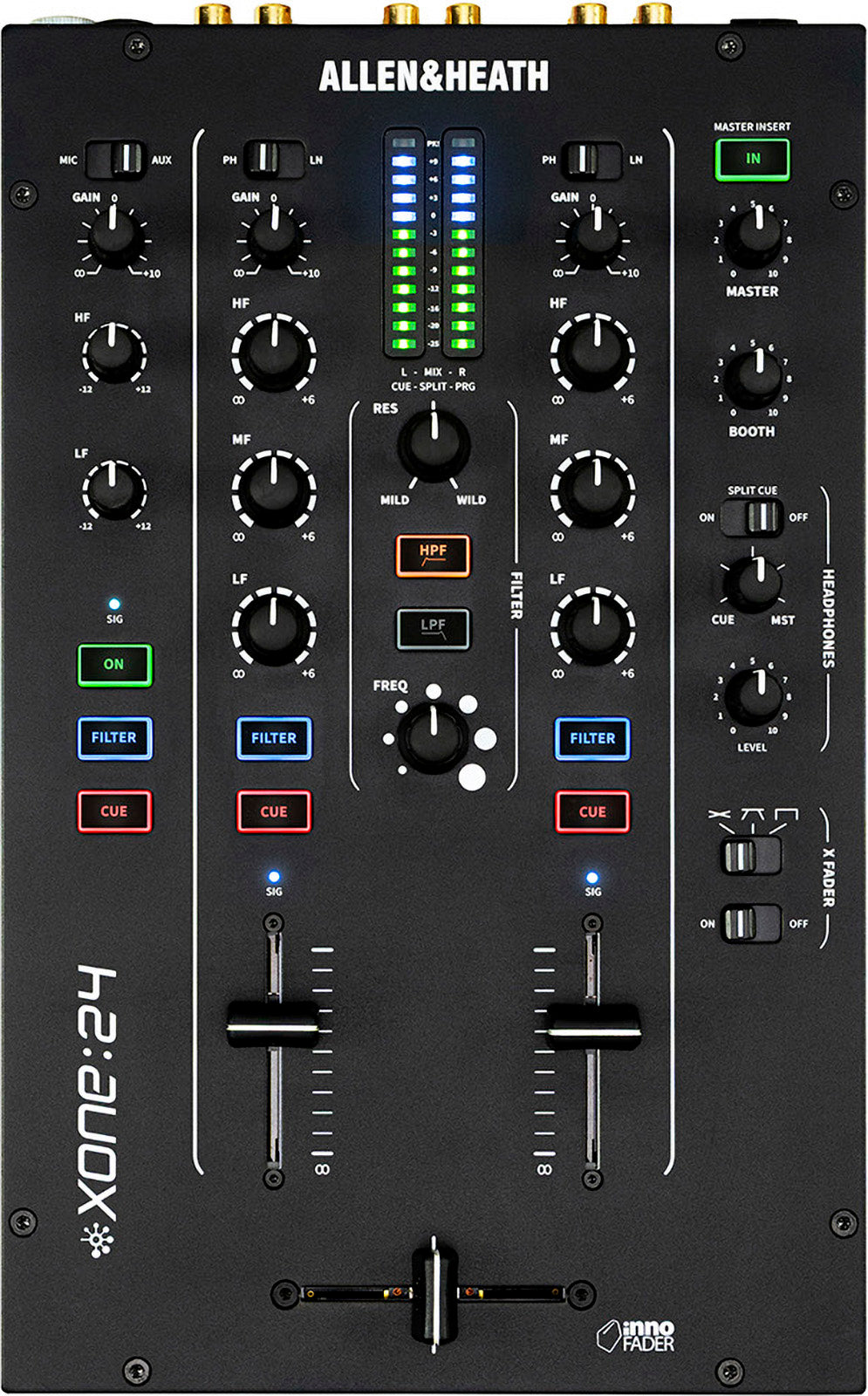

The Xone Signature in a 2+1 Channel Format
Designed by Allen & Heath, the Xone:24 condenses the "Xone" sonic DNA into a compact and robust chassis. It embraces the brand's pure analog approach, with warm summing and clear ergonomics, ideal for tight spaces without compromising quality.For Which DJ and What Playground?
The Xone:24 targets demanding beginner DJs as well as mobile professionals seeking a reliable mixer for bars, intimate clubs, events, and home studios. The combo mic input facilitates hosting, while the Master insert loop accommodates your external effects for creative performances both live and in fixed installations.Technical specifications
| Number of faders | 2 | Mic inputs | combo XLR/jack |
| Number of channels | 2 | Line inputs | 3 x Rca |
| EQ | 3 channels | Inputs (other) | FX return : RCA, 2 x phono |
| Filters | Xone VCF | Main outputs | XLR |
| Category | console club | Outputs (other) | Record RCA, FX send RCA, monitor Rca |
| Fader travel | 45 mm | Display | Meter |
| Crossfader | Innofader mini VCA | Weight | 2.7 kg |
| Number of mic preamps | 1 | Dimensions (mm) | 190 x 314 x 108 |
| Type | Analog mixer | Controls | Adjustable frequency and resonance |
| Channels | 2 + 1 (AUX) | Channel faders | 45 mm VCA |
| 3-band EQ (CH 1 & 2) | +6dBu / Total Kill | Crossfader curves | 2 (Fast-cut / Blend) |
| Frequencies | High 3.5kHz / Mid 1.1kHz / Low 500Hz | Headphone monitoring | 6.35 mm & 3.5 mm outputs (Split Cue) |
| 2-band EQ (AUX) | +/- 12dBu - High 900Hz / Low 750Hz | Frequency response | 20Hz - 30kHz (+/- 0.5dB) |
| Phono inputs | 2 x RCA (CH 1 & 2) | Distortion | 0.01% at 1 kHz |
| Mic input | 1 x Combo (XLR + TRS) | Channel crosstalk | less than -85 dB at 1 kHz |
| Master output | 1 x XLR (balanced) | Signal-to-noise ratio (Master) | -93dBu |
| Booth output | 1 x RCA (unbalanced) | Headroom | +18dB |
| Record output | 1 x RCA (unbalanced) | Master Mix | +4dBu nominal / +22dBu max |
| Master Insert loop | 1 x RCA Send / 1 x RCA Return | Booth | 0dBu / +18dBu max |
| Filter | Analog VCF (HPF/LPF) | Master Insert Send | -2dBu / +18dBu max |
You will also like
Pioneer Dj
DJM-250MK2
Numark
Scratch
OMNITRONIC DJ
TRM-202MK3 - 2- CHANNEL ROTARY MIXER
RELOOP DJ
RMX-22i
Ecler
Nuo 2
Headliner
R2
Allen & Heath
XONE 24C
OMNITRONIC DJ
TRM-222
Questions frequently asked
Can the Allen & Heath Xone:24 accommodate two turntables?
Channels 1 and 2 each feature an RCA phono input with RIAA preamps. Three RCA line inputs are also provided for line-level sources.
How does the Xone VCF filter work?
The analog VCF offers high-pass (HPF) and low-pass (LPF) modes with adjustable frequency and resonance.
What are the dimensions and weight of the mixer?
Measuring 190 x 314 x 108 mm and weighing 2.7 kg, this size is suitable for tight spaces and mobile setups. The surface includes two 45 mm channel faders. An AUX channel complements the two main channels.
Can an external effect be connected on the master?
The Master Insert loop includes an RCA send and an RCA return. The nominal level of the Insert Send is -2 dBu, with a maximum of +18 dBu.

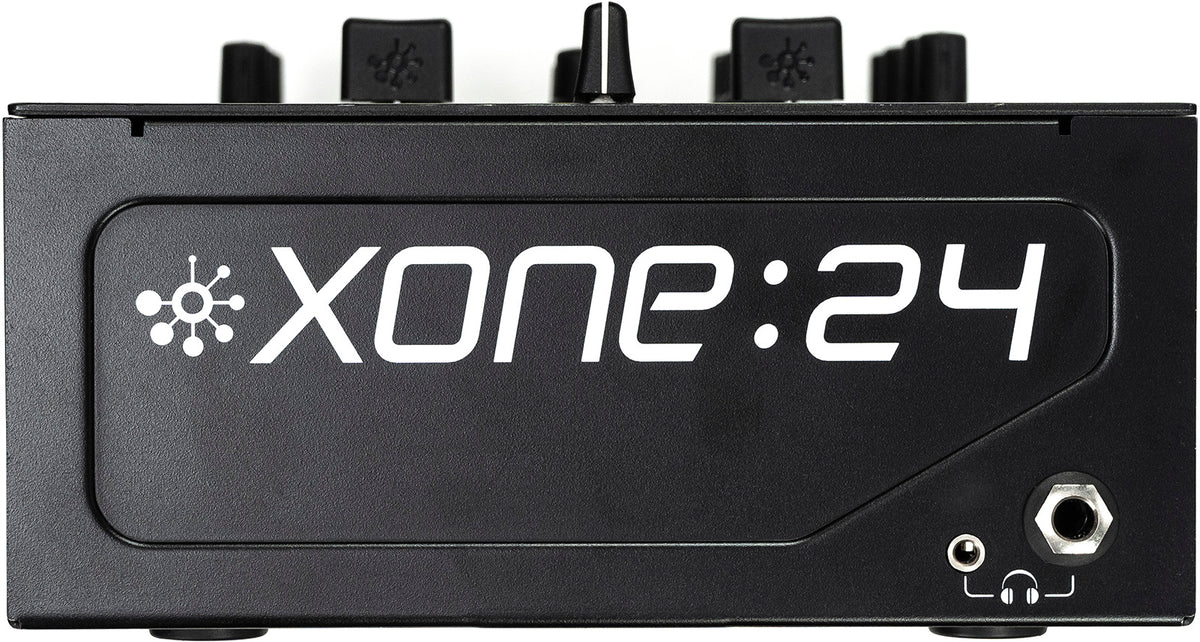

What headphone and microphone connections are available?
Headphone monitoring offers 6.35 mm jack and 3.5 mm mini-jack outputs, featuring Split Cue function. The microphone input uses a combo XLR/TRS jack connector.
