Information

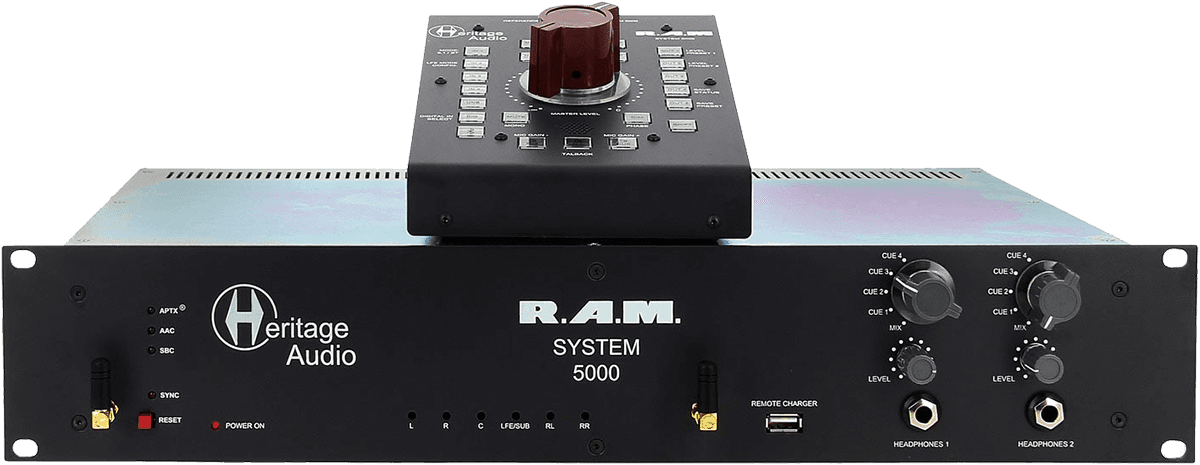

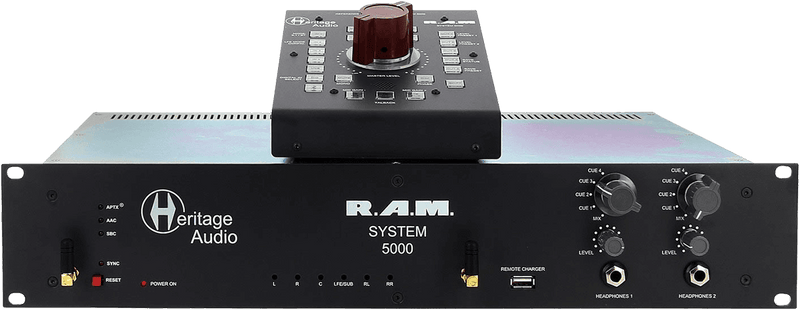

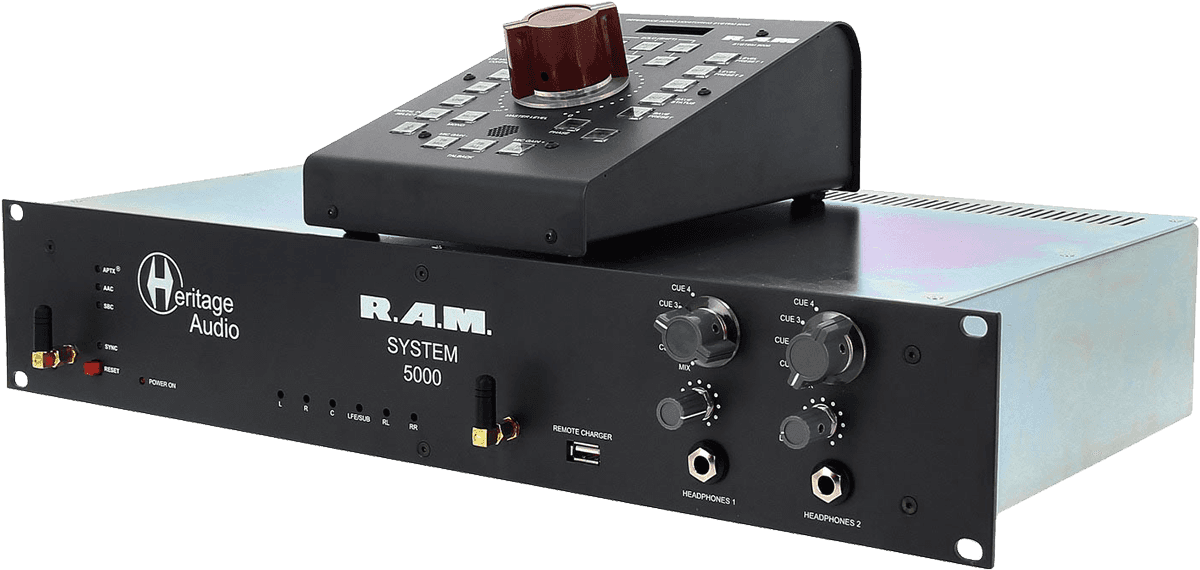

Essential Information About the Heritage Audio RAM System 5000 Monitoring Controller
• High-end monitoring controller with analog signal path and gold-plated relay switching to preserve signal integrity.
• 5.1 ready without options: surround configuration or stereo use as desired, with Mute and Solo functions per speaker.
• Integrated audiophile DAC (Wolfson WM8741 24 bit/192 kHz) and selectable digital connectivity AES/EBU, S/PDIF, and Toslink, plus a Bluetooth input oriented for professional audio quality.
• Two high-current headphone amplifiers with diamond buffer, capable of driving high or low impedance headphones, and source selection between Mix or Cue.

RAM System 5000 Module 5.1

1.889,00 €VAT incl.

0,90 € Ecotax included

Reference price

Two Years of Development: The RAM Range as Heritage Audio's New Benchmark

With the Reference Audio Monitoring (RAM) series, Heritage Audio formalizes a "reference monitoring" approach inspired by audiophile systems but designed for real studio environments: different control room sizes, various budgets, and above all a constant need for transparency and repeatability. Announced as the result of two years of intensive R&D at the brand's headquarters, the range shares a common philosophy and technology, from the RAM 500 system to the most complete RAM System 5000, here offered with an architecture ready for 5.1.

Who the RAM System 5000 Is For and How to Use It in the Studio

The RAM System 5000 targets studios that want a single monitoring control center capable of managing multiple sources, several pairs of speakers, and a music or post-production workflow. In stereo, it becomes a premium monitor controller to quickly switch between different listening setups and secure decisions on balance, EQ, and dynamics. In surround, it naturally integrates into a 5.1 mix-oriented control room, with dedicated functions (Mute/Solo per channel) that facilitate calibration, compatibility checks, and troubleshooting of an issue on a channel.

Its "reference" approach is also particularly relevant for environments where consistency is paramount: multi-engineer studios, mix rooms with frequent session recalls, or installations where you want to avoid level and tonal variations linked to more basic monitoring controllers.

Technical specifications

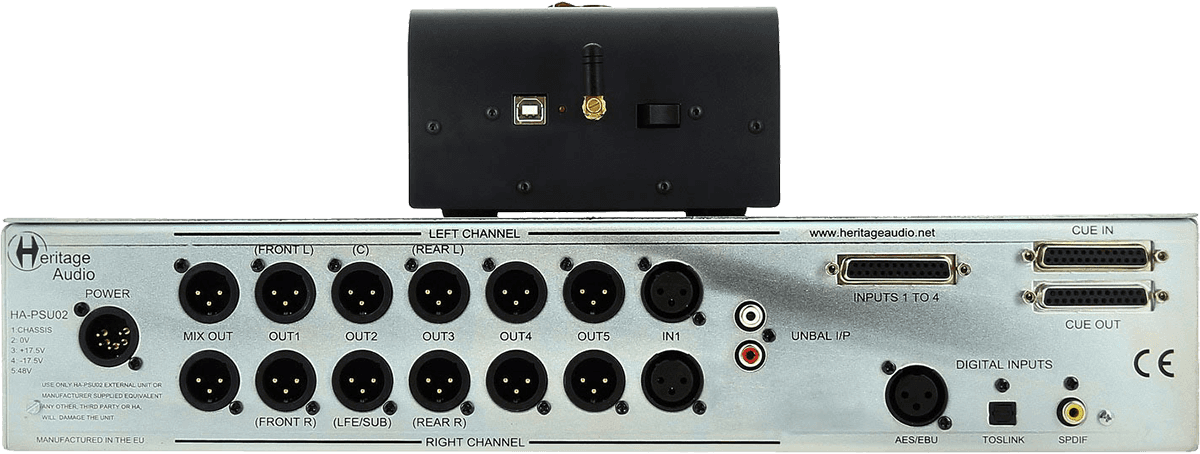

Input connector	Female XLR	Color	Blue
Output connector	Male XLR

Questions frequently asked

Is the Heritage Audio RAM System 5000 Module 5.1 ready for surround mixing?

The architecture is ready for 5.1 without any additional option, featuring dedicated Mute and Solo functions for each channel. Additional stereo outputs remain available for nearfield or control listening.

Is the monitoring volume accurate and recallable?

The stepped relay attenuator offers 64 steps, allowing consistent listening levels to be recalled between sessions.

How do the headphone outputs and Cue inputs work?

Two high-current headphone amplifiers, equipped with diamond buffers, power headphones with high or low impedance. The headphone source can be selected between Mix and Cue. Four pairs of CUE inputs on DSUB allow preparing dedicated artist monitor mixes.

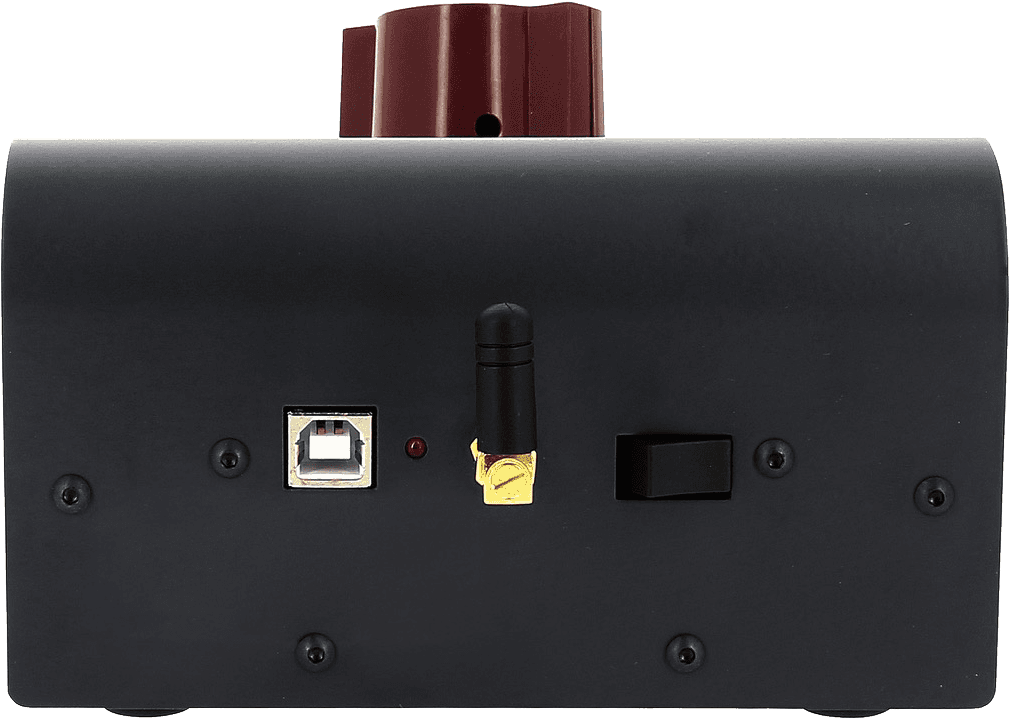

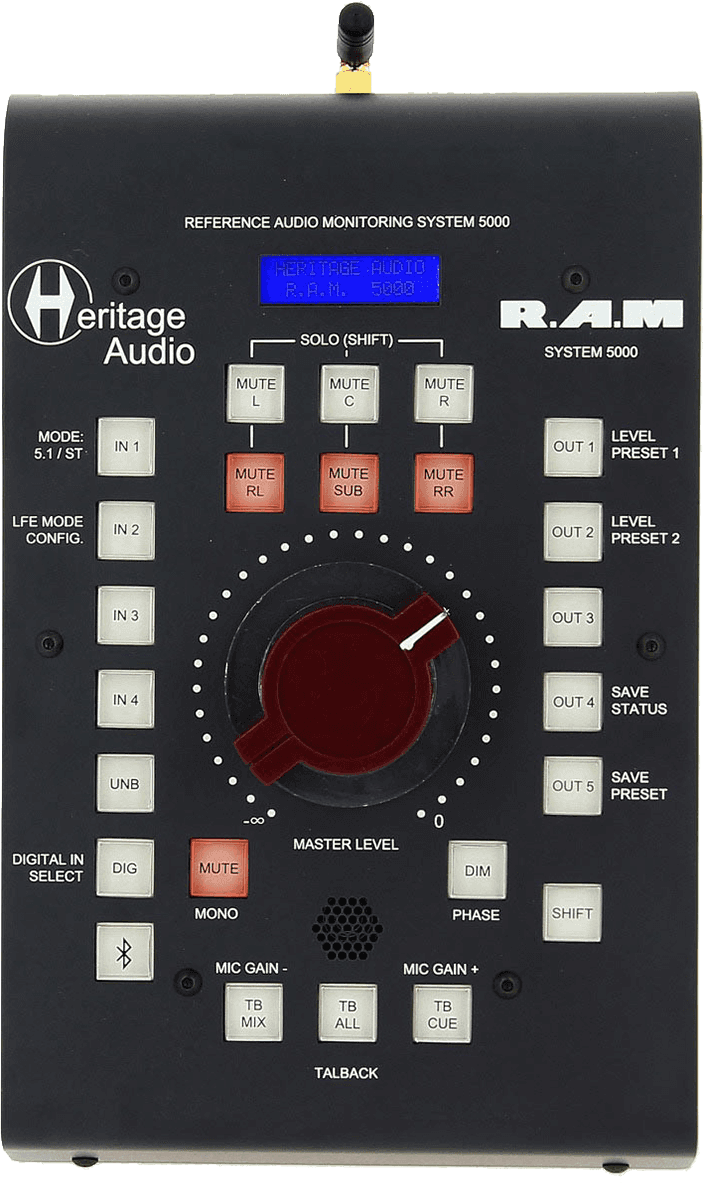

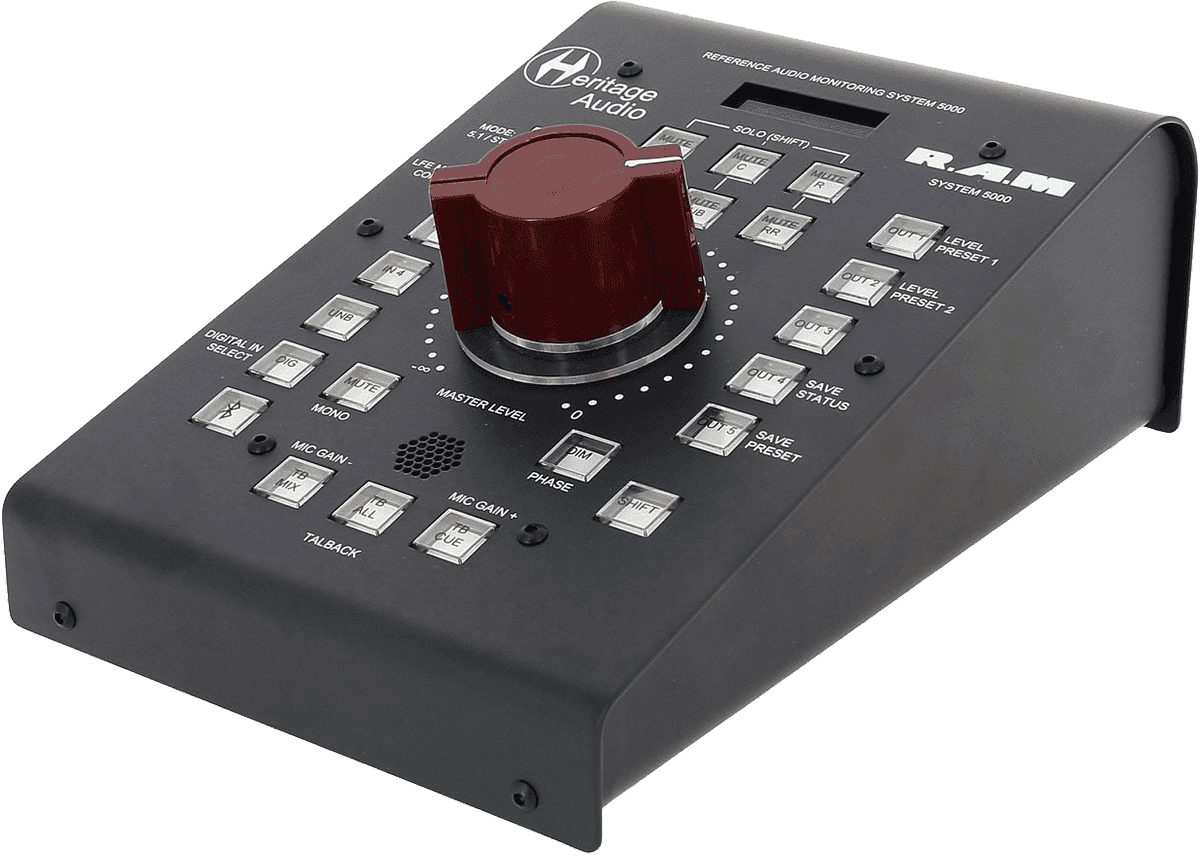

Are the remote control and talkback wireless?

The wireless remote control includes a long-lasting rechargeable battery charged via USB. The main rack has a charging dock, while the talkback also operates wirelessly.
