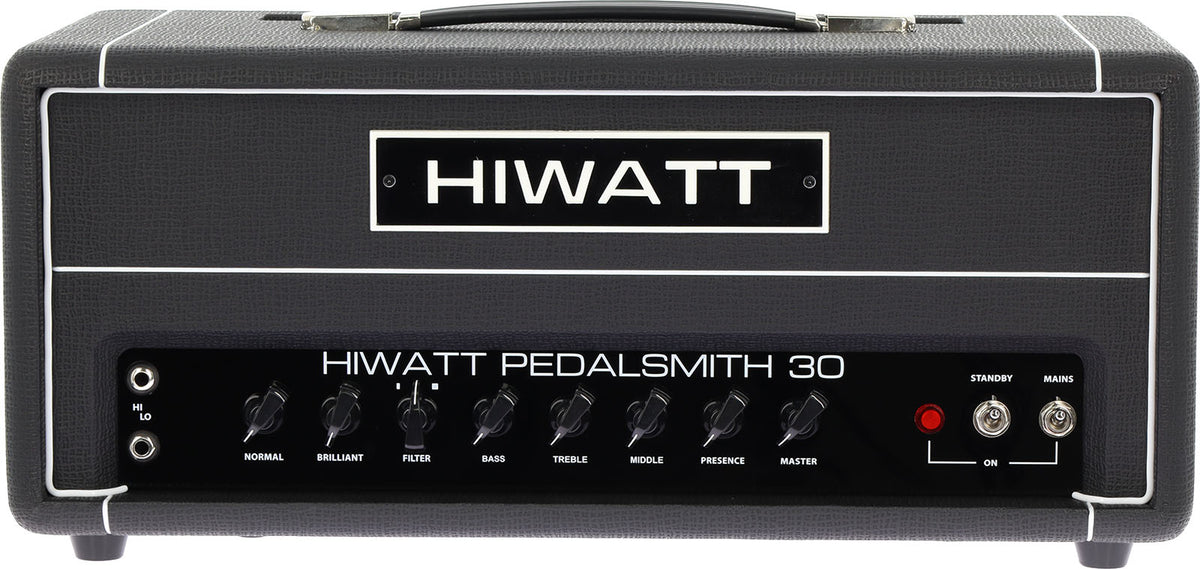

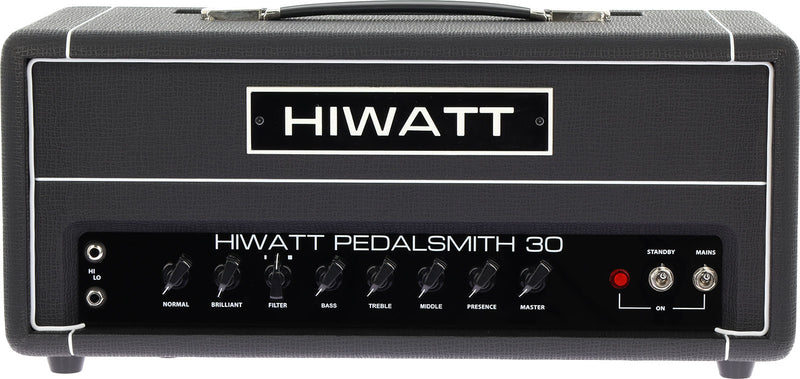

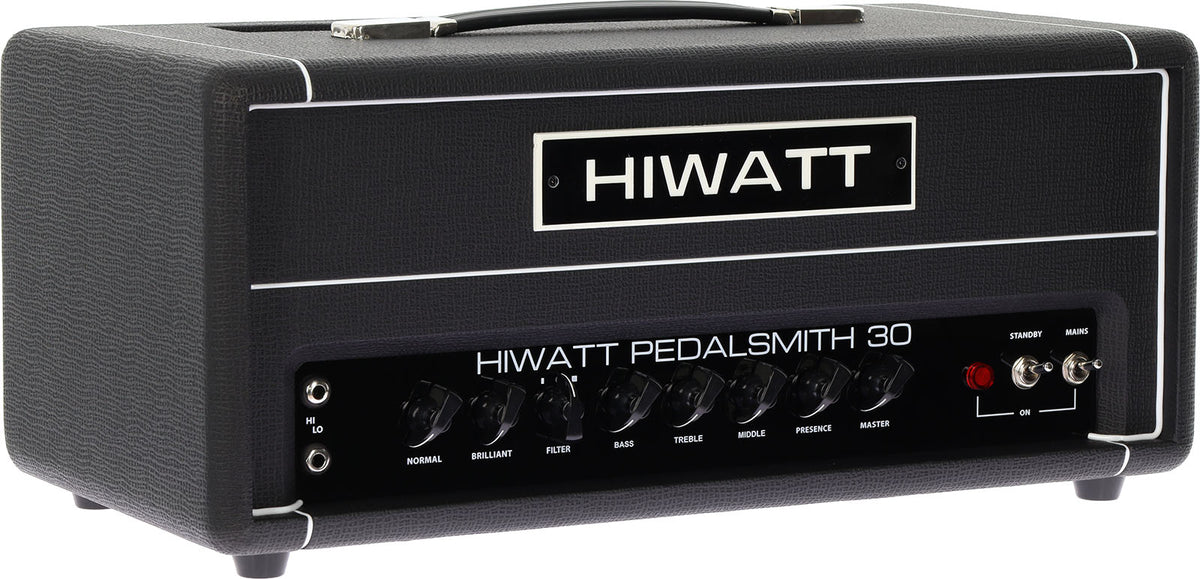

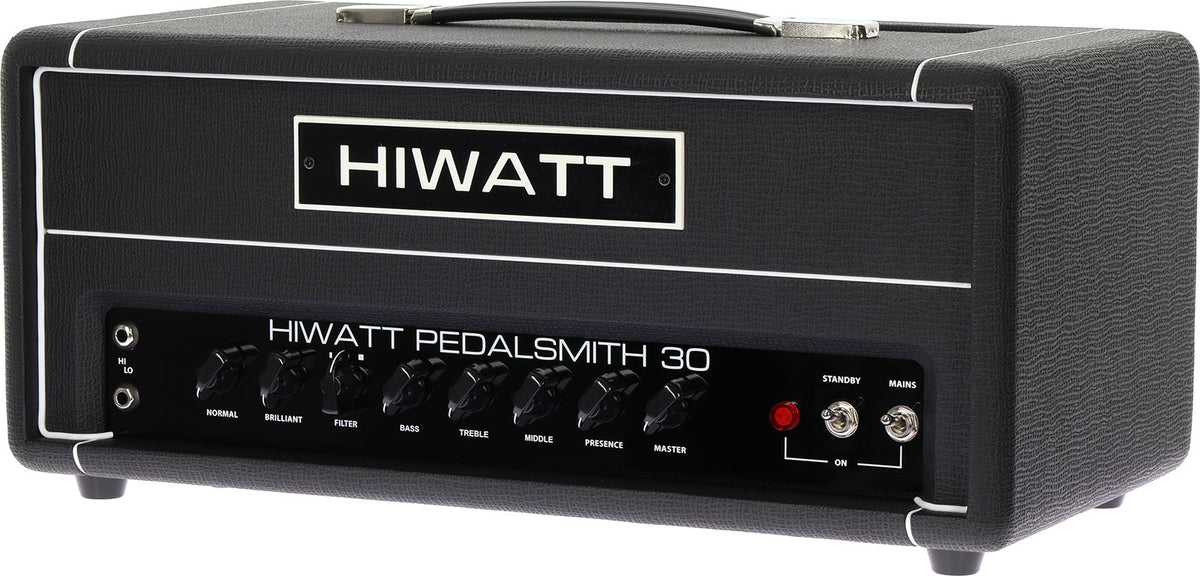

Hiwatt Pedalsmith 30W
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Hiwatt
https://www. hiwatt.co.uk
sales@hiwatt.co.uk
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
Historical Context and Positioning in the Lineup
The Hiwatt Pedalsmith 30 follows the tradition of Hiwatt amps inspired by the legendary DR504, a circuit whose sonic imprint has marked rock history since the 1970s. This identity, combined with tones ranging from massive clean to edgy crunch, is found on classic references (The Who, Led Zeppelin, Pink Floyd) as well as on more modern aesthetics (IDLES, Russian Circles).
Within the lineup, the Pedalsmith 30 positions itself as a more accessible and "today's musician"-oriented version: it retains the two-channel philosophy and the very direct response typical of the brand, while integrating design choices and practical features (including a silent effects loop) that facilitate its integration into a modern pedalboard.
Who This Amp Is For
The Pedalsmith 30 is aimed at guitarists looking for a 30-watt tube combo/head (depending on configuration) capable of serving as a solid foundation for a pedal setup, with a dynamic reserve that respects playing style and instrument character. It suits both intermediate players seeking a "final" amp and experienced guitarists in search of premium clean tones and organic crunch without artifices.
In practice, its 30 watts and 6V6 tubes make it an excellent choice for home studios, rehearsals, and small venues, where you want to feel tube response without having to play at extreme volumes. Style-wise, it naturally lends itself to classic rock, indie/alternative, post-rock, and stoner, as well as any genre where gain is built with overdrives, fuzz, and boosts, while maintaining excellent clarity.
Technical specifications
| Effects | Reverb, Delay, Chorus / Flanger / Phaser, Fuzz, Boost, Overdrive | Pre-amp tubes | 3 x ECC83, ECC83 |
| Category | Guitar amp head | Cabinet impedance (Ω) | 8 Ω |
| Technology | Tubes | Category | Amplifier |
| Input | 2 x jack | Number of channels | 2 |
| Output | 8 Ω cabinet jack, 16 Ω cabinet jack | EQ | 3 channels |
| Effects loop | Yes | Headphone output | No |
| Reverb | No | Color | Black |
| Footswitch input | No | Finishing | Black tolex |
| Amp tubes | 6V6, 2 x 6V6 | Power output | 30 W |
Questions frequently asked
Does the Hiwatt Pedalsmith 30 accept effects pedals?
The built-in effects loop, advertised as silent, allows placing delay, reverb, and modulation effects after the gain stages. The two channels, Normal and Brilliant, also provide a suitable foundation for overdrives, fuzz, and boosts.
Which speaker cabinet should be used with this 30 W head?
The speaker outputs on jack are designed for 8 Ω or 16 Ω cabinets. The impedance of the connected cabinet must match one of these outputs.
What sound do the 6V6 tubes deliver?
The power stage with 2 x 6V6 tubes provides a full and responsive tone with progressive saturation. In clean mode, chords retain clarity; when pushed, the crunch develops natural compression.
Is it possible to switch from a warm sound to a brighter sound?
Two channels with separate volumes, Normal and Brilliant, allow choosing a fuller or more cutting response. The High and Low inputs complement this adjustment.
Is there reverb, a headphone output, or a footswitch?
There is no reverb, headphone jack, or footswitch connection integrated into this head. However, it features an effects loop and a 3-band EQ with presence.
