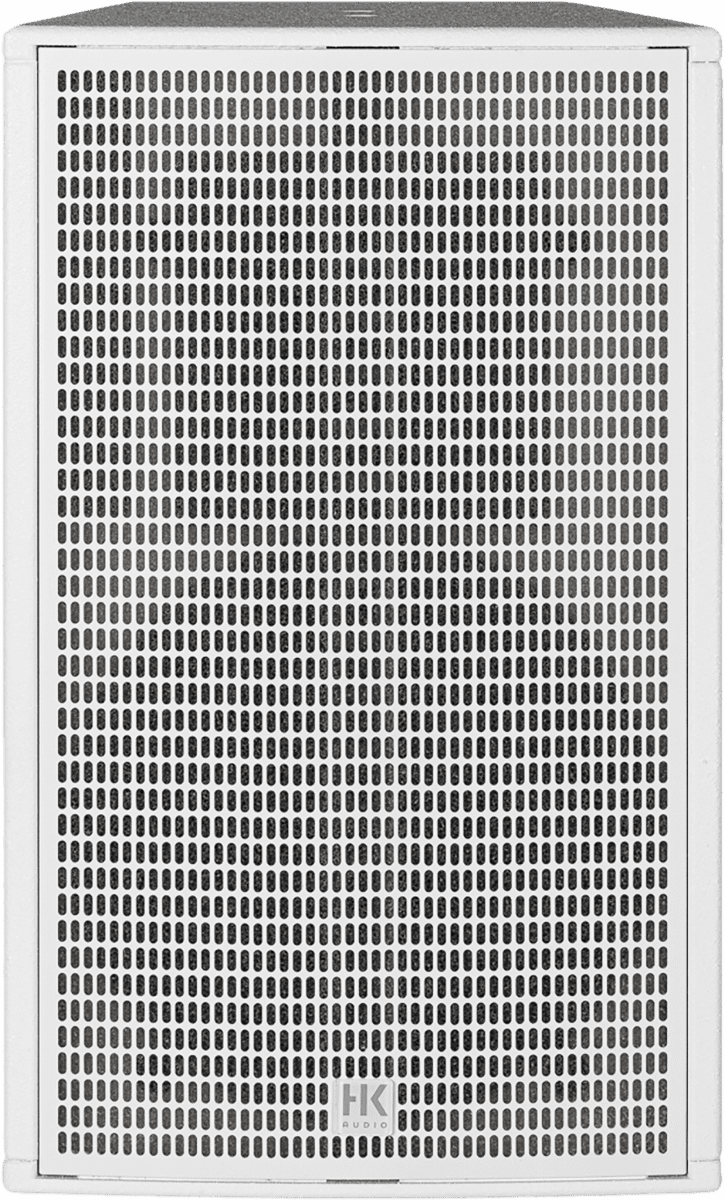

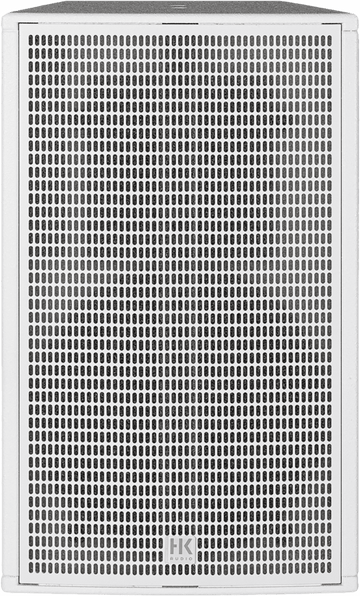

HK Audio FO-10W
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
What you need to know
What you need to know
- Designed for fixed indoor installation : simplified integration thanks to a range designed for the real needs of integrators.
- Controlled dispersion (80 deg x 60 deg): effective coverage for sound reinforcement in zones, multipurpose rooms, and public venues.
- Professional ecosystem : dedicated mounting accessories, announced DSP presets for Lab.gruppen IPX and LEA Professional, and settings for other platforms.
- Robust and reassuring : durable design, claimed to be resistant to ball impacts and compliant with DIN 18032-3 requirements for sports installations.
Manufacturer Information
HK Audio
https://www.musicandsales.com
info@musicandsales.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
FINEO: a range designed for integration in professional environments
FINEO is presented as a new product range dedicated to fixed indoor installations. Its development is based on feedback from experienced installers, with a clear goal: to offer a complete and coherent series, easy to deploy in various contexts. The range consists of several passive full-range speakers and subwoofers, available in black and white as standard, to adapt to the aesthetic constraints of rooms, public spaces, and institutional venues.
The "system" approach is at the heart of FINEO: beyond the speakers, the range emphasizes the availability of mounting accessories and design assistance tools (simulation data), to secure the study, speed up installation, and ensure a more consistent commissioning.
For which uses and venues?
This 10-inch 2-way coaxial speaker is aimed at integrators, operators, and specifiers seeking a reliable solution for indoor sound reinforcement: sports halls, gymnasiums, schools, multipurpose rooms, places of worship, small to medium capacity auditoriums, reception areas, bars/restaurants, conference rooms, or retail zones.
Its 10-inch format promotes a good balance between size, sound level, and ease of placement. The announced directivity (80 deg horizontal / 60 deg vertical) helps focus the sound energy on the useful area, practical for limiting reflections on walls and ceilings in reverberant rooms.
Technical specifications
| Category | installation | Impedance | 8 Ω |
| Type | passive speaker | SPL Max / peak | 123 dB |
| Insert type | M8 | Input sensitivity (1W/1m) | 91 dB |
| Peak power | 1200 W | SPL max | 119 dB |
| Peak power, type | RMS | Speaker structure | MDF |
| Number of channels | 2 channels | Inputs | 1 x NL4 (speakON compatible) |
| Recommended amps | 450 W | Outputs | Speakon |
| Connection | 2 x NL4 | Color | White |
| Speaker diameter | 10" | Power output | 300 W |
| Tweeter | 1" | Weight | 15.2 kg |
| Horizontal dispersion in degrees | 80.0000 | Dimensions (mm) | 321 x 521 x 328 |
| Vertical dispersion in degrees | 60.0000 | ||
You will also like
JBL
Control 29 AV-1 - Black
JBL
Control 29 AV-1 - White
FBT Install
Archon 110 Black
FBT Install
Shadow 108CT
FBT Install
CANTO 5CA B
LD Systems
LDSAT62G2w
FBT Install
Shadow 112CT
FBT Install
Canto 8C B Black
Questions frequently asked
What amplification is recommended for the HK Audio FO-10W?
An amplification of 450 W is recommended for this passive 8 Ω speaker. Its power rating is 300 W RMS and 1200 W peak.
Is the FO-10W suitable for a gymnasium?
The design complies with DIN 18032-3 standard for sports facilities. The speaker is stated to be impact-resistant to balls, featuring an MDF enclosure.
What sound coverage does this 10-inch speaker offer?
The dispersion is 80° horizontal and 60° vertical. This directivity allows targeting the listening area in indoor spaces. The maximum level announced is 119 dB SPL, or 123 dB SPL peak.
What connections are available?

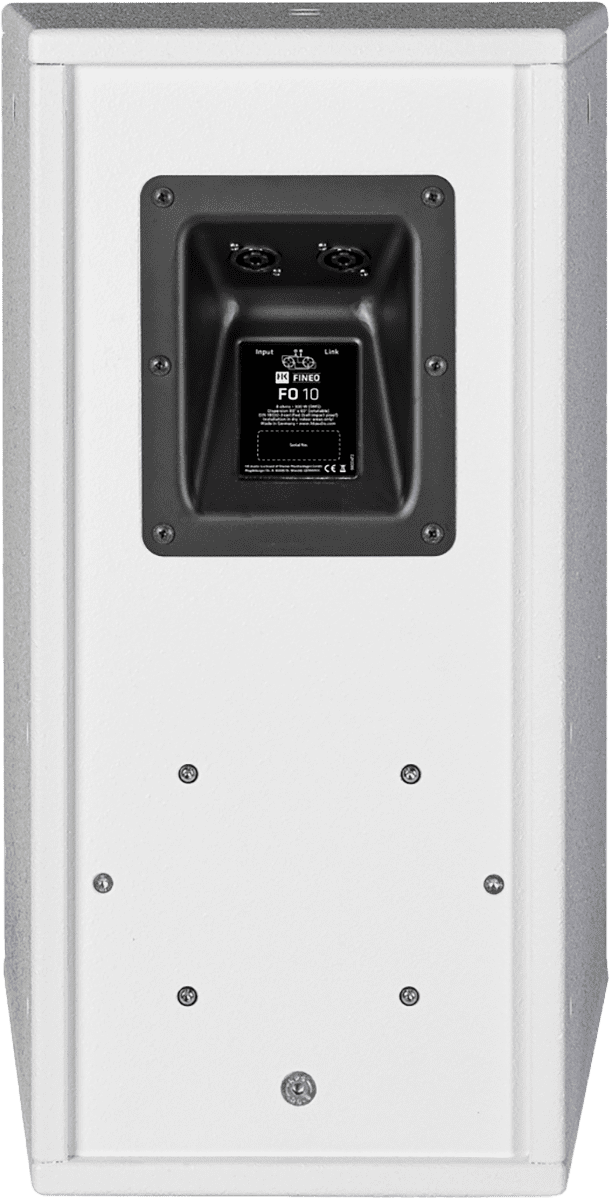

Two NL4 connectors are present, with a compatible speakON input and a speakON output for linking.
How to mount the white FO-10W speaker?

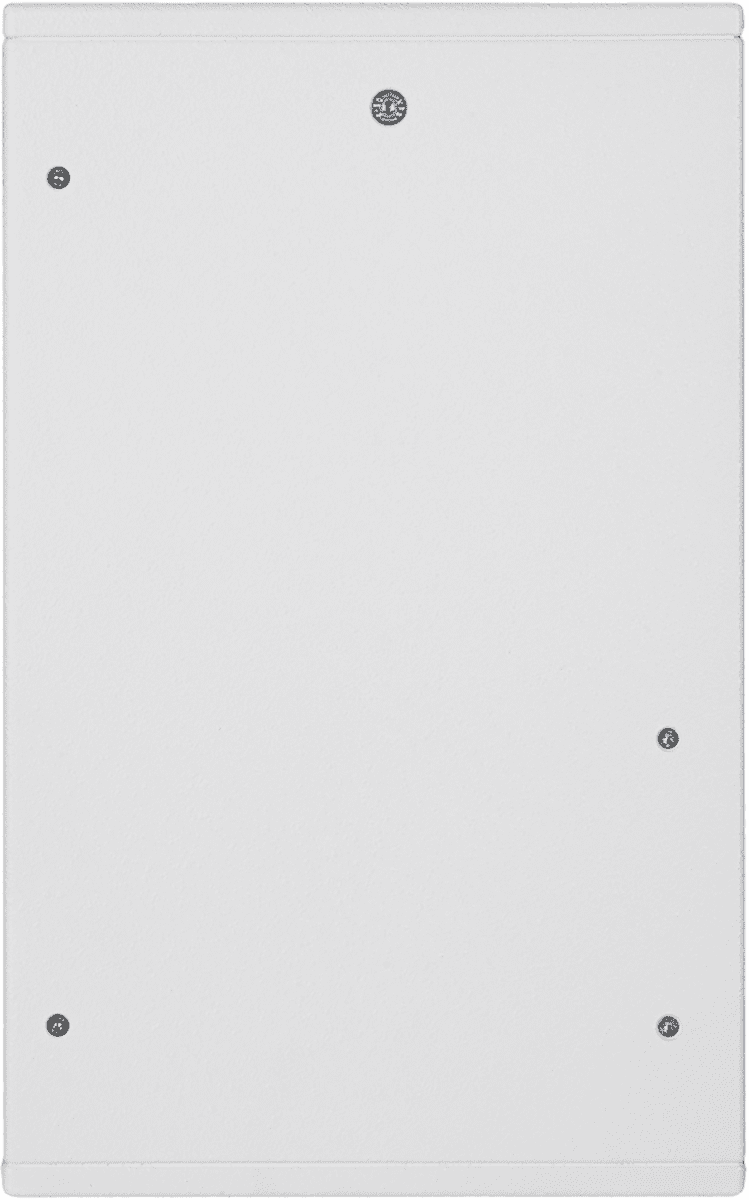

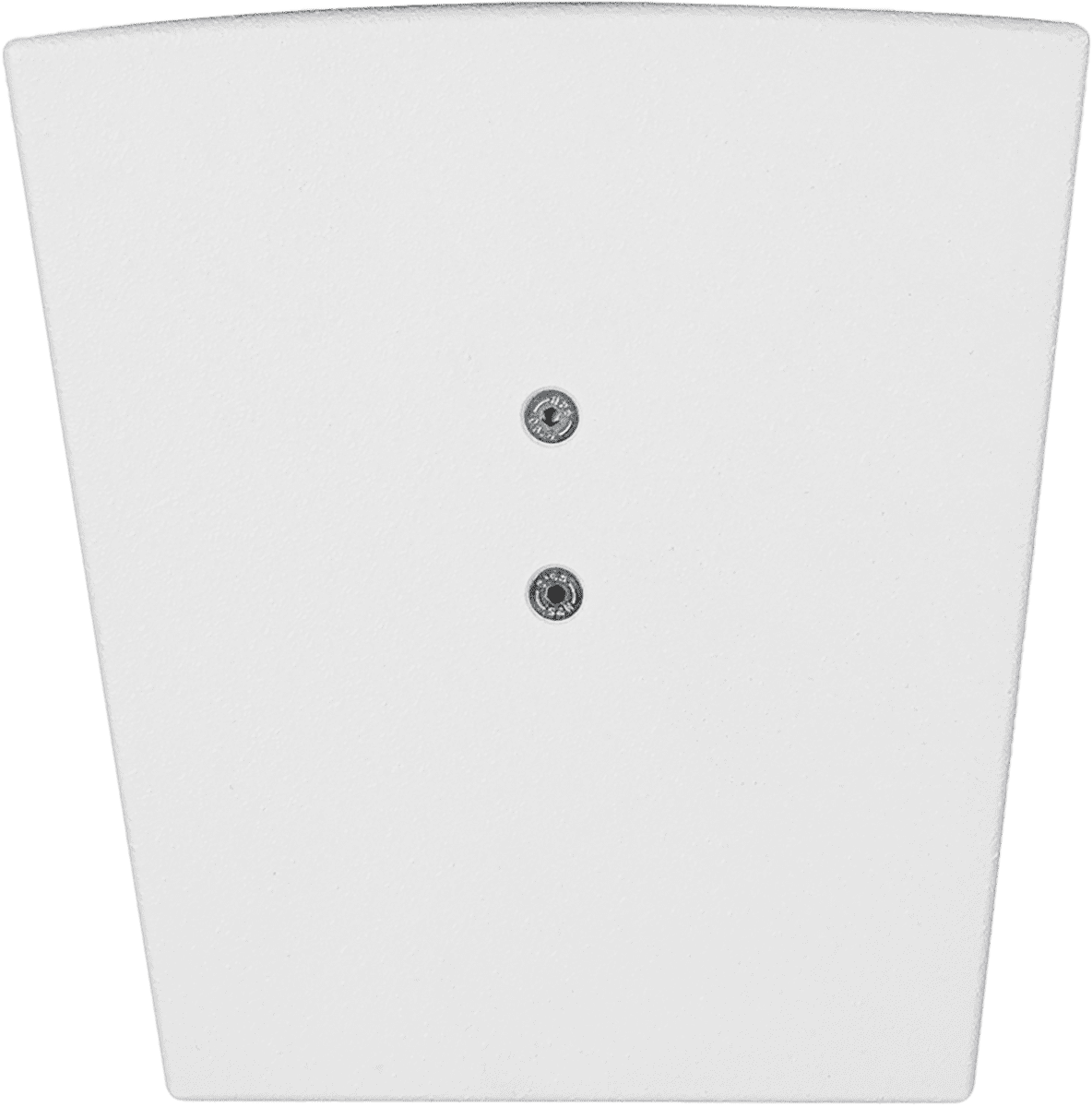

M8 inserts are provided on the sides, top and bottom, as well as at the rear with one M8 point and four M4 points. The dimensions are 321 x 521 x 328 mm with a weight of 15.2 kg.
