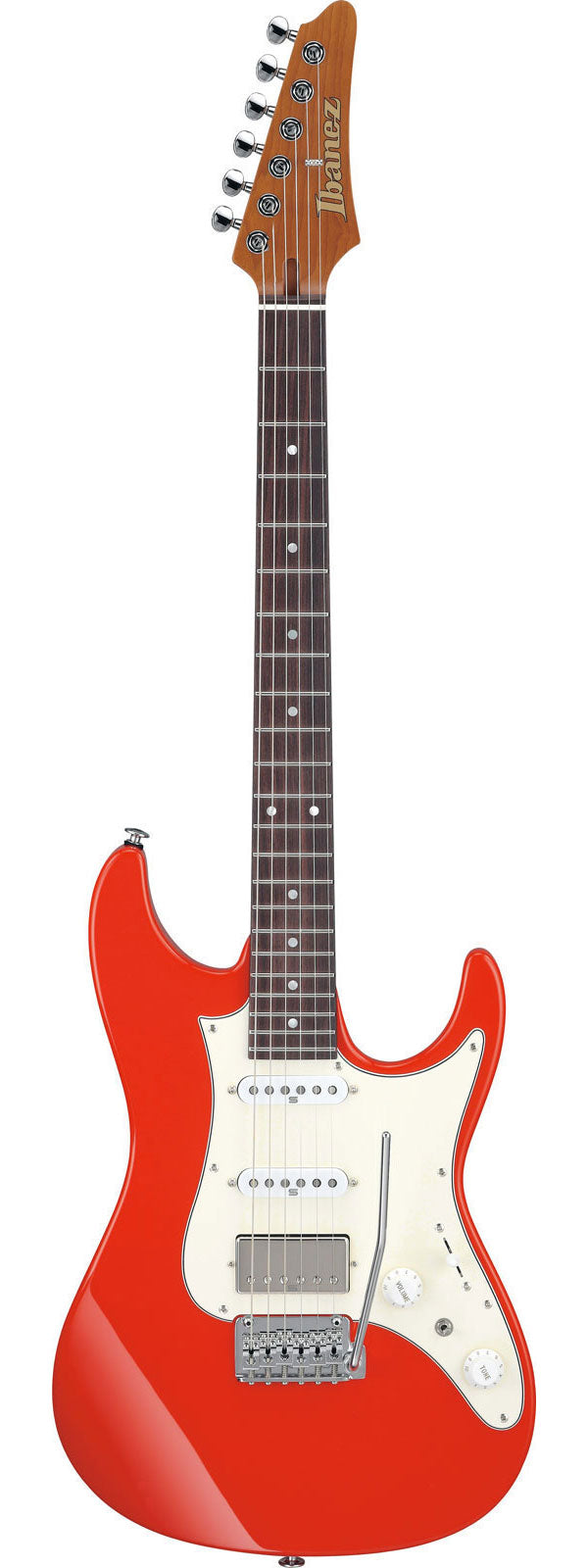

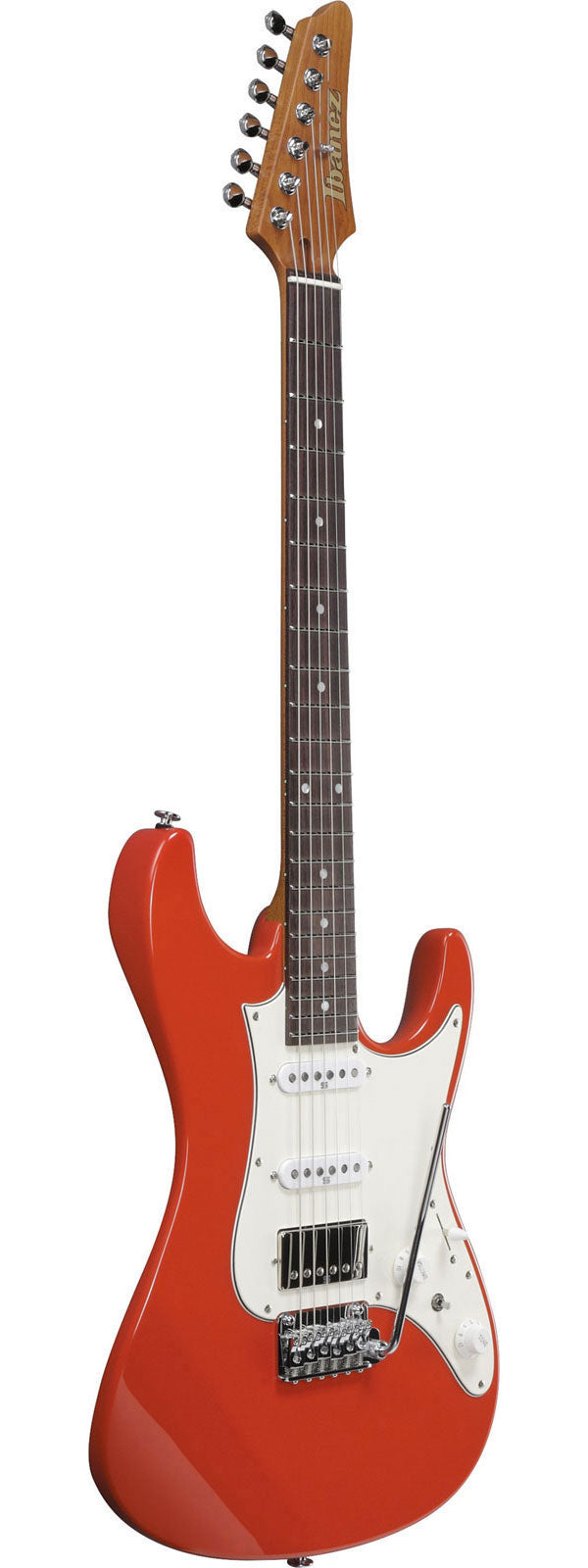

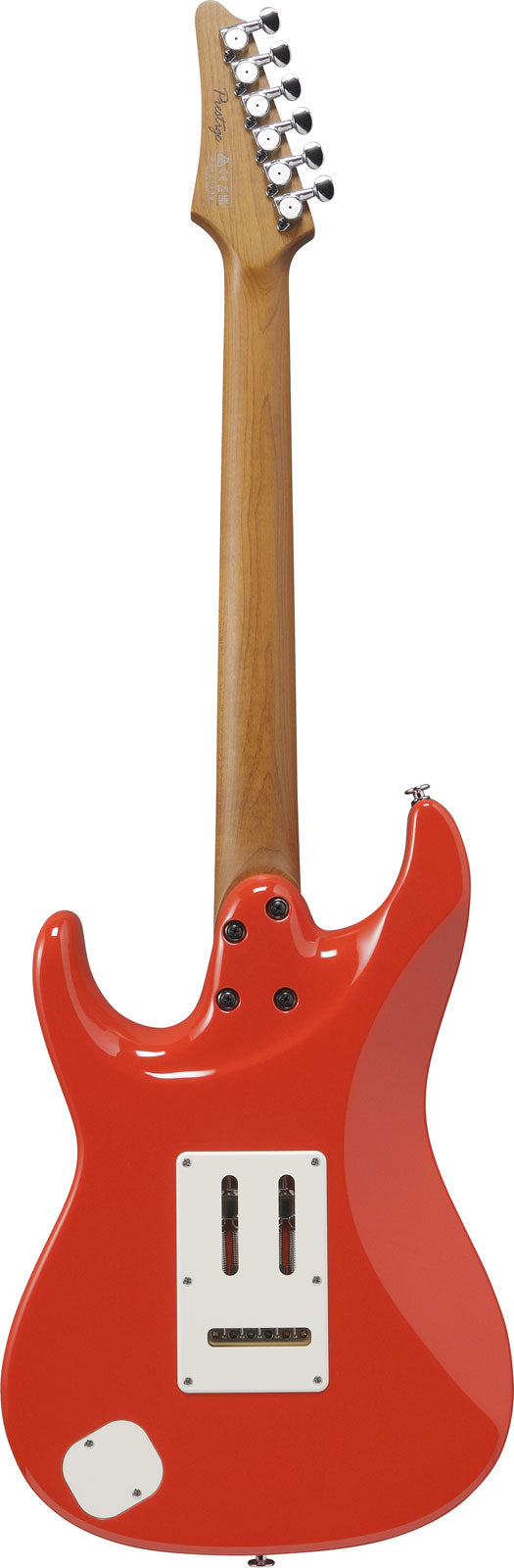

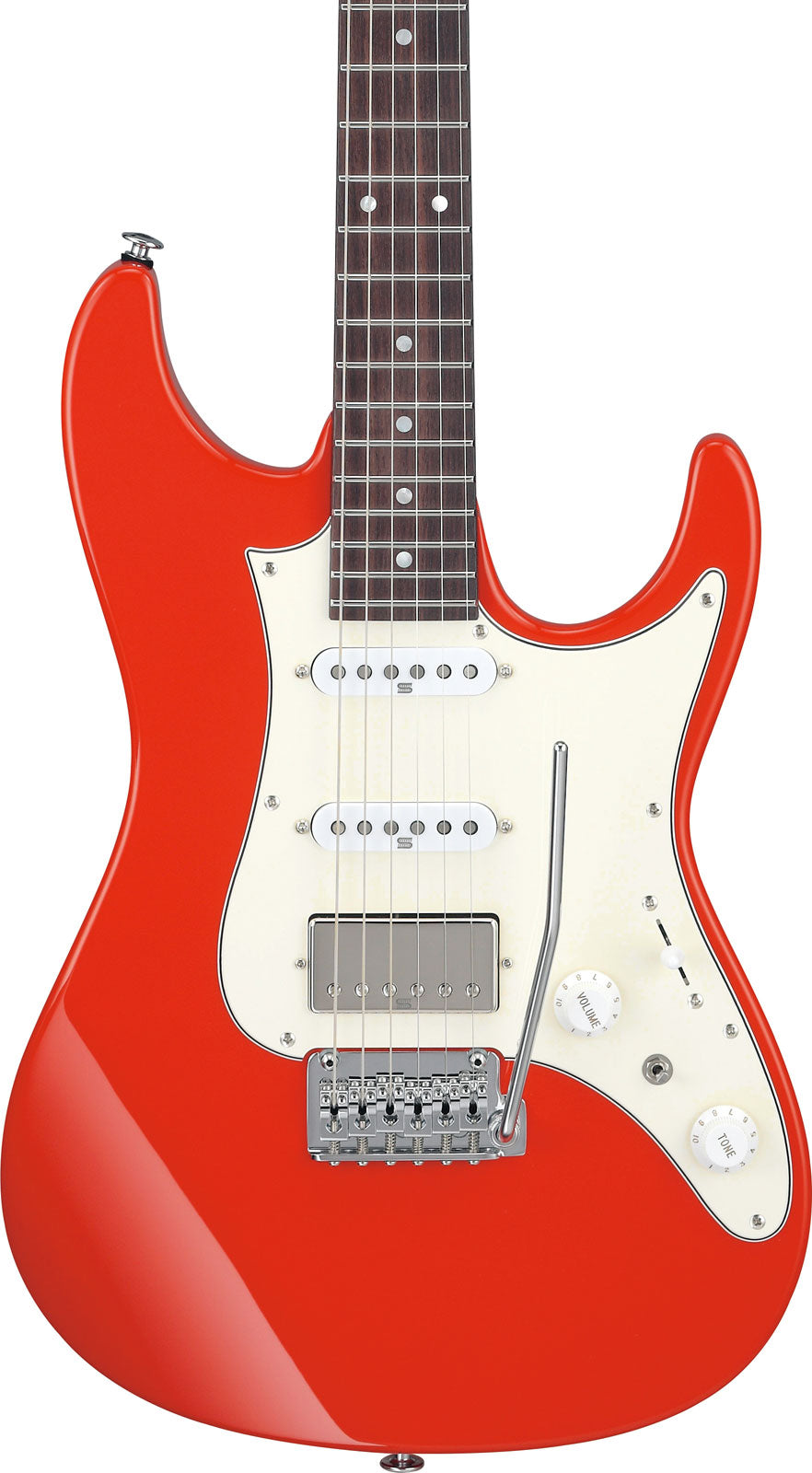

Ibanez AZ2204NW-VR Vermillion Red Prestige
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Essential Information About the Ibanez AZ2204N Guitar
Essential Information About the Ibanez AZ2204N Guitar

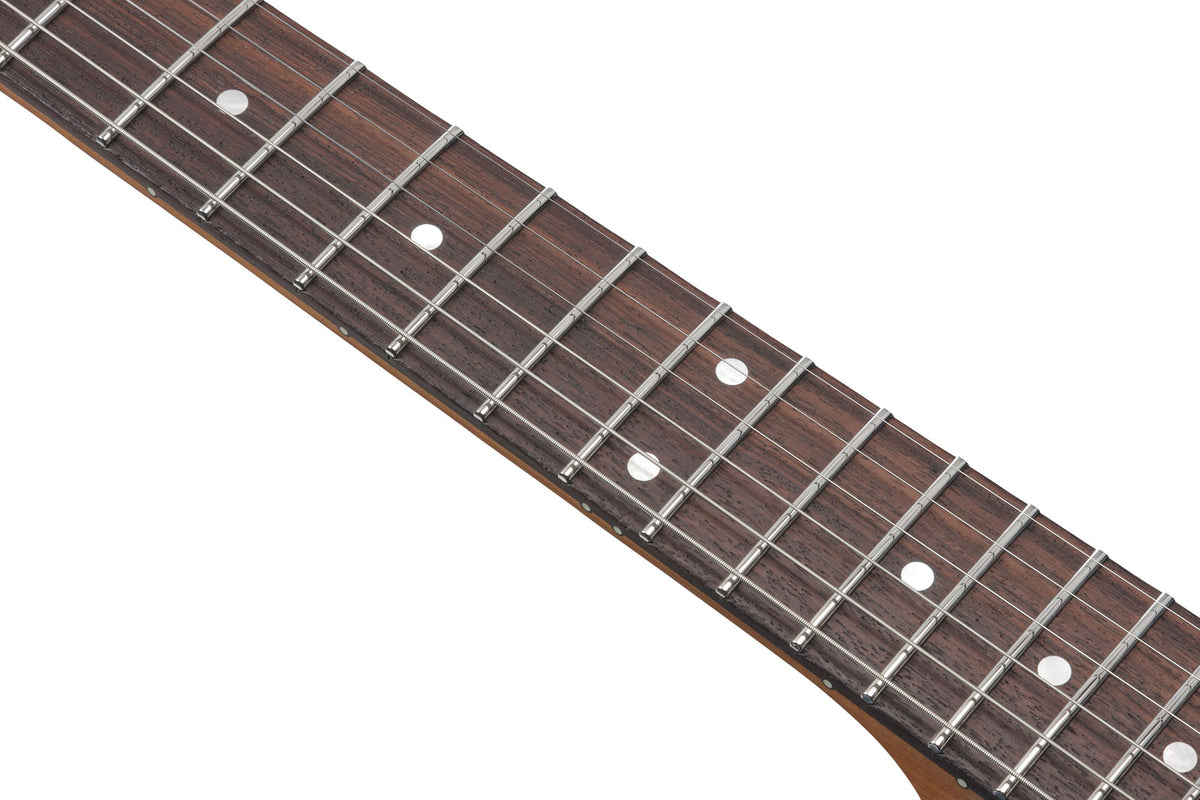

- Premium Playing Comfort: S-TECH roasted maple oval neck, rosewood fingerboard with a compound radius of 9"-12" (228-305 mm), and jumbo stainless steel frets with Prestige treatment.
- Immediate Versatility: Seymour Duncan Fortuna pickups in S-S-H configuration and dyna-MIX9 switching system with "Alter Switch" for 9 distinct tones.
- Stability and Precision: Non-recessed Gotoh T1702B tremolo, 5 springs, Gotoh Magnum Lock tuners with H.A.P. for reliable tuning.

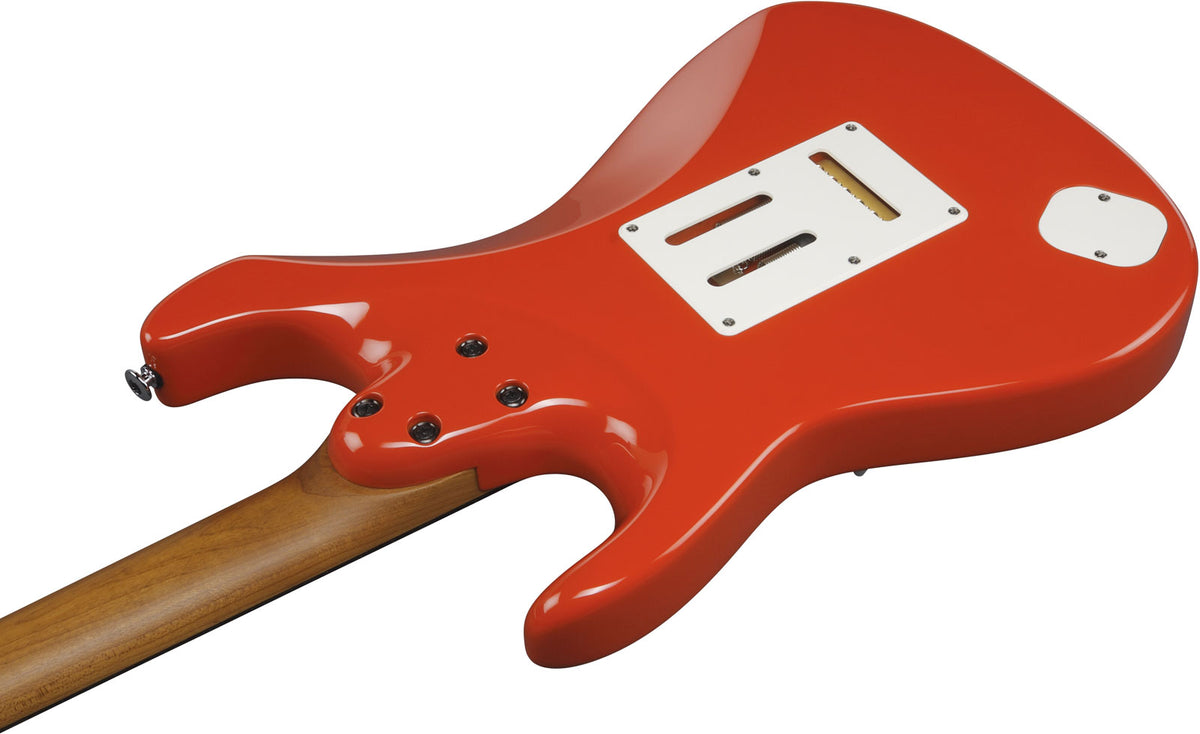

- Stage-Ready Ergonomics: "Super All Access" neck joint and optimized body contours for playing standing or seated.
Manufacturer Information
Ibanez
https://www.ibanez.com
------------------------
Safety manager:
Hoshino Europe
Email: info@hoshinoeurope.com
Address:
The AZ Series, Ibanez's Modern Vision
The AZ2204N is part of Ibanez's AZ lineup, designed with luthiers and studio musicians to offer a modern, precise, and ultra-versatile electric guitar. It combines contemporary craftsmanship (roasted maple, stainless steel frets, ergonomics) with intuitive electronics to cover everything from the silkiest cleans to expressive crunches, with impeccable stage reliability.
For Which Guitarist and Styles?
Ideal for intermediate to expert guitarists seeking an "S-style" capable of handling pop, rock, funk, fusion, and more modern genres. Its fast playability and very clear electronics make it an excellent companion for both studio and live performances.
The Sound

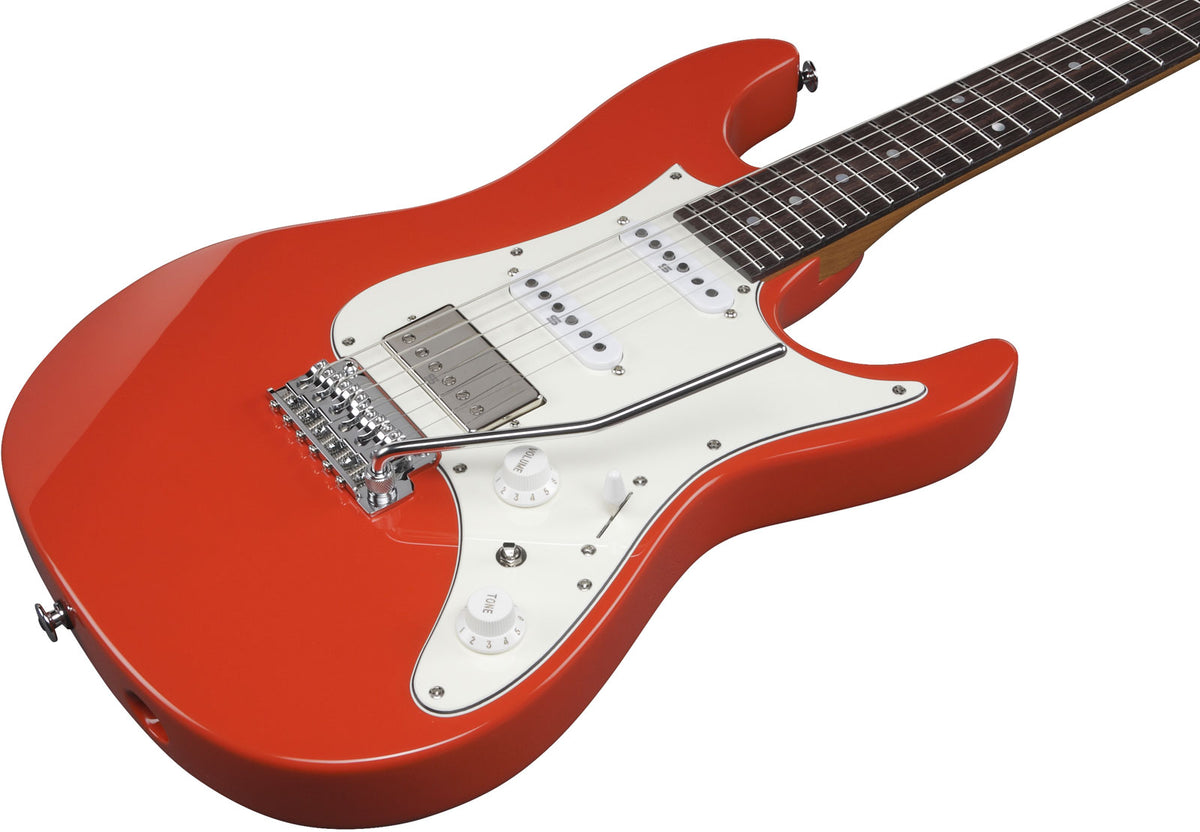

The alder body delivers musical mids and precise highs, combined with the warmth of the rosewood fingerboard and the snappy response of the roasted maple neck. The Seymour Duncan Fortuna pickups provide moderate output with a clear and balanced tone, perfect for stacking pedals. The dyna-MIX9 (5-way selector + Alter Switch) offers simple and double coil combinations, including a mode simulating a humbucker from two single coils, allowing instant shifts from funky chime to singing lead. The Gotoh T1702B tremolo, mounted non-recessed with 5 springs, maximizes contact with the body for enhanced resonance, articulation, and sustain.
Recommended Compatible Accessories
To protect and optimize your AZ2204N: Ibanez IGB724-BK gig bag, D'Addario EXL110 10-46 string set (factory installed), standard strap for classic strap buttons, and quality 6.35 mm instrument cable.
Technical specifications
| Electronics: microphone configuration | SSH | Scalloped | Double |
| Category | ST | Bridge / tailpiece | Tremolo |
| Left handed | No | Electronics | Passive |
| Strings | Steel | Electroacoustic | No |
| Nbr of strings | 6 | Color | Red |
| Fingerboard | Rosewood | Finishing | Glossy |
| Nbrs of frets | 22 | Hardware | Chromed |
| Top/back/body | alder (solid body), ergonomic forearm and back contours | Compound radius | 9" to 12" / 228 to 305 mm |

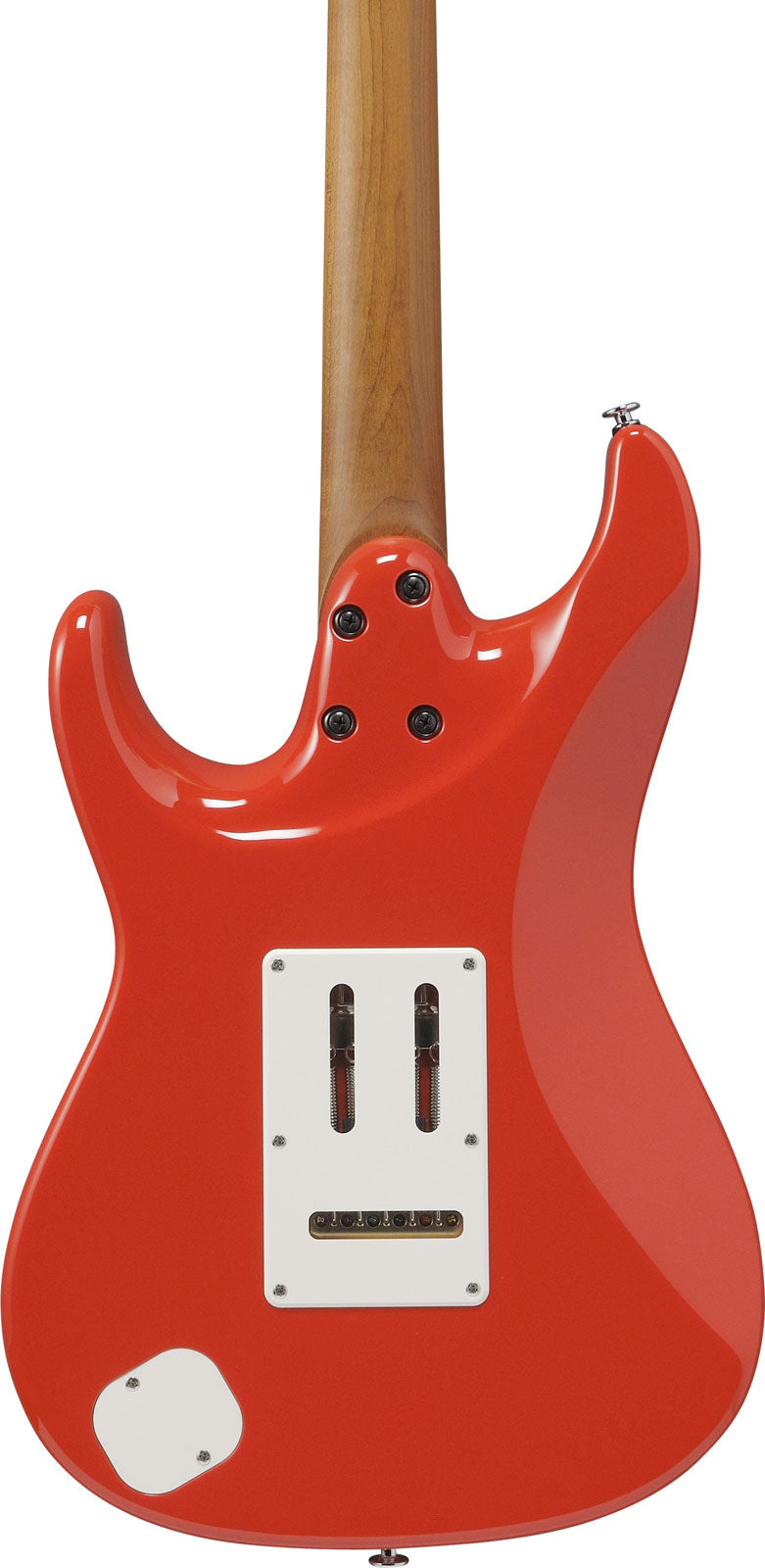

| Bridge cavity | non-recessed, direct bridge-to-body contact | Tremolo bridge | Gotoh T1702B, brass block and saddles |
| Type | AZ Oval C / S-TECH WOOD, roasted maple neck | String spacing at bridge | 0.41" / 10.5 mm |
| Key | rosewood, pearl dot inlays, Luminlay side dots | Tremolo springs | 5 |

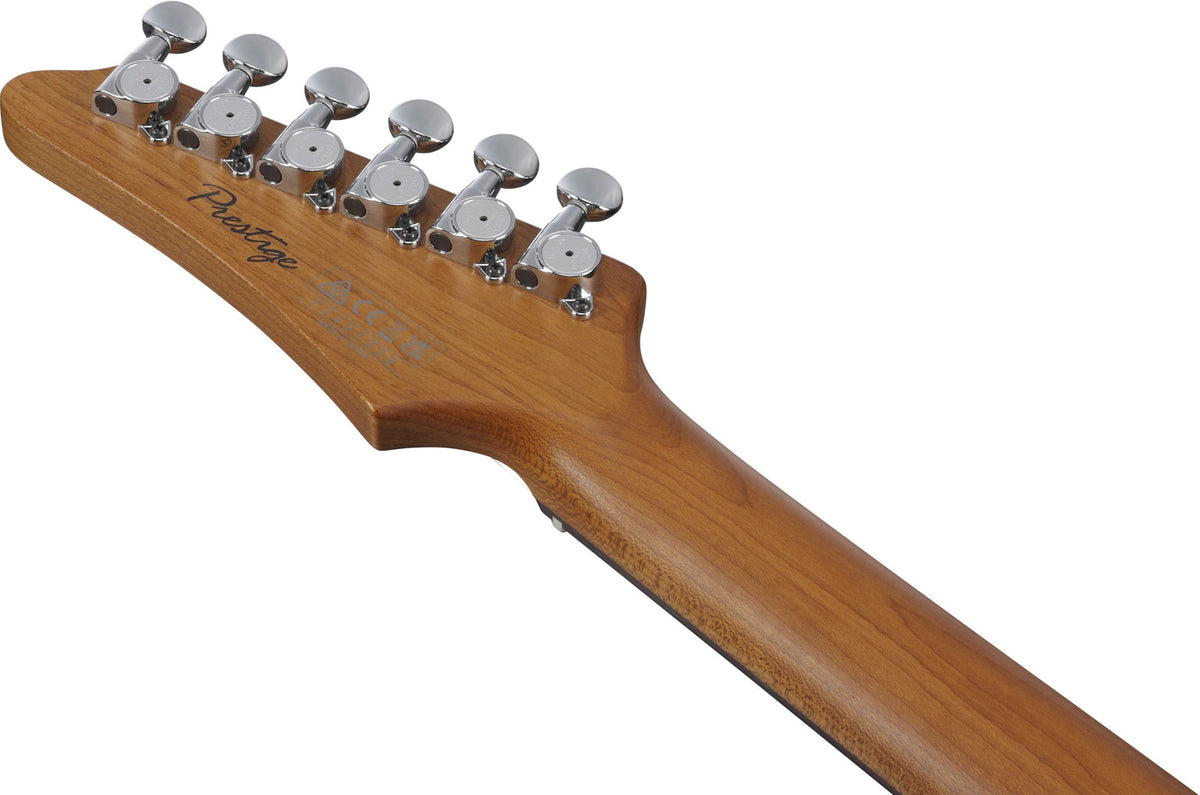

| Frets | 22 stainless steel jumbo, Prestige fret edge treatment | Tuning machines | Gotoh Magnum Lock with H.A.P. (Height Adjustable Post) |
| Joint | Super All Access Neck Joint | Hardware color | chrome |
| Nut | bone | Pickups | Seymour Duncan Fortuna - neck (S, passive/Alnico), middle (S, passive/Alnico), bridge (H, passive/Alnico) |
| Scale length | 25.5" / 648 mm | Pickup selection | 5-way selector switch + dyna-MIX9 system with " Alter Switch " (9 combinations) |
| Width at nut | 1.65" / 42 mm | Factory tuning | 1E, 2B, 3G, 4D, 5A, 6E |
| Width at 22nd fret | 2.22" / 56.4 mm | String gauge | .010 / .013 / .017 / .026 / .036 / .046 |
| Thickness at 1st fret | 0.81" / 20.5 mm | Recommended gig bag | IGB724-BK |
| Thickness at 12th fret | 0.89" / 22.5 mm | ||
You will also like
Gibson Electric
SG Standard '61 Stop Bar Vintage Cherry Original
Gibson Electric
Les Paul Standard Signature Kirk Hammett "Greeny" Greeny Burst
Fender
Stratocaster 1961 American Vintage II RW Fiesta Red
Gibson Electric
Les Paul Standard Signature Slash "Jessica" Honey Burst / Red Back
Fender
Tom Morello Arm The Homeless Stratocaster RW Blue Ice Metallic
Fender
Stratocaster 1961 American Vintage II RW Olympic White
Gibson Electric
Les Paul Standard 60s Figured Top Unburst Original
Gibson Electric
Les Paul Standard 60s Figured Top Bourbon Burst Original
Questions frequently asked
What pickups equip the Ibanez AZ2204NW-VR Vermillion Red Prestige?
The Seymour Duncan Fortuna consist of two passive Alnico single-coils at the neck and middle positions, with a passive Alnico humbucker at the bridge. Their moderate output level favors a clear and balanced tone.
Does the dyna-MIX9 system allow for humbucker sounds?
The 5-way selector works with the Alter Switch of the dyna-MIX9 system. This control provides access to combinations of single-coil and humbucker pickups. One position notably simulates a humbucker from two single-coil pickups.
What is the neck profile and scale length?
The roasted maple AZ Oval C neck features a 648 mm scale length, a 42 mm bone nut, and a compound radius from 228 to 305 mm.
Is the Gotoh T1702B tremolo suitable for expressive playing?
The Gotoh T1702B uses a brass block and saddles, with five tremolo springs. Its non-recessed mounting maximizes contact with the alder body.
Which gig bag and string gauge are recommended?
The Ibanez IGB724-BK gig bag is recommended for this model. The factory setup is standard tuned with a .010-.046 set, corresponding to the D'Addario EXL110 reference indicated.
